FSB / HT: | 2133/2400; | Card slots: | 1*PCI Express x16, 11*PCI Express x1; |
CPU Support: | LGA 1151 CPU; | OEM/ODM: | support; |
Maximum Ram Capacity: | 32GB; | With CPU: | No; |
Memory Type: | DDR4; | CPU Type: | Intel; |
Form Factor: | ATX; | Packaging Detail: | Colorful retail box; |
Application: | Desktop; | Package: | Yes; |
Brand Name: | Esonic; | Socket Type: | LGA 1151; |
Hard Drive Interface: | SATA; | Chipset Manufacturer: | Intel; |
Place of Origin: | Guangdong, China; | Memory: | 2*DDR4; |
SATA: | 4*SATA 3.0; | Sample: | Support; |
Graphics Card Type: | Integrated-need CPU support; | Products Status: | New; |
USB: | 4*USB3.0; | Memory Bank: | 2 DDR4 DIMM; |
Ports: | SATA,VGA,PCI-Express X16,PS2,Ethernet,USB 3.0,PCI-Express X1,HDMI; | Package Preview: | ; |
Port: | Shenzhen; | Memory channel: | Double; |
LAN: | Onboard Realtek 1000Mbps LAN; | Supply Ability: | 100000 Pieces per Month; |
Item Condition: | New; | Chipset: | Intel B250 Chipset,B250; |
Payment Terms: | L/C,Western Union,T/T; | GPU card: | support 12*GPU card; |

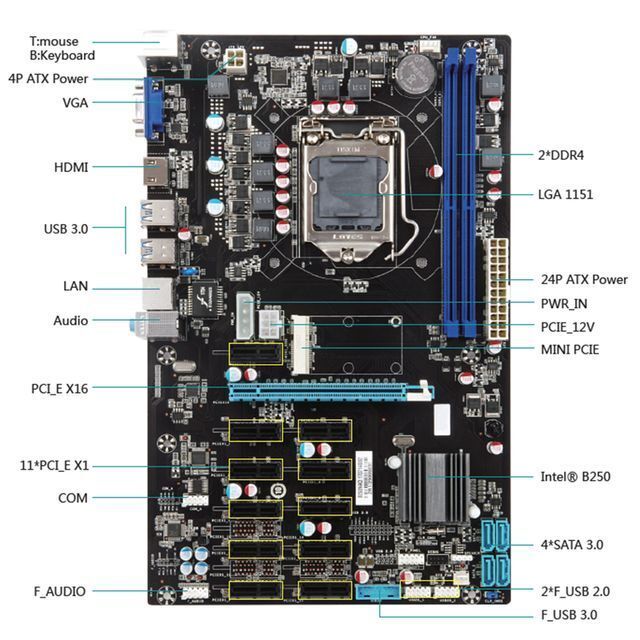

Chipset | Intel® B250 Chipset |
Processor Support | Supports 6th/7th Gen Intel® Core™ i7/i5/i3 processors for LGA 1151 socket |
Memory Support | Support 2*DDR4 DIMMs 2400/2133 MHz, up to 32GB. - Supports Dual-Channel mode - Supports non-ECC, un-buffered memory |
LAN | Onboard Realtek® RTL8111G Gigabit LAN controller |
Audio | Onboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack |
SATA | 4 SATA 3.0 Ports |
SLOTS | 1 PCI Express x16 11 PCI Express x1 1 MINI PCIE |
Back panel | 1 USB 3.0 pinheader 1 USB 2.0 pinheader 1* COM pinheader 1 Front Panel pinheader |
Slots | 1 PS2 Mouse/Keyboard Port 1 VGA Port 1 HDMlPort 4 USB 3.0 Ports 1 LAN Port 1 Audio Jacks(Line in / Line Ourt / Mic in) |
On-Board Pinheaders / Connectors | 1 USB3.0 Pinheader,for 2*USB 3.0 Ports 2 USB2.0 Pinheaders,for 4*USB 2.0 Ports 1 COM Pinheader 1 DEBUG Pinheader 1 Front panel Audio Header 1 Front panel header 1 PWR_IN Connector 1 PCIE 12V Connector 1 24-pin ATX Power Connector 1 8-pin ATX 12V Power Connector 1 CLR_COMS Pin Header 1 SPEAK Pin Header |
Form Factor | ATX (29.4cm X 18.5cm)7 mounting holes |
Accessories | 2X SATA data cable (optional) SATA 4-PIN power cable (optional) 1X I/O baffle 1X drive CD 1X User Manual |
