High quality high power single layer aluminum round shape led pcb 220v, MCPCB , pcb board

Supplier: Jiangmen Longxing Electronic Materials Co., Ltd.
Region: Guangdong, China
Contact: Ms Tanya Huang
Price: $0.08 / >=10000 pieces
Min. Order: 10000 pieces

Click here to contact

Product details

Solder mask color:	White/ black;	Thermal conductivity:	BGA can be 2.5mil, aperture(min)0.075mm,MID;
Base Material:	Aluminium base material;	Min. Line Spacing:	0.35mm;
Packaging Detail:	Pallet: 1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to customer requirements.;	Breakdown voltage:	2V-4.5V;
Testing service:	Welcome;	Layer:	Single layer;
Min. Hole Diameter:	0.70mm;	V-cut:	Angle: Standard 30°;
Model Number:	Led PCB;	Special technology:	BGA can be 2.5mil, aperture(min)0.075mm,MID;
Payment Terms:	D/A,T/T,Western Union,PayPal;	Place of Origin:	China;
Board Thickness:	0.8,1,1.2,1.5,1.6 and 2mm;	Servive:	OEM/ODM;
Combustibility:	UL 94v0 Standard;	Port:	Jiangmen;
Brand Name:	LONGXING;	Min. Line Width:	0.35mm;
Supply Ability:	200000 Square Meters per Month;	Surface Finishing:	OSP/HASL;
Copper Thickness:	12um-35um;	Model type:	Led PCB;

Jiangmen Longxing Electronic Materials Co.,ltd>>>

We insist on “Super quality and customer satisfaction” as our core values!

Our company main products Insulation Laminated Board, Copper Clad Laminated Sheets, Printed Circuit Board(LED Bar PCB, Electronic Circuit Board).

We provide One-stop service for you !

Product Description

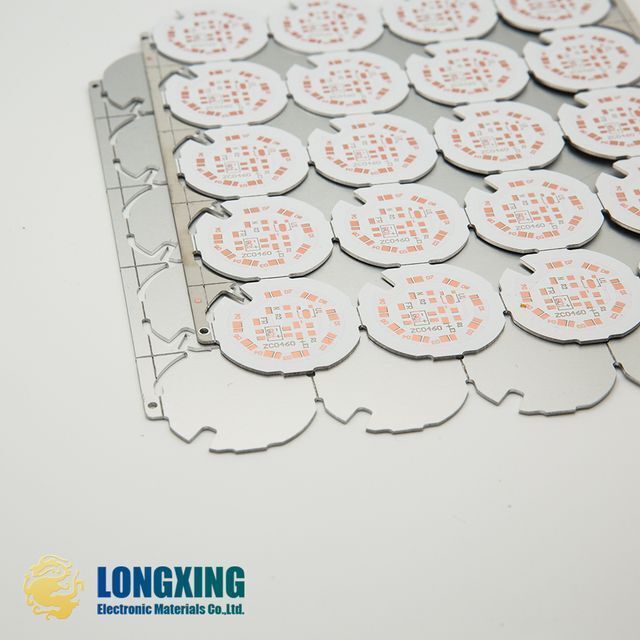

High quality high power single layer aluminum round shape led pcb 220v, MCPCB , pcb board

High Quality Pcb Led Lighting 94v0 Pcb Board ——We has many years experience in fabricating LED Lighting PCB Assembly. With our advanced engineering & production team and high-end manufacturing equipment,ensures perfect insulation between each layer and good performance of every conductor in multilayer PCBs.

Feaures

Products

· High thermal conductivity

· Excellent flame retardant

· High mechanical strength

· Very good heat sink

· Dimensional stability

·Electromagnetic shielding,etc.

(Bar, Round, Number, Letter, Irregular, etc) ALL Shape / Size / Color / Thickness could be Customize upon request. In addition, we can provide SMD processing services.

For PCB order, please provide Gerber file or * pcb file.

PCB sample,low volume PCB,mass production PCB are accepttable.

Our Advantage

>>>>>>Our operation is principle "win-win situation"!<<<<<<

The price of product is Cheaper than that of peers!!!

The quality of product is Better than that of peers!!!

We welcome more domestic and overseas customers to visit us for business negotiation.

Product Specification

Layer	Single layer
Material	Aluminum base, FR-4, Copper foil
Board Thickness	0.8mm ,1mm,1.2mm,1.5mm,1.6mm,2mm
Copper Thickness	12um-35um
Mini.Core Thickness	0.1mm(4mil)
Min. Trace/ Spacing Width	0.25mm (10mil)
Min. Hole for Punching	0.7mm (28mil) , Laser Drilling: 0.1mm(4mil)
Profile	CNC+V-CUT
Solder mask color	White, Black
Break down voltage	≥2KV

——We can Customize the product as per your requirement! -Consumer electronics LED pcb board, pcb printed circuit board and assembly, aluminum pcb,etc.

For PCB order, please provide Gerber file or * pcb file.
PCB sample,low volume PCB,mass production PCB are accepttable.

Any questions, welcome to contact us now!
