Port: | Shanghai; | Package Preview: | ; |
Key Selling Points: | High Rigidity; | Place of Origin: | Shanghai, China; |
Motor Type: | AC Motor; | Packaging Detail: | standard container of small mobile jaw crusher; |
Single package size: | 100X20X10 cm; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining; |
Packaging Details: | Standard Container; | Local Service Location: | Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia; |
Warranty: | 1 Year,1 Year; | Brand Name: | ZENITH; |
Marketing Type: | New Product 2020; | Warranty of core components: | 1 Year; |
Dimension(L*W*H): | 15150*2800*4500; | Single gross weight: | 25.000 KG; |
After-sale service: | For whole using life; | Spare parts supply: | For whole year; |
Certification: | CE&ISO,ISO9001:2000;CE;CQC; | After-sales Service Provided: | Video technical support,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
Machinery Test Report: | Provided; | Selling Units: | Single item; |
Test&Installation: | Engineer assigned; | Capacity(t/h): | 500; |
Weight: | 20t; | Showroom Location: | Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Kenya,Colombia; |
Type: | Jaw Crusher; | Supply Ability: | 30 Set/Sets per Month; |
Condition: | New; | Video outgoing-inspection: | Provided; |
Core Components: | PLC,Pressure vessel,Gear,Motor,Engine,Bearing,Gearbox,Pump; | Color: | Iron Grey; |
Application: | aggregate,mining,road; |

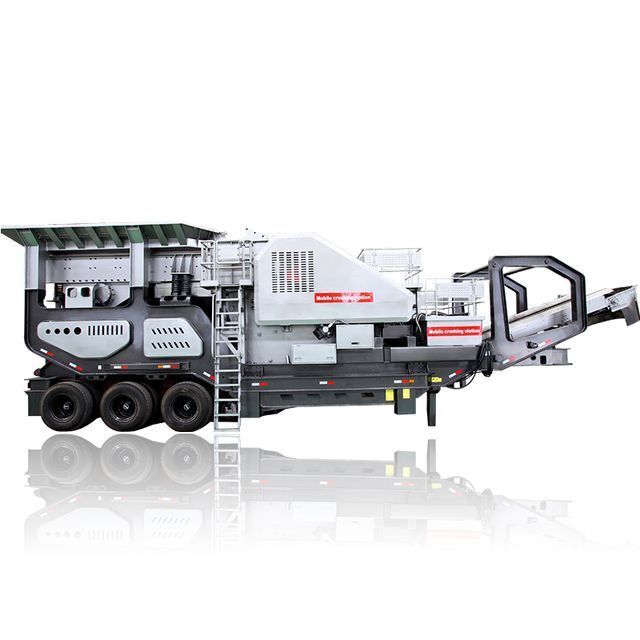

Gravel station used small mobile jaw crusher capacity 200-1000tph
1.Energy-Saving about 20%~35%.
2. professional small mobile jaw crusher
3.Stable performance
4. Competitive Price
Customer Case

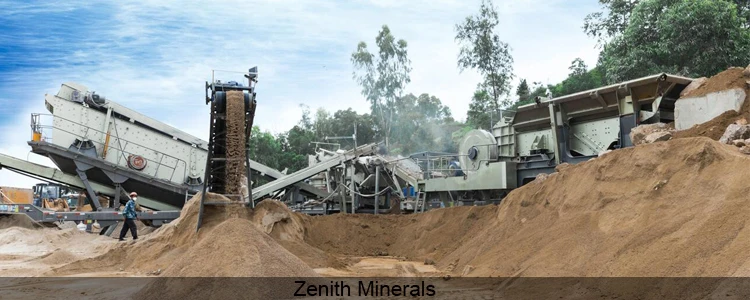

Russia 300-350TPH Granite Crushing Plant
Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h
Application: Supplied for construction of a rocket launch platform
Equipment:Portable Crusher
Project Background
The customer is a project investment enterprise, located in Moscow, Russia. The portable crushing and screening plant, purchased from ZENITH, was put into operation in far eastern area of Russia—Ugrigorsk, Amur region, which is Russia’s 'Oriental' space rocket launch site. It is one of the largest and most ambitious projects in Russia. In the early of 2016, Russian federal government officially proposed the establishment of Phase II of "Oriental" space rocket launch site. The customer invested a 350TPH crushing production line.
The customer is a project investment enterprise, located in Moscow, Russia. The portable crushing and screening plant, purchased from ZENITH, was put into operation in far eastern area of Russia—Ugrigorsk, Amur region, which is Russia’s 'Oriental' space rocket launch site. It is one of the largest and most ambitious projects in Russia. In the early of 2016, Russian federal government officially proposed the establishment of Phase II of "Oriental" space rocket launch site. The customer invested a 350TPH crushing production line.
Introduction of small mobile jaw crusher
small mobile jaw crusher is a new type of equipment developed on the basis of years of independent research and development and manufacturing experience of wheel mobile crushing plant, and in combination with the new user demands. It is optimized and innovated in the aspects of structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widen the application fields of wheel mobile crushing plant, and truly realize the approaching treatment of materials.
small mobile jaw crusher component
1. The product use of world-class manufacturing processes, selection of the high-end materials.
2. The base of bearing use of integrated steel structures.
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal line width.
4. The broken cavity is deep and without dead zone, increased capacity and output feed.
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance.
6. The outlet use of pad-style adjustment devices, convenient and reliable, large of adjustment range, and increase the flexibility of the equipment.
7. Low noise, less dust.
Application of small mobile jaw crusher
Zenith provides a complete line of stone production; the output is widely used in Construction (like concrete, highway, railway, brick, building, etc), For Mining ( like gold, copper, Iron ore beneficiation or nonmetal beneficiation, etc)
small mobile jaw crusher parameters
Mobile jaw crusher:
Mobile (Portable) Jaw Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration↵ ) | Engine (Optional) | Overall dimension (mm) | ||||
Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power(kw) | |||
YF938J69-N | Two-Spindle | GZD960×3800 | 500 | 6-11 | PE600×900 | 500 | 6-75 | B800×8.5 | 200 | 12600×2550×3870 |
YF1142J710-N | Three-Spindle | GZD1100×4200 | 580 | 6-11 | PE750×1060 | 630 | 8-90 | B1000×9.5 | 250 | 13900×2750×4320 |
YF1349J912-N | Three-Spindle | GZD1100×4900 | 750 | 6-22 | PE900×1200 | 750 | 8-130 | B1200×10.5 | 270 | 15450×2950×4380 |
YF1349J811-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW860 | 720 | 6-132 | B1200×10.5 | 320 | 15450×2950×4380 |
YF1349J1120-N | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PEW1100 | 930 | 8-185 | B1200×10.5 | 400 | 15450×2950×4380 |
Mobile impact crusher plant:
Mobile (Portable) Impact Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the clifent.
Model | Car Body | Feeder | Crusher | Belt Conveyor (standard configuration) | Engine (Optional) | Overall dimension (mm) | ||||
Model | Feeding Size (mm) | Power (kw) | Model | Feeding Size (mm) | Power (kw) | Size(m) | Power (kw) | |||
YF938FW1214Ⅱ | Two-Spindle | GZD960×3800 | 500 | 6-11 | PFW1214II | 500 | 4-132 | B800×8.5 | 360 | 12600×2550×3870 |
YF1142FW315Ⅱ | Three-Spindle | GZD1100×4200 | 580 | 6-15 | PFW1315II | 600 | 4-160 | B1000×9.5 | 400 | 13900×2750×4180 |
YF1349FW318Ⅱ | Three-Spindle | GZD1300×4900 | 750 | 6-22 | PFW1318II | 700 | 4-200 | B1200×10.5 | 500 | 15450×2950×4180 |
Y3S1860F1214-N | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PF1214 | 350 | 6-132 | B800×8.5 | 360 | 14300×2830×4380 |
Y3S2160F1315-N | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PF1315 | 350 | 6-200 | B1000×8.5 | 500 | 14300×3190×4380 |
Y3S1860FW214Ⅲ | Three-Spindle | 3YK1860 | ≤400 | 4-22 | PFW1214Ⅲ | 250 | 4-132 | B800×8.5 | 360 | 14300×2830×4380 |
Y3S2160FW315Ⅲ | Three-Spindle | 3YK2160 | ≤400 | 4-30 | PFW1315Ⅲ | 300 | 4-160 | B1000×8.5 | 400 | 14300×3190×4380 |
Mobile combined crushing plant:
The mobile conbined crusher plant has the advantages of easy transportation, low transportation cost, flexible configuration, convenient maintenance etc. It can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three stage crushing plant with primary, secondary, and tertiary crushing according to different clients' requirements. Likewise, it can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.
Model | Y3S23F93J46S36 | |
Car Body | Two-Spindle | |
Feeder | Model | GZD960×3800 |
Feeding Size(mm) | 500 | |
Power(kw) | 11 | |
Crusher 1 | Model | PE400×600 |
Feeding Size(mm) | 350 | |
Power(kw) | 6-37 | |
Crusher 2 | Model | CS75 |
Feeding Size(mm) | 115 | |
Power(kw) | 75 | |
Vibrating Screen | Model | 3YK1237 |
Feeding Size(mm) | ≤200 | |
Power(kw) | 15 | |
Belt Conveyor(standard configuration) | Size(m) | B500×15 |
Size(m) | B650×6 | |
Size(m) | B650×10 | |
Size(m) | B500×4 | |
Engine(optional) | Power(kw) | 200 |
Overall Dimension(mm) | 15600×2900×4450 |
Finished Products
México 1200-1400 TPH Crushing Line
Project Profile
Location: Mexico
Raw Material: Magnetite
Input Size: 0-500mm
Output Size: 0-12mm,12-40mm
Capacity: 160-180TPH for 1 line (8 lines consist of 16 sets of mobile crushers)
Application: Construction
Equipment: YF1142J760-N Mobile Crushers*8; Y2S1860C51-N Mobile Crushers *8
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
