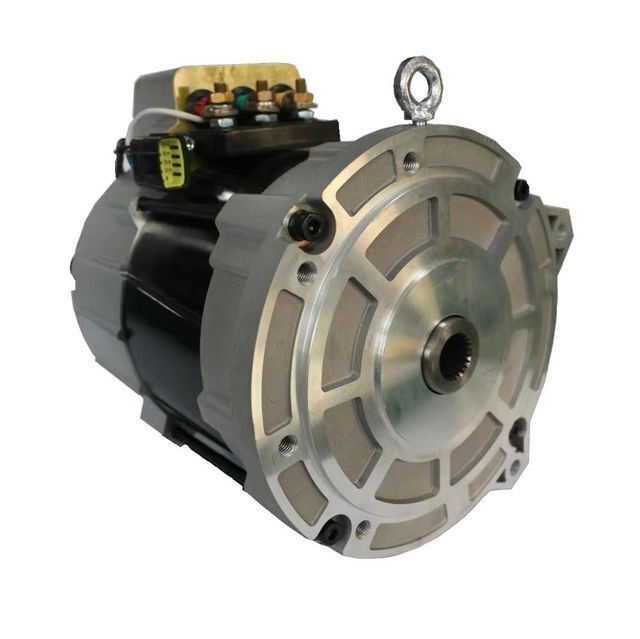

30kW Electric PMSM Motor Motor Controller Kit for Electric Car and Boat

Supplier: Foshan Uni Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony SU
Price: $1510.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	3months-1year;	Frequency:	240 Hz;
Efficiency:	IE 4;	Name:	30kW PMSM Motor Driving Kit for Electric Vehicle;
Rated Torque:	54 N.m;	Packaging Detail:	Seaworthy packing;
Place of Origin:	Guangdong, China;	Type:	Synchronous Motor;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Max. Torque:	180 N.m;
Rated Power:	30kW;	Dimension:	245*273mm;
Rated Speed:	3600 r/min;	Phase:	Three-phase;
Model Number:	30kW PMSM Motor;	Application:	Electric Car Vehicle or Boat;
Max. Speed:	6000 r/min;	Protect Feature:	Waterproof;
Weight:	30kg;	Max. Power:	60kW;
Brand Name:	Uni;	AC Voltage:	96V;

Recommend Products

Tracked Chassis Undercarriage

Electric Motorcycle Conversion Kit

5kW PMSM System

30kW PMSM System

About Us

We have successful experience converting gas car to electric.

Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

Our products:
1. AC driving system (3kw-15kw): AC motor, AC motor controller
2. PMSM driving system (5kw, 15kw, 20kw, 30kw, 50kw, 70kw): PMSM motor, PMSM motor controller
3. Transmission assembly: rear axle, front live shaft, reducer, rear/front drive assembly
4. Power supply system: battery charger and Lithium battery

5. Other components: DC-DC converter, dashboard, pedal, encoder and brake

6. Electric motorcycle conversion kit: motor, controller & gearbox

Product Description

Functions of Controller:

Convert direct current of battery to alternating current.
Recharge the battery during braking (regenerative effect).
Receive driver's commands when accelerating or braking.
Monitor the operation of the driving system in order to ensure safety.
In all, it is the combination of inverter, rectifier, and regulator.

Specification
AC Motor	Rated Power: 3kW-15kW	Rated Voltage: 48V-144V	Max. Torque: 65N.m-120N.m
PMSM Motor	Rated Power: 5kW-70kW	Rated Voltage: 48V-144V	Max. Torque: 65N.m-200N.m
AC Motor Controller	Rated Power: 3kW-15kW	Rated Voltage: 48V-144V	Max. Current: 250-500a
PMSM Motor Controller	Rated Power: 5kW-70kW	Rated Voltage: 48V-144V	Max. Current: 300-500a
Gearbox	Ratio:6:1/8:1/10:1/12:1	Torque Capacity:180N.m	Net Weight:15~30kg
Rear Axle	Ratio:6.5/8.6/10.5/12.31/14.5/18.6/21/25	Torque Capacity:300N.m~500N.m	Net Weight:15~90kg

Electric Vehicle Power System Training Platform

Production & Service

R&D Department

We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.

Production Center

A full set of processing equipment can guarantee the accuracy;

Advanced automatic wire embedding system is to ensure the consistency;

Semi-automatic production line will improve the productivity.

Quality Management

The quality assurance department will supervise the production process and the test equipment can insure the product quality.

Certifications

Cases

Convert Fuel Car to Electric Car (18T Scrubber)

After calculation, we use the following driving system.

Motor Power	95/150	Torque (N.m)	900/1800
Speed (rpm)	1000/3000	Rated Voltage (V)	DC540
Max. Efficiency	94%	Working Voltage (V)	DC350-750
Battery Voltage (V)	DC540	Battery Capacity (kwh)	225
Gears	4	Ratio	4.406/2.446/1.481/1

Motor plus four-speed gearbox can drive the 18T sweeping car well.

Packing & Delivery

Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
