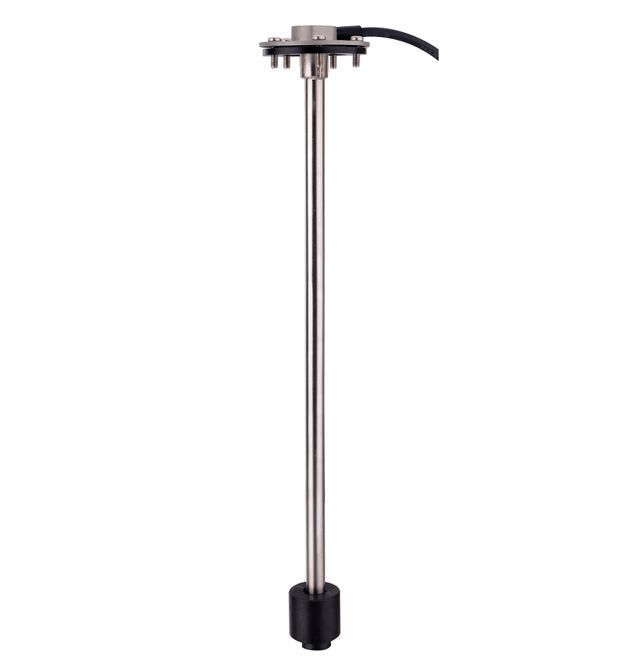

MR-MS5-300 oil level gauge gps gsm fuel level sensor

Supplier: Ningbo Mingrui Sensors Co., Ltd.
Region: Zhejiang, China
Contact: Mr Allen Shao
Price: $15.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Model Number:	MR-MS5-300;	color:	metallic;
application:	level sensor;	size:	long size;
Port:	ningbo;	Place of Origin:	Zhejiang, China;
design:	own design;	installation:	easy;
Brand Name:	gps gsm fuel sensor;	Supply Ability:	10000 Pieces per Month depends on the order;
material:	stainless steel;	place of production:	Ningbo;
package:	carton;	raw material:	sus304;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,all type;	Packaging Detail:	plastic bag and carton;
company profile:	manufacturer;

Gps gsm fuel sensor

1.Low c ost 2.Long life3.Simple installation 4.Wide applications

MR-MS5-300

Introduction

water/oil tank liquid level sensor with lots of function, such as liquid level control, heating, oil suction, oil return, temperaturealarm, fuel filter, balance box for air pressure and safety. Mainly used for oil/water/sewage continuous indication and alarm.

Features

effectively improve the comprehensive function of the tank system, and greatly reduces the cost of fuel tank system,also reducethe potential failures in construction, such as oil leakage, box deformation, explosion and other security risks.

Applications (LEV05001,05002......05007)of single pipe sensor

mainly used in liquid level detection and oil absorbing function for oil tank of heavy-truck.

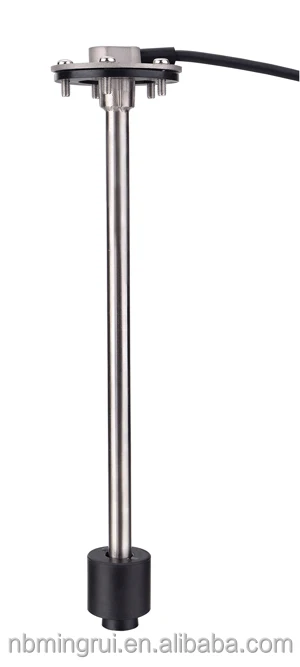

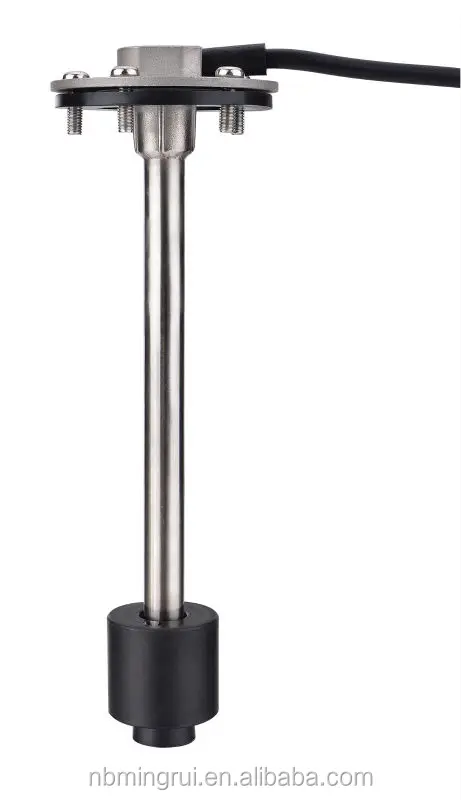

LEV05001,05002.....05005 Series

Main body made with SUS304 material
Length range: 100~2000mm, or custom manufacturing
Equipment method: SAE standard with 5 holes, or others
This product made with 5 screws, or changed with other material of gasket by operating environment
Protection class: IP67

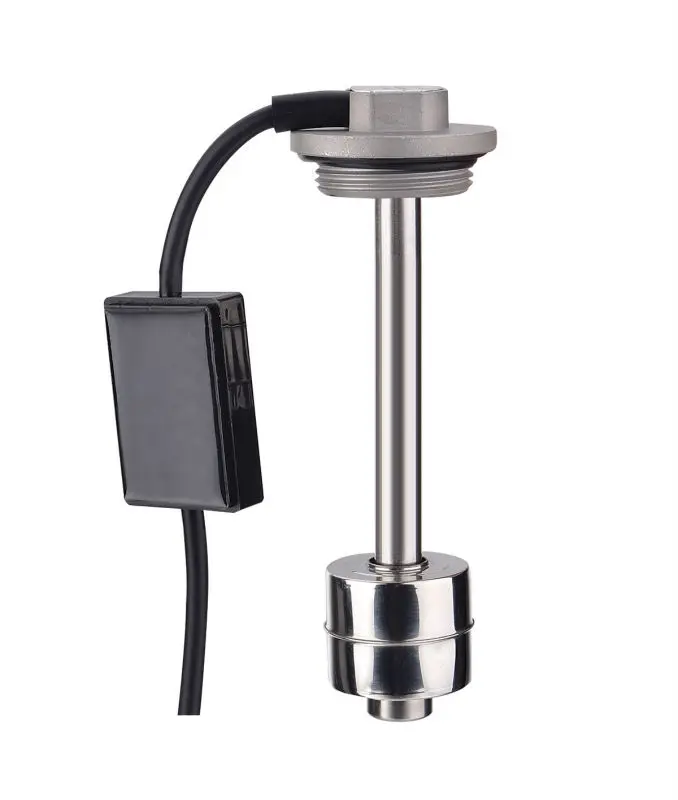

LEV05006,05007 series

Main body made with SUS304 material
Length range: 100~2000mm, or custom manufacturing
Equipment method: BSP1 1/4” turning thread joint or PT turning thread joint. Additionally, the type of flange and oil tank can be optional
This product made with 38*2.6mm O-Rings, or 43*3.5mm O-Rings
Protection level: IP67

Specifications

Model	LEV05006,05007		LEV05001,05002.....05005
Model	Standard	Non-standard	Standard	Non-standard
Length	100~1500mm	Customization	100~1500mm	Customization
Output signal	0~190Ω	Customization	0~190Ω	Customization
Output signal	240~33Ω	Customization	240~33Ω	Customization
Equipment	BSP1 1/4"	BSP1 1/4"	SAE standard	SAE standard 5 holes
method			5 holes	holes
Seal ring	NBR	NBR	NBR	NBR
Seal ring	NBR	FPM	NBR	FPM
Alarm	Non	Optional	Non	Optional
Cable length	460/280mm	Customization	460/280mm	Customization
