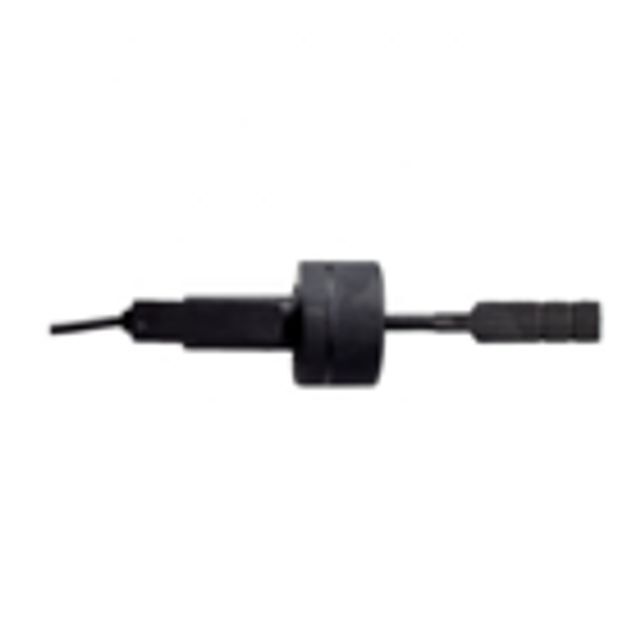

MR-JX-01 swimming pool pipe sensor rotary paddle switch flow switch for Pool Water Heater
-
Supplier: Ningbo Mingrui Sensors Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Allen Shao -
Price: $6.00 / 1 - 99 pieces
$5.95 / 100 - 499 pieces
$5.60 / 500 - 999 pieces
$5.30 / >=1000 pieces -
Min. Order: 1 piece
| package: | carton; | place of production: | Ningbo; |
| Selling Units: | Multiple of 10; | color: | black; |
| Gross weight per batch: | 0.75 KG; | Certification: | CE; |
| Flow Rate: | 30L/min; | company profile: | manufacturer; |
| Package size per batch: | 14X12X9 cm; | Packaging Detail: | plastic bag and carton; |
| raw material: | food-grade; | application: | flow switch; |
| design: | own design; | Media Type: | Liquid; |
| Operating Temperature: | -10~+80C; | Model Number: | MR-JX-01; |
| material: | NYLON; | Place of Origin: | Zhejiang China; |
| installation: | easy; | Brand Name: | paddle water flow switch; |
| size: | small size; |
MR-JX-01 swimming pool pipe sensor rotary paddle switch flow switch for Pool Water Heater
1.Low cost 2.Long life 3.Simple installation 4.Wide applications
FLOW SWITCH MR-JX-01
Introduction
flow switch consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor
activates the magnetic core to trigger switch action, with signal output.
Features
imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
Applications
it is used in the control of water circulation, water charging and discharging, water heating, water pump switch
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
Specification
|
Standard Operating Pressure |
0.1-0.6Mpa |
|
Max Switch Voltage |
300V |
|
Suffering Pressure |
1.2MP |
|
Precision |
0.7-30L/min |
|
Operating Temperature |
-10℃~+80℃ |
|
Body Material |
PA6+GF |
Application
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
Owned Certifications
-
