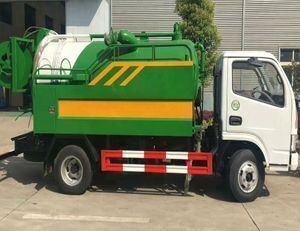

Dongfeng 5m3-10m3 Vacuum Combined Sewer Jetting Truck ,5000 liters Sewer Cleaning Truck

Product details
Place of Origin:Hubei China (Mainland);Transmission Type:Manual;
Wheelbase:3800mm;Port:Shanghai ,Qindao;
Brand Name:Dongfeng;Dimension (L x W x H):7400*2496*3350;
Condition:New;Color:Request Customized;
Payment Terms:L/C,T/T;Tank Volume:5000L;
Supply Ability:500 Unit/Units per Month Sewer Cleaning Truck;Gross Vehicle Weight:7890;
Certification:ISO9001 CCC;Product name:Sewer Cleaning Truck;
Fuel Type:Diesel;Packaging Detail:Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request of Dongfeng 5m3-10m3 Vacuum Combined Sewer Jetting Truck ,5000 liters Sewer Cleaning Truck.;
Drive Wheel:4x 2;Pump:Special Vacuum Pump;
Emission Standard:Euro 3;Horsepower:125hp;
Maximum speed(km/h):90;

Dongfeng 5m3-10m3 Vacuum Combined Sewer Jetting Truck ,5000 liters Sewer Cleaning Truck



Combined vacuum Sewer jetting truck is especially suitable for suck load and discharge the deposits in the sewer, suck sewage, mud , stones, bricks and other large objects. cleaning industrial drainage pipes, walls and so on.and also can be used as sprinkler, water transport and flushing high way, emergency fire fighting.



Combined vacuum jetting truck, multi function vacuum suction sewage truck;

  • With  Sludge tank and  Water Tank
  • Sludge tank and water tank is Integral,hydraulic operation by handle, easily operate.
  • Combined vacuum cleaning truck, mounted two different pump, high pressure cleaning pump and vacuum suction sewage pump.
  • Tank can be lifting with the function of self-priming dump.
  • One vehicle for dredging, cleaning and sucking



Product Description


 About Our Sewage Suction Truck series



1, Type: Combined Sewer Sucking Cleaning Truck, Sewage Suction Truck, Fecal Suction Truck ;

2, Drive model: RHD or LHD 4*2, 4*4, 6*2, 6*4, 8*4;  Brand of chassis,Dongfeng,Foton,Sinotruck,Shacman ,JAC,Faw  etc are available

3, Capacity: 2-25CBM

4, Equipment tank with vacuum suction sewage pump and imported plunger high-pressure cleaning pump, PVC laminated steel tube 60 -80 meters, 10 different thrust nozzles cleaning, suitable for different pipe cleaning and dredge

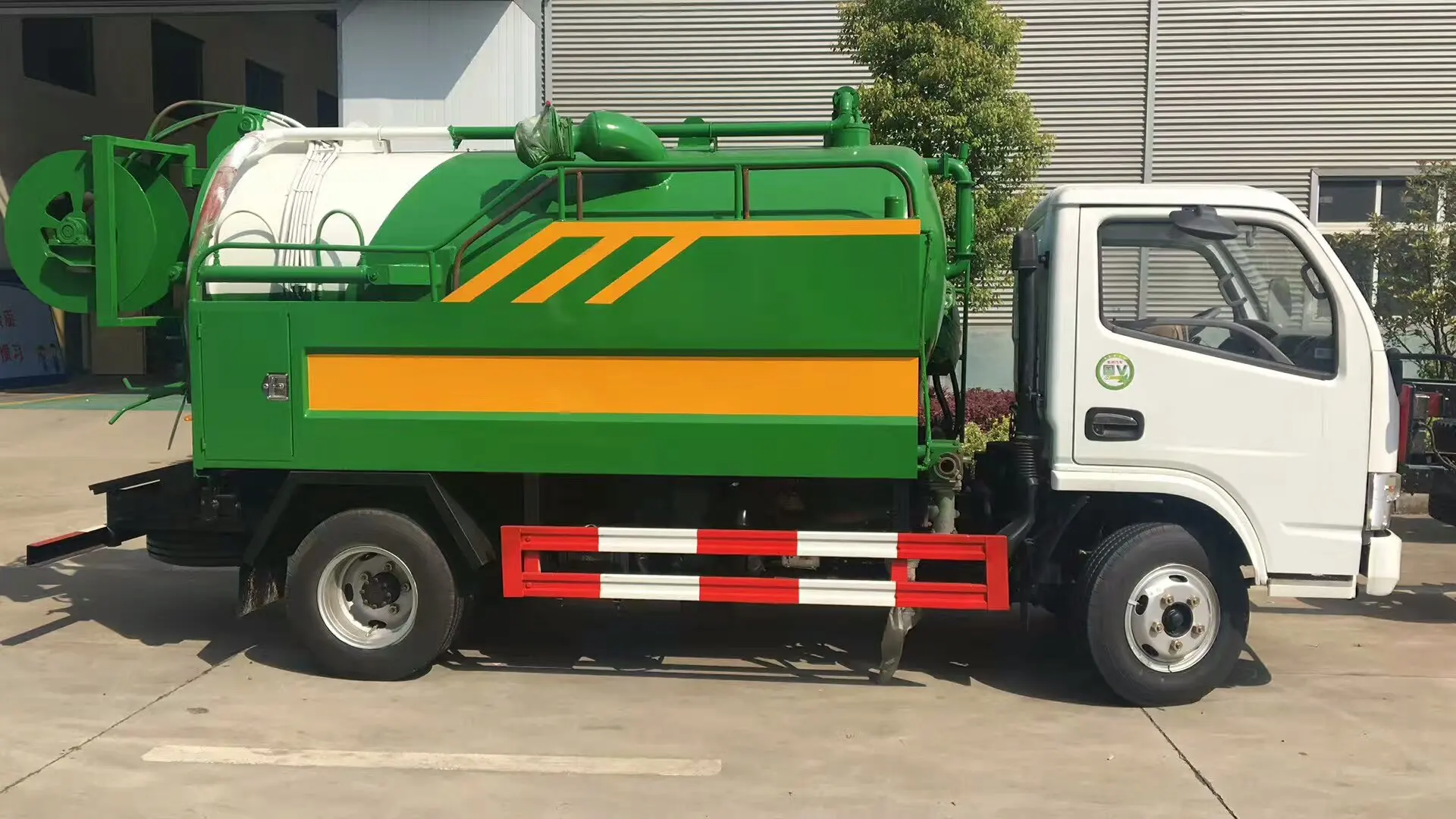

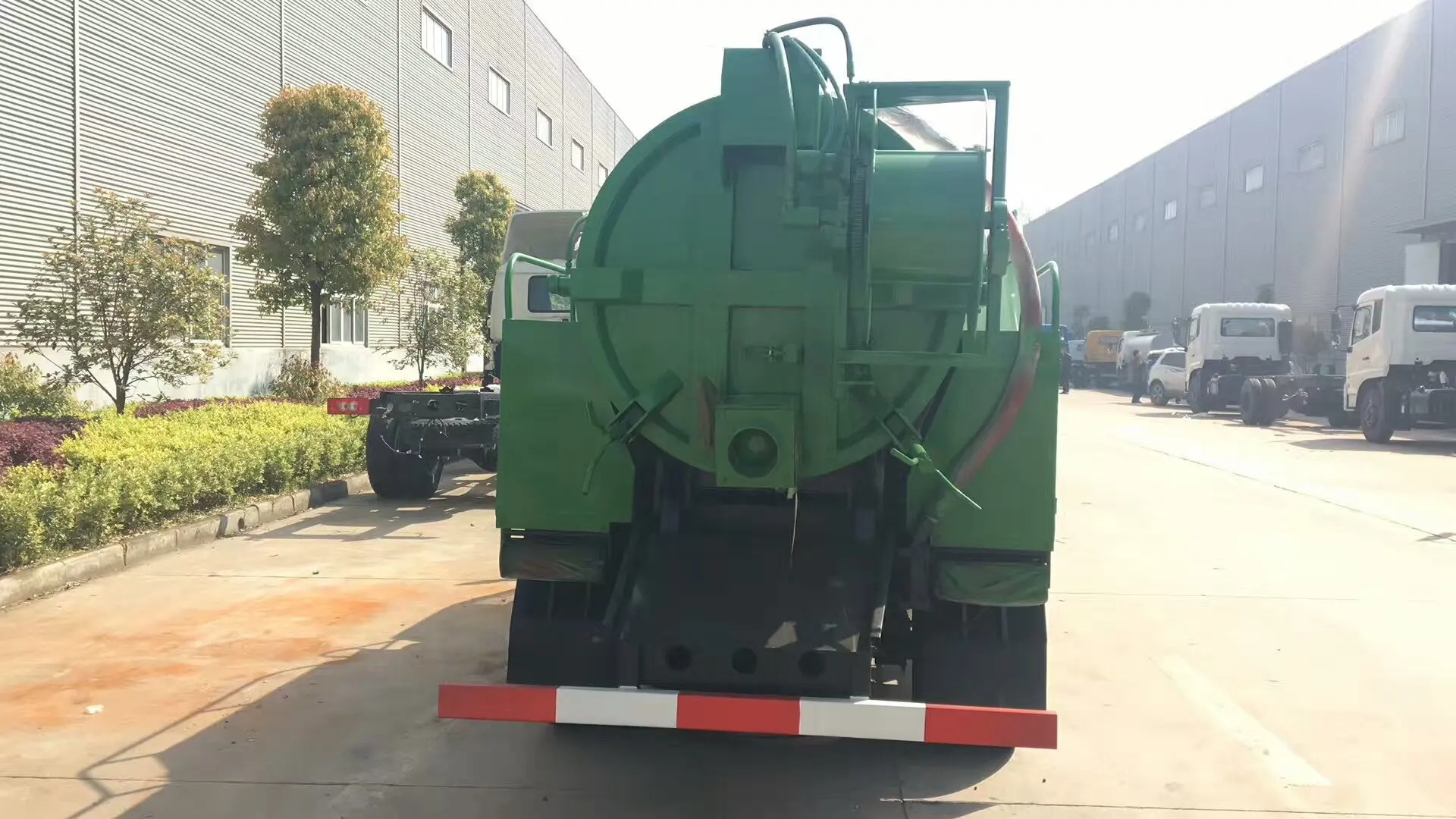

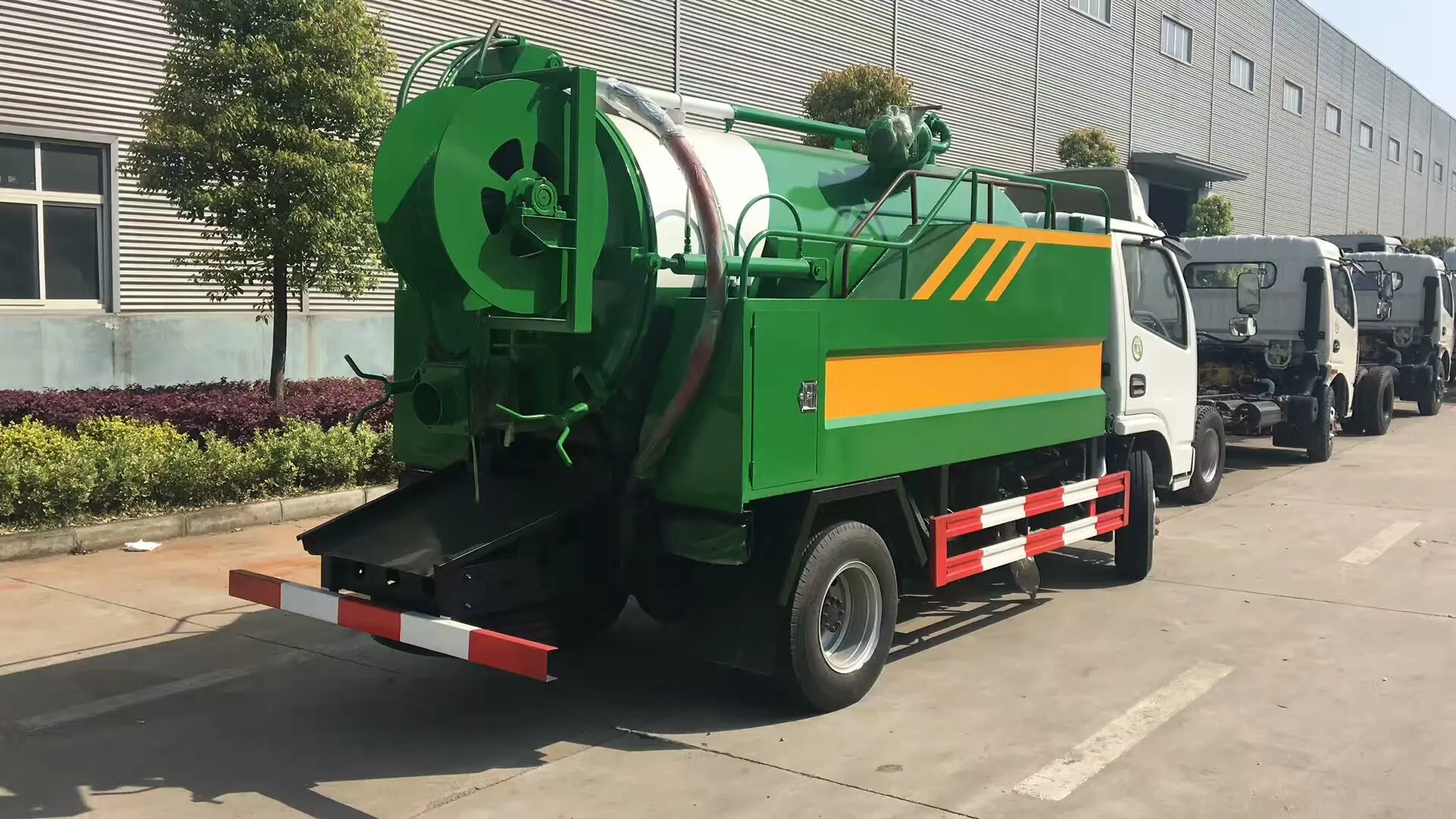

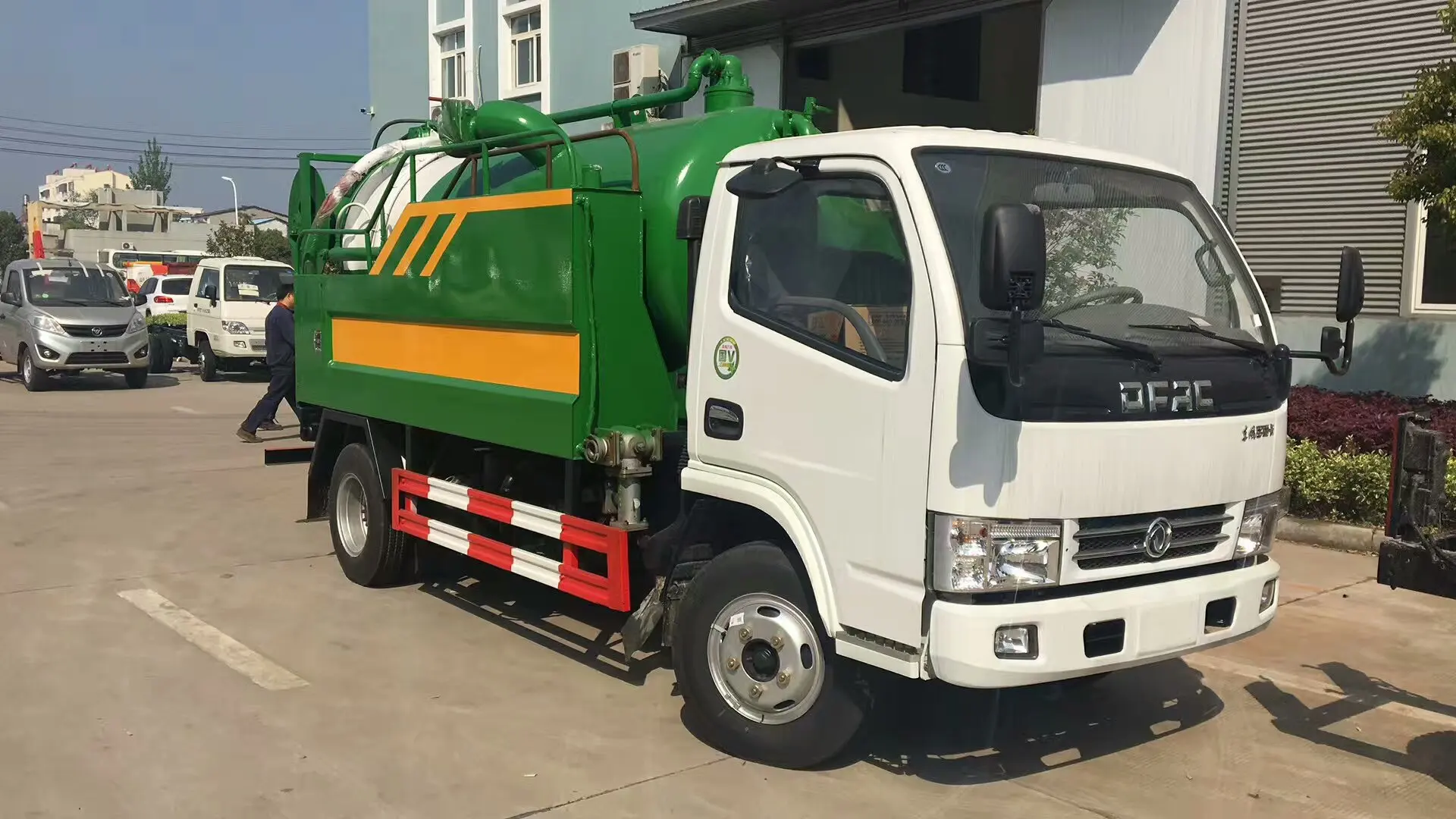

Photos for Dongfeng 5m3-10m3 Vacuum Combined Sewer Jetting Truck ,5000 liters Sewer Cleaning Truck





Main Specification


Technical parameters of Dongfeng 5m3-10m3 Vacuum Combined Sewer Jetting Truck ,5000 liters Sewer Cleaning Truck

5000 liter Combinged Sewer Cleaning Truck (5cbm)

General

Vehicle Brand



Chassis Brand

DONGFENG

Overall Dimension

6540 * 2000 * 2530 mm

GVW / Kerb Weight

7,300kg / 4,100kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CHAOCHAI

Power

117 HP (86 KW)

Displacement

3707 ml

Emission Standard

Euro 3or 4

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

3308 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Upper Part

1. Sludge tank volume: 3500 liters(3.5m3), water tank volume: 1800 liters(1.8m3); Sludge tank and water tank are two independent tanks; Made by 6mm Carbon steel plate;



2.Equipped with high-power vacuum suction sewage pump.single pump/double

pump(out and in),it has compact structure, reliable work balance and flow uniformity, strong suction, work stable and reliable,  simple operation, easy maintenance;



3. Equipped with imported plunger high-pressure cleaning pump, PVC laminated steel tube 60 -80meters, 10 different thrust nozzles cleaning, suitable for different pipe cleaning and dredge.


4. Equipped with water ring type suction pump, vertical suction: 9-10 meters; flow: 1.5m3/min; 7 meters long;


5. Tank can be lifting with the function of self-priming dump.





Component

chassis,suction tanker, vacuum pump,PTO,pipes,valve and double hydraulic cylinder.

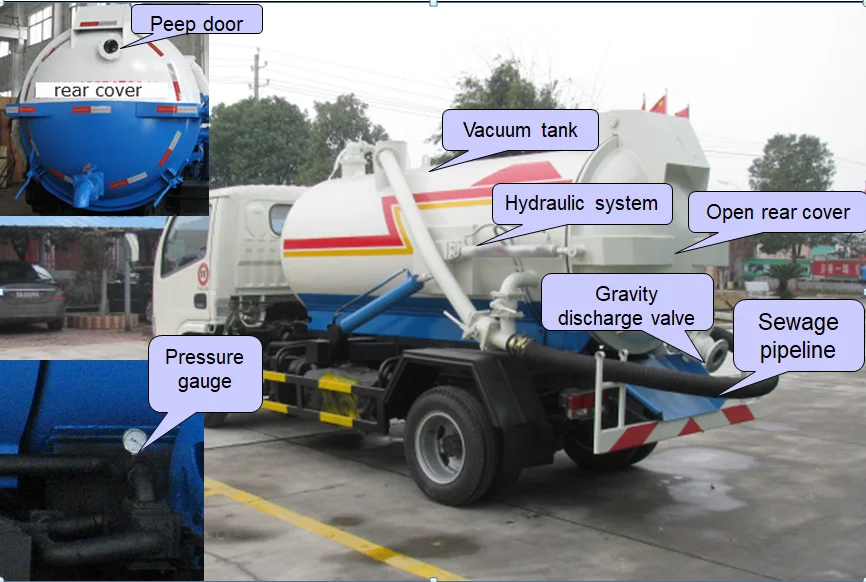

Sewage suction truck structure chart



Related Products

Packaging & Shipping

Shipping

  • By sea :Bulk transport / Ro-ro ship / Container packing / etc;
  • Customers specifying freight forwarders or negotiable shipping methods;
  • Delivery Time: 10-30 days.
