Package Preview: | ; | Marketing Type: | Ordinary Product; |
Power: | 8KW; | Warranty of core components: | 1 Year; |
Machinery Test Report: | Provided; | Brand Name: | Yihuicasting; |
Protection gas: | Argon gas or Nitrogen gas; | Suitable Metal: | Gold,silver,copper,brass,bronze; |
Machine Type: | Casting machine; | Voltage: | 380V,50/60HZ,3Phase; |
Capatity: | 2.5kg Gold; | Warranty: | 1 Year; |
Video outgoing-inspection: | Provided; | Dimension(L*W*H): | 750*655*1230CM; |
Casting method: | Vacuum pressure casting; | Type of cooling: | Water cooling; |
Product name: | Automatic Digital vacuum pressure casting machine; | Showroom Location: | Egypt,United States,Germany,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Thailand,South Korea,UAE,Sri Lanka,Bangladesh,Japan; |
Weight (KG): | 190; | Core Components: | PLC,Engine,Motor; |
Max Flask Size: | 6.3"*10"; | Key Selling Points: | Long Service Life; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining,Advertising Company; | Packaging Detail: | Wooden box; |
Condition: | New; | Payment Terms: | T/T,MoneyGram; |
Port: | Guangzhou Port; | Place of Origin: | Guangdong, China; |
Supply Ability: | 50 Sets per Month; | Working temperature range: | 0-1300℃(1600℃ tailored); |
Working time: | 5-8mins; | Color: | Orange; |

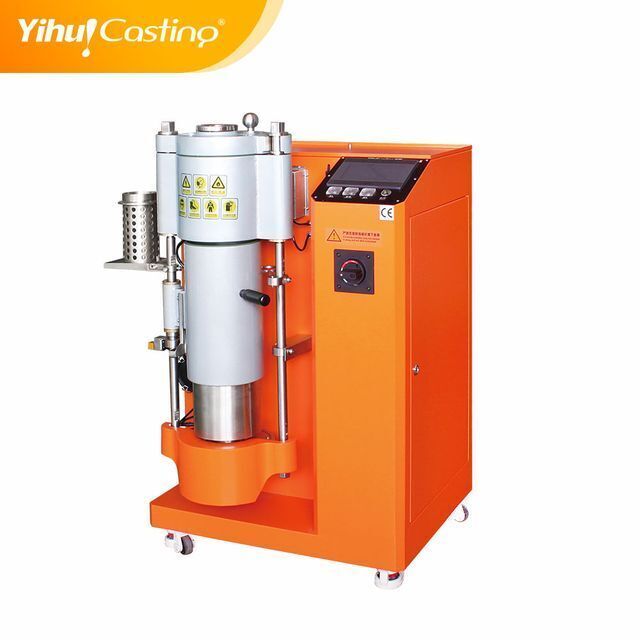

Advantage
The machine is compact and has high working efficiency. It adopts magnetic mixting when heating, and
controls the mixing time autonomously.The machine applies the principle of vacuum pressurized gravity
casting to work.
It has its own electrical system protection function, which can be operated manually and automatically.
The body is equipped with an abnormal alarm system, and the temperature difference controlled at ±2℃.
It uses vacuum and protective gas when melting to reduce oxidation. The simple and easy-to-understand
operation panel allows every people to operate independently.
Model | Z.M.CM.DVC-II | Z.M.CM.DVC-L | Z.M.CM.D3 |
Power Supply | 380V,50/60HZ,3Phase | 380V,50/60HZ,3Phase | 380V,50/60HZ,3Phase |
Power Output | 8KW | 15KW | 8KW |
Suitable Metal | Gold,silver,copper,brass | Gold,silver,copper,brass | Gold,silver,copper,brass |
Melting Capacity | 2.5KG | 8KG | 2.5KG |
Temp.range | 1-1300Degrees | 1-1300Degrees | 1-1450Degrees |
Max Pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa |
Protection Gas | Argon gas or Nitrogen Gas | Argon gas or Nitrogen Gas | Argon gas or Nitrogen Gas |
Type of cooling | Water-cooled | Water-cooled | Water-cooled |
Casting method | Vacuum pressure casting | Vacuum pressure casting | Vacuum pressure casting |
Abnormal Warming | Self-diagnostic LED display | Self-diagnostic LED display | Self-diagnostic LED display |
Environment Temp | 5-40 degrees | 5-40 degrees | 5-40 degrees |
Vacuum Setting | More than 15L/s or 63m3/h | More than 30L/s or 100m3/h | More than 30L/s or 100m3/h |

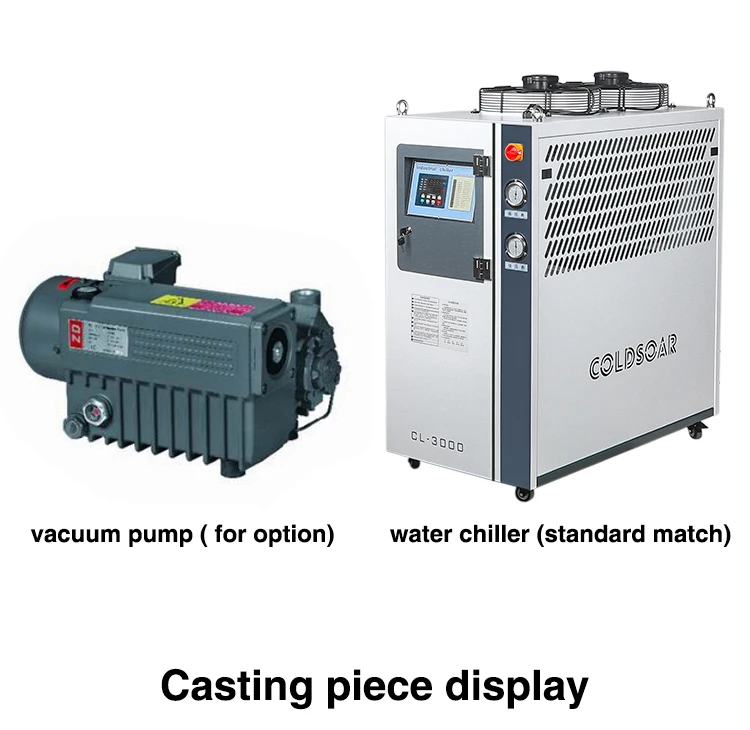

Water Supply | 10-30degrees,3HP Chiller | 10-30degrees,5HP chiller | 10-30degrees,3HP Chiller |
Machine Size | 750*655*1230mm | 850*770*1420mm | 1230*750*745mm |
Net Weight | 200KG | 300KG | 200KG |
Established in March, 2003, through more than10 years effort, has developed as a professional supplier in providing
integrated lost wax casting solutions, manufacturing jewelry casting machines and materials, specializing in casting
technology research & development and application. Under Yihui brand, we own Shenzhen Yihui Casting Technology
Co., Ltd, Guangzhou Ruihui Casting Machinery Co., Ltd, Shenzhen Xinhui Casting Material Co., Ltd.,
Dongguan Yihui Casting Technology Co., Ltd, Guangzhou Yihui Jewelry Tools Co., Ltd, and other manufacturing
and selling companies.
Additionally, Yihuicasting have graphite products making factory, ceramic products making factory, machines making
factory. Relying on Yihui brand, centering on casting realted products, complete products supplying system has been
formed, meanwhile, we are agent of world known brand jewlery tools and consumables. Products range covers all
the jewelry making procedures, which are widely used in jewelry, watches, glasses, dental, glaze, and other precision
loss wax casting industry, which have been exported far to South-east Asia, Mid-east, European and American
countries.
Thanks for rich experience in precious metal melting and casting area, professional management & technology team,
Yihuicasting is able to provide highly-efficient, specialistic, and packaged technical supports and advices, become your
favored & reliable partner to do long term business. We learn through cooperation, develop through learning,
comprehensive ablity of management, technology, talent have been improved.
In strict accordance with ISO9001:2008 quality management system, Yihuicasting keep strengthening internal
management, carrying out “6S” and “PDCA”, continue improving to meet various requirements & needs of our
customers.In order to provide better services to our cutomers, Yihuicating opened sub-branches and shops in
Guangzhou, Dongguan,Shenzhen, Yiwu, and HK.
Looking into the future, facing with daily increasing competition, Yihuicasting always regard “Quality Managment
strengthening, Customer Satisfaction Improvement”as company pursuit to return our partners. Yihuicasting will
keep supplying better quality products and more convenient and satisfied services to our customers.
