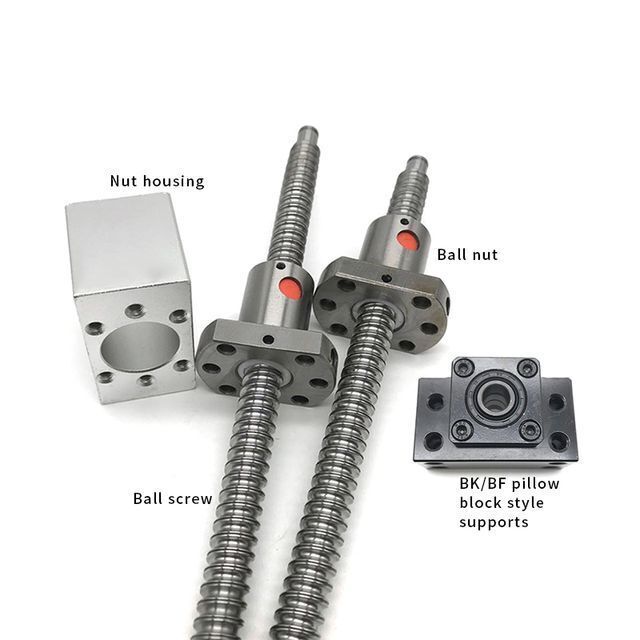

China wholesale stainless steel CNC lead screw rotating nut 20mm ball screw cnc linear guide Ground Ballscrew 1605 ball screw

Click here to contact
Product details
Payment Terms:L/C,Western Union,D/P,D/A,T/T;Port:ShenZhen;
Feature:CNC Precision;After Warranty Service:Video technical support;
Local Service Location:None;Process type:Milled Ground Thread Ballscrew C5;
Material:As per request;Supply Ability:3000 Pieces per Month;
Standard diameters:from 5mm to 65mm;Keyword:stainless steel ball screw;
Warranty of core components:More than 5 years;Showroom Location:None;
Marketing Type:New Product 2020;Product name:ball screws 1605;
Service:OEM Services;Brand Name:Chuanghe;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Printing Shops,Advertising Company;Condition:New;
Packaging Detail:Packaging Details:25kgs/ carton, 36 cartons/ pallet. carton dimesion: 40cm*20cm*17cm. pallet dimension: 102cm*80cm*60cm Packing: According to customer's need;Length:100-6000mm(Custmized ),According to requirement;
Nut type:single nut$ double nut;Manufacturing Process:Rolled Thread;
Place of Origin:Guangdong, China;Video outgoing-inspection:Provided;
Accurancy:Grade C7,C5,C3;Package Preview:;
Application:stepper motor actuator shaft,precision part, cnc machining parts,;Machinery Test Report:Provided;
Core Components:Bearing,ball screw;Warranty:3 months;
Product details
Product name
China wholesale stainless steel CNC lead screw rotating nut 20mm ball screw cnc linear guide Ground Ballscrew 1605 ball screw
Standard leads
from 3mm to 300mm
Standard diameters
from 5mm to 65mm
Length
from 10mm to 10000mm
Standard
ISO, GB, BS, DIN, ANSI,JIS, Non-standard
Production Process
Cold Rolling, CNC Grinding, Whirling Milling
Process
Precision CNC machining, CNC milling, CNC turning, drilling machine,grinder machine,strainghtening machine.
Tolerance
can reach to +/-0.01mm
Material
1. Stainless steel: 201,303,304,316,410
2. Carbon steel: C1006,C1010,C1018,C1022,C1035K,C1045
3. Copper: H62,H65,H68
4. Aluminum: 5056, 6061, 6062, 7075
5. According to customer demand
Surface treatment
Zn- Plated,Ni-plated,Passivated,Tin-plated,Sandblast and Anodize,Polish,Electro Painting,Black Anodize,Plain,Chrome plated,Hot
Deep Galvanize(H. D. G. ) etc.
Package
Plastic bag / small box +outer carton +pallets
Application
precision part, cnc machining parts, auto parts, industrial parts, etc
What is the difference between a lead screw and a ball screw?
 The basic difference between lead screws vs ball screws is that a ball screw uses ball bearings to eliminate the friction between the nut and screw and lead screws do not. ... Lead screws use deeper helical threads and a mating nut, which is usually made of a polymer composite or bronze.
High speed feeding:
High positioning accuracy: The accuracy is up to the requirement of JIS C3. Acceleration: Over 1.0 g (9.8 m/sec2) to avoid time consuming between accelerating and decelerating.

Heavy stiffness:
Optimized screw profile and structure design. Heavy load: Multi-load ball distribution design. Low vibration noise: Using the best slender ratio and high-speed circulation to lower noise.

Constant temperature:
The efficient heat transfer can restrain the thermal deformation and improve the stability. Environment friendly: Optional
self-lubricant function can reduce the lubricant consumption and to diminish the environment pollution caused by lubricant discard. It also solves the problem that lubricant thickens unevenly by deformation of oil film in spiral path.

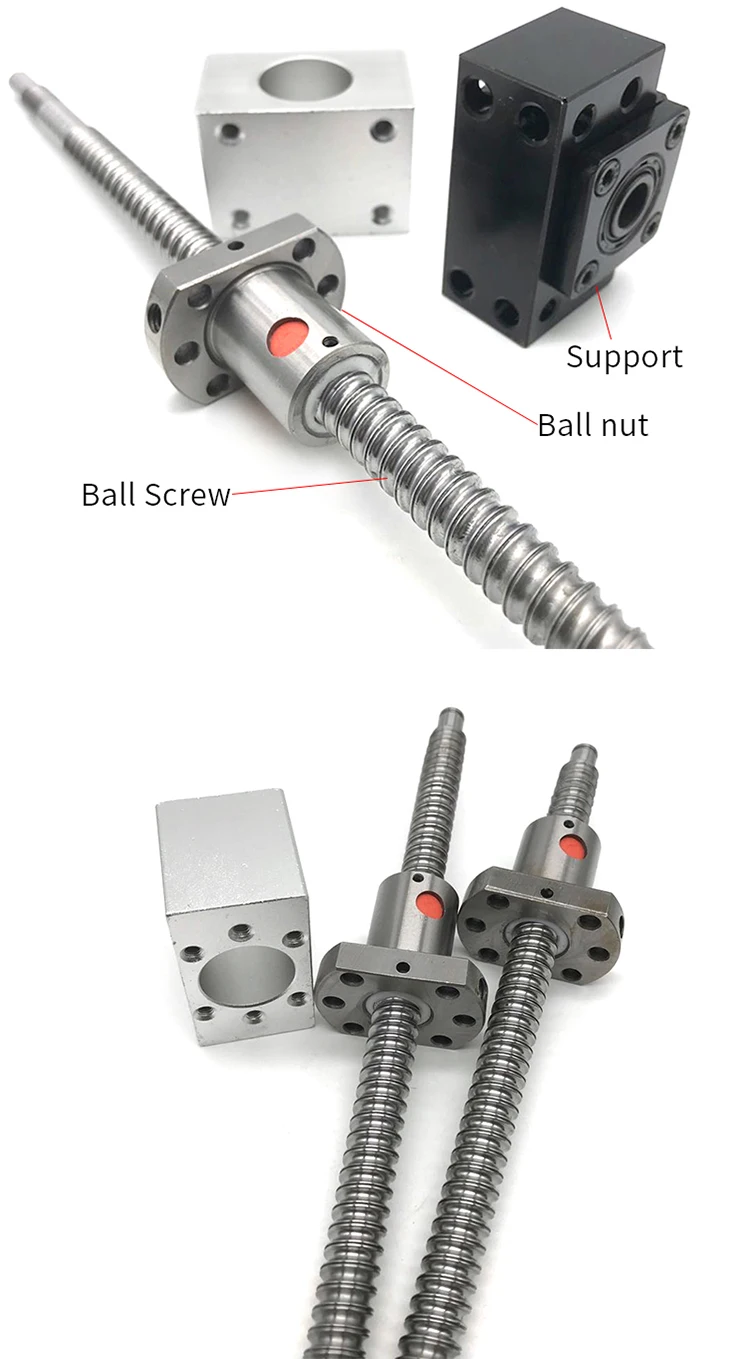

How does a recirculating ball screw work?
As the screw or nut rotates, the balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the opposite end of the ball nut in a continuous path.
What is ball screw lead?
Lead is the linear travel the nut makes per one screw revolution and is how ball screws are typically specified. The pitch and lead are equal with single start screws. For multiple start screws the lead is the pitch multiplied by the number of starts.

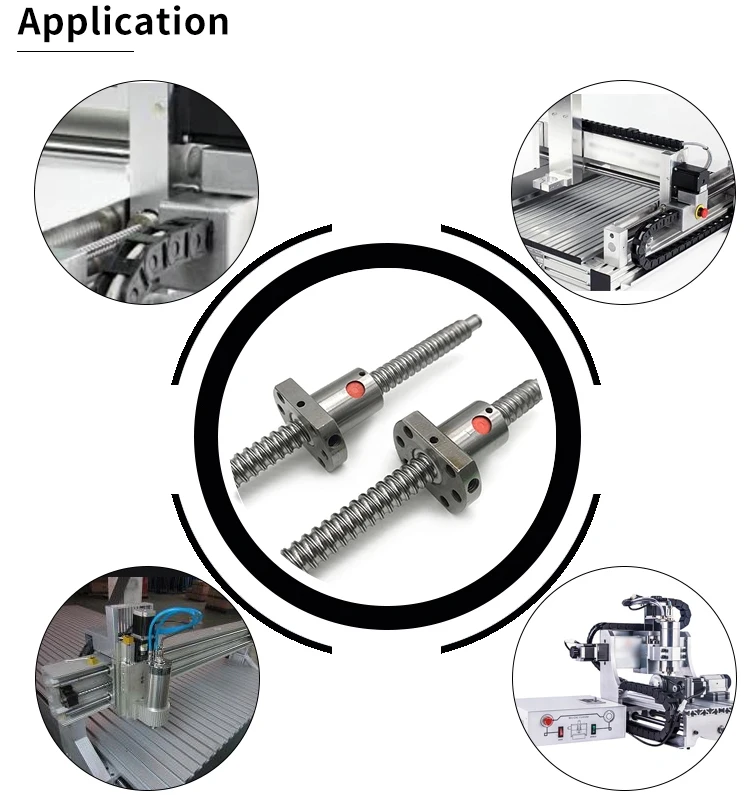

What are ball screws used for?
Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. They are also used in machine tools, robots and precision assembly equipment.
The Ball Screw is a high-efficiency feed screw with the ball making a rolling motion between the screw axis and the nut. Compared with a conventional sliding screw, this product has drive torque of one-third or less, making it most suitable for saving drive motor power.
Certifications

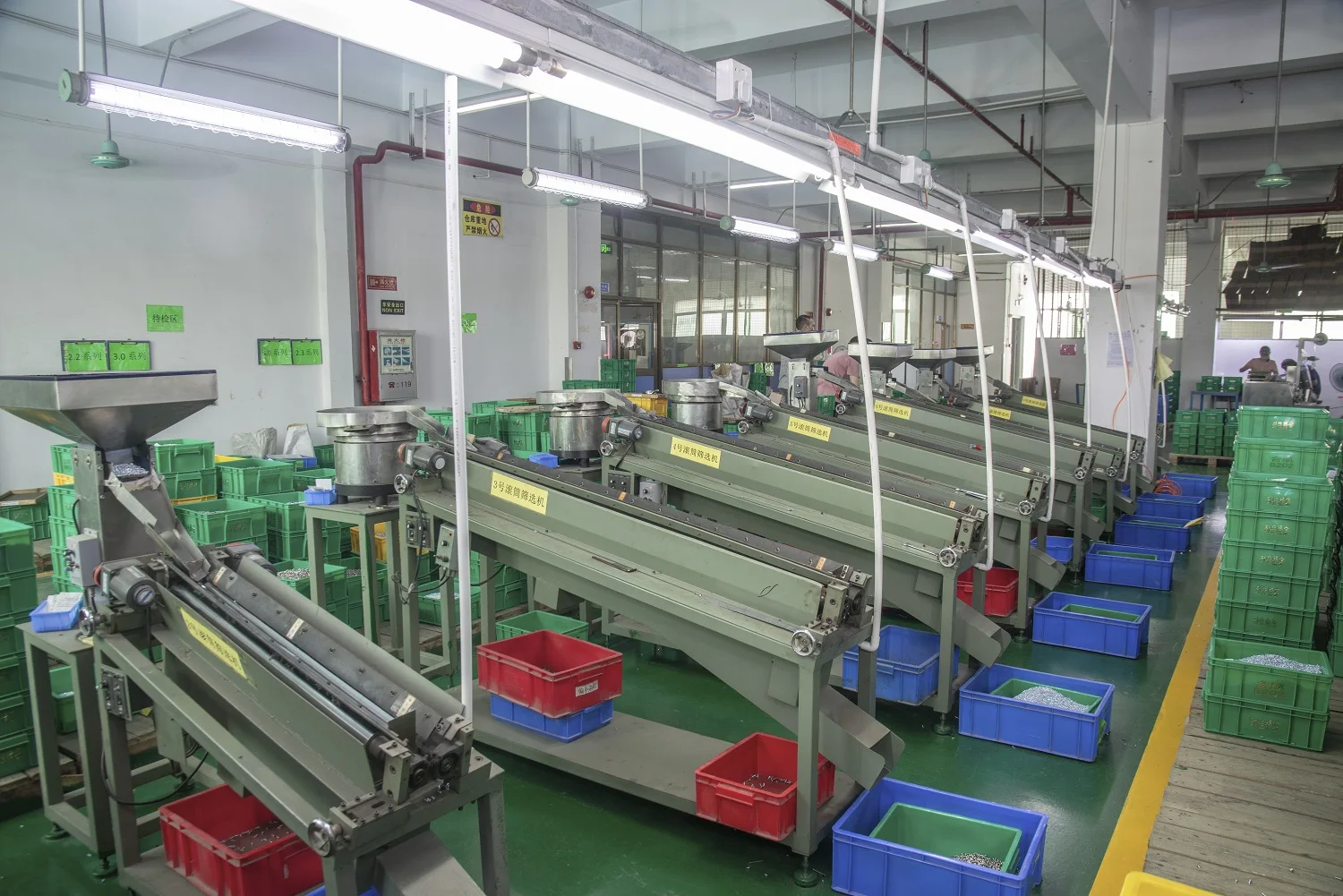

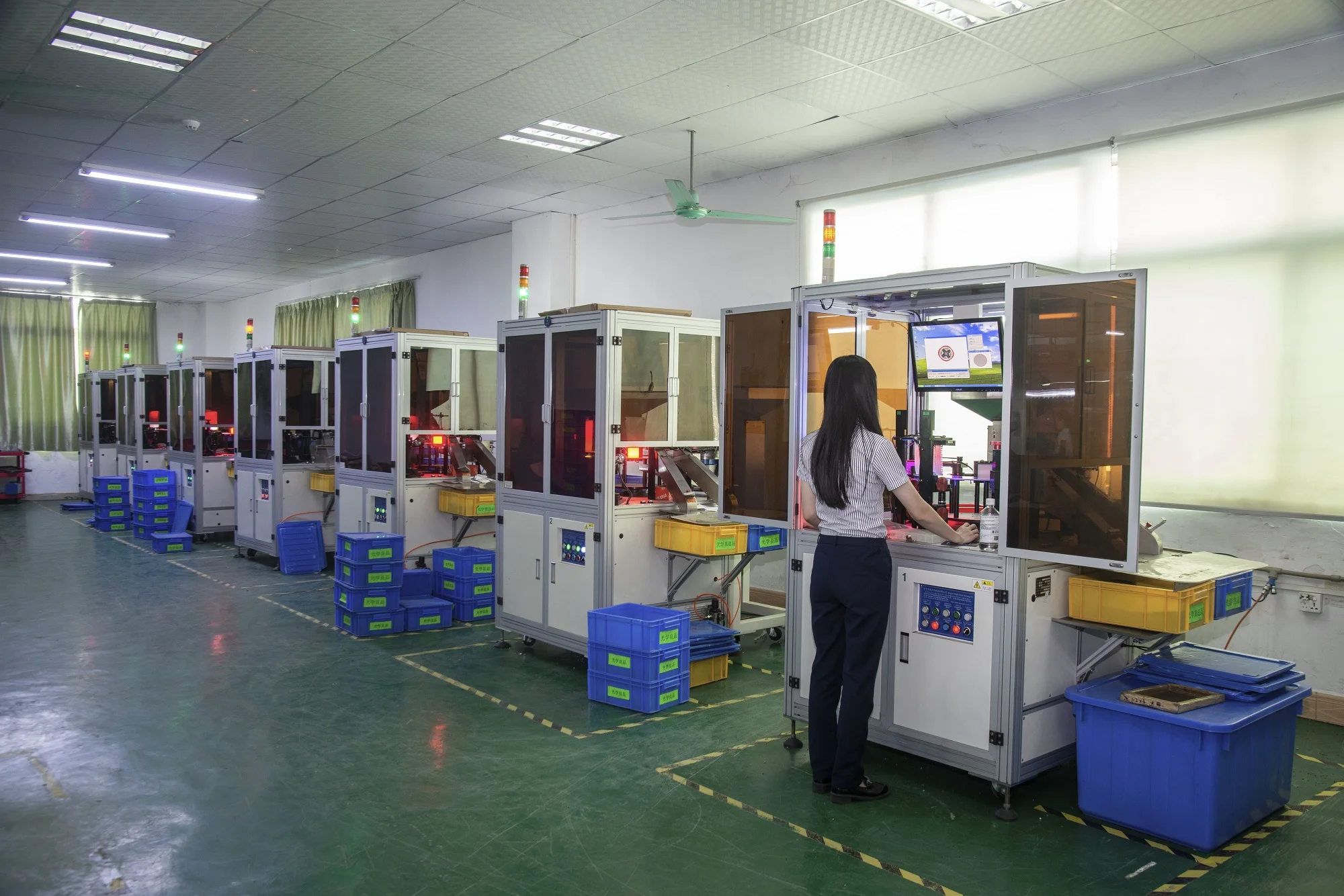

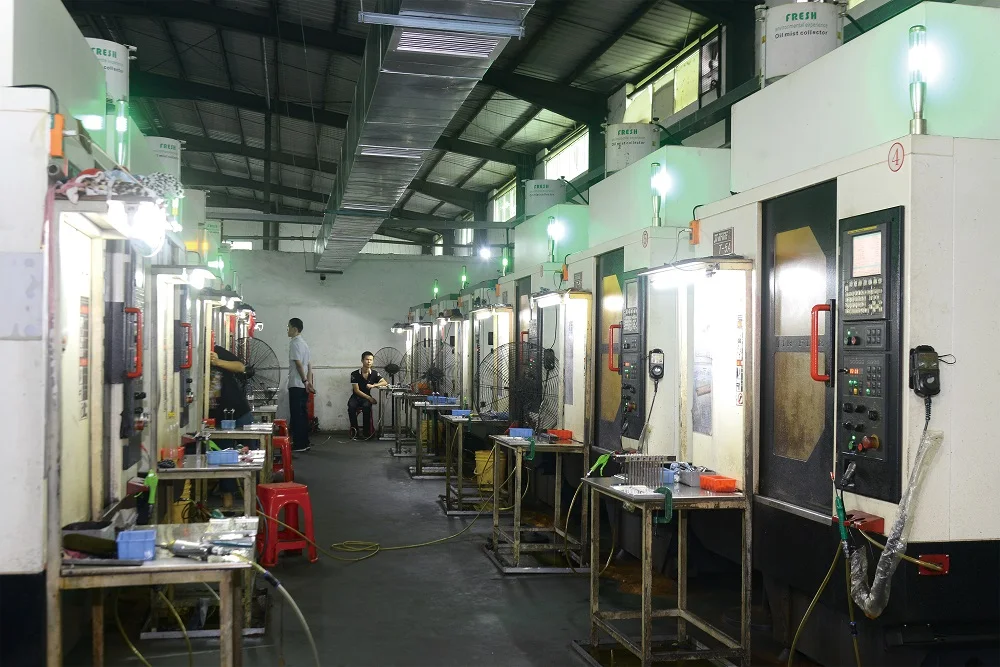

Production Process
Company Introduction
2007 Chuanghe Fastener Co., Ltd was founded ,specializing in CNC parts production,has gained IATF 16949,ISO9001 certificates.We are a young and creative team, with a material Drawing plant, a stamping molding plant, a standard fastening pieces plant, a non-standard fastening pieces plant, and a machinery spare parts plant included.We are manufacture and also wholesale,Non-standard / standard / OEM / ODM / customized service provided.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.

Q2: Can I visit your factory?
A2: Yes! Warmly welcome to visit our factory. It would be Great if you can inform us in advance.

Q3:The quality of your products?
A3:The company has advanced production and testing equipment .Every products will be 100% inspected by our qc department before
shipment.

Q4:How about your price?
A4:High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you refer at once.

Q5:Could you provide free samples?
A5:We can provide free samples for standard fastener, But the clients will pay the Express charges.

Q6: What’s your Delivery Time?
A:Standard parts: 7-15days,Non-standard parts: 15-25days.We will make the delivery as soon as possible with the guarantee quality.

Q7: How should I order and make payment?
A7:By T/T, for samples 100% with the order; for production, 30% paid for deposit by T/T before production arrangement, the balance
to be paid before shipment.
