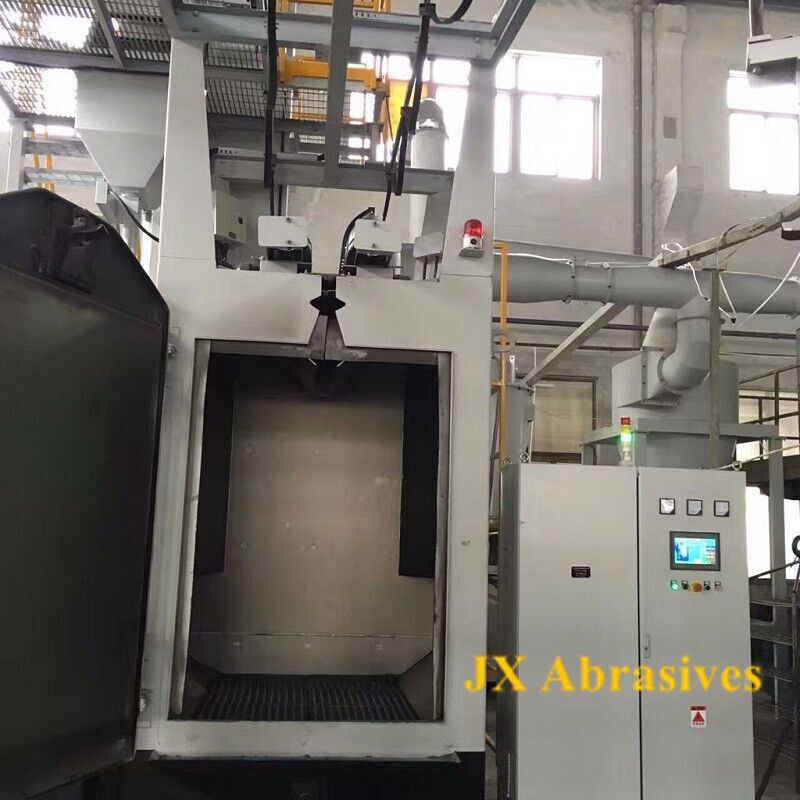

Hanger Shot Blasting Machine for Forging Parts

Supplier: JX Shot Blasting Machine Manufacturer Co., Ltd.
Region: China
Contact: Mr ye qin
Price:
Min. Order: 1 piece

Click here to contact

Product details

Forging Parts Blasting Machine Company JX Abrasives Offers Hanger Type Shot Blasting Machine for Cleaning Castings, Forging Parts, Heat Treated Parts.

The Hook Type Shot Blasting Machine is Used for Cleaning Castings, Forgings, Fabrications or Heat Treated Parts.

Technology Parameter(Customized is available):

Hook Type Shot Blasting Machines
Item	Unit	DX376	DX378B	DX378C	DX3710	DX3720	DX3730	DX3750	DX37100
Max. weight of cleaning	kg	500	600	800	1000	2000	3000	5000	10000
Abrasive flow rate	kg/min	2*200	2*200	2*250	2*250	3*250	3*250	4*250	4*250
Ventilation capacity	m3/h	5000	5000	5000	5000	9000	11000	14000	16000
Lifting amount of elevating conveyor	t/h	24	24	30	30	45	45	60	75
Separating amount of separator	t/h	24	24	30	30	45	45	60	75
Max overall dimensions of suspender	mm	Ø600*1200	Ø700*1200	Ø1000*1600	Ø1200*1800	Ø1400*2200	Ø1600*2300	Ø1800*2500	Ø3000*3000

Hanger Shot Blasting Machine for Forging Parts
