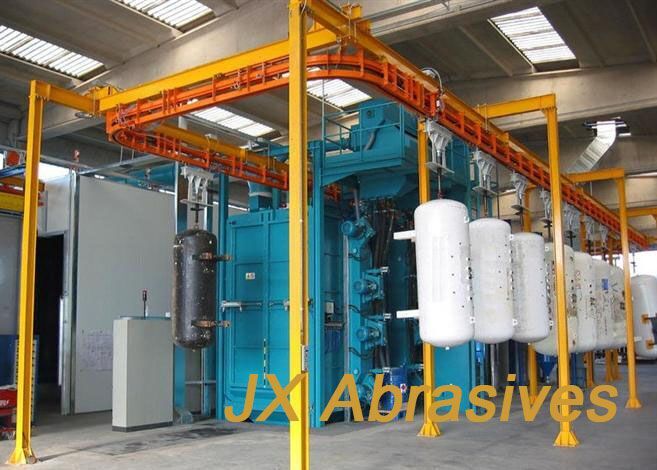

Automatic Sheet Metal Shot Blasting Machine

Supplier: JX Shot Blasting Machine Manufacturer Co., Ltd.
Region: China
Contact: Mr ye qin
Price:
Min. Order: 1 piece

Click here to contact

Product details

JX automatic sheet metal shot blasting machines are featured by high quality and durable parts, suitable for the blasting of profiles and plates. They are definitely effective for wear prevention.

Technical data as below:

1. Blasting chamber
Blast Chamber Open Size: 2500mm - 1200mm.
2. Roller conveying system
Working speed: 0.5 - 4 m/min
Power: 4x2 kw
3. Blasting nozzles
Model: Q034H
Shot blasting volume: 250 - 10 kg/min
Power: 15 - 10 kw
Quantity: Set 10
4. Portrait & horizontal Screw Conveyor
Portrait Delivery capacity: 150 t/h
Power: 7.5 kw
Horizontal delivery capacity: 150 t/h
Power: 5.5 kw
5. Bucket Elevator
Lifting capacity: 150 t/h
Power: 11 kw

6. Separator
Separating capacity: 150 t/h
Air speed in separating area: 4 - 5 m/s
Power: 5.5 kw
7. Dust Collector system
Pulse cartridge Dust Collector
Quantity: set 2
8. Reverse Blower
Air volume: 9000 X 2 m³/h
Power: 18.5+ 11 kw
9. Lifting system for cleaning Brush
Lifting distance: 0 - 1200 mm
Power: 2.2 x2 kw
10.Cleaning brush
Diameter of brush: 600 mm
Power: 3 kw

Automatic Sheet Metal Shot Blasting Machine
