Agriculture Machinery Mini Excavator Towable Backhoe Price

Supplier: Jining Honor Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jon Lee
Price: $599.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HonorMach;	Max.Digging Depth:	1850mm-350mm;
Warranty of core components:	1 Year;	Marketing Type:	Hot Product 2021;
Payment Terms:	L/C,Western Union,T/T;	Warranty:	1 Year;
Features:	Mobile, self power, trailed;	Type:	Tractor Implement;
Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Construction works ,Energy & Mining;	Engine:	9hp/13hp/15hp Gasoline Engine;
Place of Origin:	Shandong, China;	Style:	Compact Tractor Backhoe;
Swing Angle:	140 Degrees;	COLOR:	Red/Green/Customized;
Bucket Width:	220mm/300mm/400mm/500mm/600mm;	Core Components:	Engine;
Showroom Location:	None;	Package Preview:	;
Application:	ditching, digging, excavating;	Machinery Test Report:	Provided;
Weight:	562 KG;	DIGGING DEPTH:	1850mm-2640mm;
Moving Type:	Wheel;	Port:	Qingdao,Tianjin,Shanghai;
Dimension(LWH):	18051105905 mm;	Product name:	Towable Atv Backhoe;
Key Selling Points:	Fuel saving,Portable,self power;	Packaging Detail:	wooden case;
Supply Ability:	500 Sets per Month;	Video outgoing-inspection:	Provided;
Condition:	New;

Agriculture Machinery Mini Excavator Towable Backhoe Price

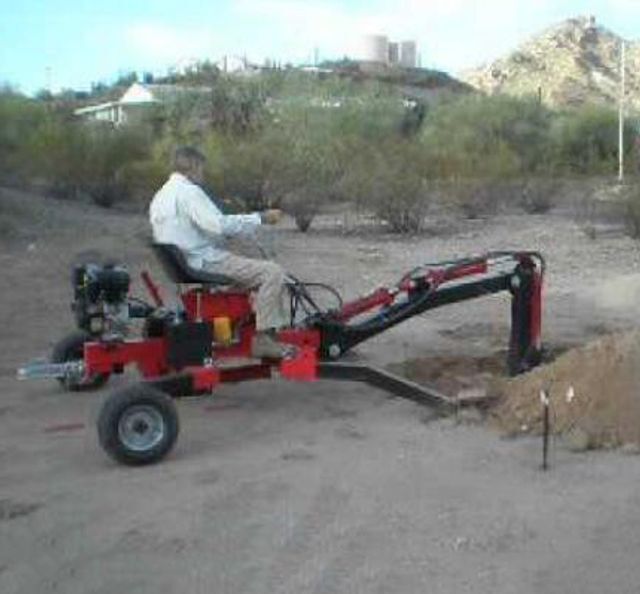

Product Display

Product Description

HTB series 9HP/13HP/15HP small tractor/pickup truck/ATV Towable Backhoe is the new generation upgraded Mini trenching machine by HonorMach technical team after technical improvement, which further strengthens the strength of the excavator body and arm, ensures the continuous and stable performance output, and optimizes the fuel-saving performance. Great for digging trenches for plumbing, draining and footings - breaking up rocky soil - channelling rainfall runoff - tree planting and relocating - cleaning drains and dams. Can be towed behind your ATV, Quad Bike, Ute, Tractor etc.

Product Application

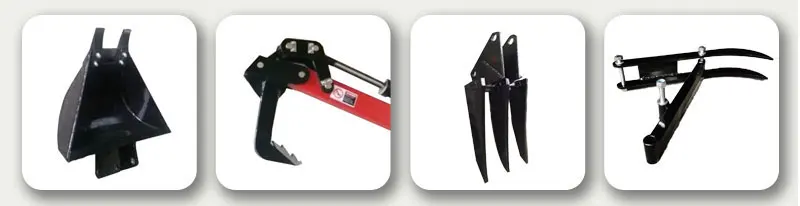

Tractor/Pickup truck/ATV Towable Backhoes are widely used in various venues. Adding more optional new accessories to enable you to efficiently complete various small-scale projects:garden, farmland, municipal works, vegetable greenhouse, digging trench.

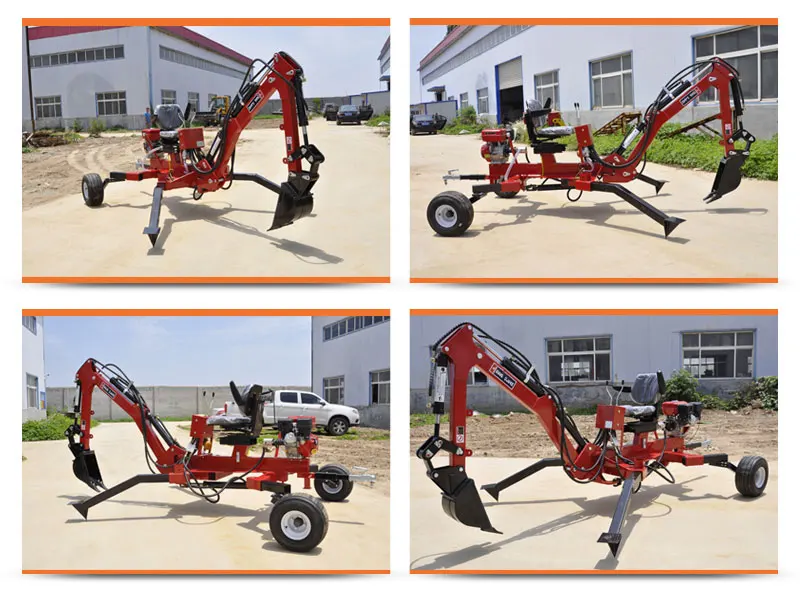

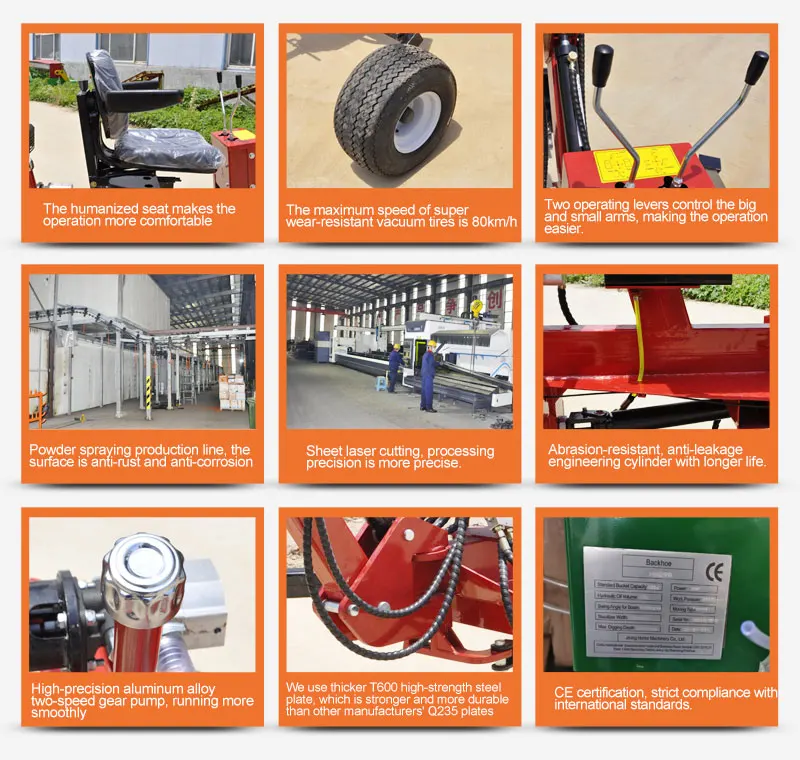

Product Details

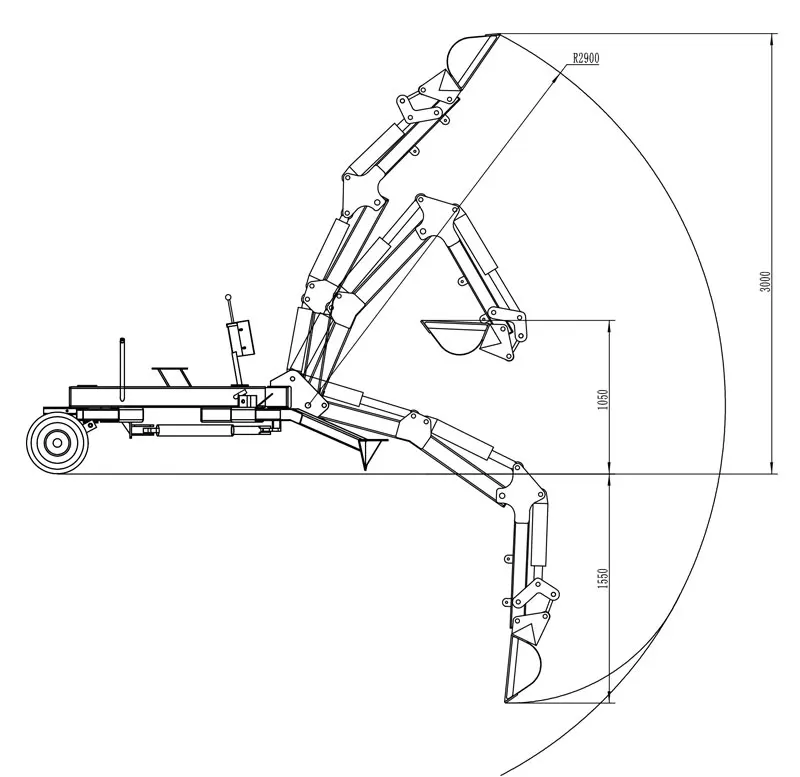

Product Parameters

HonorMach Mini Tractor ATV Towable Backhoe
Engine	9HP/13HP/15HP Gasoline engine
Certificate	CE/EPA
Structure Weight	562kgs
Max. Digging Depth	2420mm
Max. Digging Radius	2825mm
Max. Digging Height	2525mm
Max. Unloading Height	1230mm
Swing Angle For Boom	140 degree
Bucket Turning Angle	160 degree
Bucket Capacity	0.036m³
Bucket Width	Optional: 220/300/400/500/550/600 mm
Coupler Size	2" or 5cm Ball For Easy Towing
Dimension (L x W x H)	1800mmx1100mmx900mm
Quantity in 20'GP / 40'HQ	12/36PCS
Package size	48.03"×40.55"×27.95"/224×99×84cm

1.The backhoe digger digs 204 cm deep, with a serrated digger bucket 23 cm in width. 2.Compact and well-constructed backhoe digger with its own power source in the form of a 9hp petrol motor with recoil starter. Operator seat 90 cm high with good work overview. 3.Two-lever hydraulic valve for simple and flexible excavation. Wheels for moving with an ATV or another vehicle with a 50 mm ball coupling. 4.Easy to move with an ATV or another vehicle with a 50 mm ball coupling. 5.When the machine has to be moved, the wheels are fitted to the back making it easy to transport; when excavating, the wheels are fitted at the front with the stabilisers at the back and the machine is then moved by dragging it backwards or forwards using the first boom and outer boom

Company Profile

Packing&Shipping

Packing:

1.Standard seaworthy packing suitable for long-distance transportation 2.1 unit shipping in LCL; PACKAGE SIZE: 48.03" x 40.55" x 27.95"/ 224 x 99 x 84CM G.W.: 1176.21LB / 534KGS N.W.: 982.38LB / 446KGS 40' HQ CONTAINER: 30 units 3.All of the productions are inspected carefully one by one by QC before delivery. Delivery Time: 1.Conventional products: 5-9 working days after payment received. 2.Customized products: 10-30 days according to detail request. Min. Order: 1.We can provide customized service for a minimum order quantity of 1 set. 2.Larger quantity, price will be more favorable.

Certifications
