BH170 Slide Shift Tractor Loader Backhoe for Tractor/Garden Tractor

Supplier: Yancheng Newbang Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr New bang
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

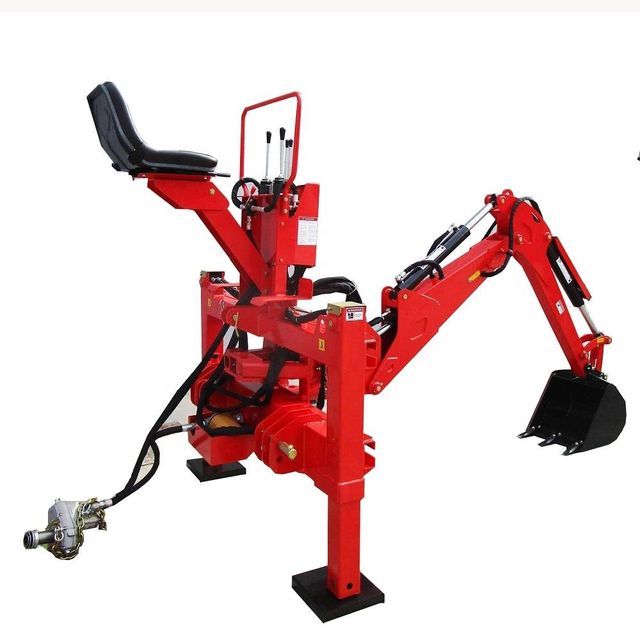

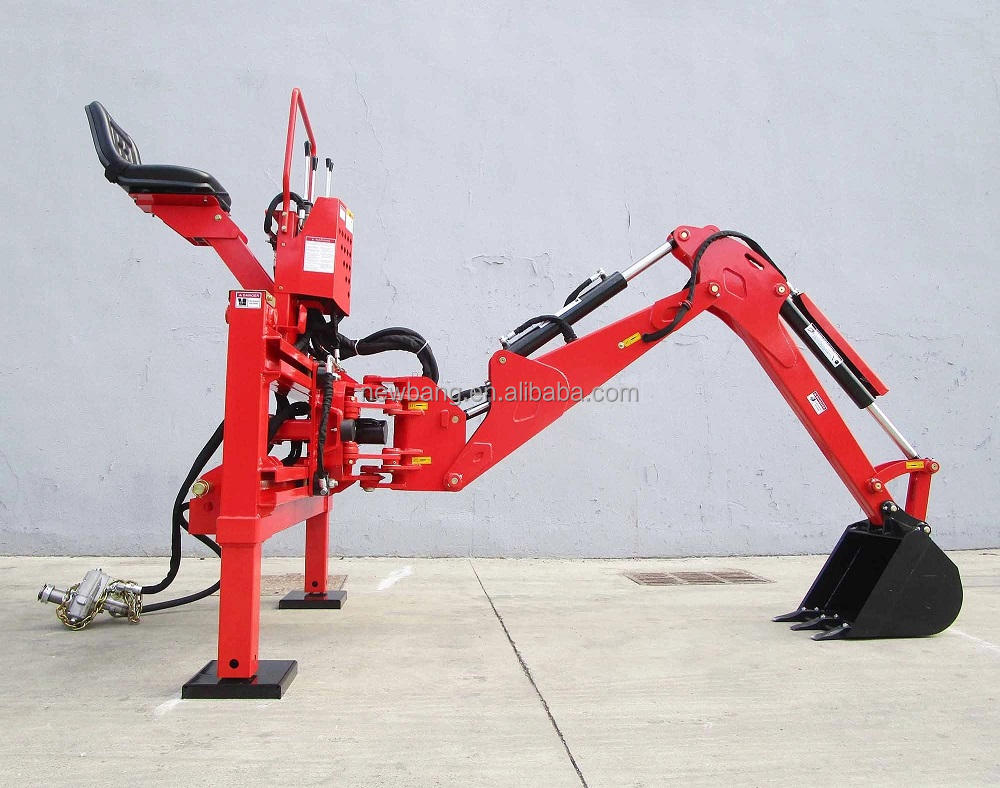

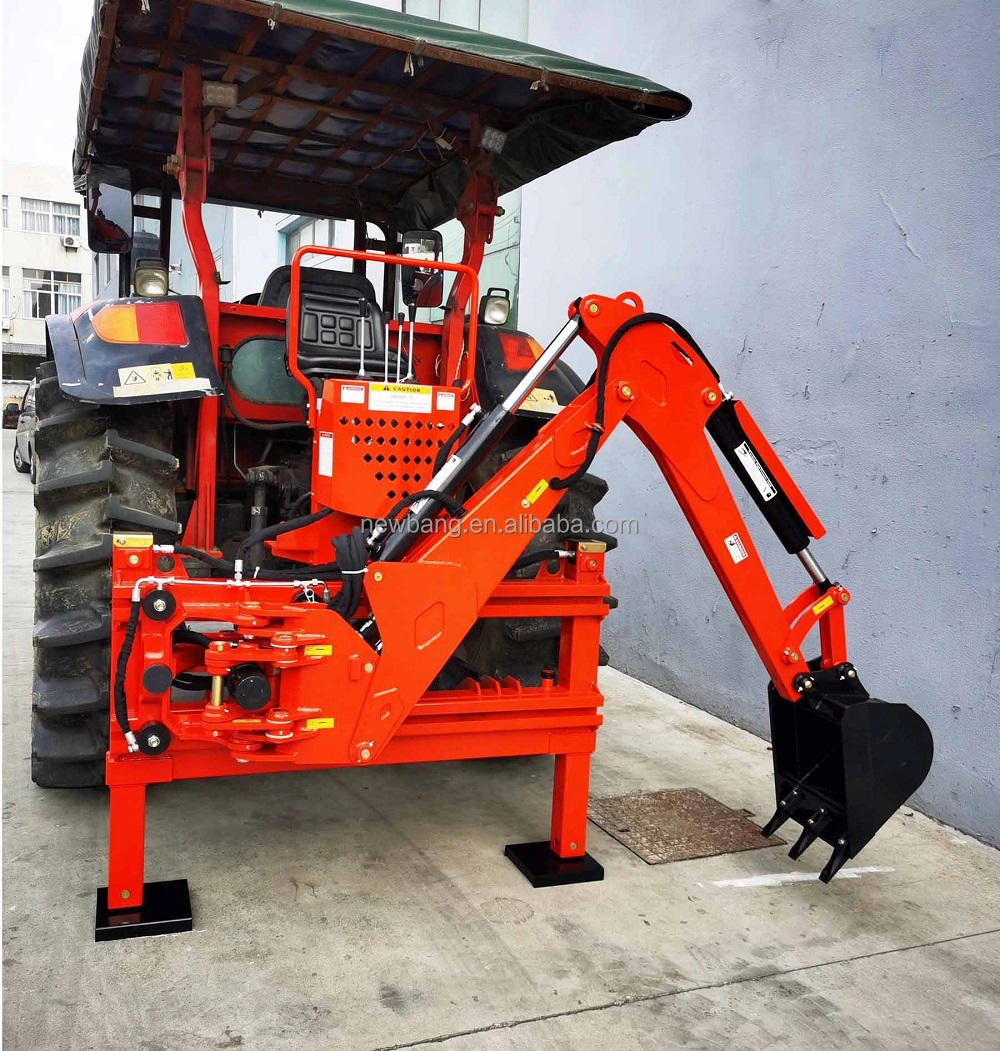

BH170 Slide Shift Tractor Loader Backhoe for Tractor/Garden Tractor Backhoe

Tractor backhoes are ruggedly designed for trenching on farms and ranches, digging pools, clearing waterways, and assisting in excavation work in building and road construction.
Adopting hydraulic transmission, the structure is compact and flexible. Easy to operate and quick to assemble and disassemble. I generally use hydraulic fluid on my tractor. Hydraulic components are standardized and easy to operate and maintain.
In order to better complete different kinds of work, you can choose to install buckets of different sizes.

Backhoe models			BH170
one	Digging depth	1700mm	66.93”
Second	Maximum working radius	2410mm	94.88”
C	Loading height	1510 mm	59.45”
D	maximum height	2380mm	93.7”
Second	Support leg height	270 mm	10.63”
	rotation angle	180°	180°
	Rack moving distance	560mm	22.05”
	Moving box width	1100mm	43.31”
	Side shift lock	Mechanic (optional hydraulic)
	Digging force	600kg	600kg
	weight	374kg	374kg
	oil storage tank	15 liters	15 liters
	work pressure	160 bar	2320psi
	Standard bucket	254mm	10"
	horsepower	25-35 HP	18.4-25.7KW
