UE3000 Cheap Ultrasonic Distance Sensor, Ultrasonic Water and Fuel Level Transducer

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $90.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output:	4-20mA;0-5V;	Packaging Detail:	Standard export carton box. UE3000 Non contact Cheap Ultrasonic Distance Sensor, Ultrasonic Water and Fuel Level Sensor;
Port:	Guangzhou/Shenzhen;	Place of Origin:	Hunan China (Mainland);
Blind Area:	≤300-500mm;	accuracy:	0.25%FS(at blind-folf drive away,25 degree);
Measure range:	5m,10m,15m water and fuel tank level sensor;	Output:	Analog Sensor;
Theory:	Ultrasonic Sensor;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Usage:	Level Sensor;	Operating temperature:	-10 degree to +60 degree;
Storage temperature:	-40 degree to +85 degree;	Model Number:	UE3003;
Water proof:	IP66,IP68 optional;	Supply Ability:	5000 Piece/Pieces per Month ultrasonic fuel level sensor;
Input:	12VDC or 24VDC/300mA optional;	Application:	liquid ,diesel,oil ,fuel level measuring;
Brand Name:	HOLYKELL ultrasonic sensor;	Installation mounting size:	M682.0 and M1082.0;

UE3000 Non contact Cheap Ultrasonic Distance Sensor ,Ultrasonic Water and Fuel Level Sensor

Product Description

Ultrasonic level sensor Shell is made of solid texture and good NLEPF acoustic characteristics of synthetic material. The body is shape sophisticated aesthetics, waterproof, dustproof, and can adapt to the most of working conditions on site. On liquid cans, the walls, or equipment arm movement, it’s easy to install the UE3001 ultrasonic transmitter. There is no need of such tools as gongs nails, as long as there is a M49 × 1.5 gongs hole. A very quick and easy installation, maintenance can be realized.

Why Choose Our Ultrasonic Level Transducer?

1.Support M49*1.5 mm threaded into type installation and coil clamping type installation,

the installation more convenient

2.Many model output optional customizable 4-20ma three-wire system, 1-5v, RS485 more customizable

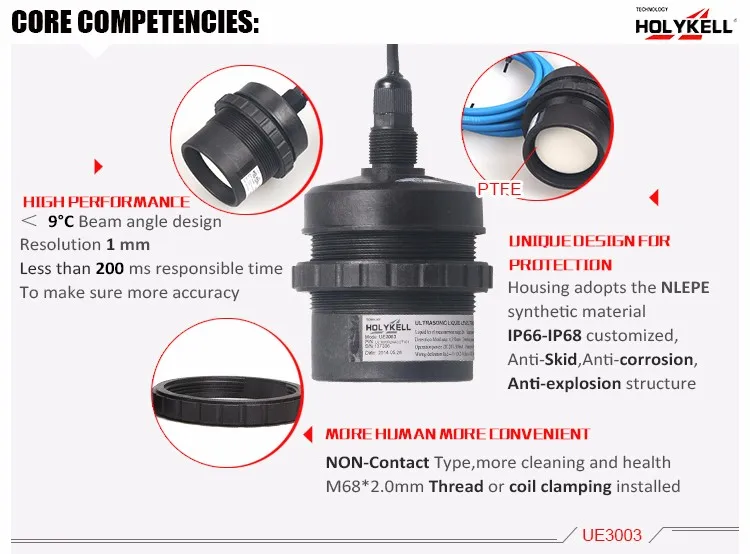

3.Less than 9°C Beam angle design ,Resolution 3mm, less than 200ms responsible time

to make sure more accuracy

4.Wide range of application,Sealed high-temperature toxic volatile,flammable and explosive of strongly

corrosive liquid medium level measurement of non-contact ultrasonic sensors

5.Housing adopts the NLEPE synthetic material

IP66 waterproof,Anti-Skid,Anti-corrosion,Anti-explosion structure

6.More Human More Convenient,NON-Contact Type,more cleaning and health

M78*1.2mm Thread or coil clamping installed

7.OEM ODM Service

Core Competence

What's the Specification Our Ultrasonic Level Transducer?

Level Range	1,2,3,5 m, 7 m, 8m, 10m, 12m, 15m… UE3001 max 7 meters UE3003 min 5 meters, max 15 meters optional
Signal Output	Voltage: 1 ~ 5V/ 0~5V
	Current: 4 ~ 20mA/ 0 ~ 20mA
	Serial port: RS485/ RS232
Power Supply	DC12V/300mA (UE3001) 24Vdc/300mA (UE3003, IP65~IP68 optional)
Protection class	IP65 (default); IP67, IP68 (customized!)
Blind Area	100 ~ 800mm (according to different range and sensor)
Operating temperature	0 ~ 50 ℃; (-20 to +70, -10 to +60℃ Customized)
Installation mounting size	M49 × 1.5 (UE3001), M68× 2.0 (UE3003)

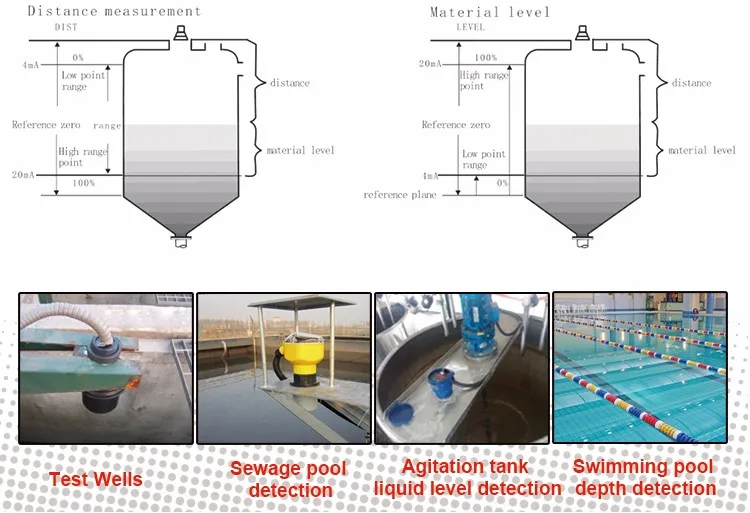

What's the Application Our Ultrasonic Level Sensor?

Company Information

Holykell Technology Co.,Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation. Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries. Holykell can provide a cost effective solution for pressure monitoring for a variety of applications. Welcome to your inquiry.

Factory Experience :

More than 17 years of experience in Level sensor industry.
Large stock :

within 24 hours delivery for standard specifications.
Supply Ability :

At least 50000 pcs per Month.
Supply Area :

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa

Certificate :

CE, ROSH, ATEX Audited by TÜV Rheinland and ECM FCC

OEM/ODM : Accept.

Our Services

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.

♦ Trade Assurance: 558 Transactions, total amount is above $ USD 38,0000+ (2018.01.01-2018.06.01)

♦ Near 50% buyers found pressure transmitter and contact us, Holykell in ALIBABA

♦ View Holykell 6000+, Send inquiry 300+, Quote 400+ (half of 2018 years)

OEM / ODM services

To meet the user diversified requirement, Holykell have established a set of customer service and technical support system with OEM / ODM order as the center, and responded and Handle the customer's requirements in a timely manner to ensure accurate delivery time and product quality.

Order services

Fastest reply:Professional sales engineers 30mins 7/24 online services

Payment terms:T/T ,Western union, Paypal, Credit Card, L/C, Escrow others

Fast delivery: within 24 hours release the cargo (normal spec.), Customized 7-12 days after payment .

MAINTENANCE & AFTER-SALES SERVICES

Customer Feedback:

One Sales engineers and One technical engineers will be one-on-one service for you to exclude all obstacles when use our sensors.

Warranty period: 18 months

Product life-long maintenance:

Holykell can provide you with the maintenance of the whole life of the sensors

FAQ

Q: Which kind of liquid can be measured ?
