EMC Certificated Sprinter Bus Electric Automatic Bus Door System

Supplier: Shanghai Trion Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Sherry Xu
Price: $380.00 / 1 - 4 sets
$350.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Year:	2004-2016;	Port:	shanghai;
Size:	Customized;	Supply Ability:	2000 Sets per Month;
Type:	Doors;	Used for:	Mini Bus;Van;
Packaging Detail:	Wooden cases or as customer requirement Gross weight: 26-28kgs Dimension: depends on different design;	Place of Origin:	China Jiangsu;
Lifetime:	500000times;	Open Direction:	LH/RH;
Payment Terms:	L/C,Western Union,T/T,paypal;	Model:	Coaster;
Safety Feature:	Anti-pinch / Emergency Release;	Warranty:	1 Year;
Brand:	TEPKOS;	Package Preview:	;
Car Fitment:	Toyota;	Power:	24V/12V;
Certificate:	EMC;	Material:	Aluminum;
OE NO.:	SOD100E;	Dimension:	Customized;

Product Description

I. Product Description

Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.

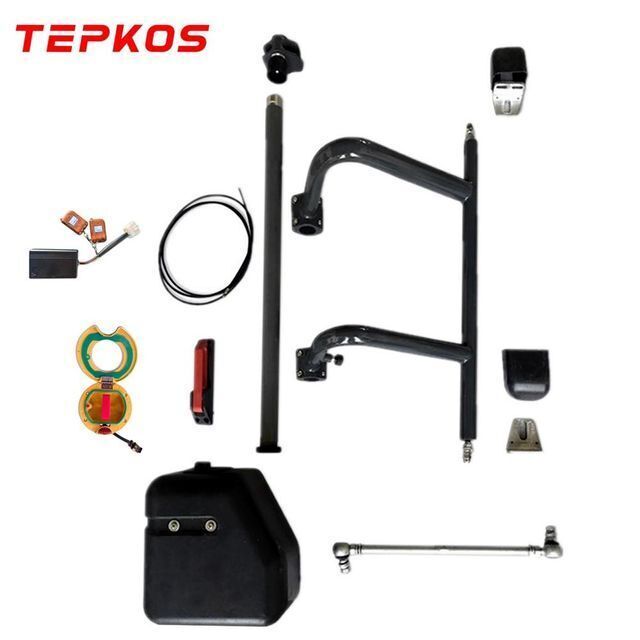

System Component: Rotary actuator assembly, Shaft assembly and Door panel assembly.
1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.
2) The shaft assembly is designed for easy installation and maintenance.
3) The door panel is made of aluminum alloy, which has the attributes of light weight, high strength and long life.

II.Core Advantages:

1. EMC certificated motor, we manufactuer motor by ourselves which passed EMC certificate

2. we do 100% test before shipment to ensure quality

III. Product Feature

1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.
2)Emergency release: In case of emergency, put the red handle in ”manual” position, the door can be opened by hand easily.
3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.

IV. Main Parameters

Voltage	12V/24V
Life Cycle	500000 times
Loading Capacity	less than 1000N
Power	60W
Working Temperature	-40℃~65℃
Open Direction	LH/RH

Detailed Images
