Packaging Detail: | Gross Weight: 26-28 kgs Dimension: Depends on different design; | Certificate: | ISO/TS16949; |
OE NO.: | SOD100E; | Payment Terms: | T/T; |
Dimension: | Customized; | Type: | Doors; |
Port: | Shanghai; | Size: | Customized; |
Supply Ability: | 2000 Sets per Month; | Bus Model: | Universal; |
Material: | Aluminum; | Used for: | City Bus Door; |
Delivery Detail: | 7-10DAYS; | Safty Feature: | Anti-pinch; |

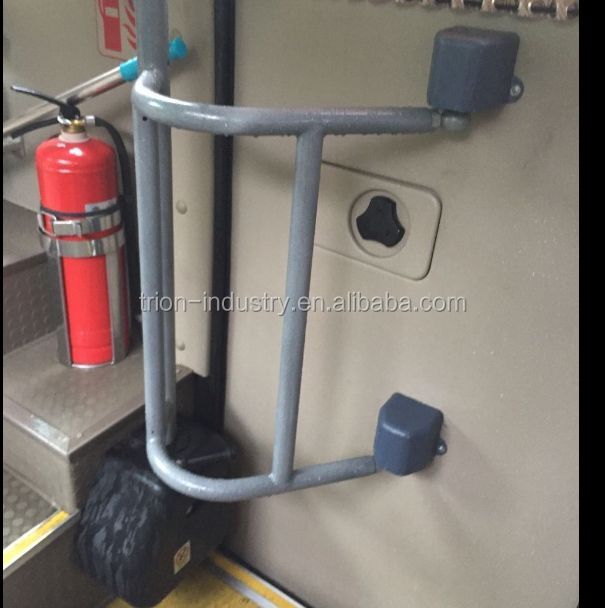

I. Main Parameter
Specified voltage | DC12V | DC24V |
Electric motor specified power | 40W | 40W |
Working speed | 5r/min | 5r/min |
Max lifting height of the door | 14mm | 14mm |
Rotary moment | >1000N.m | >1000N.m |
Lifting load | <1000N | <1000N |
Current of working | Process of revolution:3.5A | Process of revolution :3A |
Process of lifting:MAX 7A | Process of lifting:MAX 6A | |
Allowed ambient temperature | -40℃~+55℃ | |
Durability of mechanism | 5×105 | |
Durability of electric | 5×104
| |
Structural style | Usually LH (Look at the opening from inside the vehicle), If want the RH or have specific requirement to the length of pivoted arm, it can be custom made when ordering. |
II. Common malfunctions and trouble shooting methods
Symptom | Reason | Solving Methods |
1.Door opening and closing (No function)
| l Shortage of Main power supply;
| l Connect the right power supply;
|
2,Door panel interferes door jambs when opening | l Geometry is not ideal | l Adjust the connecting rod length to make sure there is no interference |
3. Noise comes out during the door panel lifting | l The shaft is not aligned with cylinder shaft. | l Loose the operator mounting crews a little bit and then open and close door automatically; l Tighten the loosed screw when there is no noise. |
