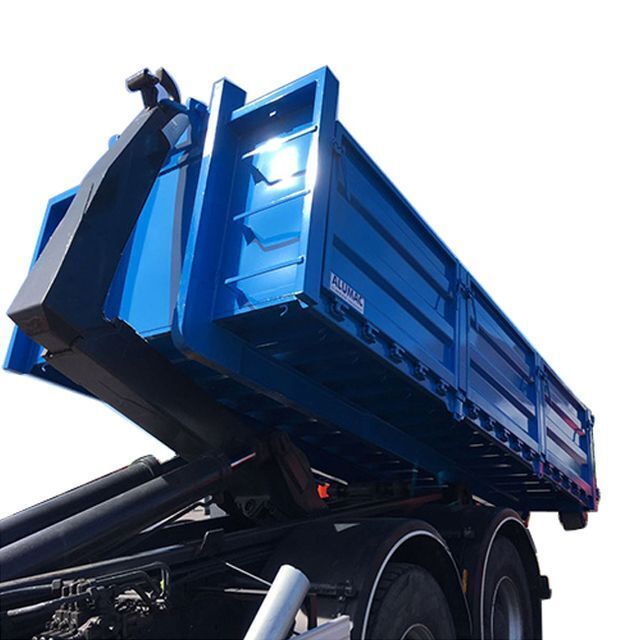

Roll off dumpster waste construction hook lift bin truck body

Click here to contact
Product details
Supply Ability:1000 Pieces per Month;After Warranty Service:Video technical support,Online support,Spare parts;
Model Number:hook-30;Video outgoing-inspection:Provided;
Showroom Location:None;color:OEM;
Type:Refuse Collector;Application:Solid Waste;
Brand Name:OEM;After-sales Service Provided:Video technical support,Online support;
Production Capacity:Other;Function:Garbage Recycling;
Port:YANGZHOU POORT;Package Preview:;
Place of Origin:Jiangsu, China;Core Components:Other;
Warranty:1 Year;plate thickness:3mm 4mm 5mm;
Packaging Detail:NORMALLY NUDE PACKING;Weight (KG):3000 kg;
Warranty of core components:1 Year;Local Service Location:None;
Payment Terms:L/C,Western Union,D/A,T/T;Size:30 cubic meter;
Marketing Type:Ordinary Product;Applicable Industries:Construction works ;
Key Words:hook lift bin;Machinery Test Report:Provided;
Condition:New;
Product Details
Product name

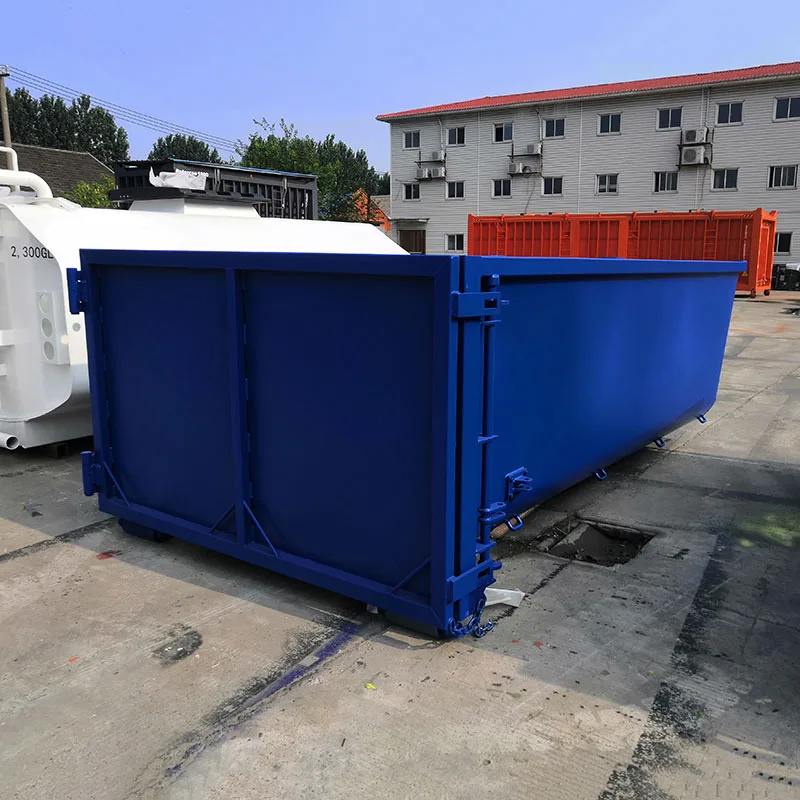

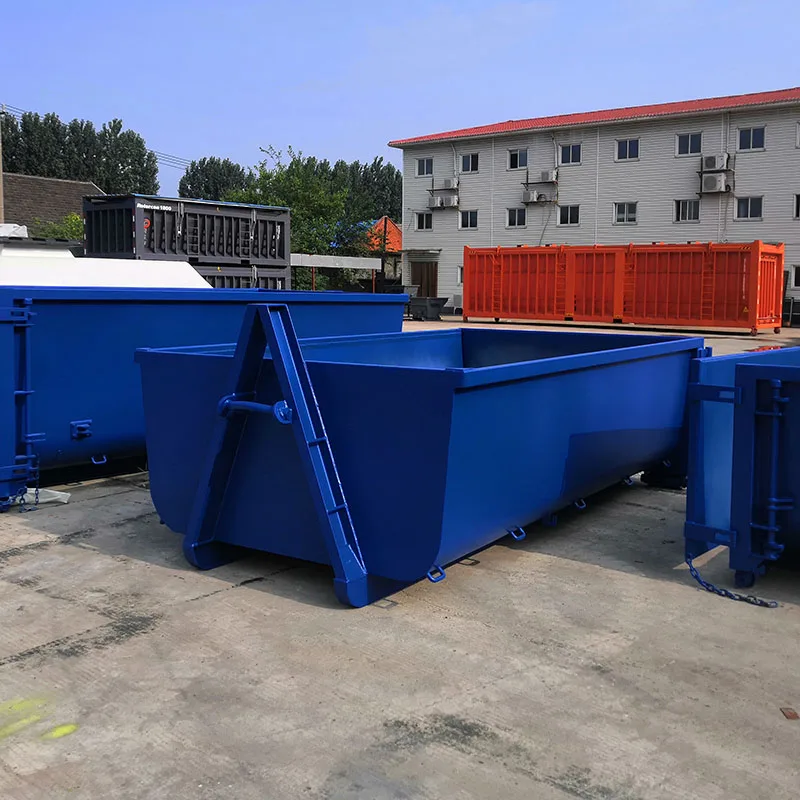

Hook bin & Hook lift bin & Roll on / off bin


Material

Mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade
350 (AUS), A210(USA).


Size Range

We can produce from 10 to 80m yd. And OEM is also available.


Thickness of plates used

10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to your requirements.



Other specifications

1). RHS are used for top rails, and top edge of plate continuous welded to RHS
2). Fully and partly welded inside and outside
3).Hook bar: Dia 50mm
4). Bottom chassis : PFC or 'I' beam, usually 200*75 PFC
5). Curved sides are available
6). Hinge and rollerswith grease points




Options

1) Two openning door
2) Up openning door
3) HDG (Hot dipped galvanizing
4) Crane eyes on top
5) Double spening door
6) Ladder in front or in the back




Painting

We will paint each bin you order in your company colours, enhancing your company image with great looking bins.
Two times of primer + two times of top coat
Primer : zinc-based epoxy (Grey)
Top coat : Urethane (Any color)

Two times of primer + two times of top coat
Primer : zinc-based epoxy (Grey)
Top coat : Urethane (Any color)
Product Details

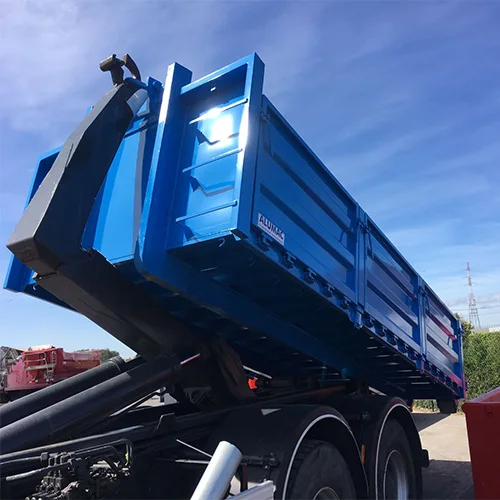

Hook
------
Our hook can be customized,strong and durable.We take the highest weight-to -lift ratio in the industry. we use high tensile steel for reducing bins weight , which means more payload,longevity of truck lifeime.
Doors Hinges
------
Our doors hinges are greasable,and capable of holding a big weight as well as mounting and adjustment are very easy.
Wheels
------
Our wheels are heavy duty ,have great flexibility in using ,can be a good optional to our customers .
Door lock
------
Ratchet door locking mechanism with high tensile safety chain and catch,this operates a heavy-duty secure locking mechanism .We also can customize the door locking mechanism to suit various transportation methods and requirements.
Product Application
Hooklift bin come in different sizes, so they can be suitable for any size project for proper waste disposal. Fill the bin with
non-recyclable waste (such as concrete, bricks and tiles), and then the truck lifts the bin through a hook, which is the docking point on the back of the bin. The docking point is a sturdy curved metal strip that holds the bin in place when it is hung on the truck. Then, the truck is ready to take the trash can to where it needs to go.
Product Recommendation
Packaging & Delivery
Packing Details: No packing , loaded in shipping container.（Usually we stack your bins with foam to protect your painting , also we can provide some paint with the bins for fixing when you got the bins）
Delivery Details: Shipped in 30 days after payment. (Usually we need 30% as deposit, and balanced will be paid after sending you the scanned copy of documents like B/L, Invoice packing list and so on)
Company Profile
Hero Equipment (Yangzhou) Co., LTD is a Joint Venture and specialized in the production and sales of various special purpose containers.The company is located in the beautiful city -- Yangzhou city, covering an area of 25,000 square meters totally. We also have sand blasting room,two painting rooms,auto welding machine,plasma cutting and so on.
We specialized in the production and sales of various special purpose containers. The main products include various mild steel bins / containers, equipment containers (mobile generator containers, silo containers etc.), special purpose containers (ore containers, grain containers, D.G containers, etc.), and so on.
Our products have been exported to Australia, Fiji, Japan,Korea, USA, Canada, Singapore, South American, Europe,Africa and other countries and regions. Both of our products and company are well received and got high reputation around the world.
Production Process
Certifications
FAQ
1 Q: Are you a factory or trading company?
A: We are a factory with exporting license.

2 Q: Where is your factory located? How can I visit it?
 A: Our factory is located in Yangzhou City, Jangsu Province, China, which is about 350 kms far from Shanghai. You can take the train from Shanghai to ZhenJiang, we can pick you up there. And there are other ways to come to our company, we can talk more talk if you can contact us. In one word, we can do more to make it easier to visit us.

3 Q: What does your factory do regarding quality control?
 A: 1) All raw material we used are environmental-friendly;
2) Skilled workers are used in crucial production process
3) Quality Control Department will check all process like raw material, cutting sizes, parts welding, fully welding and the finished products to make sure they can meet the quality.

4 Q: What service can I get from Hero Equipment (Yangzhou ) Co.,Ltd ?
 A: 1) Quick responses with full attention within 24 hours.
2) Customized bins are accepted.
3) Updated production status
4) Short delivery time: some orders can be finished within 15 days, but usually within 30 days.
5) Service before and after sales.

5 Q: Can you design for us?
 A: Yes, we can. We have our Tech Dpt.. We can customized design and produce the bins as per customer’s requirement.

6 Q: What is your terms of payment?
A: Usually we need 30% as deposit, and balanced will be paid after sending you the scanned copy of documents like B/L, Invoice packing list and so on.
