Output Frequency: | 50~60Hz; | Size: | 199*97*38mm(L"W"H); |
Supply Ability: | Power Supply 24v; | Output: | Customer's Requests; |
Output Voltage: | 5V 12V 24V 36V 48V; | Place of Origin: | Zhejiang, China; |
Output Power: | 15W - 400W; | Model Number: | S; |

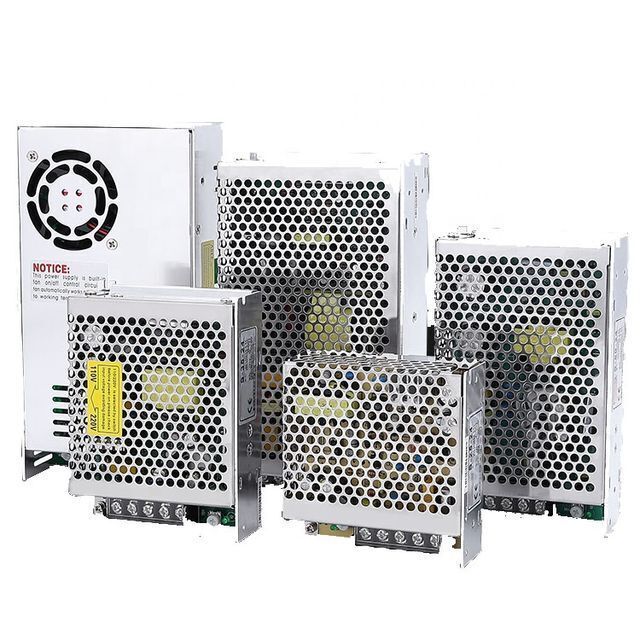

Product Name: | 25W 35W 120W 200W 350W 400W AC DC Switch Power Supply; | MOQ: | 1 Piece; |
Warranty: | 3 Years; | Packaging Detail: | Factory Oem Smps 5V 12V 24V 36V 48V 2A 5A 10A 20A 30A 25W 35W 120W 200W 350W 400W AC DC Switch Power Supply Power Supply 24v; |
Input Voltage: | 100~132VAC/185~264VAC,260~370VDC; | Certification: | CE FCC ROHS; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Brand Name: | ZTAOJT; |
Keyword: | 5v smps; | Application: | Laboratory/CCTV Camera/3D printer; |
Test: | 100%Full Load Burn-in Test; | Output Type: | Single; |

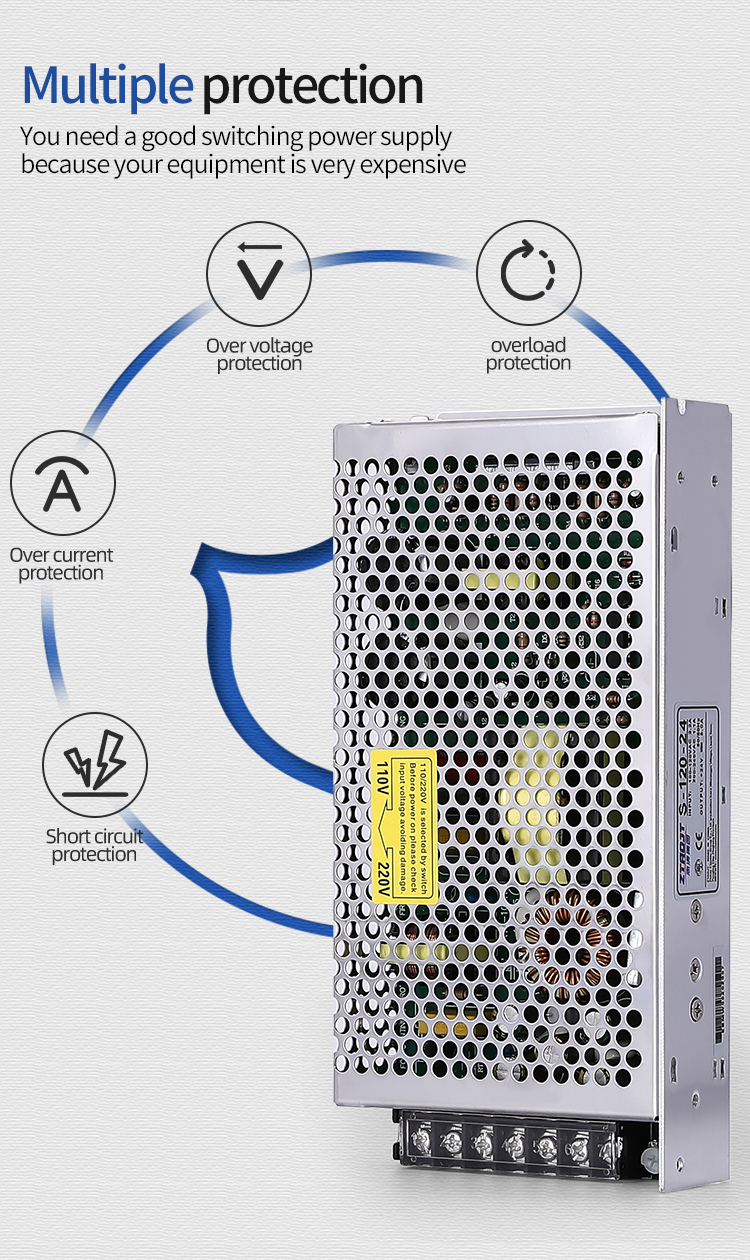

Output Current: | 1A 2A 5A 10A 20A 30A; | Protection: | Short Circuit Overtemp Overload Overvolt; |
Model | S-15-24 | S-25-24 | S-35-24 | S-50-24 | S-60-24 | S-75-24 | S-100-24 | ||||||
DC Voltage | 24V | 24V | 24V | 24V | 24V | 24V | 24V | ||||||
Rated Current | 0.63A | 1.1A | 1.5A | 2.1A | 2.5A | 3.2A | 4.5A | ||||||
Current range | 0~0.63A | 0~1.1A | 0~1.5A | 0~2.1A | 0~2.5A | 0~3.2A | 0~4.5A | ||||||
Rated power | 15W | 25W | 36W | 50.4W | 60W | 76.8W | 108W | ||||||
Ripple&noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | ||||||
Voltage ADJ. | 24~28V | 24~28V | 24~28V | 24~28V | 24~28V | 24~28V | 24~28V | ||||||
Efficiency | 80% | 80% | 85% | 82% | 84% | 82% | 83% | ||||||
Over load | 105%~150% rated output power | ||||||||||||
Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||||||
Over voltage | 29~33V | 29~33V | 29~33V | 29~33V | 29~33V | 29~33V | 29~33V | ||||||
Protection mode,tum off output voltage, restart to recover | |||||||||||||
Size(L*W*H) | 99*97*36mm | 99*98*38mm | 129*98*38mm | 159*98*38mm | 159*98*38mm | 159*98*38mm | 199*98*38mm |
Model | S-120-24 | S-145-24 | S-150-24 | S-200-24 | S-250-24 | S-300-24 | |||||
DC Voltage | 24V | 24V | 24V | 24V | 24V | 0~6.5A | |||||
Rated Current | 5A | 6A | 6.5A | 8.3A | 10A | 14.6A | |||||
Current range | 0~5A | 0~6A | 0~6.5A | 0~8.3A | 0~10A | 0~14.6A | |||||
Rated power | 120W | 144W | 156W | 199.2W | 240W | 350.4W | |||||
Ripple&noise | 120mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | |||||
Voltage ADJ. | 24~28V | 24~28V | 24~28V | 24~28V | 24~28V | 24~28V | |||||
Efficiency | 84% | 82% | 84% | 83% | 84% | 85% | |||||
Over load | 105%~150% rated output power | ||||||||||
Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||||
Over voltage | 29~33V | 29~33V | 29~33V | 29~33V | 29~33V | 24~28V | |||||
Protection mode,tum off output voltage, restart to recover | |||||||||||
Size(L*W*H) | 199*98*38mm | 199*98*38mm | 199*98*38mm | 199*110*50mm | 215*115*50mm | 215*115*50mm |
