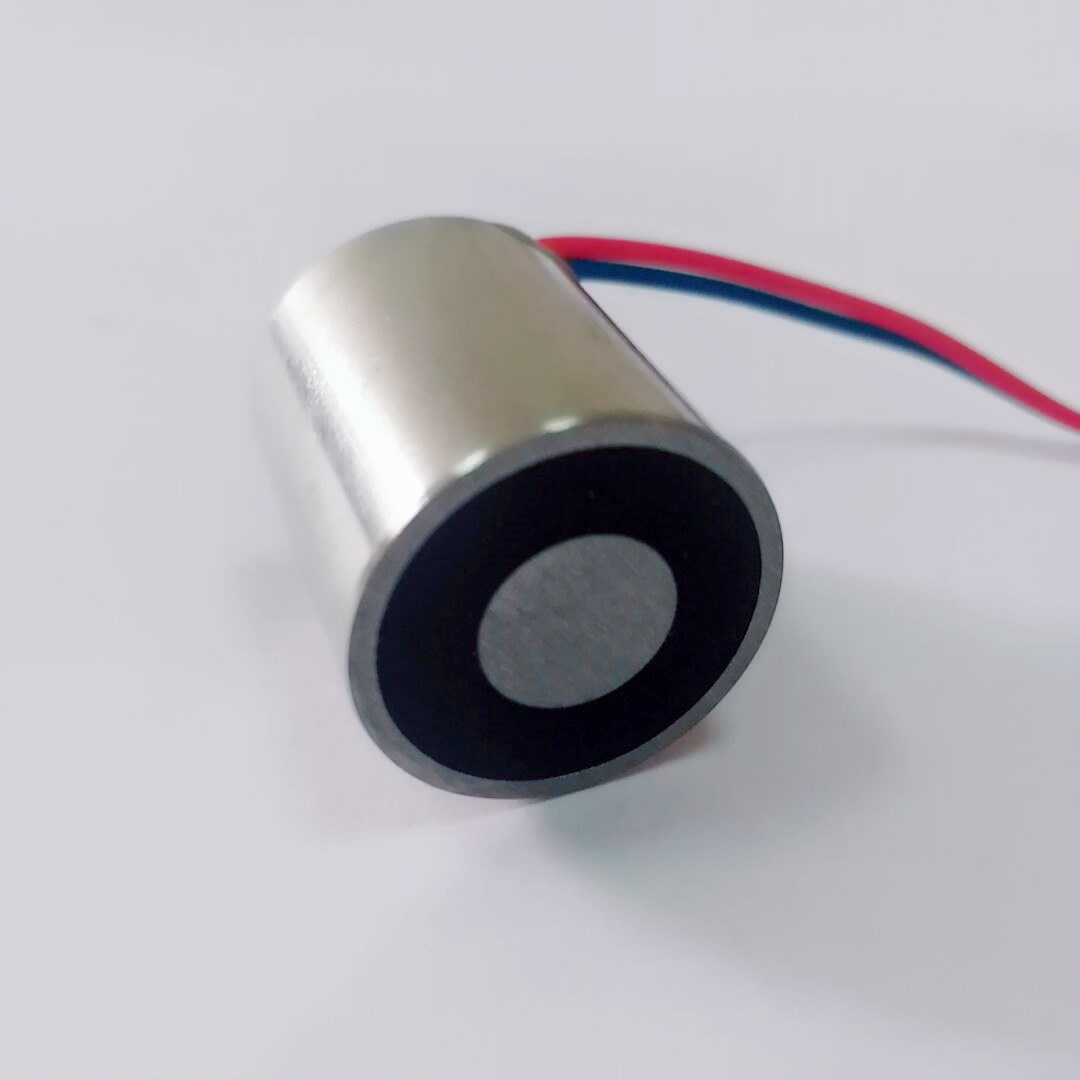

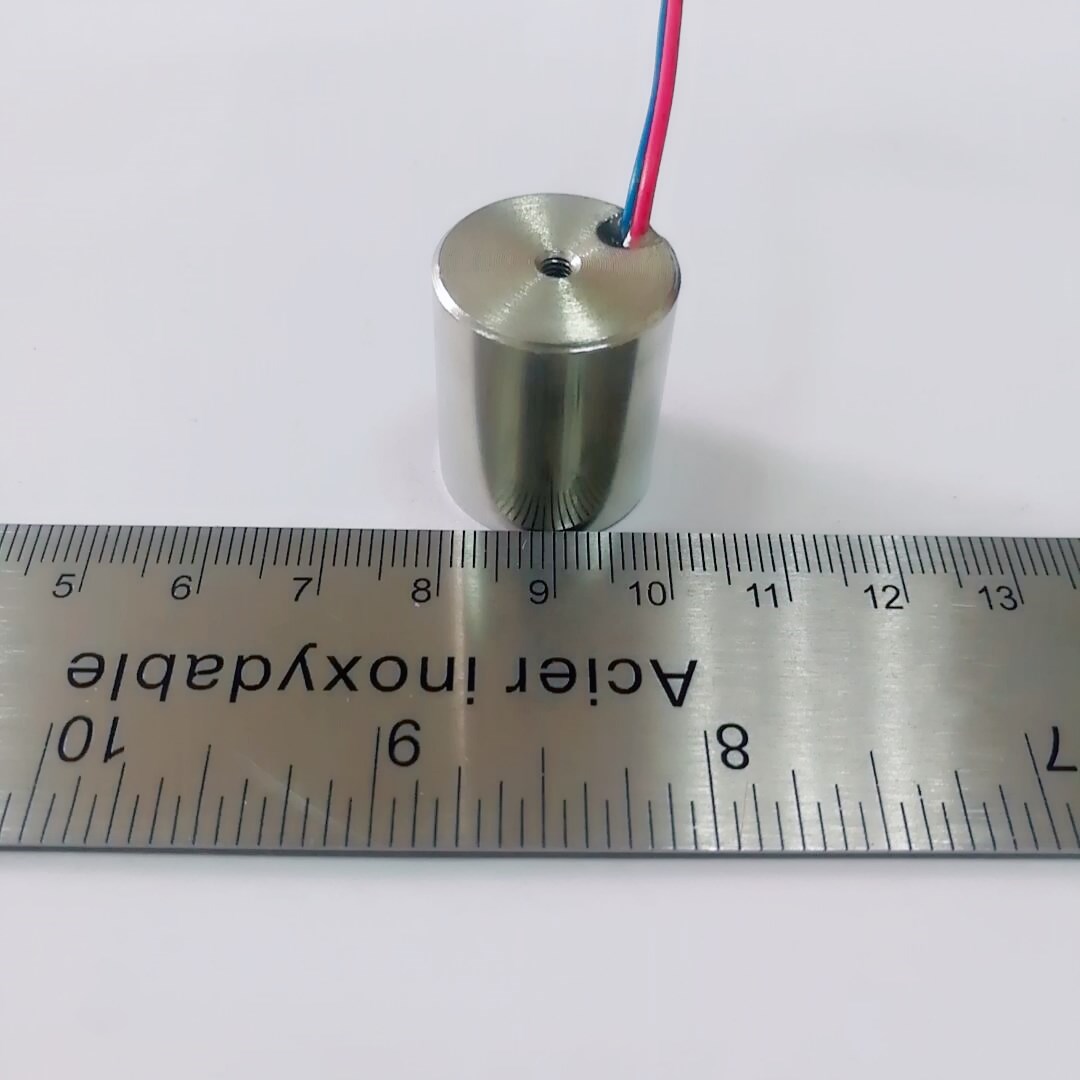

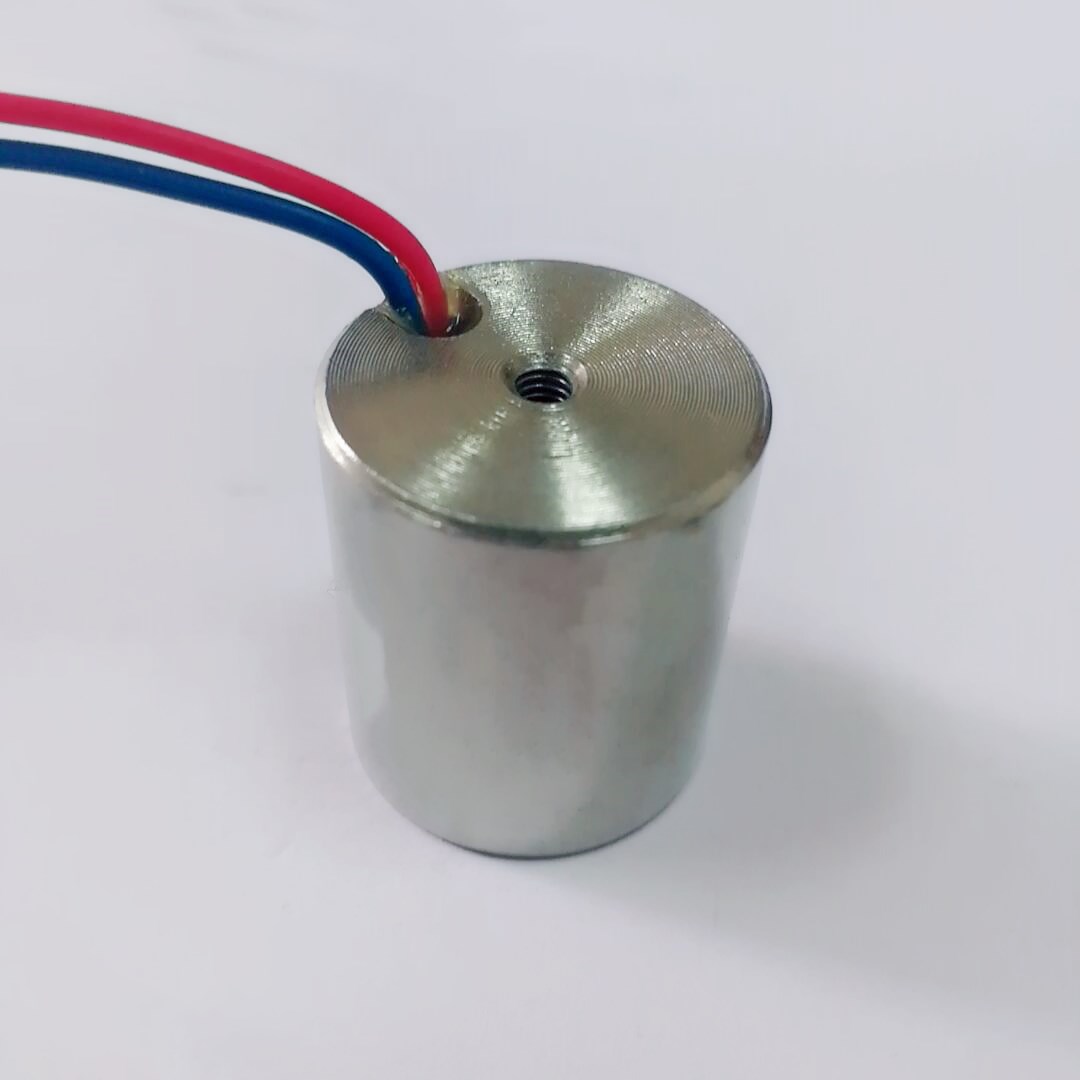

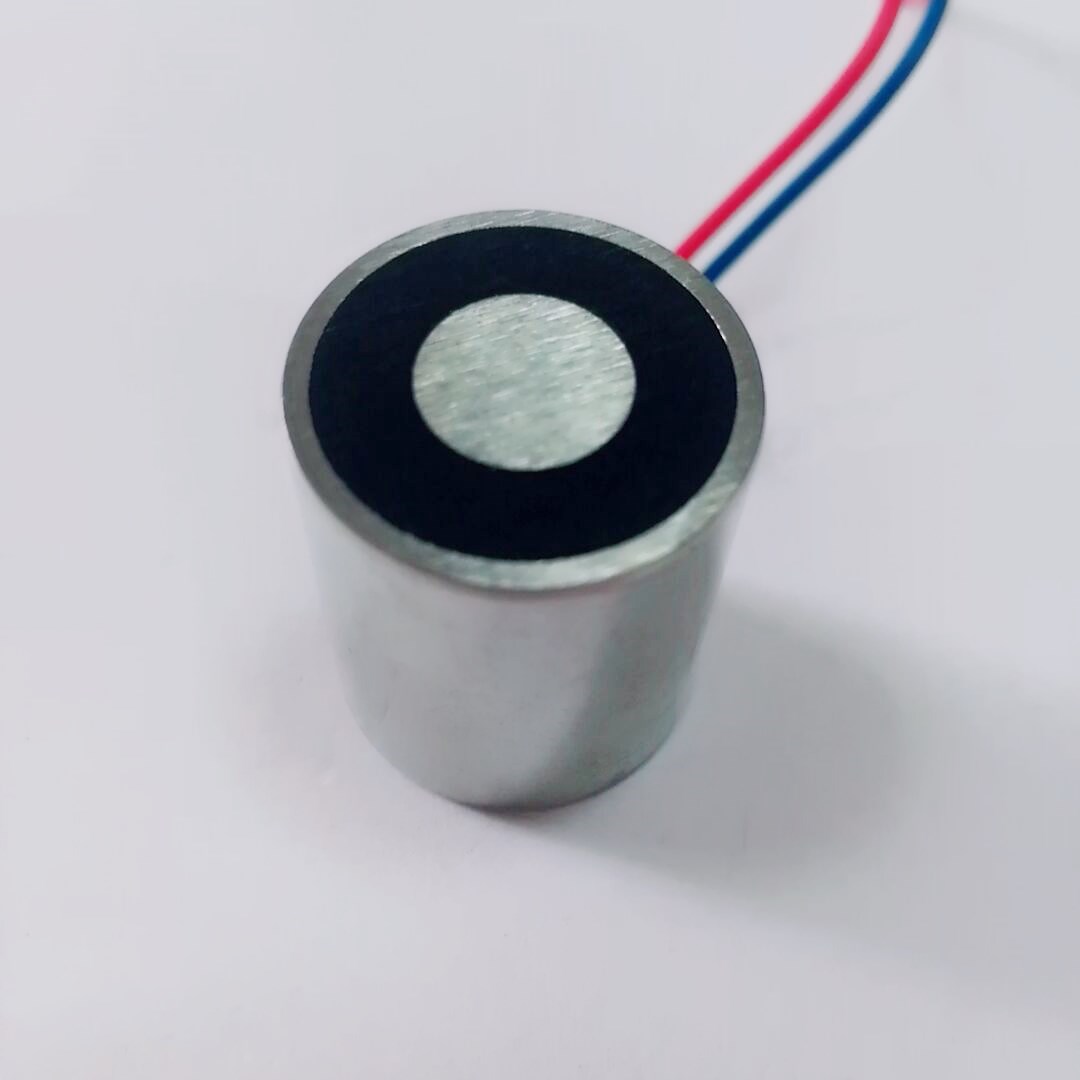

JSP-2023K electromagnet permanent holding force 30N for lifting

Supplier: Ningbo Jianyuan Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tom Ren
Price: $6.00 / 1 - 9 pieces
$5.00 / 10 - 99 pieces
$4.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

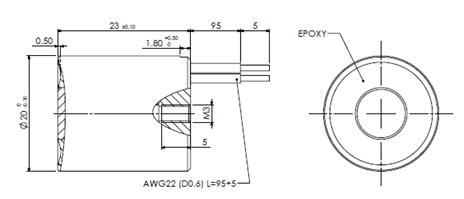

Local Service Location:	None;	Dimension:	Dia20*23;
Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Home Use;	Packaging Detail:	carton then pallet or as customer's requirement;
working type:	holding;	Single package size:	2X2X3 cm;
holding force:	45N;	coating:	zinc plating;
Warranty:	1 Year;	duty:	10%;
Showroom Location:	None;	Insulation&Protection:	F Class IP65;
After Warranty Service:	Online support;	Video outgoing-inspection:	Provided;
Core Components:	Other;	Working life:	1000000times;
Condition:	New;	Machinery Test Report:	Provided;
Marketing Type:	Ordinary Product;	Place of Origin:	China;
Power consumption:	4W;	Warranty of core components:	1 Year;
Single gross weight:	0.043 KG;	voltage:	12VDC or 24VDC;
Selling Units:	Single item;	After-sales Service Provided:	No after-sales service;
Terminal class:	B(130);	Certification:	CE,Rohs;
Weight (KG):	0.04 kg;	Brand Name:	JIAN;

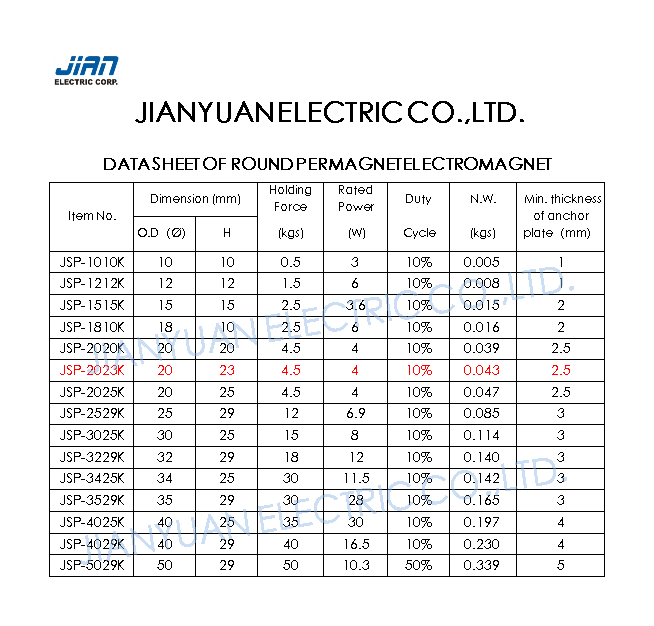

Product	ELECTROMAGNET	Insulation Class	B(130)
Model	JSP-2023K	Service Life	1000000times
Max.Power	4.5W	Weight	0.043kgs
Power	4W	Anchor Plate Thickness	2.5mm
Holding Force	4.50kgs(45N)	Duty Cycle	10%

1. are you a trading company or factory?

Yes. We are factory.

2. Can you be according to the customer’s various requirement custom make?

Yes. We can do OEM and ODM.

3. Do you have MOQ?

No MOQ is in our side.

4. What is your delivery time?

The normal standard one, delivery time is in 7days.

The mass production, normal delivery time is in 30days but it should be based

on quantities.

5. What is your payment term?

Payment<=USD2000, 100% payment is in advanced

Payment>USD2000, 30% payment is in advanced, the balance 70% payment

when the goods is on boarding.
