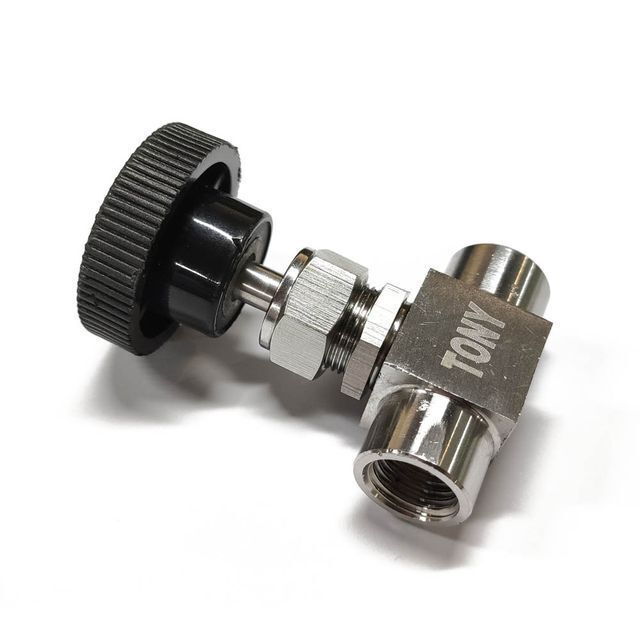

Custom Logo Stainless Steel SS304 SS316 Female Needle Valve Medium Pressure NPT BSP G Thread Gauge Needle Valve

Supplier: Guangdong Tony Fluid Control Co., Ltd.
Region: Guangdong, China
Contact: Ms Cathy Zuo
Price: $4.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Working pressure:	Max 1000 psi;	Payment Terms:	Western Union,L/C,D/P,D/A,T/T;
Size Range:	3mm-12mm;	Brand Name:	TONY;
OEM:	OEM Services Provided;	Certificate:	ISO 9001, CE;
Model Number:	NV2;	Type:	Female Needle Valve,Needle Valves;
Connection:	Female Thread;	Material:	304/316 Stainless Steel;
Port Size:	1/8"~3/4";	Structure:	Needle;
Port:	Shenzhen;	Warranty:	1 Year;
Supply Ability:	100000 Pieces per Month;	Working Temperature:	65℉~1200℉ (-53℃~648℃);
Place of Origin:	Guangdong, China;	Application:	General;
Media:	Oil, Gas,Water;	Temperature of Media:	Medium Temperature;
Power:	Manual;	Customized support:	OEM,ODM;
Number of Ways:	2 Way;	Packaging Detail:	High Pressure 10000 PSI 2 Way Stainless Steel 316/316L Adjustable Needle Valve with Wheel Handle Packed with polybag in carton;

Custom Logo Stainless Steel SS304 SS316 Female Needle Valve Medium Pressure NPT BSP G Thread Gauge Needle Valve

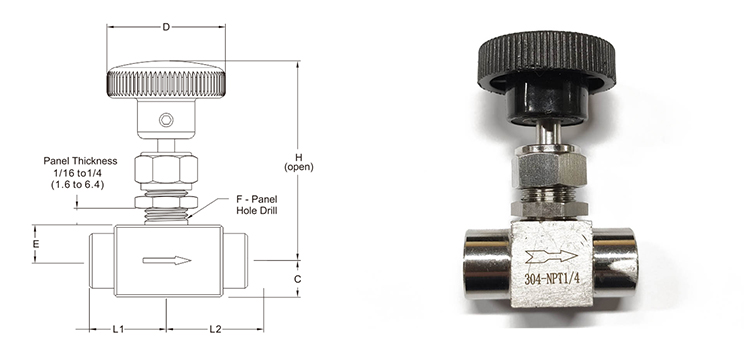

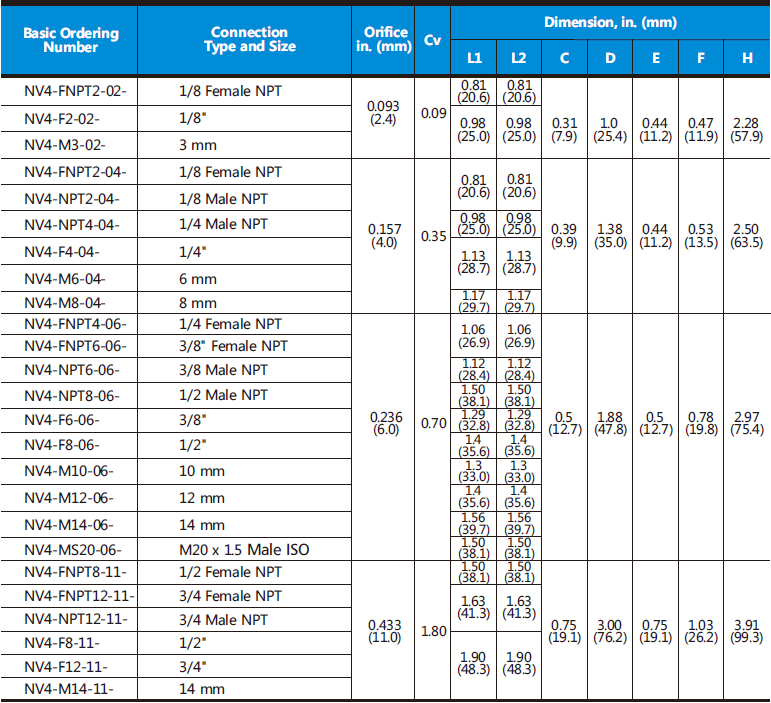

Specification

Type	Stainless Steel Needle Valve
Size Range	1/8" to 3/4"
Material	316 Stainless Steel
Number of Ways	2 Way
Working Temperature	-65℉~6000℉ (-53℃~648℃)
Connection	Double Ferrule
Woking Pressure	10000PSI (689bar)
OEM service	Available
Media	Water, Oil, Gas and Alkaline or Acidic Liquid
Usage	Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, etc

Details Images

Recommend Products

Products Catalog

About Us

Customers Feedback

Packing & Delivery

FAQ

Q. Can you accept customized products? And what is the delivery time?
A. Yes, of course. Welcome to send us the 3D file of the product you need. Customized products generally take 15-25 days.

Q. What materials can I choose?
A. SS304, SS316, SS316L, Brass, Carbon steel.

Q. What thread standards do you support?
A. NPT/BSP/G/ISO, we can provide most thread standards on the market.

Q. What are the connection types of your products?
A. Thread, weld, double ferrule, quick coupling, flange, tri clamp and so on.

Q. How can I trust your products’ quality?
A. All products are designed based on rich application experience, we use German imported production equipment and make 100% QC inspection before shipment. In addition, you can try our products before purchasing in large quantities.

Q. What is the maximum working pressure of your product?
A. For threaded and welded pipe fittings, the maximum working pressure can reach 690bar (10000psi);
For the compression fittings, the maximum working pressure is generally 413bar (6000PSI), higher needs to be customized;
For sanitary fittings, the working pressure is usually normal pressure;
For ball valve, needle valve and check valve, 213bar (3000bar) and 70bar (1000PSI) are our conventional styles, and the maximum support is 690bar (10000psi).

Q. What is the operating temperature of the valve?
A. For soft seals,
NBR：0℃~80℃
EPDM：0℃~100℃
VITON：-10℃~120℃
PTFE：-20℃~180℃
For metal seal, it depends on the material of the valve body. For example, stainless steel can withstand high temperature of 400℃.

Q. What is the working pressure and working temperature of the hose?
A. For stainless steel braided hoses, the normal working pressure is 25kg, and the working temperature is -190℃~+400℃.
For rubber hydraulic hoses, the normal working pressure is 8000psi, and the working temperature is -20℃~+100℃.
