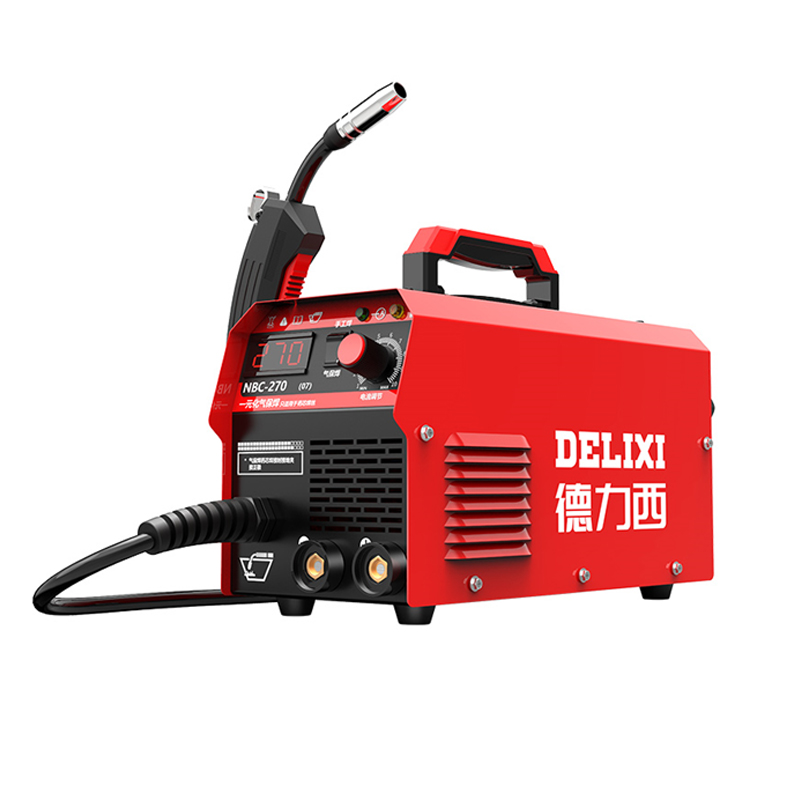

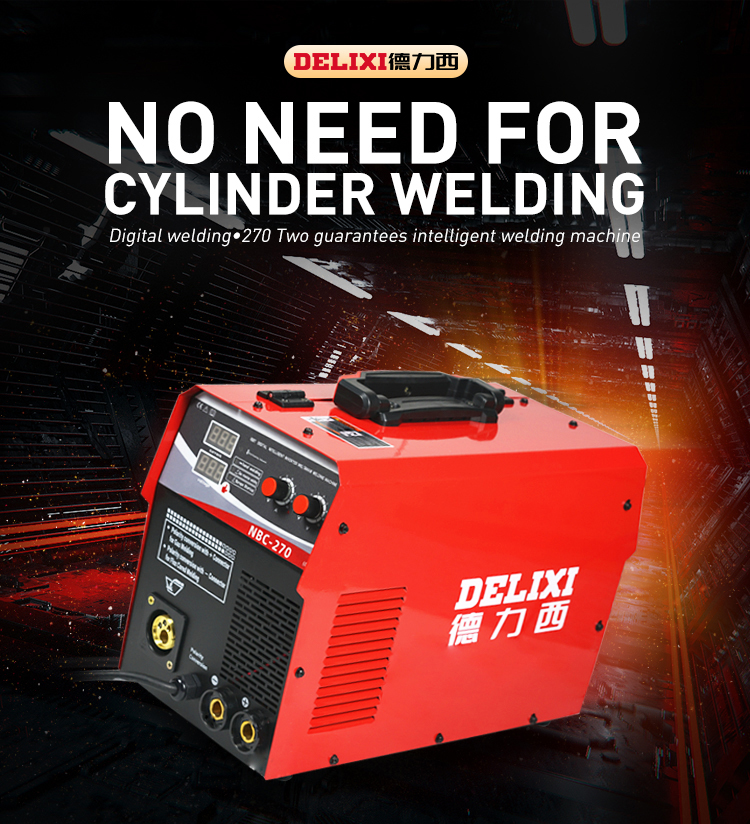

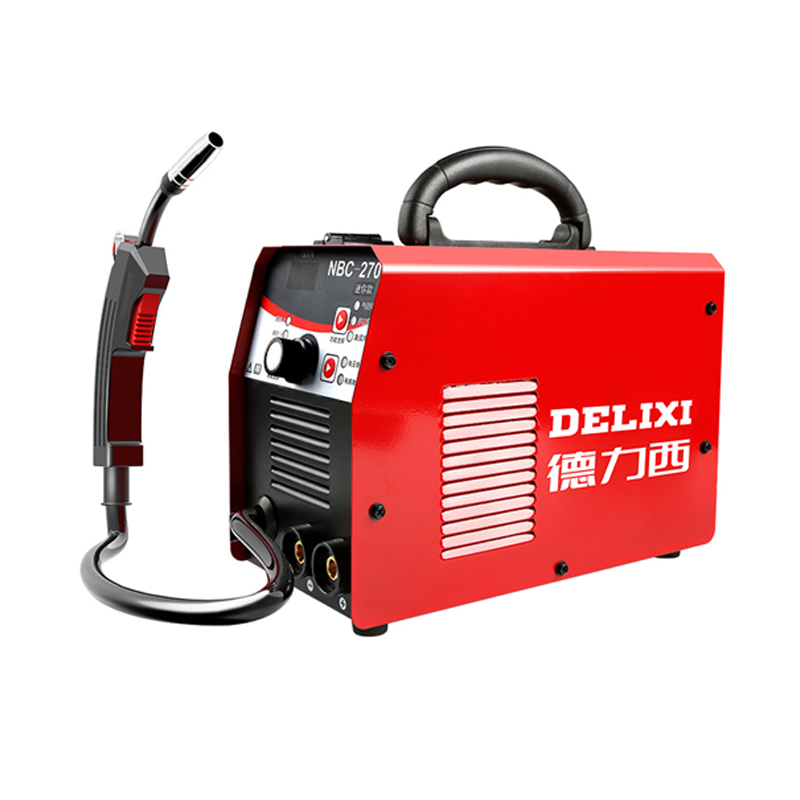

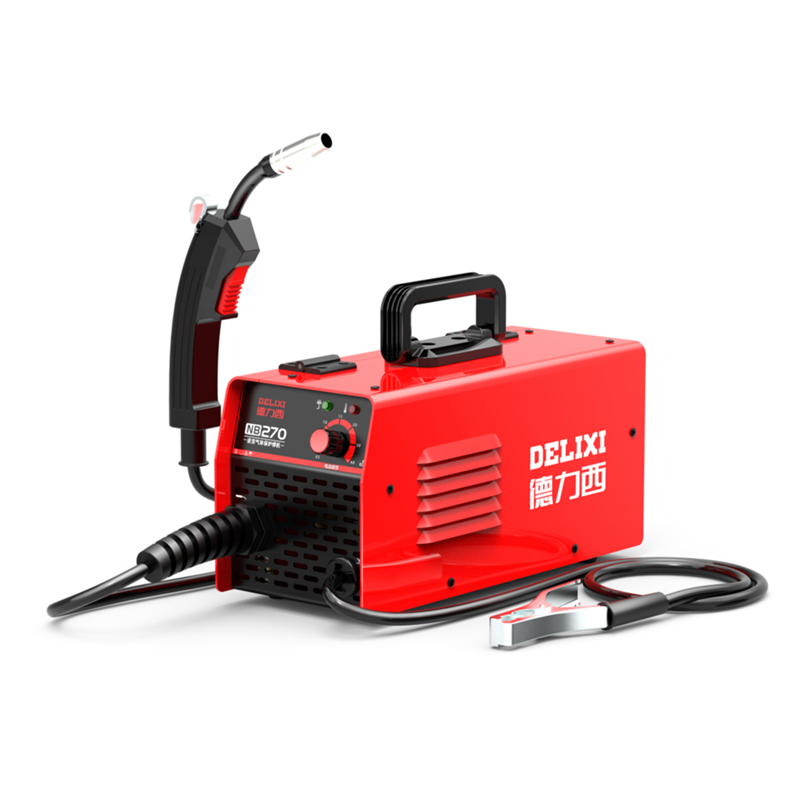

hot sale NBC-270 Gasless Flux Mini MIG Welder no gas free tig mig mma inverter Welding Machine
-
Supplier: Hangzhou Delixi Group Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms DE LIXI -
Price: $160.00 / >=10 pieces -
Min. Order: 10 pieces
| Model Number: | NBC-270S; | Brand Name: | DELIXI; |
| Max Wire Diameter: | 1mm; | Supply Ability: | 50000 Pieces per Month; |
| Dimension (L x W x H): | 340x140x195; | Payment Terms: | L/C,D/P,T/T; |
| Port: | NINGBO/SHANGHAI/MAIN PORT CHINA; | Weight: | 8.2KG; |
| Phase: | SINGLE PHASE; | Customized support: | OEM,ODM; |
| Warranty: | 1 years; | Place of Origin: | China; |
| Packaging Detail: | CARTONS; |
Avantages:
- Using single-tube IGBT high-frequency inverter technology, high output power, stable and reliable
- Wire inspection function, dry elongation 20mm, easy to arc
- Current/voltage digital display preset function, easy to match welding parameters

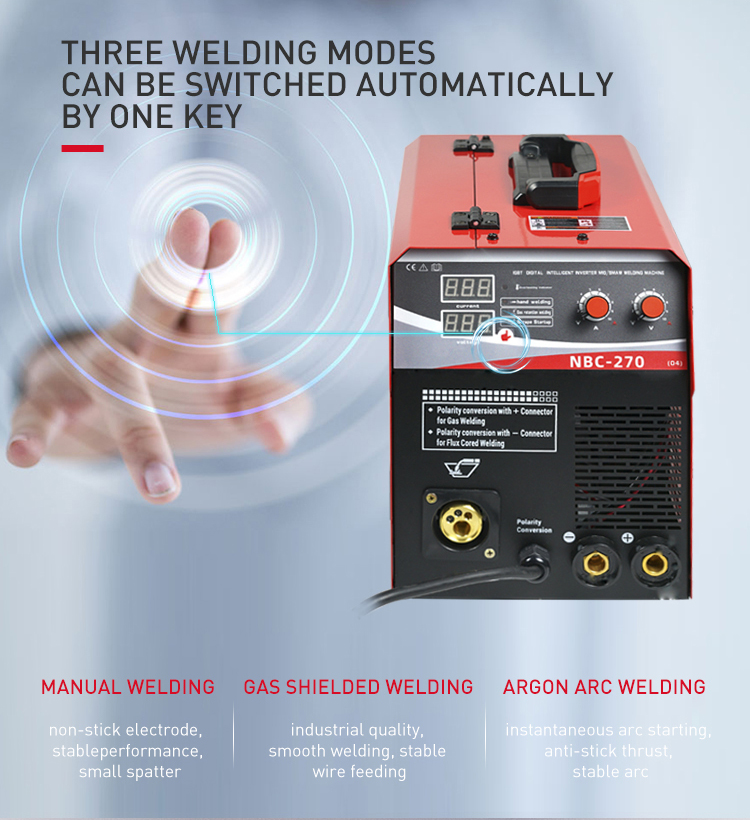

- flux cored self-shielded welding/gas shielded welding/manual welding three-purpose function setting, constant current/constant voltage output
- Built-in hand welding VRD anti-shock function
- Arc hardness adjustment, suitable for different materials and process requirements
- Application of leading anti-splash control circuit, small splash, uniform and beautiful shape
- Good arc ignition reliability, suitable for quick spot welding
- Stable welding with thin wires and low current, especially suitable for welding thin plates, the thinnest 0.5mm does not wear
- 0.8 Excellent spot welding performance of thin plate with welding wire

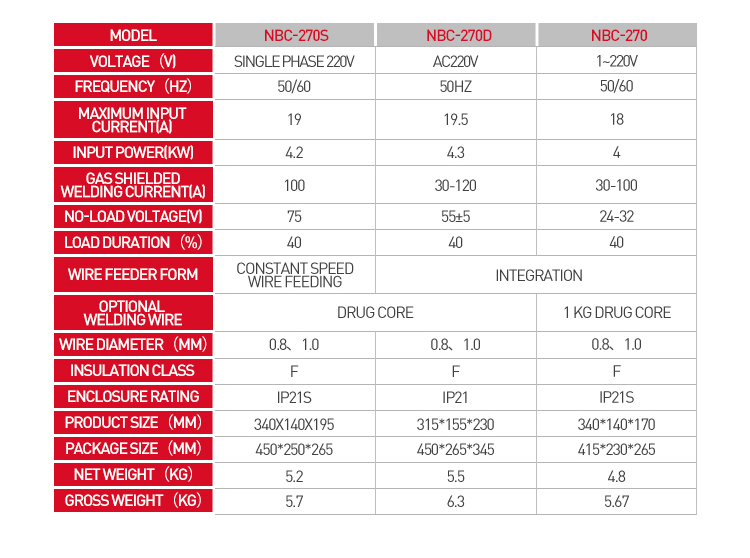

Parameters
| Model o. | NBC-270D | NBC-270 |
| voltage(V) | AC220V | 1~220V |
| Frequency(Hz) | 50HZ | 50/60 |
| Maximum input current(A) | 19.5 | 18 |
| Input power(KW) | 4.3 | 4 |
| Gas shielded welding current(A) | 30-120 | 30-100 |
| No-load voltage(V) | 55±5 | 24-32 |
| Load duration(%) | 60 | 35 |

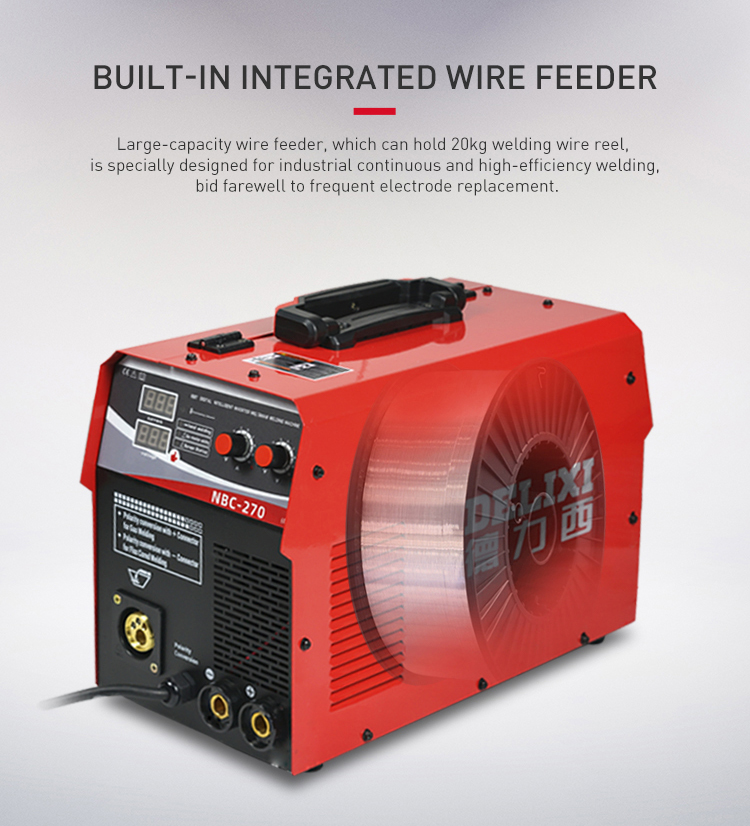

| Wire feeder form | ALL IN ONE | |
| Optional welding wire | 1 kg Drug core | |
| Wire diameter(mm) | 0.8/1.0 | 0.8/1.0 |
| Insulation class | F | F |
| Enclosure rating | IP21 | IP21S |
| Product Size(mm) | 315*155*230 | 340*140*170 |
| Package Size(mm) | 450*265*345 | 415*230*265 |
| net weight(KG) | 5.5 | 4.8 |
| Gross weight(KG) | 6.3 | 5.67 |
Pictures
Q 1. How soon can the goods be shipped after the order is confirmed
A. usually it will take about three weeks for production.

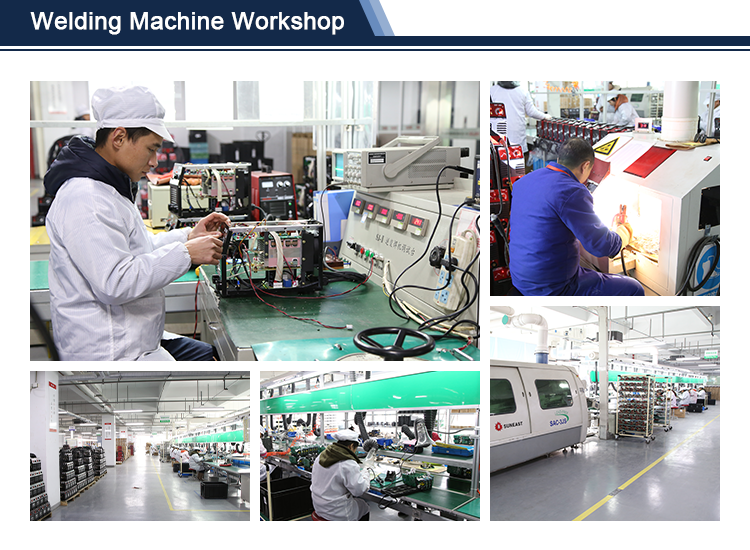

As a factory established in 1984,5 production lines,if you need the video please leave a message and we will send you ~
Q 2. What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q3. what kind of certificate you have ?
A. We have ISO9001, CE.
Q 4. Do you accept OEM business?
A. We accept OEM with your authorization. From design to sample test,our engineer will be always at your service.
Q 6.What is your production capacity?
A. We can finish 500 000 pieces each month
Each product has different production capacity, we can talk details by email.
Q 7. Which countries do you mainly export
A. We already ship to Middle East, South America, Africa etc.
Q8. How long is the warranty period ?
Within 12 months after delivery of the goods.
-
