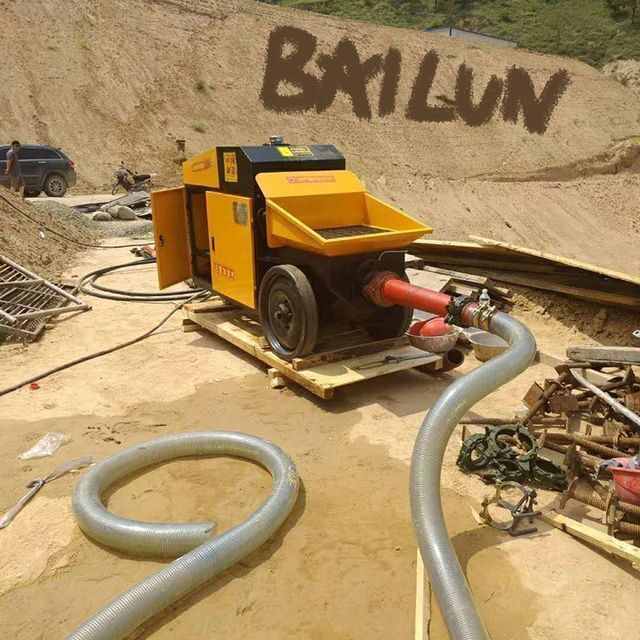

Mini Secondary Structure Column Pump Concrete Pump

Supplier: Xingtai Bailun Machinery Manufactor Co., Ltd.
Region: Hebei, China
Contact: Ms Alice Li
Price: $2800.00 / 1 - 1 pieces
$2400.00 / >=2 pieces
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Hebei, China;	Marketing Type:	New Product 2020;
Weight:	720 kg;	Dimension(LWH):	20007001500mm;
Productivity:	10M³/H;	Max. vertical conveying distance:	30M;
Applicable Industries:	Construction works ;	UNIQUE SELLING POINT:	Large volume pump system;
Video outgoing-inspection:	Provided;	Certification:	CE;
Warranty:	1 Year;	Warranty of core components:	1 Year;
Condition:	New;	Power Type:	Electric;
Machinery Test Report:	Provided;	Max. horizontal conveying distance:	80M;
Payment Terms:	L/C,T/T;	Core Components:	Motor,Pump;
Showroom Location:	None;	Brand Name:	BAILUN;

1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.
2.The distribution valve adopts advanced S-tube valve, which has good sealing performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance,long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.
4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively
extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system.

Product Description

MODEl	BLM-CP10M
Driving mode	Drag-and-drop
Motor Power	15KW(National standard)
Working form	Hydraulic piston
Concrete throughput	10m³/h
conveying distance	Vertical 30m Horizontal 60m
Largest aggregate size	<20mm
Duct diameter	75/80mm
Product usage	Conveying mortar fine stone
Dimension	20007001050mm
Machine weight	720kg
