Cement Mortar Sprayer High Efficiency Single Phase 220v for Small Project Construction Work

Supplier: Xingtai Bailun Machinery Manufactor Co., Ltd.
Region: Hebei, China
Contact: Ms Alice Li
Price: $850.00 / 1 - 1 sets
$800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building materials store, construction engineering	Marketing Type:	normal product
Hopper capacity:	40L	Health status:	new
Video external inspection:	if	payment terms:	letter of credit, wire transfer
Core components:	motor	Showroom location:	not any
Warranty:	1 year	Unique Selling Points:	High operating efficiency
brand:	Balen	weight:	180 kg
Core Components Warranty:	1 year	maximum. Horizontal conveying distance:	20M
maximum. Vertical conveying distance:	10M	place of origin; place of origin:	Hebei china
Mechanical test report:	if

Applicable spraying range of spraying machine:

Water-soluble materials such as cement mortar, putty powder, paint, latex paint, real stone paint, thermal insulation mortar, waterproof material, refractory material, thermal insulation material, sound-absorbing material 1. Adopt all-copper Baoguo standard motor with stable performance. Reject any non-standard aluminized motor! ! 2. The connection between the spray gun and the feeding pipe can be rotated, and the operation is convenient. 3. High construction efficiency and good quality. Small size, easy to operate on site. 4. The sealant sleeve is made of black rubber, which is wear-resistant and corrosion-resistant. An umbrella has been added to the equipment. 5. It is easy to use, fast, material saving, labor saving, and money saving. Each machine only needs three people, and it can easily reach 200square meters (thickness 1.5-2cm) per hour. Working 8 hours a day, it can spray more than 1000 square meters, which is equivalent to the hard work of 20 skilled workers in one day. Shorten the construction period and create considerable profits for you.

multifunctional sprayer1. After turning on the power, first run the main motor and check the rubber. If the helix turns in the same direction, the power phase wires should be changed (check each time the power is turned back on). 2. Connect the conveying hose and the nozzle, add 5L of clean water to the hopper, start the motor to remove the clean water pump, wet the hopper, pump body and conveying hose, pump out most of the water and stop the machine. 3. Add cement mortar to the hopper, or start spraying with putty or paint (start the air compressor and open the air valve). 4. No material and no water hopper without idling. 5. After the work is completed, drain the remaining material in the hopper, pour enough clean water into the hopper, clean the hopper, and start the pump to extract it for cleaning. to complete.

Product Description

model	BLM-311
Motor Power	4kW
machine weight	180kg

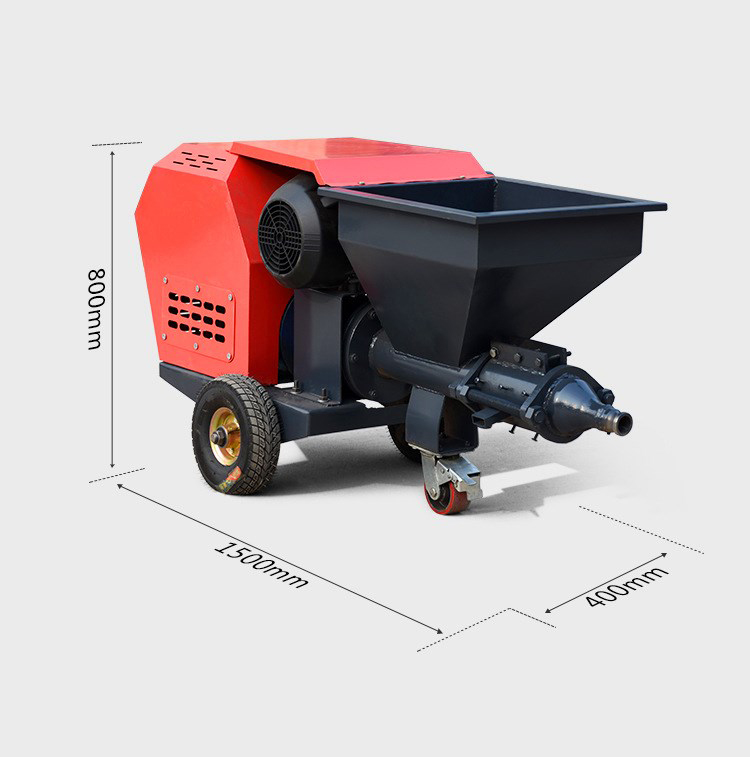

Dimensions	1500×400×800mm
by particles	4mm
machine voltage	220v
transport efficiency	120-150 square meters / hour
vertical conveying distance	10m
Horizontal transportation distance	20m
Shipping method	screw conveyor
