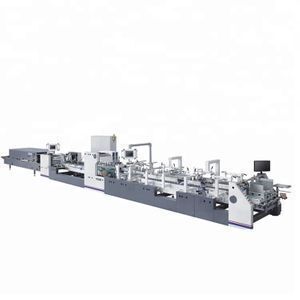

HH-YZ Good Sale Fully Automatic Box Folder Gluer Machine

Supplier: Wenzhou Qichen Industry& Trade Co., Ltd.
Region: Zhejiang, China
Contact: Ms TINA GUO
Price: $26000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	15X2.3X1.6m;	Packaging Type:	Case;
Voltage:	380V;	After-sales Service Provided:	Field installation, commissioning and training;
Packaging Detail:	automatic folder gluer machine packed by wooden cartons separately;	Max.Liner speed:	220m/min;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Material:	Wood;
Brand Name:	QH;	Type:	Gluing Machine;
Warranty:	1 Year;	Driven Type:	Electric;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	50 Set/Sets per Month;
Weight:	12000kg;	Place of Origin:	Zhejiang China (Mainland);
Name:	HH-YZ Fully Automatic Disposable Food Container Making Machine;	Feeding way:	Automaticly Continuesly Feeding;
Glue:	Water-base Cold Glue;	Port:	Ningbo;
Condition:	New;	Way of folding in reverse:	Fold 1and Fold 3 Are 180 ,Fold 2 And Fold 4 Are 135 And 180;
Application:	Food,Machinery & Hardware,Medical;	Model:	HH-HH-YZ Fully Automatic Disposable Food Container Making Machine;
Paper Material:	Cardboard 250-700g;	Certification:	CE;
Automatic Grade:	Automatic;

HH-YZ Good Sale Fully Automatic Box Folder Gluer Machine

Product Description

Model	PHH-800	PHH-1100	PHH-1450
Paper Material:	Cardboard 200~800 gsm, corrugated board reach E-flute & B-flute. 200-800g/m²E,B
Glue	Cold Water Glue
(W*L) Max Paper Size:	800*900 mm	1100*1000 mm	1450*1000 mm
Min Paper Size:	135*60	270*60	270*60
	85*60	135*60	135*60
Max Belt Speed:	375m/minute	375m/minute	300m/min
Power Source:	3-Phase 380V 50HZ
Total Power:	15KW (4-times fold bottom lock box, 4 or 6-corner box,) 11KW(Twice fold bottom lock box, ) 11KW(twice fold one side glue box)
4-corner or 6-corner box, 4-times fold bottom lock box,	10Ton	10.5Ton	11Ton
Twice fold & bottom lock box,	8.5Ton	9Ton	9.5Ton
twice fold one side glue box,	7.5Ton	8Ton	8.5Ton

PHH series Box Gluing & Folding Machine is high speed box making machine, widely used for package box/cartons for food, medicine, health care products, cosmetics, alcohol, light industrial products such as the box, are basically using the gluer machine for paste box processing.

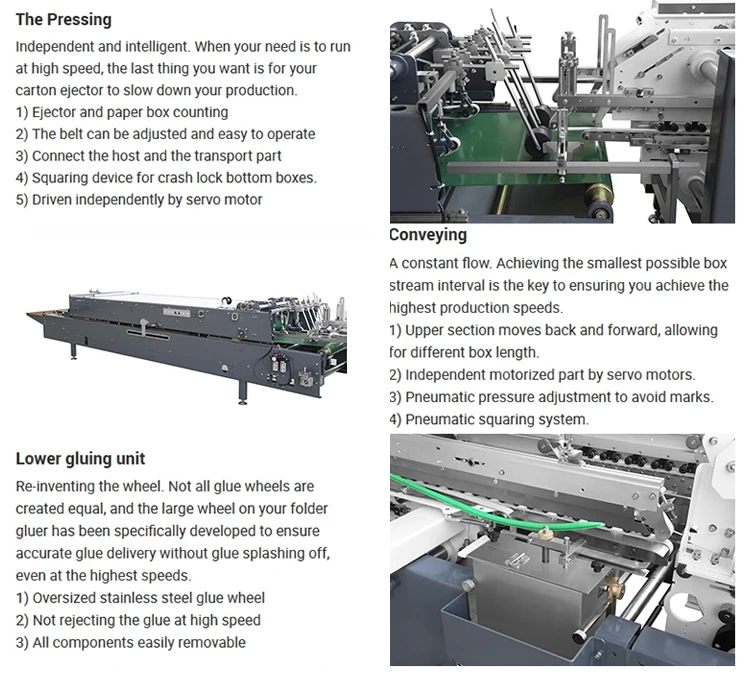

PHH box gluing and folding machine absorb the latest technology and experience at home and abroad, using modular design and the latest processing technology, electrical adopt PLC control, simple operation, the host motor frequency control speed, output controlled by servo motor, the whole structure is reliable.

This type machine focus on making 4-corner box, 6-cornerbox, also for straight line box, hook(bottom lock) box, side glue box, box inside box, mini box, CD box, four corner box, six corner box, and other special (irregular) box.

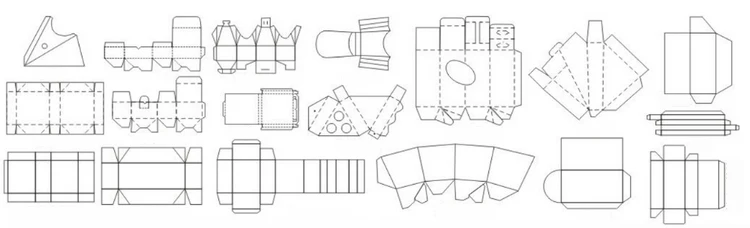

The boxes that can be made with this machine :
