Heavy Duty Pipe Clamps With Epdm Rubber And With Reinforced Band Zinc-plated

Click here to contact
Product details
Product name:Pipe Clamps With Epdm Rubber And With Reinforced Band;Thickness:2.0mm 2.5mm;
Packaging Detail:Carton + pallet;Logo:Accept Customized Logo;
Measurement system:INCH,Metric;Payment Terms:L/C,D/P,D/A,T/T;
Model Number:3061,3061 Series;Material:Q235 Q195,Carbon Steel and EPDM Rubber;
Place of Origin:Shandong, China;Standard or Nonstandard:Standard;
Package Preview:;MOQ:500Pcs;
Tolerance:+/-0.05%;Size:Customized;
Bandwidth:20mm/25mm;Color:Silver/White;
Brand Name:TF;
PIPE FIXING SYSTEM

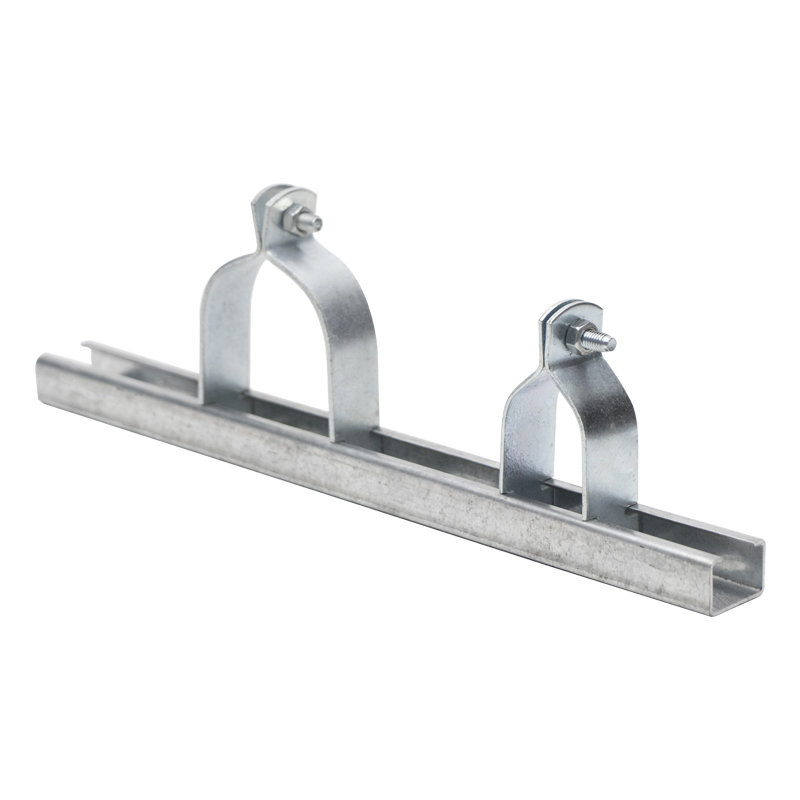

Channel Strut
Products Description

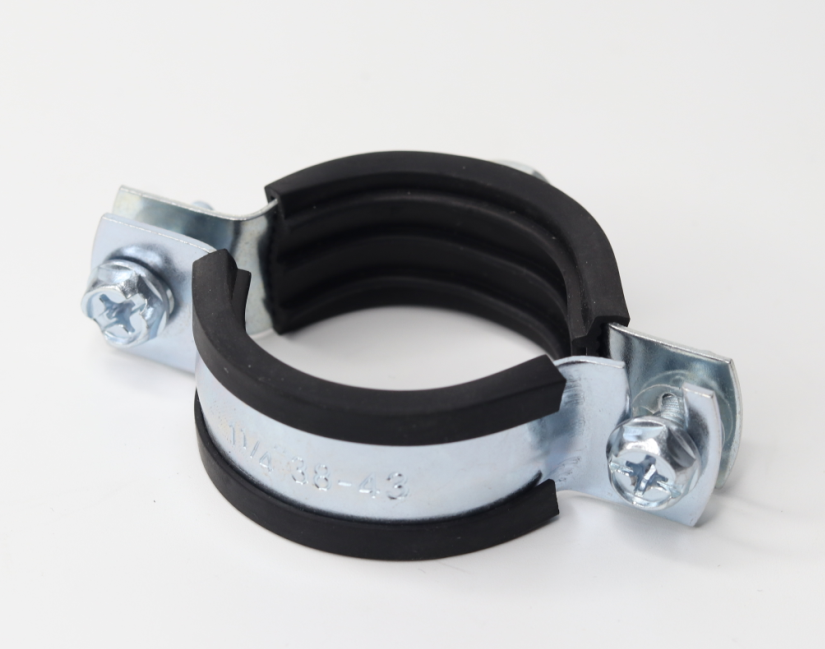

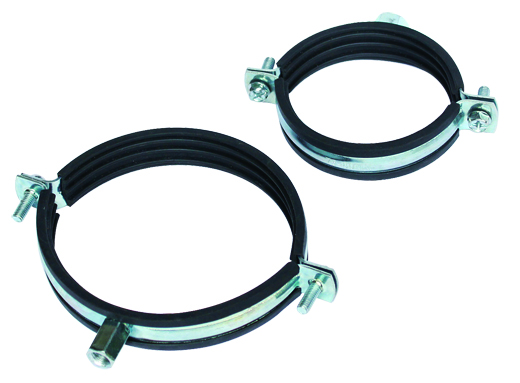

Heavy Duty Pipe Clamps with EPDM rubber and with Reinforced Band, zinc-plated Coupling nut: M8,M10 or M8+10
Material Code
Explanations
W1
Steel, zinc plated
Product specification information:
Pipe Size
Range
Range
Band
Art.No
Art.No
(mm)
(mm)
(inch)
(mm)
( two side screw )
( one side open )
15
12-16
1.5x20
3061A.015
3061C.015
18
15-19
3/8"
1.5x20
3061A.018
3061C.018
22
20-25
1/2"
1.5x20
3061A.022
3061C.022
28
26-30
3/4"
1.5x20
3061A.028
3061C.028
35
32-36
1"
1.5x20
3061A.035
3061C.035
40
38-43
1 1/4"
1.5x20
3061A.042
3061C.042
48
47-51
1 1/2"
1.5x20
3061A.048
3061C.048
54
53-58
1.5x20
3061A.054
3061C.054
60
60-64
2"
1.5x20
3061A.060
3061C.060
70
68-72
1.5x20
3061A.070
3061C.070
75
75-80
2 1/2"
1.5x20
3061A.075
3061C.075
83
81-86
1.5x20
3061A.083
3061C.083
90
87-92
3"
1.5x20
3061A.090
3061C.090
100
99-105
3 12/"
1.5x20
3061A.100
3061C.100
110
107-112
1.5x20
3061A.110
3061C.110
115
113-118
4"
1.5x20
3061A.115
3061C.115
125
125-130
1.5x20
3061A.125
3061C.125
133
132-137
1.5x20
3061A.133
3061C.133
142
138-142
5"
1.5x20
3061A.142
3061C.142
150
148-152
1.5x20
3061A.150
3061C.150
160
159-165
6"
1.5x20
3061A.160
3061C.160
200
198-206
1.5x20
3061A.200
3061C.200
220
215-220
8"
1.5x20
3061A.220
3061C.220
250
248-252
1.5x20
3061A.250
3061C.250
300
298-309
1.5x20
3061A.300
3061C.300
315
312-318
1.5x20
3061A.315
3061C.315
Q: Are you trading company or manufacturer ? A: We are factory, in Shandong of China.
Q:How long is your delivery time? A: Generally it will be 2-5 days if the goods are in stock, or need about 15-20 days according to specific quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge.
Q: What is your payment terms ? A: Generally we accept TT:30% at deposit ,70% against BL copy; or L/C at sight; or D/P and so on.
Q: What’s MOQ? A: For trial order, we suggest at least us$500 per order with different products.
Strut: we suggest full container loading. As it’s long and difficult to transport if you order LCL.
