Engine: | CUMMINS ISDE180-30; | Interior Volume: | 8 m³; |
Port: | Xiamen; | Color: | White; |
Passenger: | 5-8 Persons; | MAX SPEED ( km/h): | 105km/h; |
Payment Terms: | L/C,T/T; | Place of Origin: | Fujian, China; |
Brand Name: | CXXM; | Dimension: | 5360mm/2320mm/2300mm; |
Emission Standard: | Euro 4; | Supply Ability: | 15 Pieces per Month; |
Equipment: | Health; | Product name: | Ambulance Vehicle; |
Fuel Type: | Diesel; | GVW(kg): | 6500; |
Packaging Detail: | Standard Export Packing; | Medical Equipment: | Yes; |
Condition: | New; | Length (m): | 3 - 8m; |
Transmission Type: | Manual; |
Configuration of Vehicle
Engine |
|
Model |
CUMMINS ISDE180-30 |
Max. power |
132KW 180HP |
Type |
Electric injection, turbocharged, intercooled diesel, Bosch common rail system |
Fuel |
Diesel |
Displacement |
4.5 L |
Size |
|
Outside size(L/W/H) |
5360mm/2320mm/2300mm |
Interior volume |
8 m³ |
Wheelbase |
3310mm |
Front tread/Rear tread |
1780mm/1780mm |
Min. Ground clearance |
300mm |
Tire size |
37×12.5R16.5 |
Weight |
|
GVW |
6500kg |
Complete vehicle curb mass |
5300kg |
Loading mass |
1200kg |
Performance |
|
Max. speed |
105km/h |
Max. torque |
650/1200-1700 N.M |
Biggest continue voyage course |
600km |
Fuel tank capacity |
120L |
Passenger |
2+2 |
Max. gradeability |
60% |
Max. Fording depth |
800mm |
Barrier property |
|
Front, side and back |
It can withstand the type 53 7.62mm standard bullet at a distance of 100 meters |
Medical equipment and accessories |
|

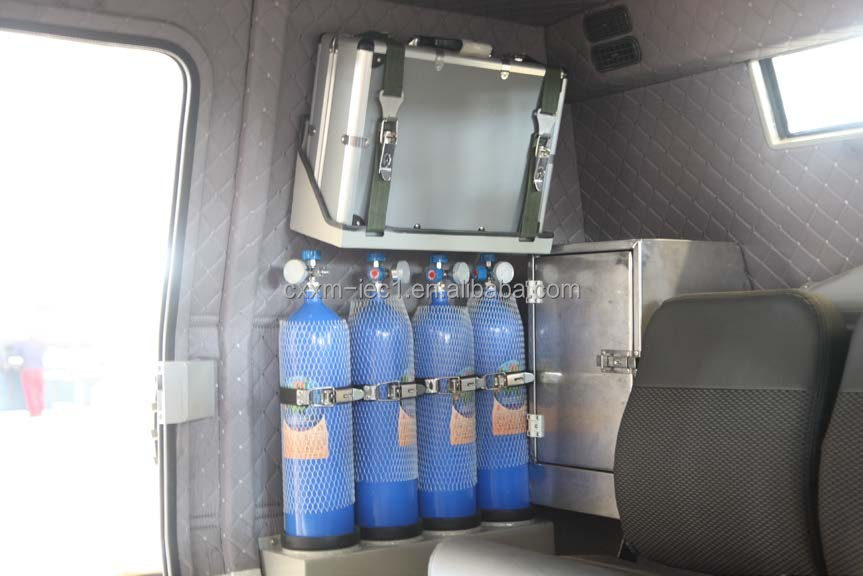

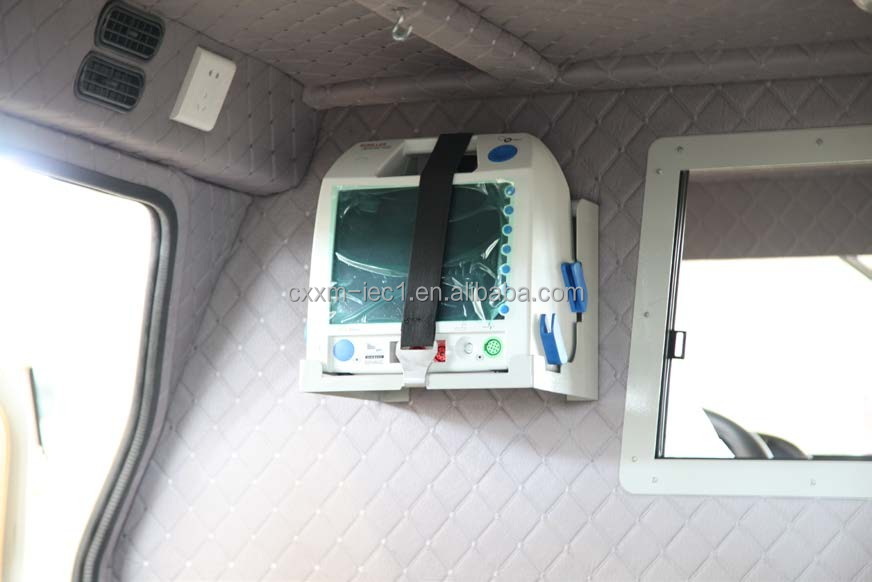

1.Alarm lights: 4units 2.300w siren: 1unit 3. MOTOROLA 400mb ultrashort wave: 1unit 4. Search lights: 1unit 5. Emergency and transport Ventilator: 1unit 6. Defibrillator monitor: 1unit 7. Oxygen tanks: 2units 8. First aid cabinet: 1unit 9. Stationary stretcher: 2units 10. Air conditioner : 1unit 11. Ventilating fan : 1unit 12. Internal lighting : 2units 13. Fire extinguishers : 2units 14. On-board tools: 1unit |

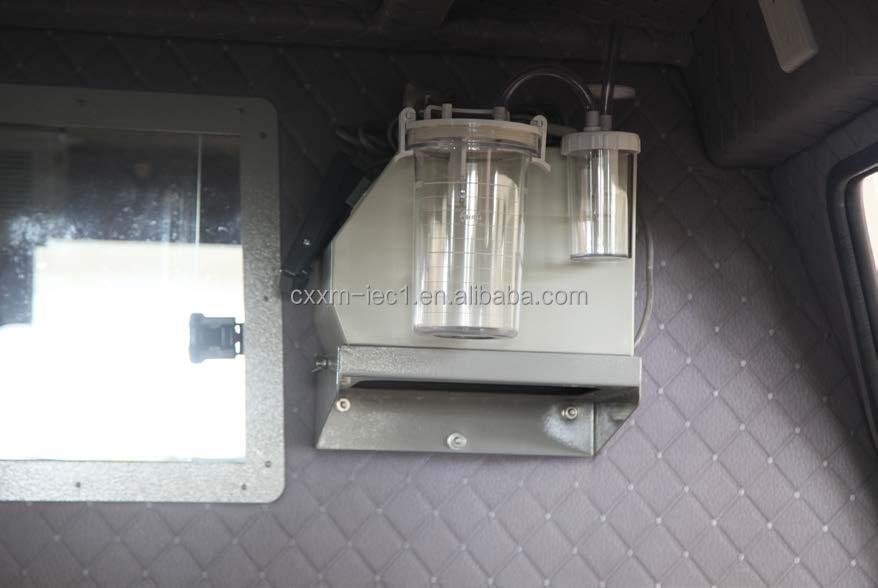

1) Suction unit
2) Manual resuscitator (Silicone material)
3) Fingertip pulse oximeter
4) Spine board
5) Head immobilizer
6) Splint kit
7) Nebulizer
8) Glucometer
9) Thermometer
10) Digital blood pressure monitor
11) Infusion pump
12) Patient monitor
13) Medical Refrigerator (30L)
14) Cervical collar
15) Intubation equipmentCervical collar
16) Comprehensive First-aid kit
17) Trauma first aid kit
18) Digital VHF radio
19) VHF Intercom system
20) Public Address (PA) system
