Rechargeable 2V Forklift battery pack 12V 24V 36V 72V 80V 48V 450AH/9VBS450 traction battery for electric forklift lift truck

Supplier: Seawill Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sandy Deng
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	730kgs(48V 450AH including metal box);	Battery Size:	48V 9VBS450;
Cell's Size:	15758385*420mm(single cell);	Keyword:	forklift battery;
Metal box's dimension:	980680480mm;	Supply Ability:	500 Packs per Day;
Place of Origin:	Guangdong, China;	Certification:	ce;
Application:	Electric forklift/Stacker/Lift truck/Pallets,Home Appliances,Electric Folklifts,electric vehicles,Solar Energy Storage Systems,Uninterruptible Power Supplies;	Model Number:	9VBS450;
Package Preview:	;	Port:	Guangzhou Port or Shenzhen port;
Compatible forklift:	Customized;	Reference cell's weight (with acid):	27.6kg;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Cash;	Metal box's color:	Black/Red/Yellow/Brown;
Reference cell's weight(without acid):	20.7kg;	Packaging Detail:	Wooden box.;
Warranty:	Other;	Nominal Voltage:	12v/24V/36V/48V/72V/80V;
Brand Name:	Seawill/Oem;

Specification

Item	Rechargeable 2V Forklift battery pack 48V 450AH/9VBS450 traction battery for electric forklift
Application	Electric Folklifts, electric vehicles, Solar Energy Storage Systems
Battery Size	48V 9VBS450
Brand Name	Seawill
Certification	CE,ROHS,ISO,MSDS
Model Number	9VBS450
Place of Origin	China
	Guangdong
Weight	730kgs( 48V 450AH with metal box)
weight(dry)	20.7kg
weight(wet)	27.6kg
Metal box's dimesion	832630784mm
Keyword	48v forklift battery
Size	15758385*420mm(single cell)
Battery type	Lead acid battery

Application

Main uses:

Applicable for electric forklifts, electric transporting cars , electric stacker cars, electric pallet trucks, tunnel /Metro locomotives, road vehicles and other deep-cycle DC power supply equipment.Our company can design new batteries and automatic liquid injection system according to the needs of users.

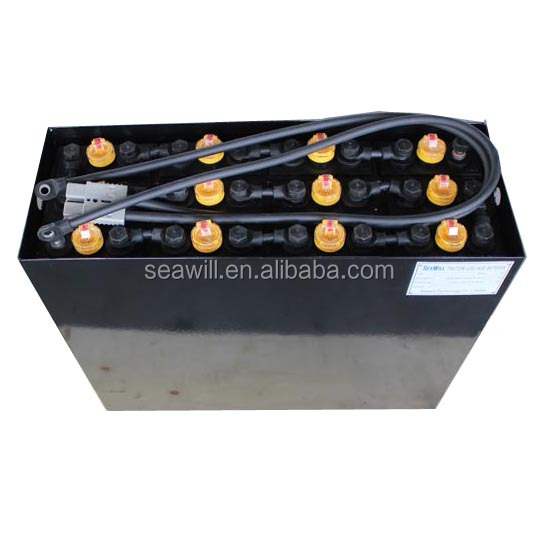

Details Images

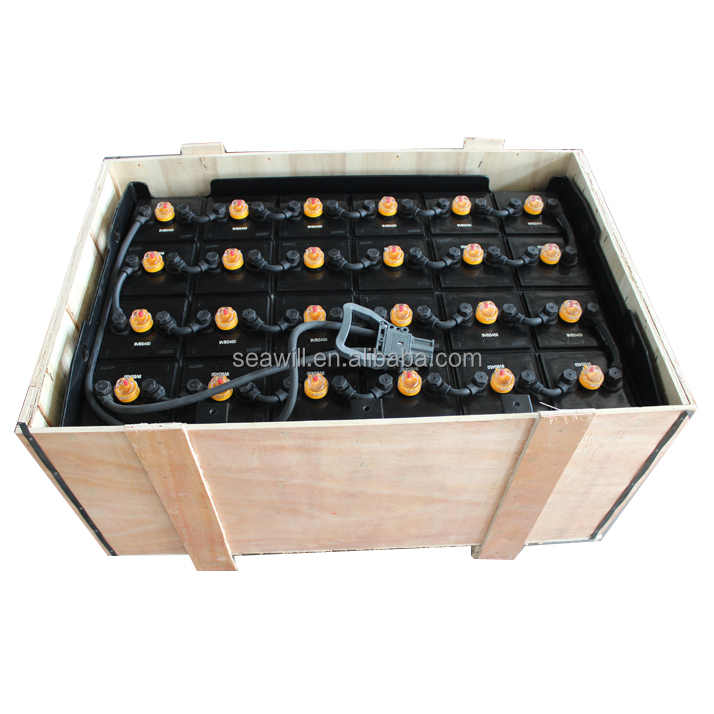

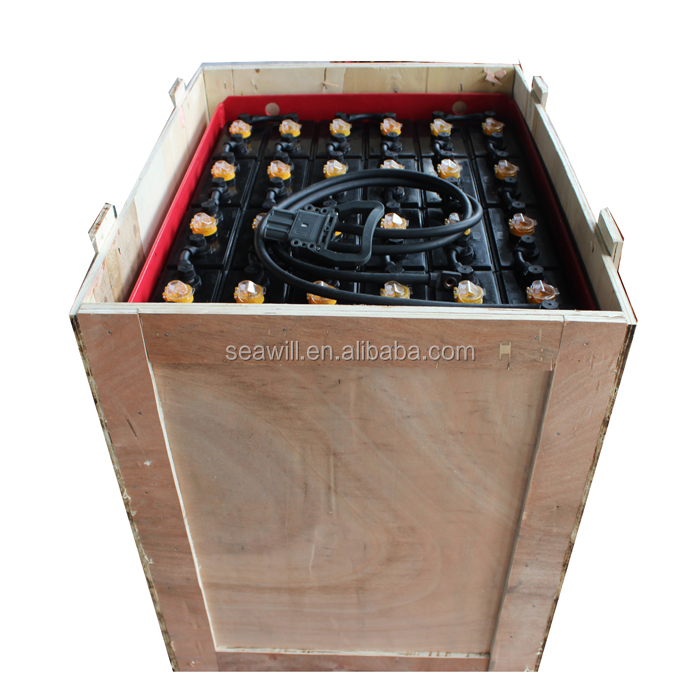

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient wooden box packaging services will be provided.

Forklift battery's daily maintenance

1. Daily check

1), Electrolyte level:

Check the acid level every week(need to fill distilled water or deionized water every 3 days if battery working in the high temperature).If the electrolyte’s level is too low, it might cause battery plate destroyed and shorten battery’s service life and etc problem. The methods of checking level: Open the vent cap,if the electrolyte is lower the top of vent cap, it means
electrolyte level is over-lower and need to fill distilled water or deionized water, if electrolyte is parallel or higher than the vent cap,it is the proper position)

2), Connector, connecting wires and cap:

Must check if there is any corrosion between connector pole’s joining and leading wires,also check if the cap had the transmutative situation or over-heat problem.

3), Appearance:

Battery’s exterior dirty would cause creepag, must keep battery’s surface to be clear and dry.

2,Maintenance:

1), Fill water:

fill distilled water or deionized water according to electrolyte level, don’t fill too much distilled water in order to delay filling time, too much distilled water would cause lower specific gravity, electrolyte would spill over,and this situation would corrode metal box and cables, and effect battery’s service life and creepag.

2), Charging:

There is gas when charging, so need to keep ventilative environment, and no naked light. And the oxygen and acidic gas by charging would affect around environment. There would have electric arc when pull out the charging plug, please cut off the charger’s switch and then pull out the plug. There are much hydrogen after finish the charge, naked light is not allowed.

3).Equalizing charge:

Battery should need a equalizing charge every month(means small charging current but long time charge), in order to keep battery’s capacity and long service life.

Method of equalizing charge:

Firstly charge the battery as regularly, after finish the charge,press the switch of equalizing charge,charge the battery 24-36 hours continually. Within the equalizing charge,need to make the record of every single cell’s voltage, density and temperature, after finish the equalizing charge, need to adjust electrolyte’s density and level as per using manual.

4), Connector,leading wire,cap’s maintenance:

Must be operated by the professional engineer.

5), Clean:

Battery should keep surface to be clean, if surface has the dirty things would cause short circuit, also cause terminal and connectors to be corroded. Please use wet cloth to clean battery in order to avoid static electricity.If there is no leakage hole at the bottom of metal box, pleas avoid using water to clean the battery, in order there are too much water to corrode metal box,if there is leakage hole at the bottom of metal box, you can use water to clean the battery.

3,Storage:

1), Storage location:do not make battery short circuit;there would cause short circuit after the rain, must keep the battery in the open air and shady location.

2), Used battery:

Used battery still have capacity, please keep the battery as per storage method.

4,Electrolyte’s operation
1), Check density:

Use inhale densitometer check density, do not spill electrolyte out from the battery, and make sure wear the protective cloth.

2), Other operation:

Should refer to professional engineer, especially when fill the electrolyte

3),Electrolyte’s leakage:

Urgent handle is needed when battery’s turn over or destroy happens.

Special note

1), Please kindly use the forklift battery according to Seawill operation manual, do not over charge or over discharge the battery, or not charge the forklift battery enough, please charge the battery in constant current every month, otherwise it would reduce the battery's capacity and shorter battery's cycle life.

2), Please check battery's level every week, the professional engineer or worker is needed in the checking. Please make sure the battery's electrolyte is not lower than the Minimum level, otherwise it would cause the battery's over heat and burn out.

3), Filling water must use the proper forklift battery water, if mix the impurity,it would cause battery's self discharge, over heat or even poison gas, please not do not fill the water too excessive, and please keep battery's surface to be clean and dry, otherwise, it would cause battery's electrolyte lead out and short circuit and etc problem.

Company Profile

Seawill Technology Co., Limited is leading professional battery manufacturer in China who has been working in this industry for over 20 years, we have three factories, one produce Valve Regulated Lead Acid battery(VRLA battery), Gel battery,OPZV OPZS tubular plate battery which located in Guangdong province, one produce traction battery, forklift battery, golf car batteries which located in Jiangsu province, and one produce the Nickel Cadmium(NI-CD) battery, Nickel Iron(NI-FE) battery and silver zinc battery which located in north of China. Seawill company's history: 2002, Seawill Technology Co.,Limited was established in Hongkong. 2004, Set up factory in Qingyuan city,Guangdong province. 2005, The international advanced technology and equipments were introduced to Seawill factory, China. 2006, Began export batteries in large quantities. 2007, Set up factory in Jiangsu province. 2008, Acquired ISO9001 International quality system certification. 2013,Acquired CE,RoHs Certification. 2014, Acquired SGS report.

2015, Acquired IEC60623 certificate.
2022, Acquired IEC62259 certificate. Seawill has consistently devoted efforts to offering products and service: -Advanced processing and manufacturing facilities -A strong R&D department -Fast development on new products -Hundred of models covering a full range batteries -On-time delivery and efficient logistic systems -High customer satisfaction and reputation These enable us to be your best partner in China.

Our certification

FAQ

1.Who are we?
We are a professional battery manufacturer in China who has been working in the battery industry for over 20 years.

2.Why choose us?

Over 20 years battery manufacturing and exporting experience.
Resonable price.
Professional Service.

Very fast delivery time.
Our mission: Customer's Affirmation is our motive power to move forward.

3.What's the MOQ?
Different model, MOQ is different, so pls kindly check with our sales for the further information.

4.How to start the order?
Send your inquiry→Quotation→Arrange the deposit→Production→Send the pictures of finished batteries→Arrange balance→Delivery(by
air/by sea)

6.Payment Term?
By TT usually, 30% deposit prepay,70% balance before the shipment.

7.Lead time?
7-10 days after receive deposit.

Production Catalogue

Traction lead acid battery

Forklift battery/Stacker walkie battery

Tractor battery

Nickel iron battery-Solar battery

Nickel cadmium battery-Pocket type

Nickel cadmium battery-Sinter type

OPZV stationary battery

OPZS stationary battery

Lead acid battery/AGM battery/VRLA battery
