Magnification Ratio: | 500X & Under; | Place of Origin: | Guangdong, China; |
Eyepiece: | WF10X/20mm + WF20X/10mm; | Selling Units: | Single item; |
Model Number: | Trinocular-10HW; | Packaging Detail: | KSL Jewelry 3.5X-180X Continuous Zoom Trinocular stereo microscope standard package; |

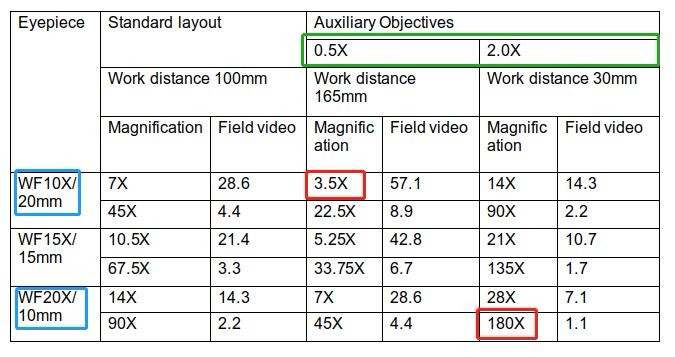

Magnification: | 3.5X-180X; | Interpupillary Distance: | 2-3/16" - 2-15/16"(55-75mm); |
Customized support: | OEM; | Theory: | Stereo Microscope; |
Drawtube: | Trinocular,Trinocular; | Working distance: | 100mm; |
Single gross weight: | 23.000 KG; | Certification: | CE; |
Name: | Jewelry 3.5X-180X Continuous Zoom Trinocular stereo microscope; | Brand Name: | Kailiwei; |
diopter adjustment: | ±5dp; | Warranty: | 1 year; |
Single package size: | 51X51X31 cm; | Illumination: | LED Illumination; |
Barlow Lens: | 0.5X 2.0Xlens; |
This is trinocular 3.5X-180X zoom stereo microscope , it is simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port Have well-focused, clear images on your PC or video Screen and through the microscope eyepieces at the same time. The 45 inclined 360 swiveling trinocular head and high-eye point design ensures an easy observation, especially for eyeglass wearers. The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger.
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20 and WF20/10
Barlow Lens: 0.5X & 2.0X
Objective: 0.7-4.5X
Zoom Range: 52:1
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75 mm)
Illumination: 56 adjustable led light

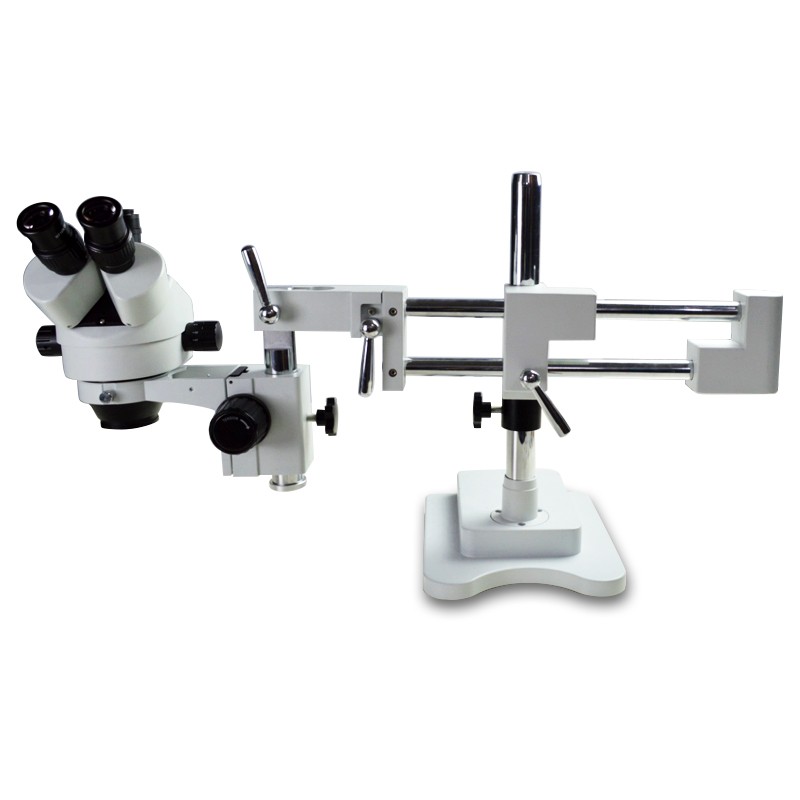

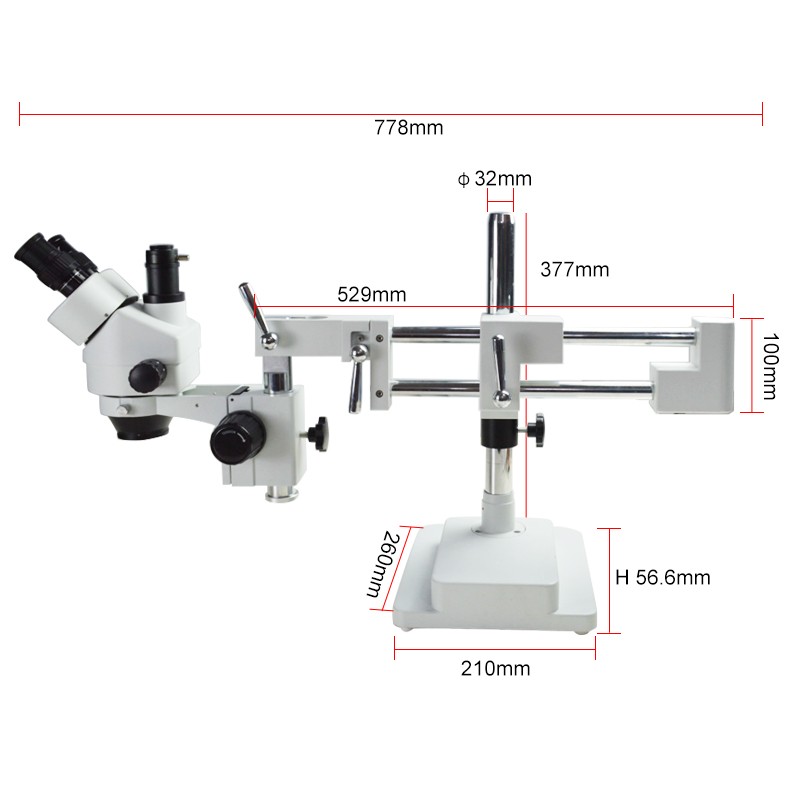

Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
Accessories: eye-guards
Size and Weight of package: 51*25*84 cm /27 kg

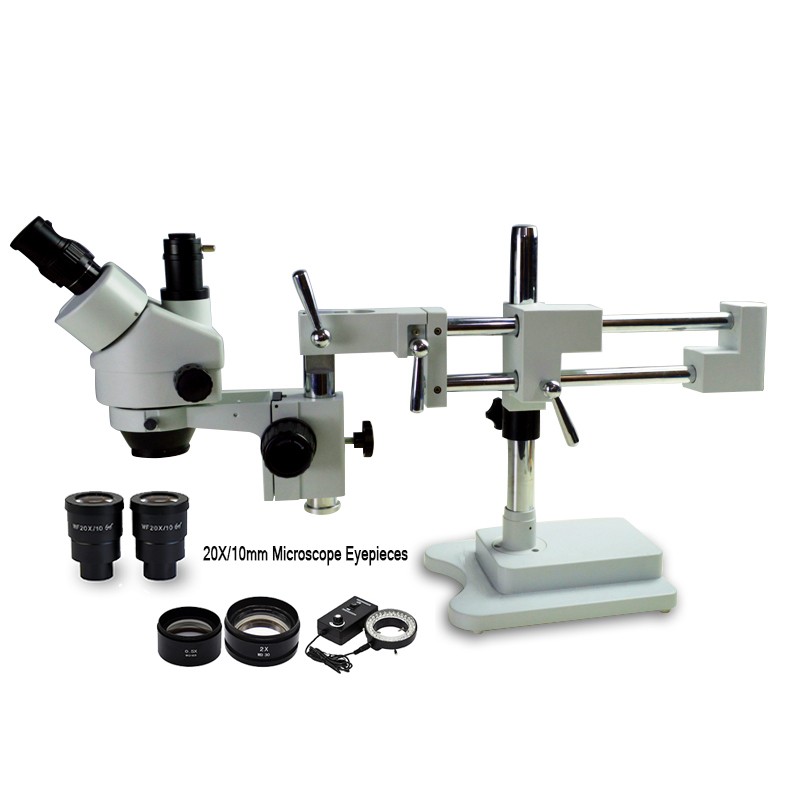

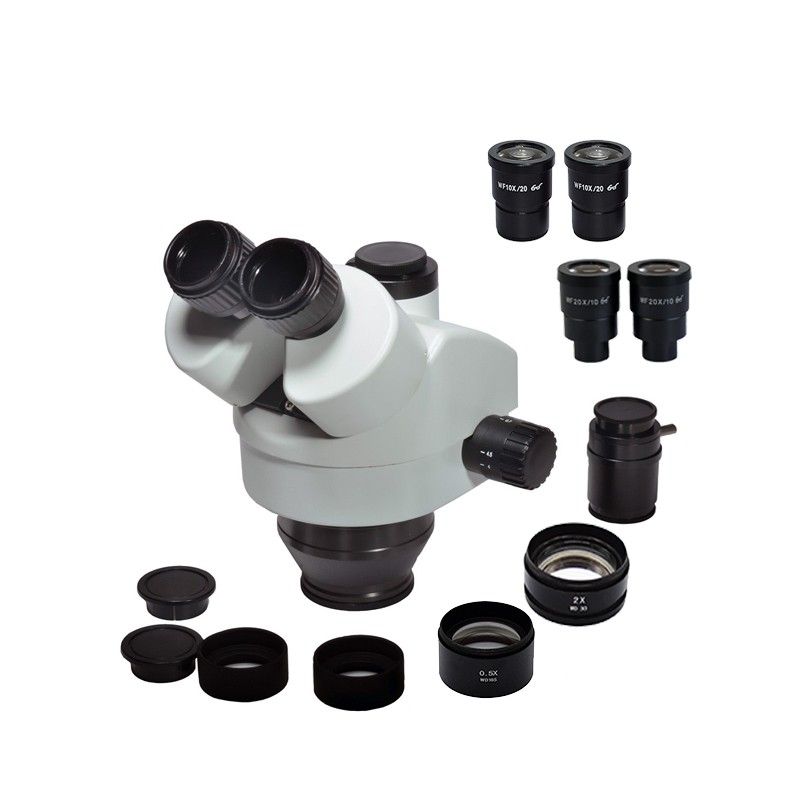

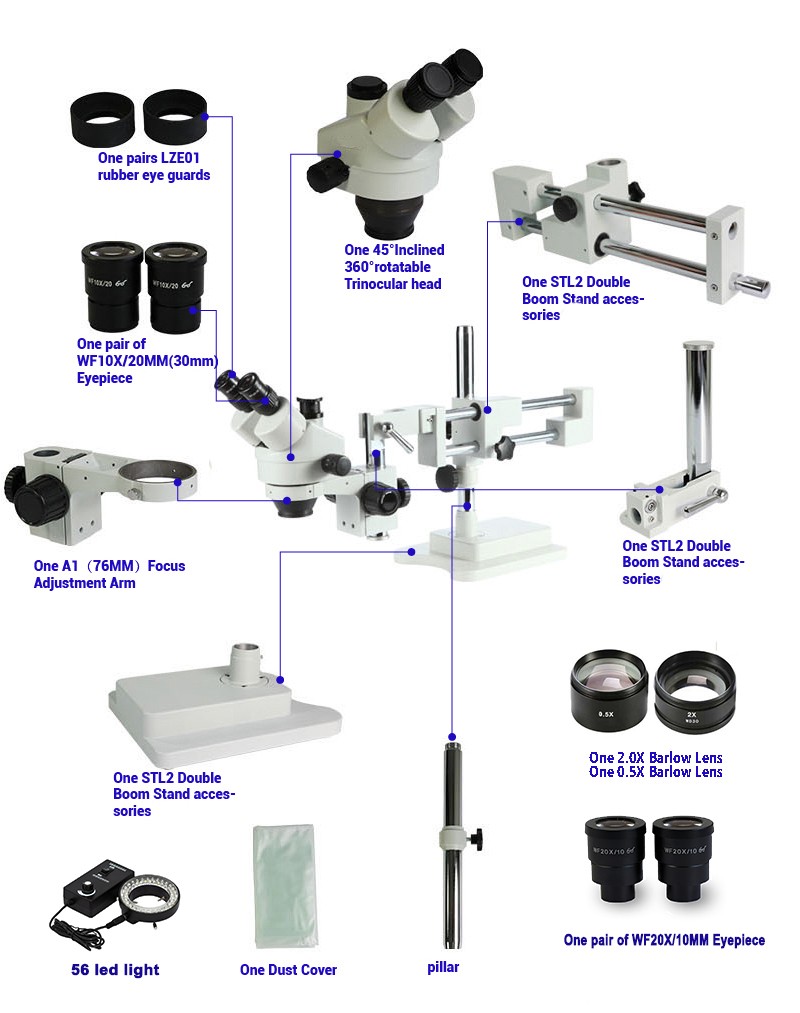

One Trinocular Stereo Zoom Head

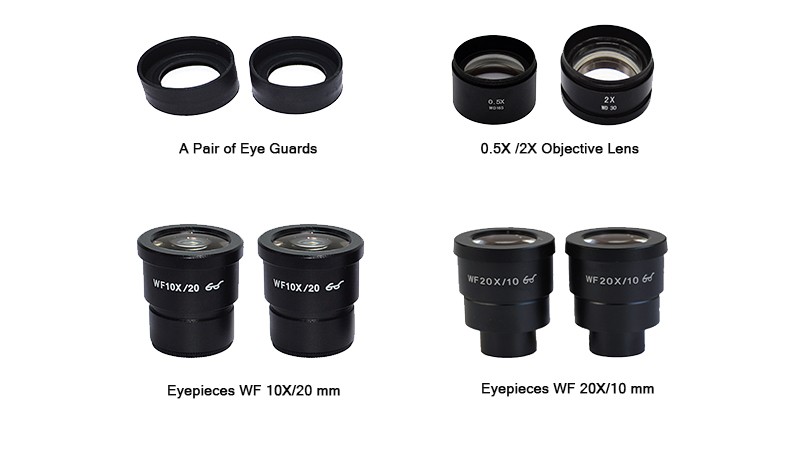

One Pair of Super Widefield High-Eyepoint WF10X/20 Eyepieces
One Pair of Super Widefield High-Eyepoint WF20X/10 Eyepieces
One 0.5X Barlow Lens
One 2.0X Barlow Lens
One Double-Arm Boom Stand with Focus Rack
One Pair of Eye-Guards
One 56 led Light
One User's Manual
One Pair of Clips One Pair of Eye-guards
One Dust Cover
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
1.We Will provide you User manual in English or operating videos for free ;
2.24 hours technical support by email or vedio call via wechat or skype;
3. Free training to make sure you master the operating of our products;
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
