Max 25mm Cutting Depth Electric Motor Floor Milling Machine Floor Heating Milling Machine

Supplier: Gewilson Holding Co., Ltd.
Region: Anhui, China
Contact: Mr Tom King
Price: $550.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Iron Frame and Cartons;	Application:	Floor Heat Milling;
Marketing Type:	New Product 2020;	Port:	SHANGHAI;
Minimum radius:	60mm;	Features:	AUTOMATIC;
Bore:	22mm;	Package Preview:	;
Machinery Test Report:	Provided;	Power:	3KW/4KW;
Condition:	New;	Place of Origin:	China;
Brand Name:	GEWILSON;	Payment Terms:	L/C,Western Union,T/T;
Core Components:	Engine;	UNIQUE SELLING POINT:	Low Maintenance Cost;
Scarifying Mode:	Up-down Scarifying Machine;	Video outgoing-inspection:	Provided;
Warranty:	1 Year;	Showroom Location:	Chile;
Product Name:	floor heat Milling Equipment;	Working Depth:	25MM;
Engine:	Electric;	Diamond wheel:	120mm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Restaurant,Home Use,Retail,Printing Shops,Construction works ,Other,Advertising Company;	Voltage:	230V/400V/CUSTOMIZE;
Supply Ability:	5000 Sets per Month;	Warranty of core components:	1 Year;
Slit width:	16 or 17.3mm;	Max. Cutting depth:	25mm;
Weight:	77kg,77 kg;

PRODUCT SHOW

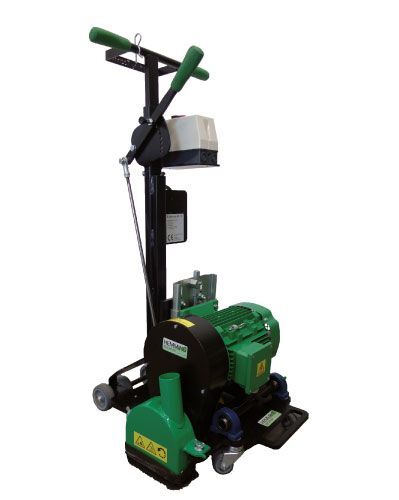

Our GFM 220 rotary tiller has been specially developed for later installation of underfloor heating systems. With the GFM 220 rotary tiller, you can provide your customers with the convenience and benefits of underfloor heating even in existing buildings with manageable physical installation effort and at affordable prices. The GFM 220 rotary tiller is powered by a sturdy 380V 3kW engine.
When combined with our specially developed diamond disc milling cutter, the powerful 3kW engine achieves a feed rate of approx 3m per minute in the floor screed, The closed dust extraction hood of the rotary tiller combined with the industrial vacuuming unit enables almost completely dust-free working conditions.

SPECIFICATION

* Accurate cutting depth adjustment
* Integrated dust extraction for absolutely dust-free work
* Swivel wheels for exact guidance of the machine

Minimum radius	60MM
Engine	3,0kW 230V /4.0 KW 400V / CUSTOMIZE
Diamond wheel	120MM
Slit width	16 or 17.3 mm
Max. Cutting depth	25 mm
Bore	22.2 mm
Weight	70 kg
Wall distance	approx. 10 cm
