24ft 20ft 18ft 16ft 14ft 12ft 10ft 8ft hvls big ass fan for warehouse

Supplier: Fujian Diamond Electrical And Mechanical Equipment Co., Ltd.
Region: Fujian, China
Contact: Ms Masha Lian
Price: $929.00 / 1 - 9 sets
$690.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Type:	Other;	Mounting:	Ceiling Fan;
wind speed range:	1m-5m/s;	Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Printing Shops,Construction works ,railway station;
Blade Material:	Aluminum magnesium alloy;	Fan Diameter:	3M;
Ceiling fan weight:	30kg;	Packaging Detail:	international standard plywood: packing for blade 1140160160mm, packing for motor 540540400mm;
Motor:	Permanent Magnet;	Effective area:	100 Square Meter;
After-sales Service Provided:	Video technical support;	Noise:	38db;
Amount of Blade:	6pcs;	Voltage:	220v/380v;
Place of Origin:	Fujian, China;	Certification:	CE, CCC;
Power:	0.37KW;	Package Preview:	;
Payment Terms:	L/C,Western Union,T/T;	Warranty:	3 years;
Motor weight:	18kg;	Brand Name:	DIAMOND;
Service life/unit fan:	20 years;

Product Description

Product Application

Our HDS series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.

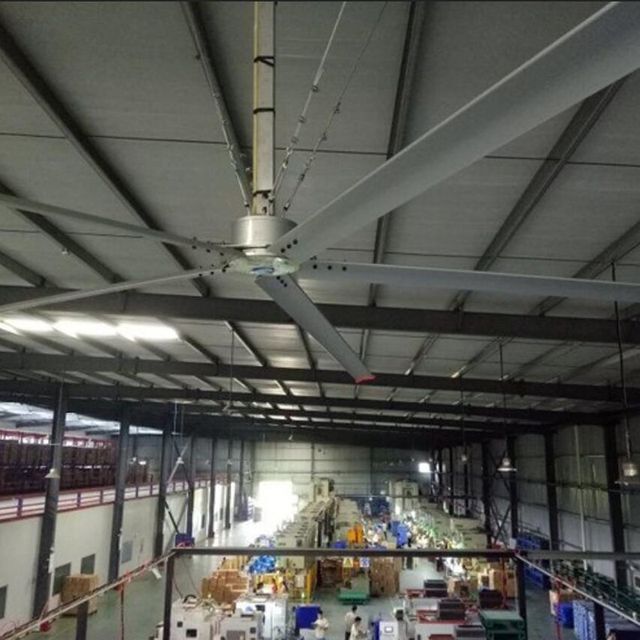

Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on.

Technical Data

Model	FJD-S3.0	FJD-S4.0	FJD-S5.0	FJD-S5.5	FJD-S6.3	FJD-S7.3
Diameter	3m	4m	5m	5.5m	6.3m	7.3m
Motor weight	18kg	20kg	25kg	45kg	45kg	45kg
Ceiling fan weight	30kg	35kg	43kg	75kg	85kg	95kg
Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Power	0.37KW	0.55KW	0.75KW	1.1KW	1.1KW	1.1KW
Air volume	4000m³/min	7000m³/min	10000m³/min	11000m³/min	11500m³/min	13000m³/min
Rotating speed	≤120rpm	≤100rpm	≤80rpm	≤75rpm	≤65rpm	≤50rpm
Number of leaves	5pcs	5pcs	5pcs	6pcs	6pcs	6pcs
Noise	38db	38db	38db	38db	38db	38db
Effective area	100㎡	256㎡	400㎡	500㎡	600㎡	850㎡
Coverage area	250㎡	450㎡	700㎡	900㎡	1000㎡	1500㎡

Main Features

1) Direct drive motor system-permanent motor

2) Intelligent Control

3) Airfoil blade

4) Energy saving tail

5) Variable speed 1m-5m/s

6) Super mute 38db

7) Five security

8) Insurance, each sold ceiling fan has $150,000 sum insured

Detailed Images

FAN Parts

Name: Direct Drive Motor System

The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.

Aluminium alloy material is adopted in many parts to realize the lightweight design.

FAN Parts

Name: Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high temperature indoor and outdoor harsh environment.

The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.

The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).

FAN Parts

Name: Fan blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

Energy saving tail.

Five Levels Of Security Guarantee

Motor bracket is integrated to prevent any parts from falling off and ensure the safety of the whole structure.

Anti-off-plate break-off protection structure design ensures the safety of the ceiling fan.

Aluminum magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.

Aluminium-magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.

Automatic power off protection, to ensure that the blade accidental tough, timely safety shutdown.

Long Warranty

We always provide customers with high-quality products and excellent after-sales service.

Permanent magnet motor warranty period of 5 Years

The controller warranty period of 18 Month.

Installation Data

Permanent Magnet Motor Ceiling Fan VS Gear Box Variable Speed Ceiling Fan

1)Permanent magnet synchronous high-temperature resistant out rotor motor, super energy efficient.

2) Small size and light weight.

3) Low noise. 38db

4) Simple structure.

5) Frequency modulation width (0-50HZ)

6) Direct drive motor maintenance free

7) No running hazard.

1) The use of asynchronous ordinary motor+gear box consumes a lot of energy.

2) Large and heavy.

3) Loud noise 60db.

4) Complex structure.

5) FM narrow (25-50HZ)

6) Need frequent daily maintenance (change seals, add gearbox oil.)

7) There are hidden dangers such as gearbox leakage.

Industrial Large Ceiling Fan VS Industrial Floor Fan

Application Area

Super-Large Plant

Large-scale public places

Commercial area

Animal Husbandry

Vertical Application Case

For example, parks city squares, outdoor dining, urban construction sites, etc.

Packing & Delivery

Fan blade Packaging
Size	1140 (L) * 160(W) * 160 (D)mm
N.W/G.W	7.75kg/11.85kg
Packaging material	Plywood

Motor and Spare Parts Packaging
Size	540 (L) * 540 (W) * 400 (D) mm
N.W/G.W	30.4kg/41.7kg
Packaging material	Plywood

Our Factory

For more than ten years, the company focuses on the research, development and production of the high-temperature motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.

The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification, ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.

The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
