Origin: | Fujian China | Blade material: | Aluminum-magnesium alloy |
type: | other | Fan diameter: | 3m-7.3m |
Service life/Typhoon: | 20 years | Motor weight: | 18-45kg |
Warranty: | 3 years | Number of blades: | 5-6 |
engine: | Permanent magnets | Wind speed range: | 1m-5m/s |
Effective area: | 100-850 square meters | Install: | ceiling fan |
noise: | 38 decibels | Package preview: | |

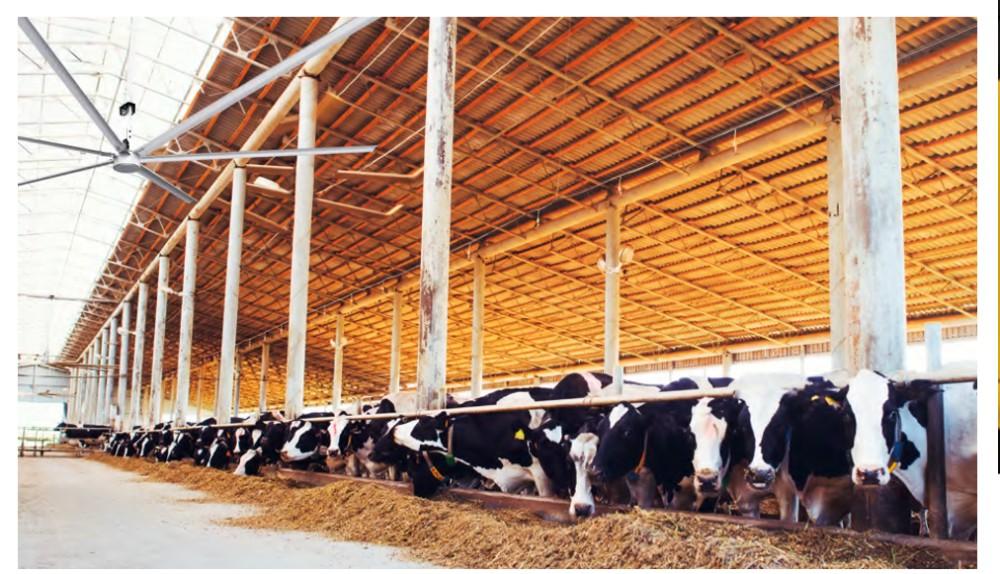

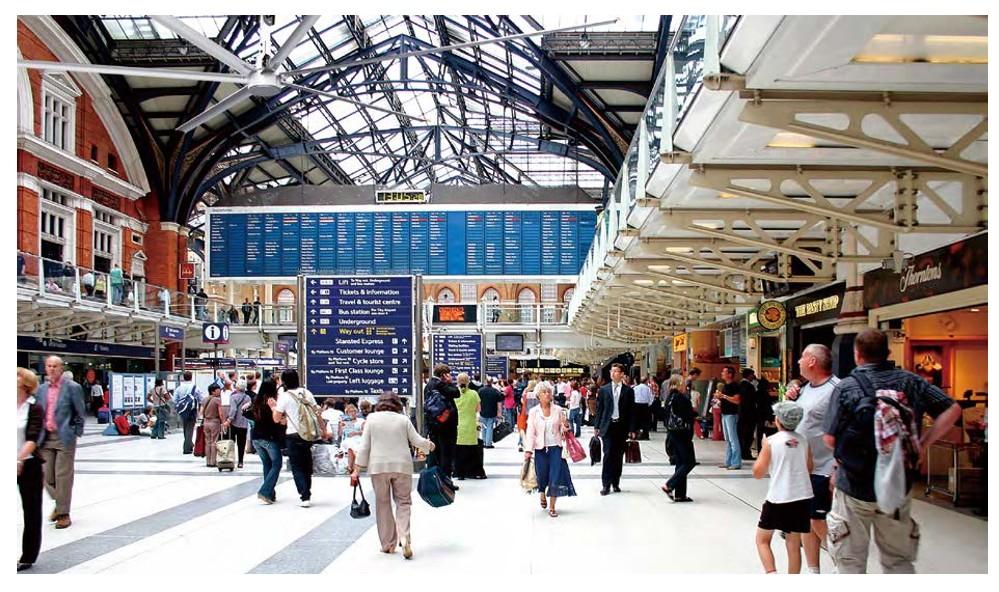

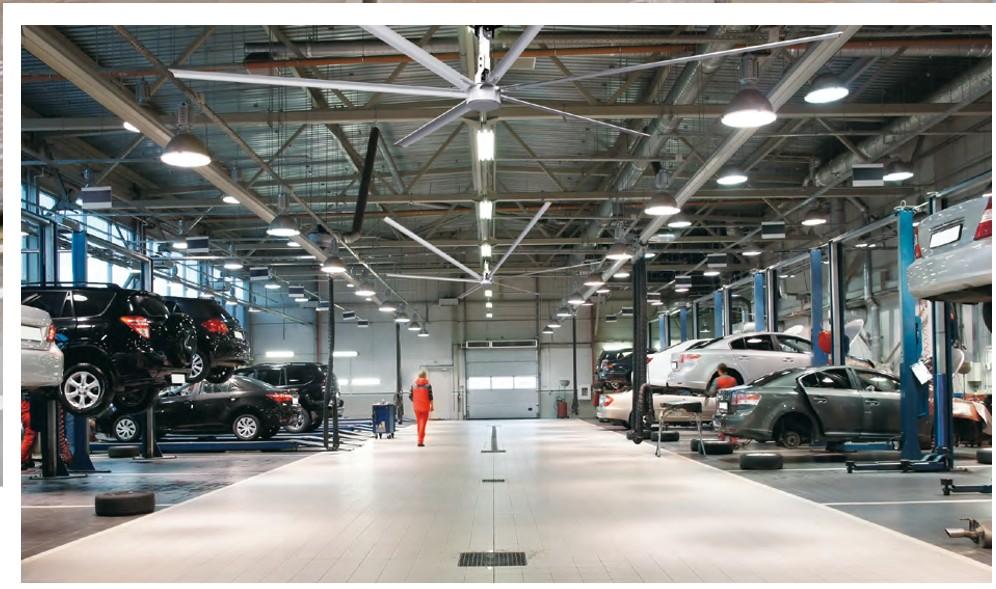

Applicable industries: | Hotels, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, printing plants, construction projects, railway stations | Packaging Details: | International standard plywood: blade packaging 1140*160*160mm, motor packaging 540*540*400mm |
strength: | 0.37-1.1KW | brand: | diamond |
After-sales service provided: | Video technical support | Certification: | CE, CCC |
Ceiling fan weight: | 30-95 kg | payment terms: | L/C, Western Union, T/T |
Voltage: | 220v/380v |
Technical data
Model | FJD-S3.0 | FJD-S4.0 | FJD-S5.0 | FJD-S5.5 | FJD-S6.3 | FJD-S7.3 |
diameter | 3 meters | 4m | 5 meters | 5.5m | 6.3m | 7.3m |
Motor weight | 18 kg | 20 kg | 25 kg | 45 kg | 45 kg | 45 kg |
ceiling fan weight | 30 kg | 35 kg | 43 kg | 75 kg | 85 kg | 95 kg |
Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
strength | 0.37KW | 0.55KW | 0.75KW | 1.1KW | 1.1KW | 1.1KW |
air volume | 4000 cubic meters per minute | 7000 cubic meters per minute | 10000 cubic meters per minute | 11000 cubic meters per minute | 11500 cubic meters per minute | 13000 cubic meters per minute |
Rotating speed | ≤120rpm | ≤100rpm | ≤80rpm | ≤75rpm | ≤65rpm | ≤50rpm |
number of leaves | 5 | 5 | 5 | 6 | 6 | 6 |
noise | 38 decibels | 38 decibels | 38 decibels | 38 decibels | 38 decibels | 38 decibels |
Effective area | 100㎡ | 256㎡ | 400㎡ | 500㎡ | 600㎡ | 850㎡ |
coverage area | 250㎡ | 450㎡ | 700㎡ | 900㎡ | 1000㎡ | 1500㎡ |
1) Direct drive motor system - permanent magnet motor
2) Intelligent control
3) Airfoil blades
4) Energy saving tail
5) Variable speed 1m-5m/s
6) Super quiet 38db
7) Five Guarantees
8) Insurance, $150,000 per ceiling fan sold

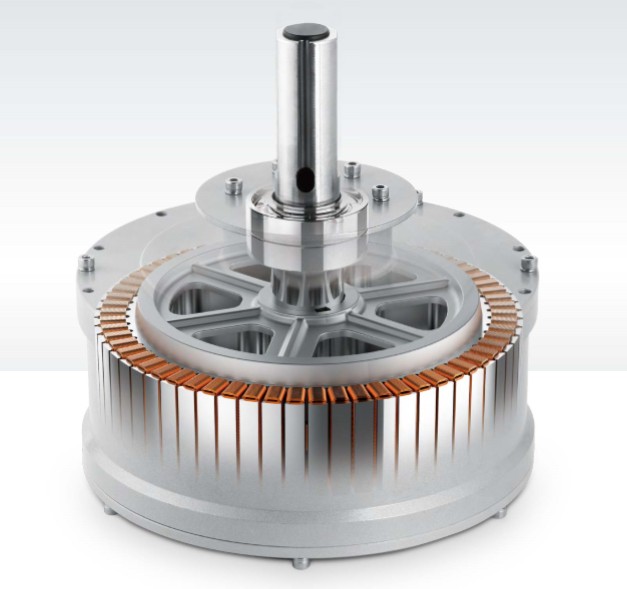

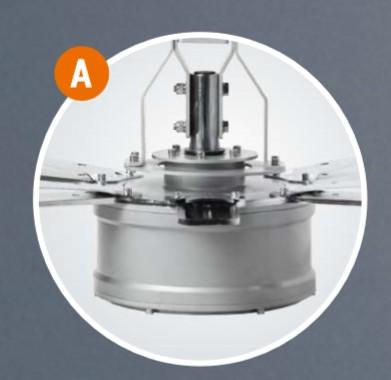

Name: Direct drive motor system
The new self-developed high-torque permanent magnet synchronous outer rotor motor replaces the traditional motor + gearbox reducer, realizes high integration, and improves reliability and transmission efficiency.
Aluminum alloy materials are used in many places to achieve lightweight design.

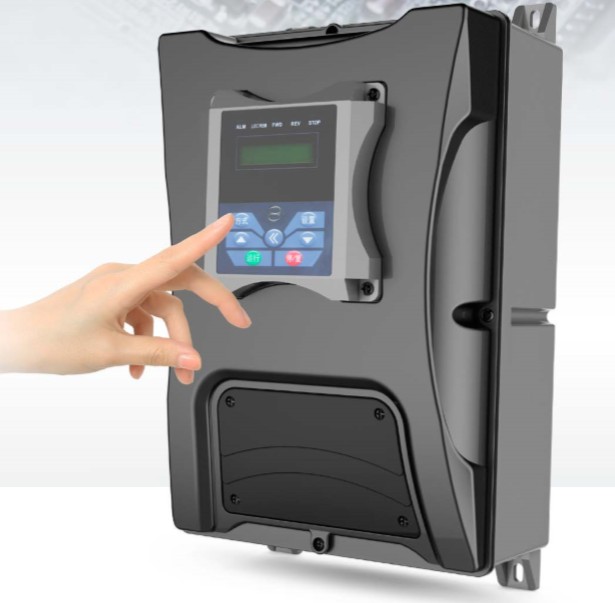

Name: Intelligent Control System
The control system adopts IP66 closed design, which is dust-proof, waterproof and moisture-proof, and can withstand high temperature and harsh environment indoors and outdoors.
The system has no position vector control, anti-electromagnetic interference, anti-radiation, small size, light weight and beautiful appearance.
The system functions are simple, 4 buttons are easy to operate (start, stop, accelerate, decelerate).
.
Name:fan blade
It is extruded and stretched from aluminum-magnesium alloy, which has the advantages of high strength, good toughness, light weight, long life and safe operation. The surface of the fan blade is treated with T5+ bright surface oxidation to enhance the anti-corrosion and anti-oxidation ability of the fan blade and cope with special environment operations.

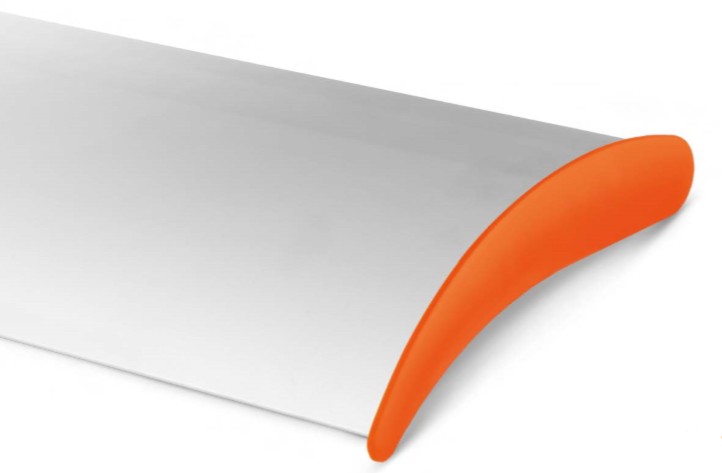

Energy saving tail.

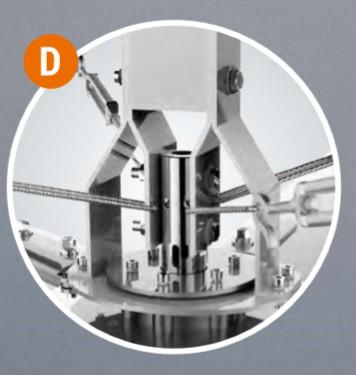

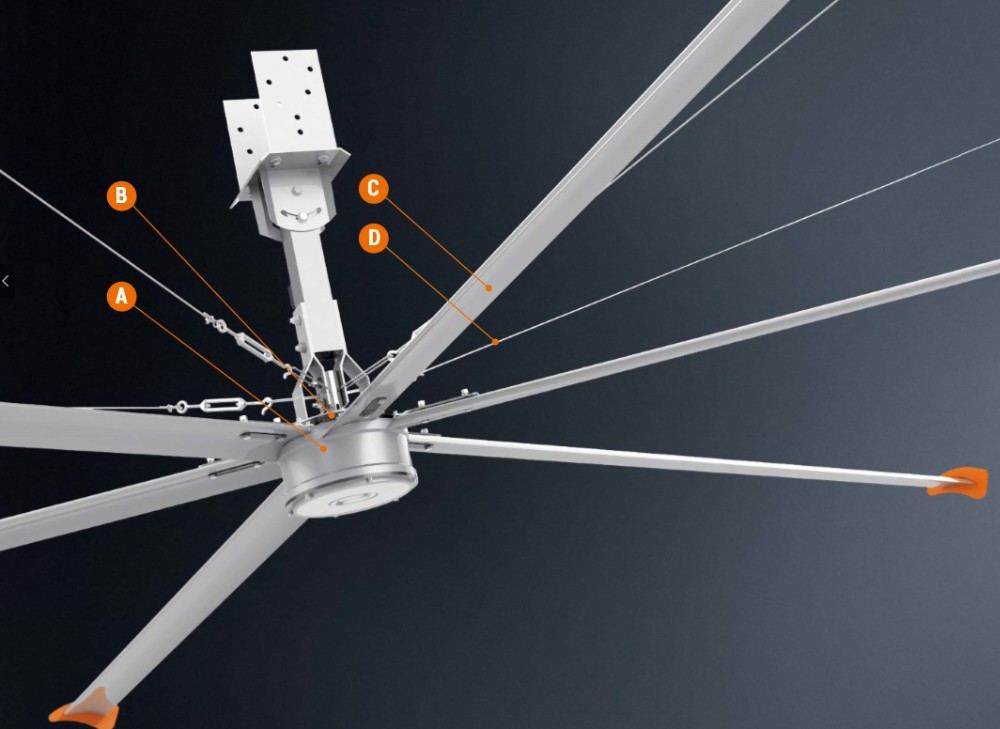

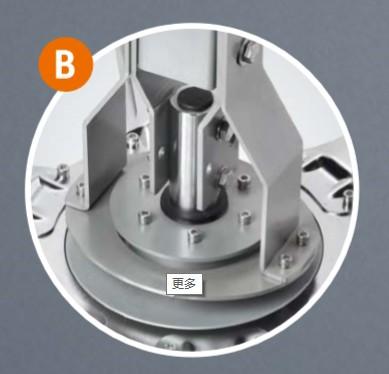

The integrated motor bracket prevents any parts from falling off and ensures the safety of the whole structure.
The anti-detachment plate breakage protection structure design ensures the safety of the ceiling fan.
Aluminum-magnesium alloy stretched blade, internally strengthened structure, strength, toughness, to ensure the safety of the blade.
The aluminum-magnesium alloy tensile blade has an internal reinforced structure with high strength and good toughness to ensure the safety of the blade.
Automatic power-off protection ensures that the blade is unexpectedly tough and can be stopped safely in time.
We always provide customers with high-quality products and excellent after-sales service.
Permanent magnet motor warranty period is 5 years
The warranty period of the controller is 18 months.

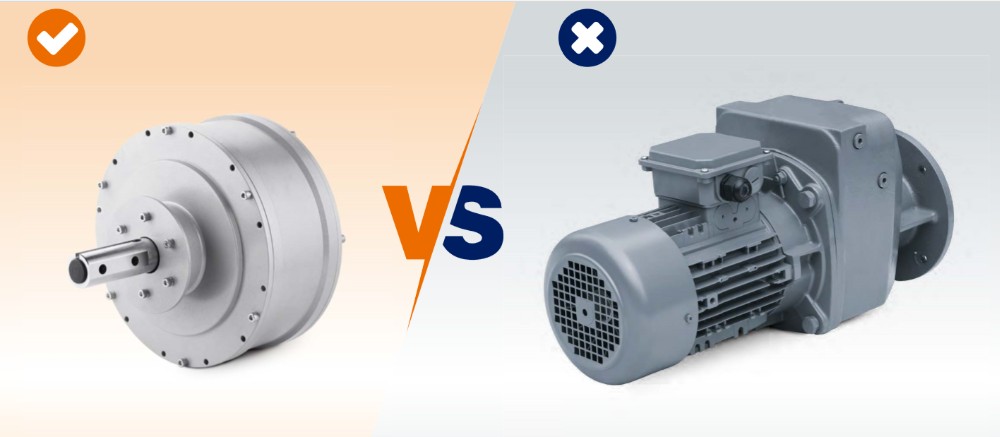

1) Adopt asynchronous ordinary motor + gearbox, which consumes a lot of energy.
2) Big and heavy.
3) Noise 60db.
4) The structure is complex.
5) FM narrowband (25-50HZ)
6) Frequent daily maintenance is required (replace seals, add transmission oil.)
7) There are hidden dangers such as gearbox oil leakage.

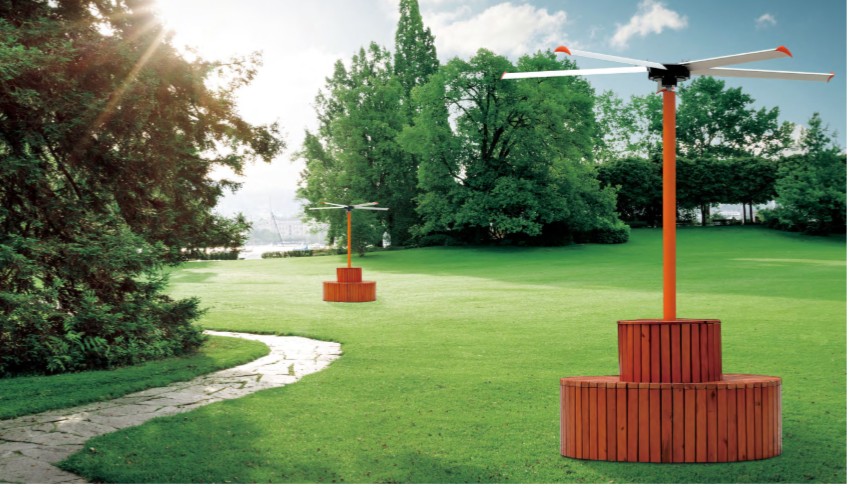

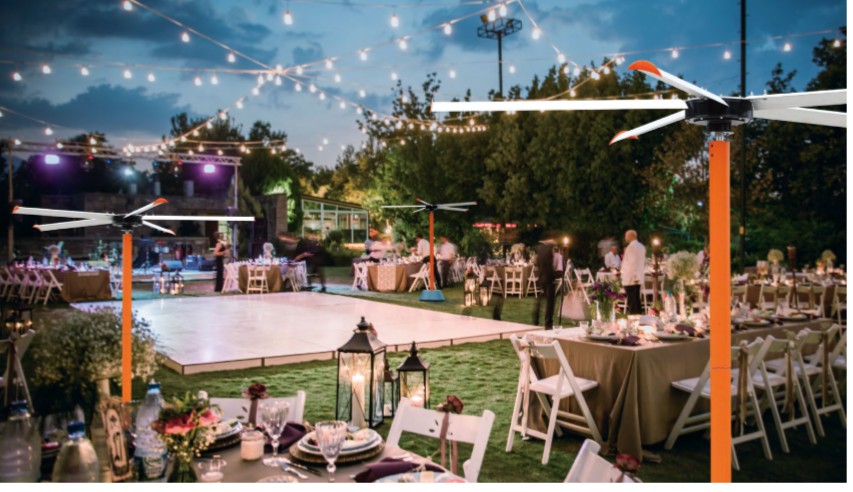

For example, parks, city squares, outdoor dining, urban construction sites, etc.
