Multi Touch custom pcap touchscreen 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55" capacitive touchscreen panel

Supplier: Shenzhen Yunlea Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Candice Tang
Price: $18.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Surface hardness:	6H;	Touch controller:	EETI3189/ILITEK2510 2312 2315;
Packaging Preview:	;	color:	Black;
port:	Shenzhen;	pack:	yes;
Interface Type:	USB;	Sensor (T):	up to 1.8 mm;
type:	Capacitive touch screen;	Cover glass (T):	up to 4 mm;
Warranty Period (Years):	1 year;	structure:	G+G;
Supply capacity:	1000 pieces per day;	brand:	Yunli;
product status:	stock, new;	After-sale service:	call center and online technical support;
aspect ratio:	16:9;	Contact point:	10 points;
Packaging Details:	Touch screen packaging: foam packaging/anti-static bag packaging.	Origin:	Guangdong, China;
payment terms:	L/C,Western Union,T/T;	custom made:	AF/AR/AG/waterproof/glove touch;
Warranty:	12 months;	operating system:	Win7, win8, win CE, Android, Linux;
series:	business use;

product description

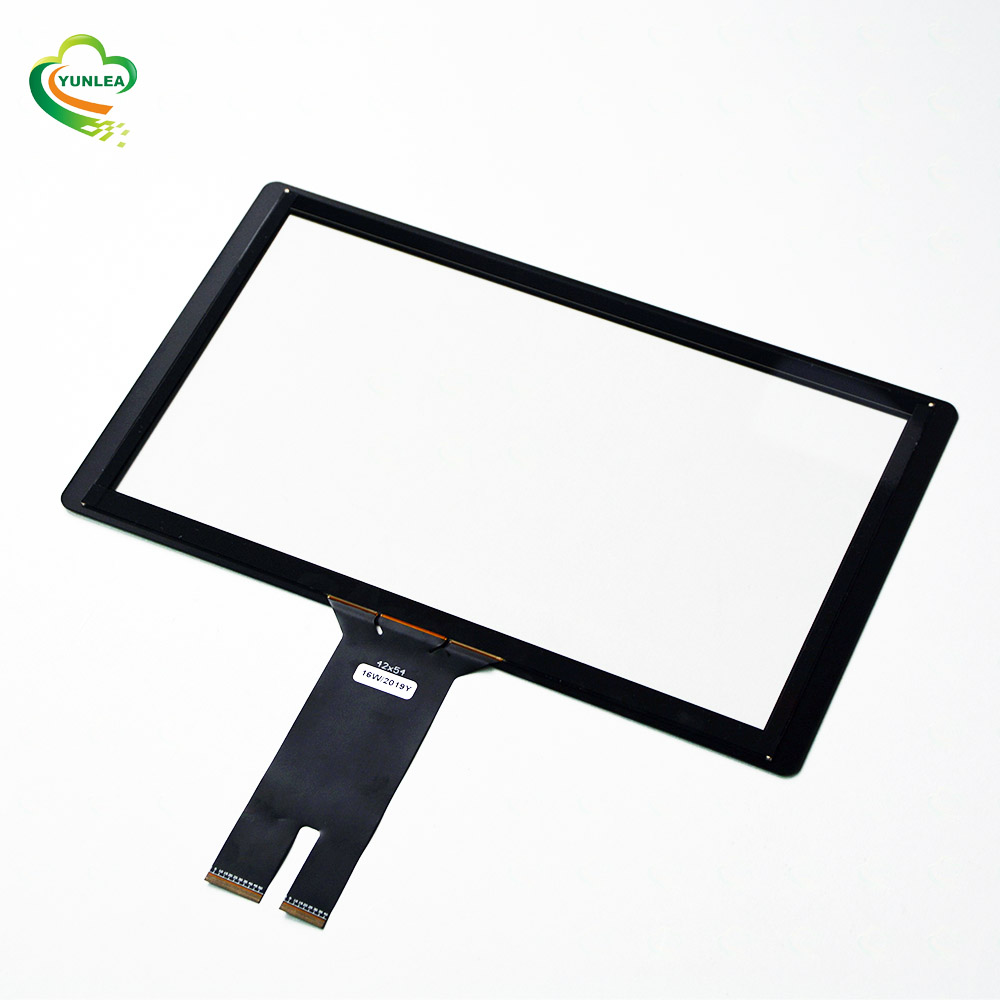

capacitive touch screen

You will get:

1.3.5 to 65 inches standard touch screen

2.1.4 to 10.1 inch touch display

3.customizable: Size / Shape / Logo / Clear Hole / Real Hole / Silk Screen Color / Anti-Glare / Anti-Fingerprint / Anti-Reflection / Touch With Water / Touch With Gloves.

Please find out moreclick here!

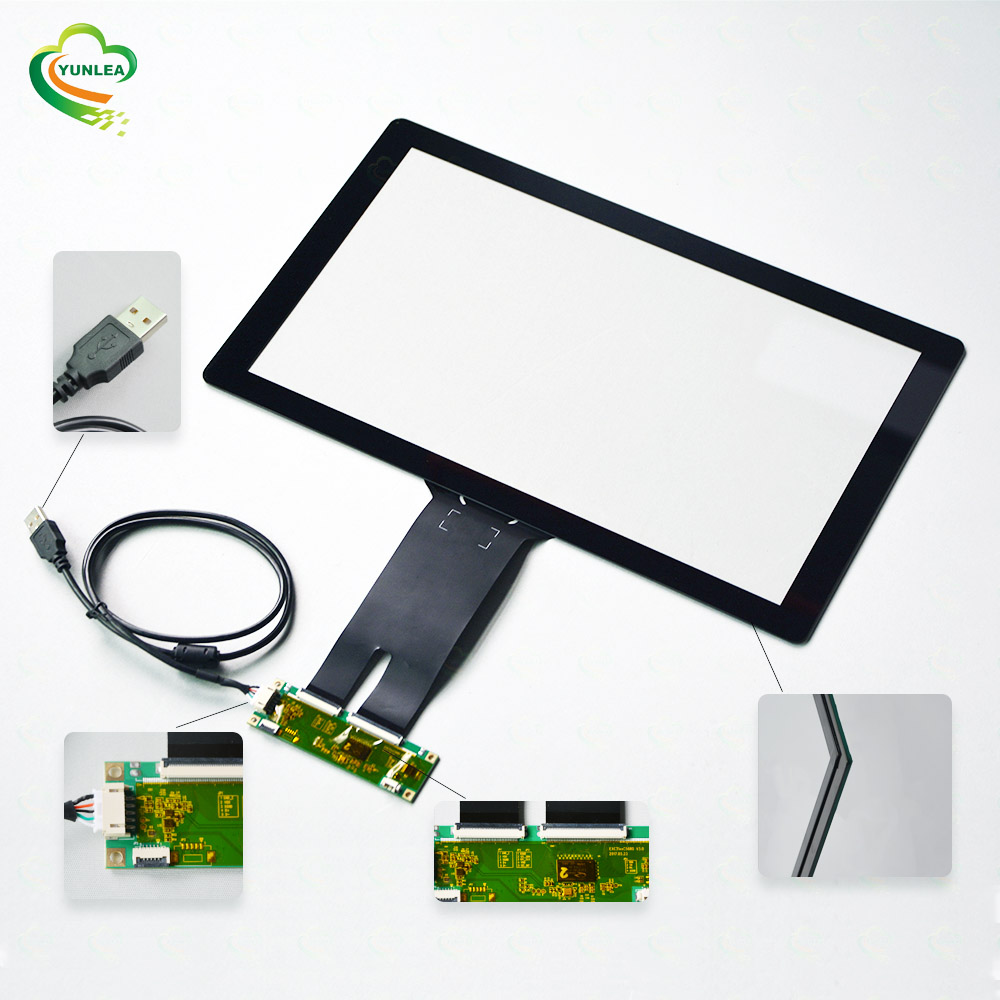

Specification

thing	15.6-inch capacitive touch screen
structure	G+G
touch controller	EETI/ILITEK
lens outer diameter	387x231mm
Sensor outer diameter	362x222mm
Cover glass (T)	1.1mm
Sensor (T)	0.7mm
window VA	344x194mm
Surface hardness	6H
Contact point	10 points
Interface Type	USB
color	Black
custom made	AF/AR/AG/Waterproof/Glove Touch
operating system	Win7,win8,win10,Android,Linux,IOS
Warranty	12 months

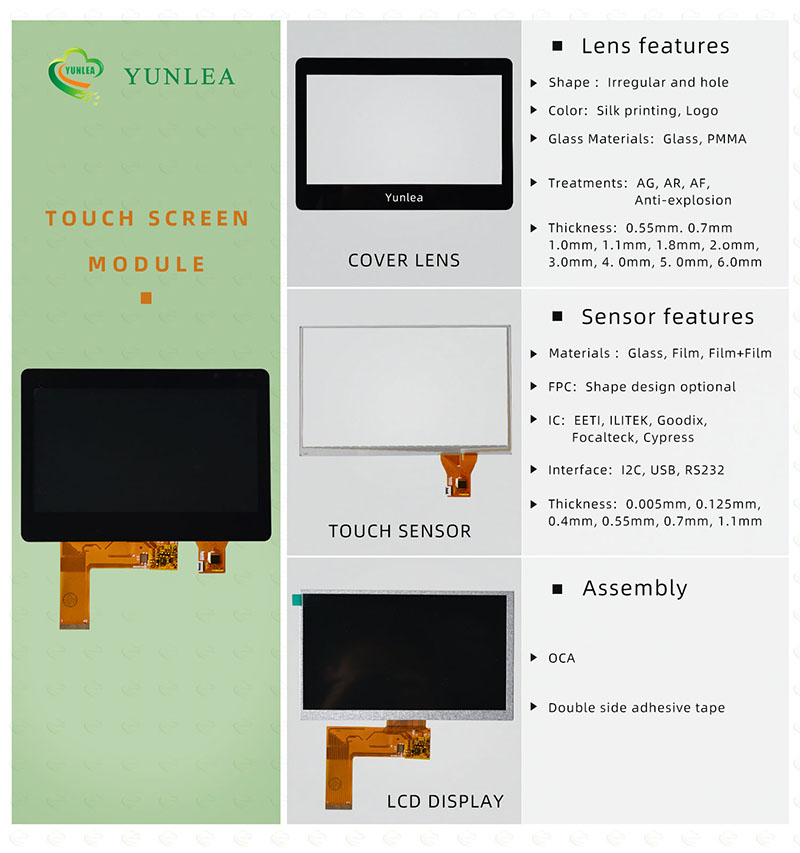

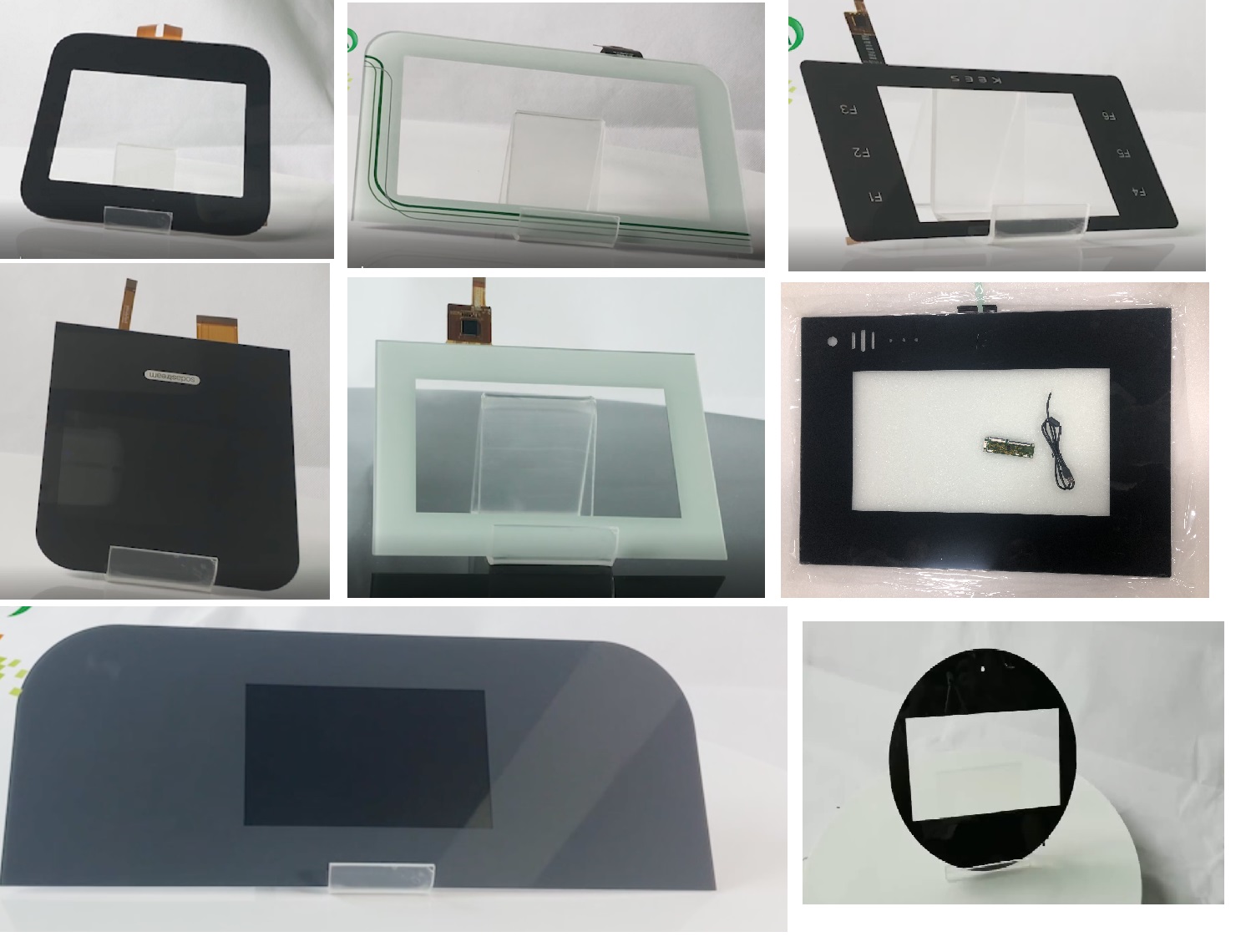

Customized Solutions

customizable:Size/Shape/Logo/Light Hole/True Hole/Silk Printing Color/Anti-Glare/Anti-fingerprint/Anti-Reflection/Water Touch/Glove Touch

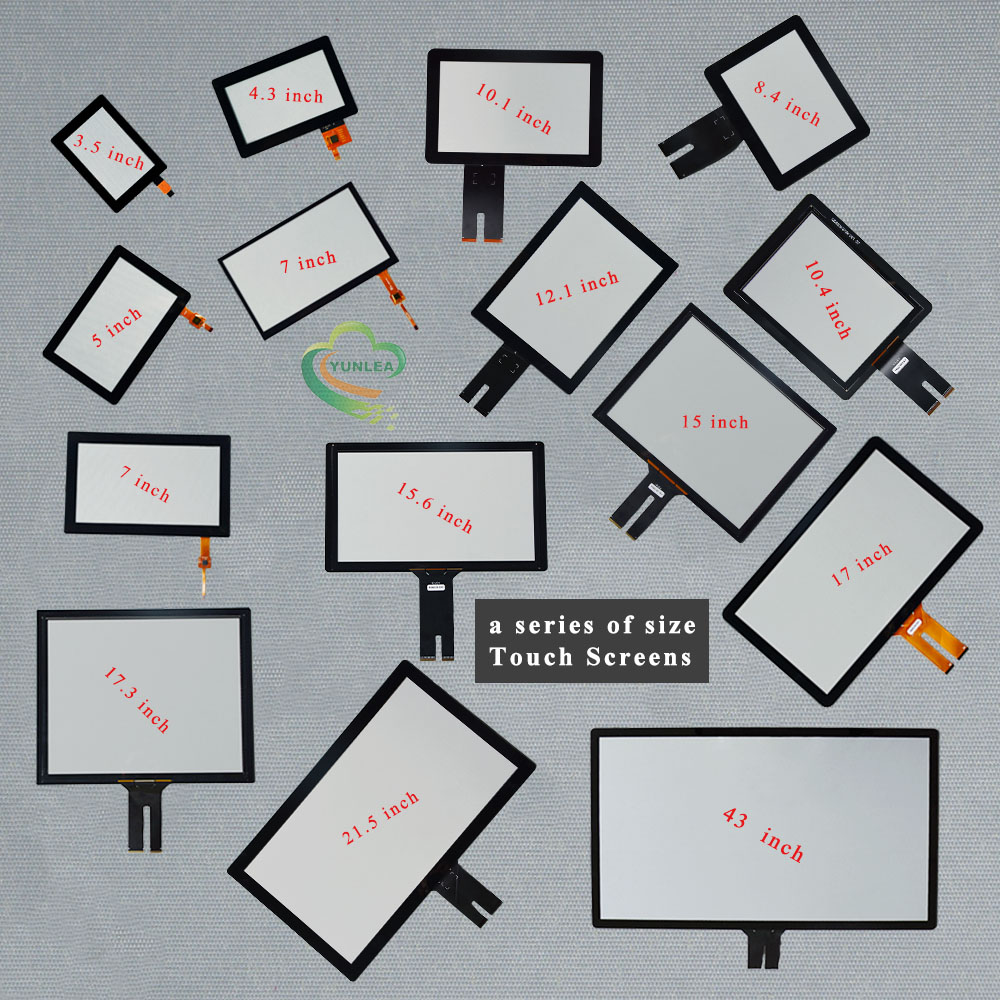

our products

_size	_{Sensor outer diameter (mm)}	Sensor (T)	_{Lens outer diameter (mm)}	cover glass(T)	_{R angle}	_{Window VA(mm)}	_{touch controller}
3.5"	82.34x56.86	0.4mm	94.94x66.86	0.7mm		74.94x50.36	Star 2133A	click
4.3"	103.10x85.40	0.7mm	114x77	0.7mm		96.04x53.86	FT5346	click
5"	120.7X75.8	0.55	127X85.80	0.7mm	R5	109X65.8	FT5436	click
7"	159.70x94.10	0.55	164.90x100	0.7mm		154.08x85.92	FT5436	click
8.4"	182×140.2	0.7mm	207×166	1.1mm	R10	170.4×127.8	EETI/ILITEK	click
10.1"	239.6×158.20	0.7mm	254.96×172.6	1.1mm	R10	217.96×136.6	EETI/ILITEK	click
10.4"	233.4×177.9	0.7mm	259.10×206.3	1.1mm	R10	213.1×160.3	EETI/ILITEK	click
12.1''	280×210.5	0.7mm	220.5×290	1.1mm	R4	246×184.5	ilitech	click
12.1''		259.6×201.1	0.7mm	293×237	1.1mm	R9	246×184.5	EETI/ILITEK	click
12.3''	306x127.5	0.7mm	316x139.5	3mm	R4	292.03x109.51	EETI/ILITEK	click
15"	319×244	0.7mm	339.9×263.9	3mm	R2	304×228	ilitech	click
15"		329×245	0.7mm	339.9×263.9	3mm	R2	304×228	EETI/ILITEK	click
15.6"	358×210	1.1mm	387×231	3mm	R16	344×194	ilitech	click
15.6"		362×222	0.7mm	387×231	1.1mm	R8	344×194	EETI/ILITEK	click
17"	356.92×290.34	0.7mm	377×309	3mm	R2	338.92×271.34	ilitech	click
17"		366.58×290.34	1.1mm	377×309	3mm	R2	338.92×271.34	EETI/ILITEK	click
17.3"	398.9×235.8	1.1mm	423.21×256.2	3mm	R16	383.21×216.2	ilitech	click
18.5"	429.8×249.9	0.7mm	458×283	3mm	R16	410.8×231.4	ilitech	click
18.5"		430.8×261.4	0.7mm	440.8×271.4	1.1mm	R8	410.80×231.4	EETI/ILITEK	click
19"	398.32x321.06	0.7mm	421×346	3mm	R2	377.32×302.06	ilitech	click
19"		400.32×329.9	0.7mm	421×346	2mm	R2	377.32×302.06	EETI/ILITEK	click
19.5"	450.5×259.76	1.1mm	473.5×281.26	3mm	R16	433.5×241.26	ilitech	click
21.5"	496.42×287.43	0.7mm	524×321.8	3mm	R16	477.6×269.10	ilitech	click
21.5"		508×303.8	0.7mm	524×321.8	1.8mm	R8	477.6×269.10	EETI/ILITEK	click
23.6"	543.84×316	0.7mm	573×349	3mm	R16	523.3×295.2	ilitech	click
23.8"	544.03×315.5	1.1mm	573×349	3mm	R16	525.5×297	ilitech	click
27"	618×355.7	1.1mm	646×384	3mm	R16	598×336	ilitech	click
27"		619×362	1.1mm	646×384	3mm	R16	598×336	EETI/ILITEK	click
32"	719.7×414.3	1.1mm	746.7×441.3	3mm	R16	698.7×393.3	ilitech	click
32"		720.7×420.3	1.1mm	746.7×441.3	3mm	R16	698.7×393.3	EETI/ILITEK	click
43"	973×561.5	1.1mm	994.2×587.3	4mm	R15	943.2×531.4	ilitech	click
55"	1254.6x716.41	1.8mm	1287.6x758.4	4mm	R8	1209.6x680.4	ilitech	click
65''	1475.84x847.37	1.8mm	1524.54x914.46	4mm	R27	1434.54x809.06	ilitech	click

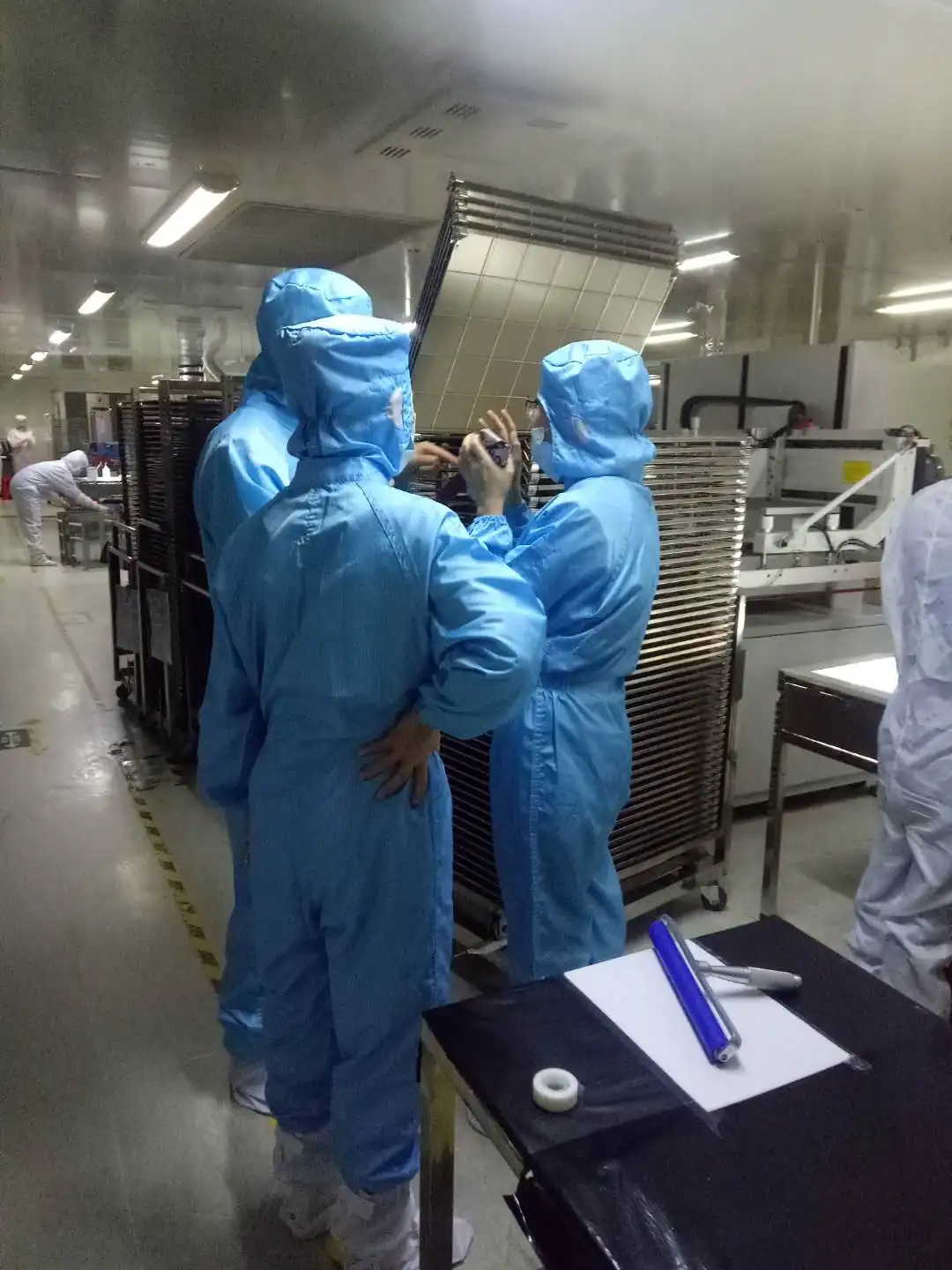

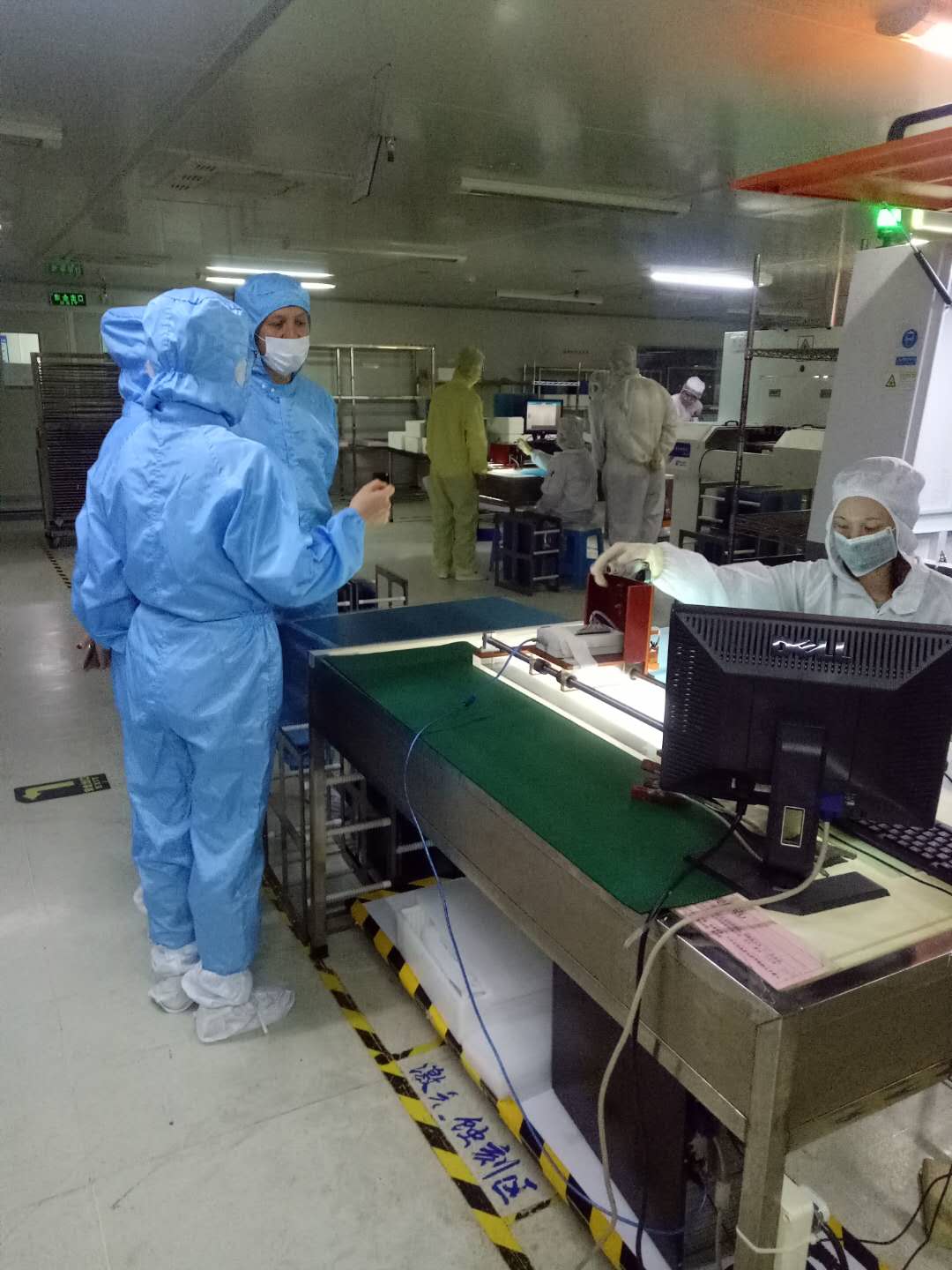

Company Profile

YUNLEA is a leading capacitive touch panel designer and manufacturer, we have extensive experience in medical, industrial, home automation and product supply.

We mainly export these products to all over the world and have rich experience in customizing touch screens for heavy brand customers such as GE and Siemens.

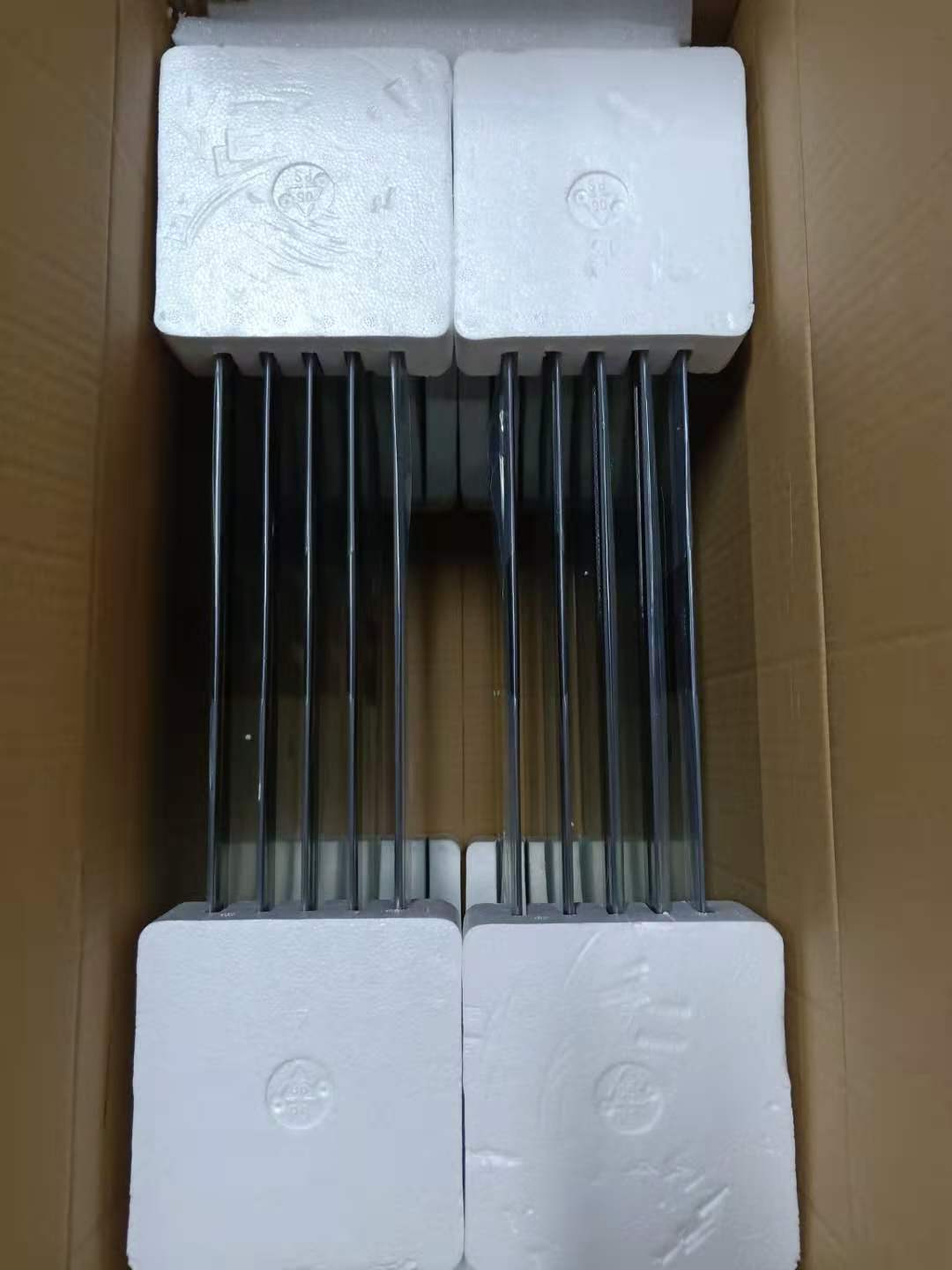

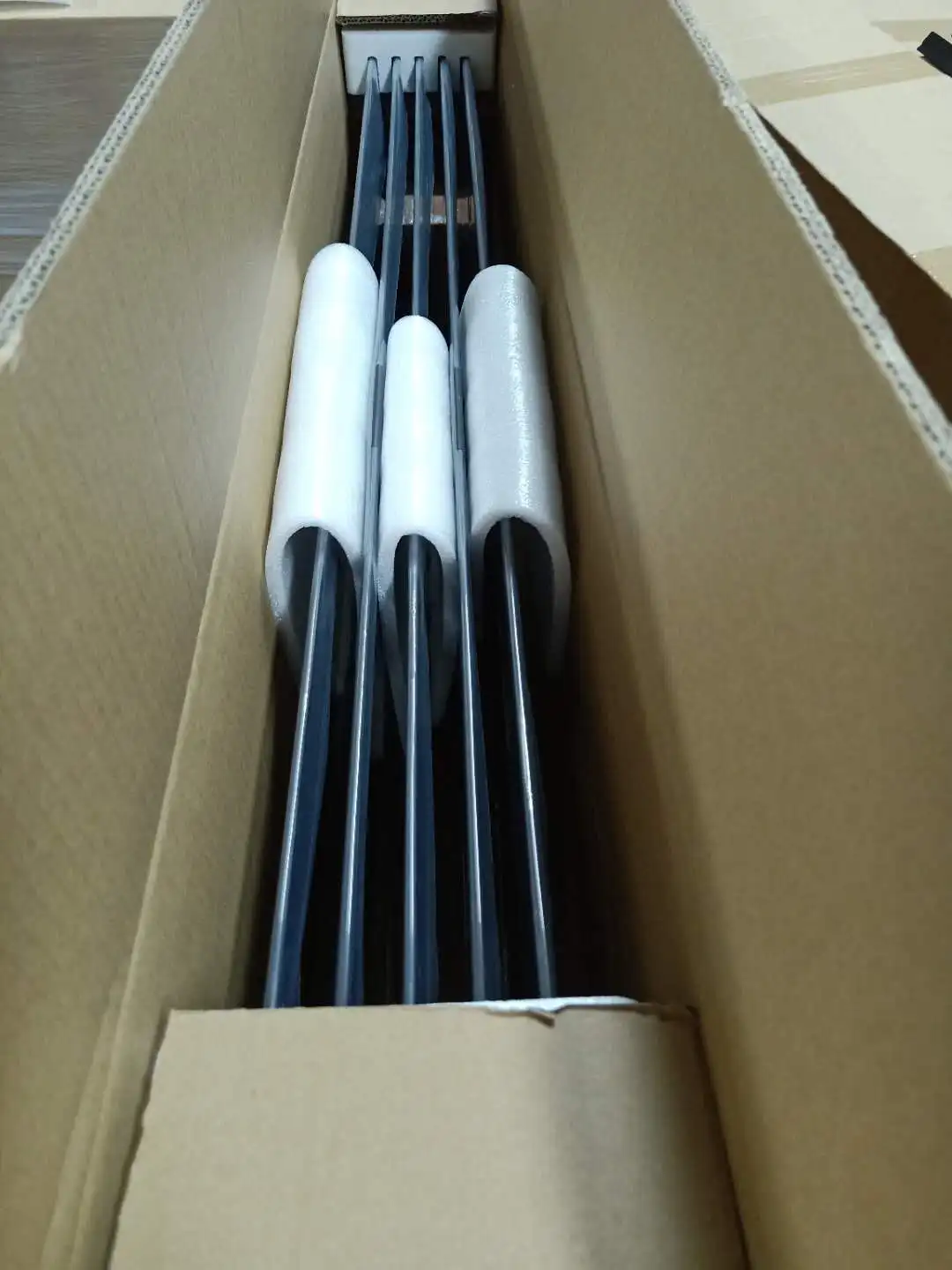

Packaging and Delivery

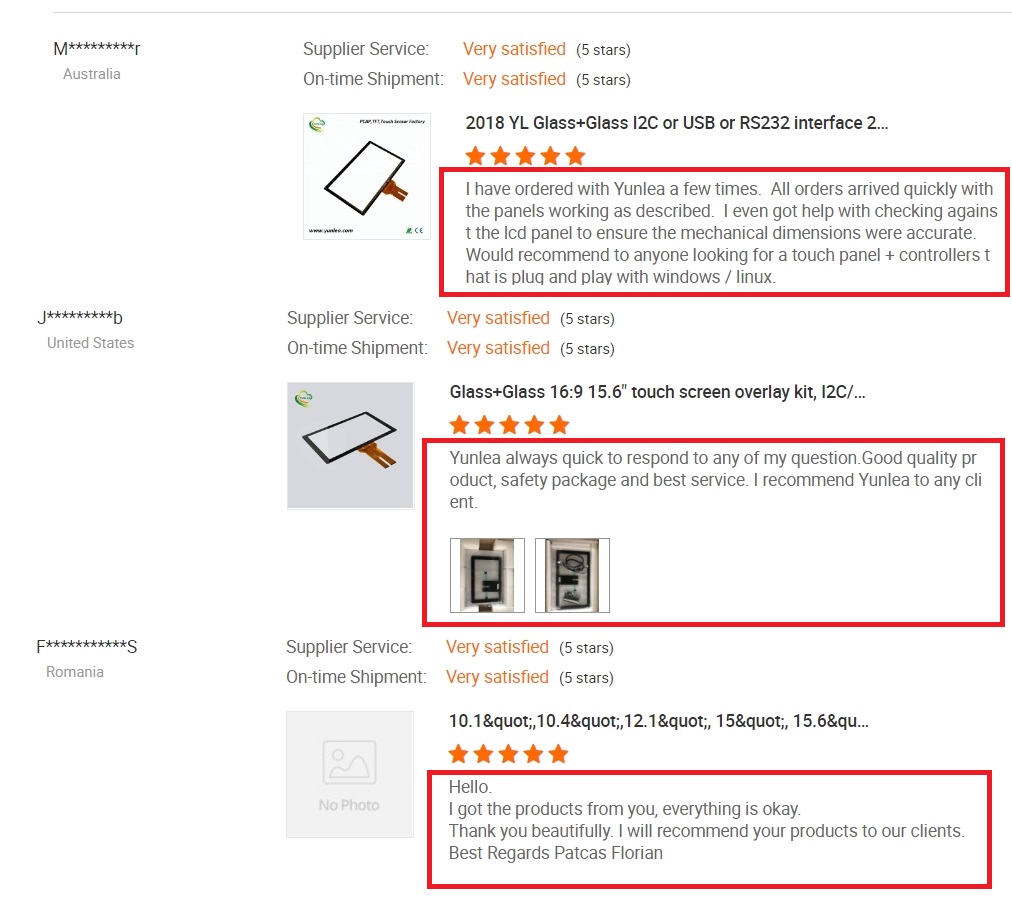

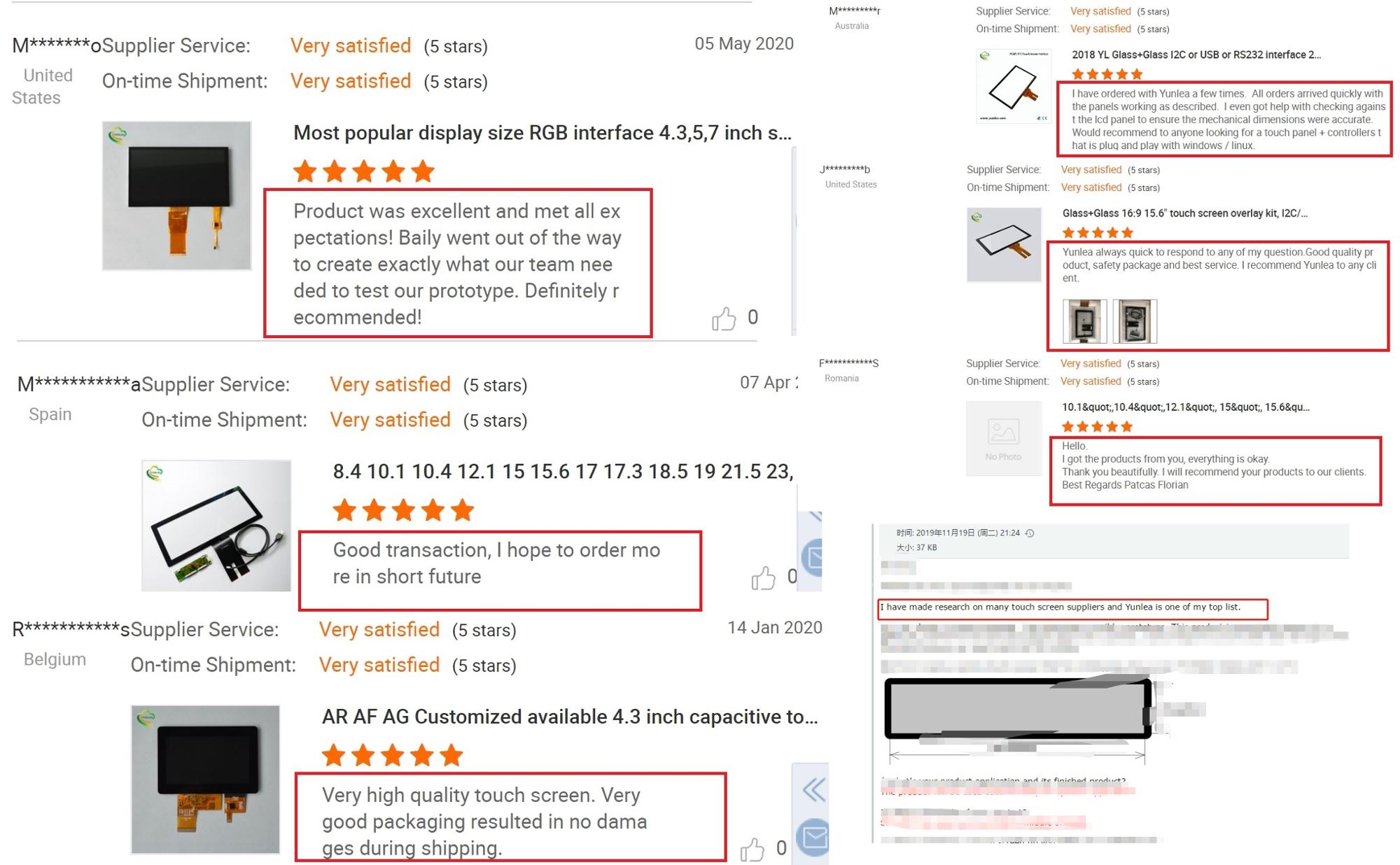

client feedback

FAQ

1. What is your shipping method?
DHL , UPS , FEDEX , TNT
2. What is the lead time of the product?
Stock samples will be sent within 3 days after payment.
Two to four weeks for mass production
3. What is the payment method?
T/T, Paypal and Western Union etc.
Sample: Prepaid.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
The general warranty period is one year.It depends on different products.
5. What is the product MOQ?
Different products have different MOQ, please contact our sales for details.

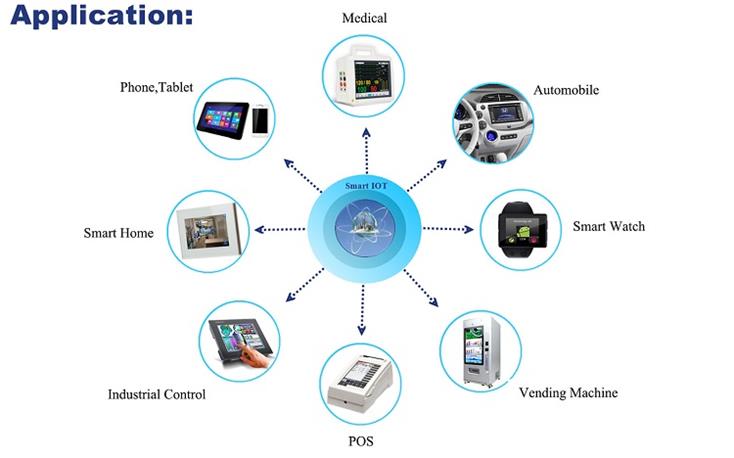

6. What is the product application?
Widely used in instrumentation, handheld equipment, industrial control, medical, automotive, smart home and other fields.
