Chemical industrial rotary evaporator with vacuum Rotovap Rotavapor 20L Recommended Hot with coolant and vacuum pump

Supplier: Zhengzhou Sykes Biotechnology Co., Ltd.
Region: Henan, China
Contact: Ms Audrey Cheng
Price: $2750.00 / 1 - 2 sets
$2720.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Plywood sheath;	Preview of the package:	;
Applicable industries:	Food and Beverage Factory, Retail, University, Pharmaceutical and Chemical Industries;	Video inspection at the exit:	With one condition;
Location of the exhibition hall:	Asnje;	Payment terms:	L / C, Western Union, D / P, D / A, T / T, MoneyGram;
Power source:	Electricity;	Main ingredients:	Engines;
Tensions:	380V, 220V;	Guarantee:	1 year;
Machinery test report:	With one condition;	Brand Name:	Sykes;
Evaporation rate (L / h):	Water≥5 Alcohol≥11;	Rotation speed:	20 ~ 130;
Product name:	Industrial Chemical Rotary Evaporator 20L;	Evaporating balloons:	20L;
Receiving balloon:	10L;	Engine power:	250 W;
Temperature scale:	Room temperature -99 ℃;	Basic components warranty:	1 year;
Lifting function:	Motorized elevator;	Highlights:	Automatic;
Country of origin:	Henan, China;	Max. vacuum rate:	399.9Pa (below 3 mmHg);
Condition:	New;	Type of marketing:	Ordinary product;
Supply Ability:	500 sets per month;	Power:	6300;
Overall power:	6.3 KW;	Dimensions (L * P * H):	1250 * 600 * 2100mm;
Process:	Vacuum distillation;	Weight:	100 kg;
But you:	Shanghai, Qingdao, Guangzhou, etc .;

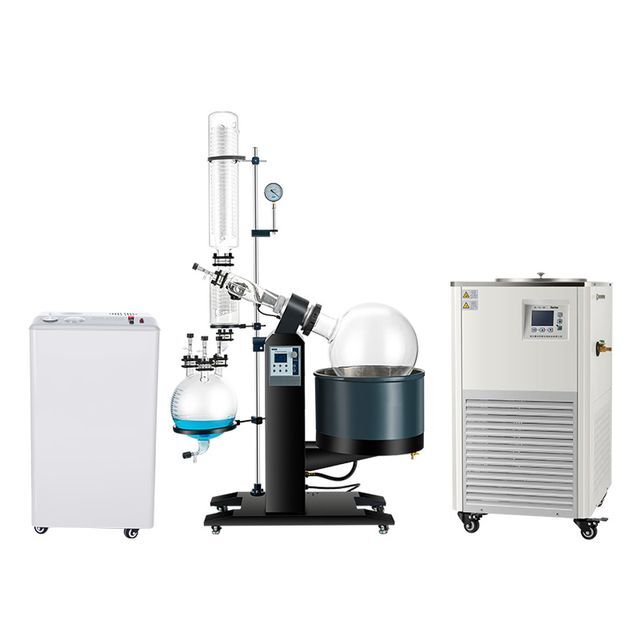

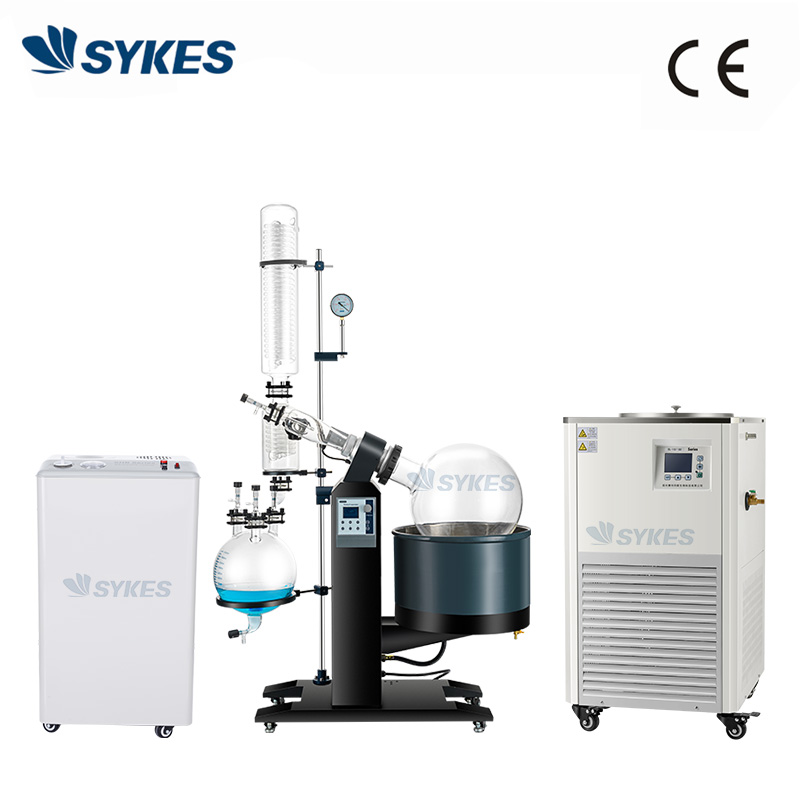

Chemical industrial rotary evaporator with vacuum Rotovap Rotavapor 20L Recommended Hot with coolant and vacuum pump

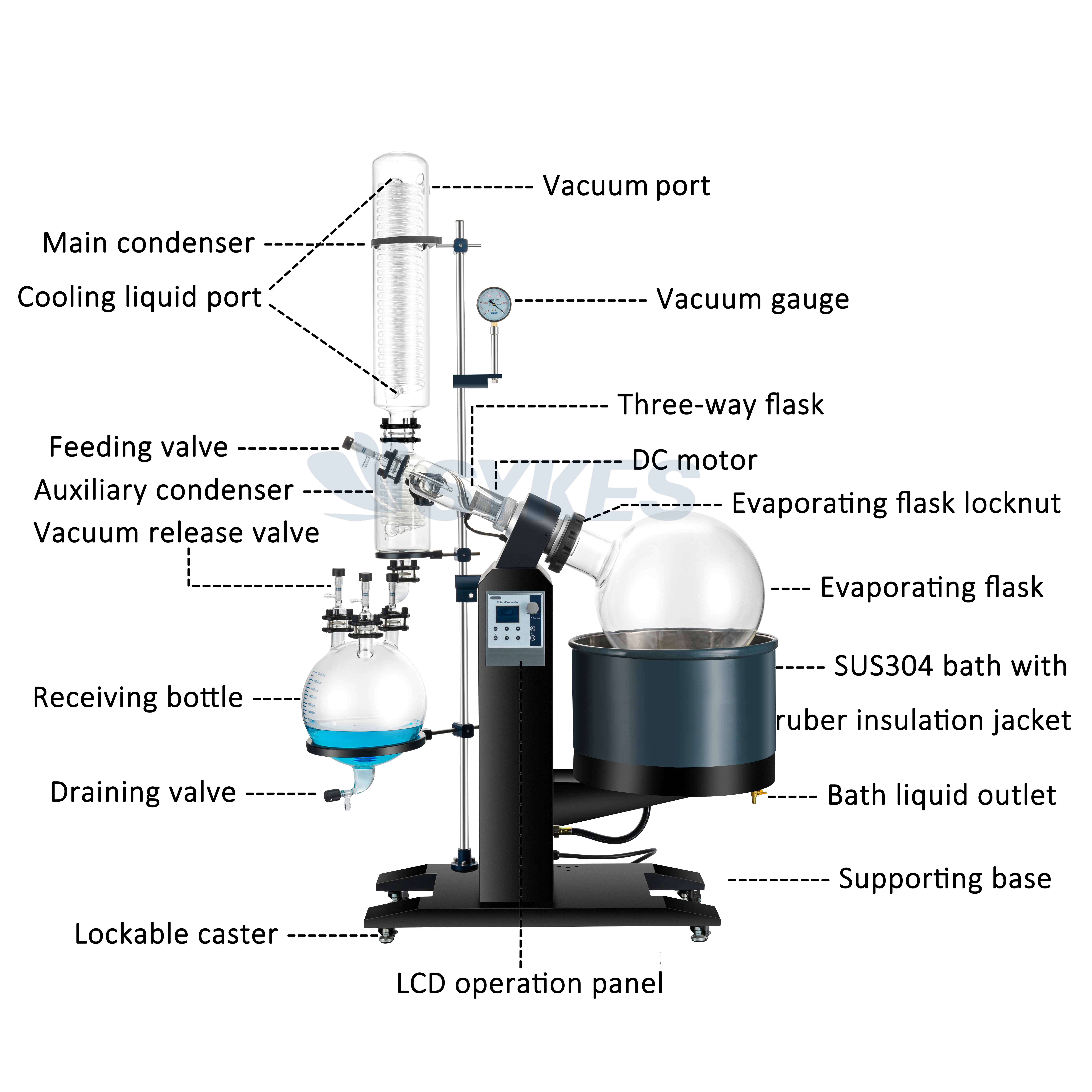

The rotary evaporator balloon continues to rotate when continuously heated by a stainless steel water bath, and the solvent evaporates more efficiently under vacuum conditions, forming a thin film, and then condenses and collects, in order to be cleaned and divided. The rotary evaporator can be used with a vacuum pump (a circulating water vacuum pump or a diaphragm vacuum pump) and a recyclable coolant to form a total system.

White R Series

Black R Series

Rotary evaporator is widely used for evaporation, distillation, separation of chemicals, drying of power materials in rotary bottles, crystallization.

pattern	R1005	R1010	R1020	R1050
Ambient temperature(℃)	5 ~ 35
Electricity supply(V / Hz)	Single phase 220/50		Three-phase220 / 380/50
Adjusting the speed of the main machine	Digital display, speed adjustment without variable frequency steps	Digital display, speed adjustment without DC steps
Rotation speed (rpm)	10-140	20-130		20-110
Rotary engine power (W)	40	Engine without brush, 250
Temperature range (℃)	Digital display, Room temperature -99
Max. vacuum rate (No)	399.9 (below 3 mmHg)
Evaporating balloon (L)	5 Opening of flanges Ø50	10 Flange opening Ø125	20 Flange opening Ø125	50 Flange opening Ø125
Receiving balloon (L)	3	5	10	20
capacitor	Tube with two coils of vertical type	Vertical type, Main + cold auxiliary traps with triple circuit
Condensation surface (m2)	0.27	Main capacitor 0.42, Auxiliary capacitor 0.22	Main capacitor 0.8, Auxiliary capacitor 0.39	Main capacitor 0.91, Auxiliary capacitor 0.52
Evaporation rate (L / h)	Uji≥2 Alcohol≥4	Uji≥3.2 Alcohol≥6.5	Uji≥5 Alcohol11	Uji≥9 Alcohol≥19
Bathroom material	Stainless steel
Bathroom size (mm)	Φ300 × 170	Φ350 × 220	Φ450 × 260	Φ550 × 320
Lifting function	Motorized elevator			Motorized + manual lift
Raised stroke (mm)	0 ~ 150	0 ~ 160	0 ~ 190	0 ~ 180
Total power (kW)	2.2	4.8	6.3	8.3
Dimensions (mm)	860 × 500 × 1000	920 × 550 × 1700	1250 × 600 × 2100	1320 × 770 × 2340

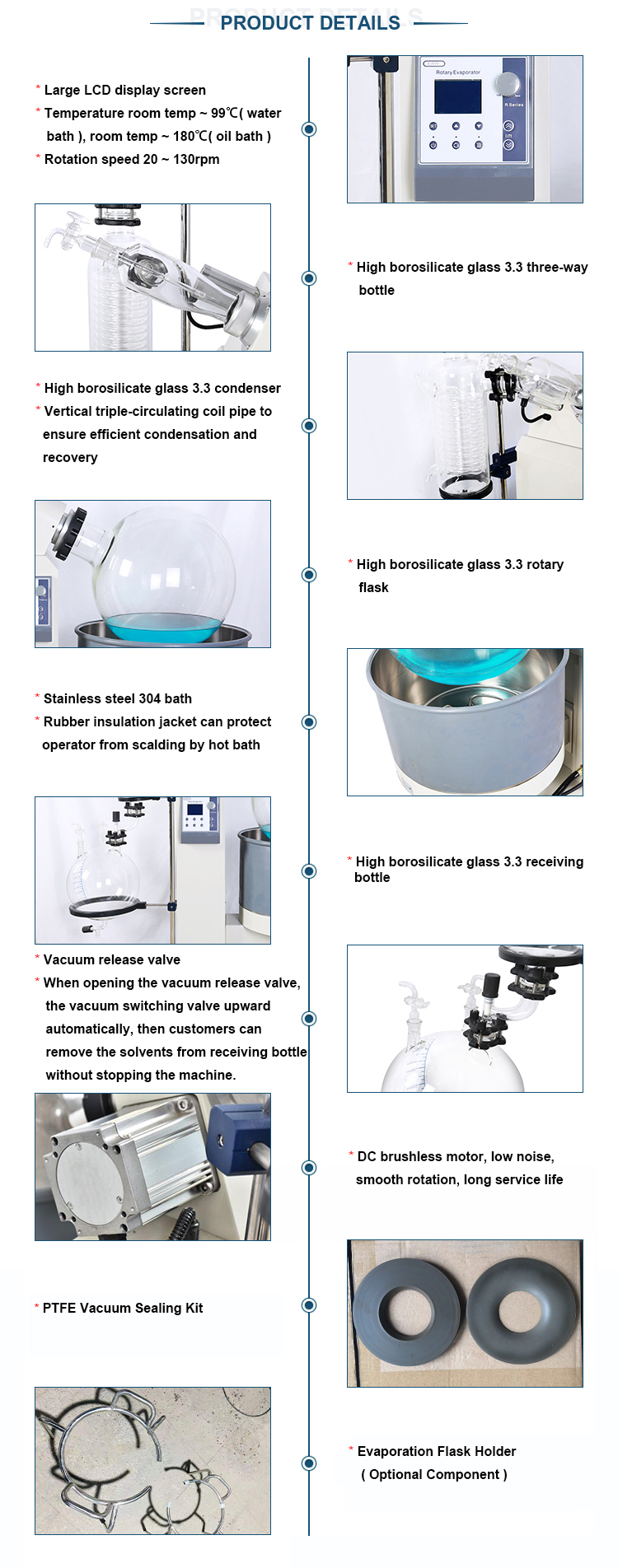

1).Teflon (PTFE) and double rotating fluorine rubberto provide high vacuum.

2). Presentation ofadvanced foreign frequency control system, accurate and reliable temperature control system.

3).A vacuum shut-off valve, without affecting the vacuum distillation system of the situation and the solution can be collected continuously.

4). Water bathelectric elevator and manual elevatorsupport, easy to use.

5).PTFEdrain valve, corrosion resistant, no pollution.
