NanoVNA V2 / SAA2 3G Version VNA HF VHF UHF Vector Analyzer Network Antenna Analyzer with EVA Storage Bag

The SAA-2, designed by OwOComm, is a portable vector network analyzer up to 3GHz. We strictly follow OwOComm's documentation and use 0.5ppm TCXO to ensure high frequency measurement frequency accuracy. The complete metal casing can fully protect the internal precision circuit, and fully consider the protection of the external interface. Customized high performance SS405 cable provides good stability phase stability performance, high performance calibration kit ensures calibrated SWR less than 1.03 up to 3GHz.

Product performance:

Frequency range: 50kHz-3GHz Frequency error: <2ppm Frequency and temperature: <0.5ppm System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz) S11 noise floor (calibrated): -50dB (up to to 1.5GHz), -40dB (up to 3GHz) Scanning Speed: 100 points/sec Display: SAA2 2.8 inches, 320 x 240; SAA2N 3.95 inches, 320 x 480 RF Ports: SAA2 SMA; SAA2N N (if need to measure Wifi antenna etc. For reverse needle SMA devices, please use SMA to RPSMA connector) USB interface: microUSB Power supply: USB, maximum charging current 1A Battery: SAA2 2000mAh Li-ion; SAA2N 3000mAh Li-ion battery Connector: JST-XH 2.54mm On-screen): 201 Max Sweep Points (USB): 1024 Port 2 Return Loss (1.5GHz): 20dB typ Port 2 Return Loss (3GHz): 13dB MIN VNA-QT Software Compatible Systems: Linux, Windows (7+) , Mac OS plan

2.8 inch SAA2_SMA connector standard matching list:

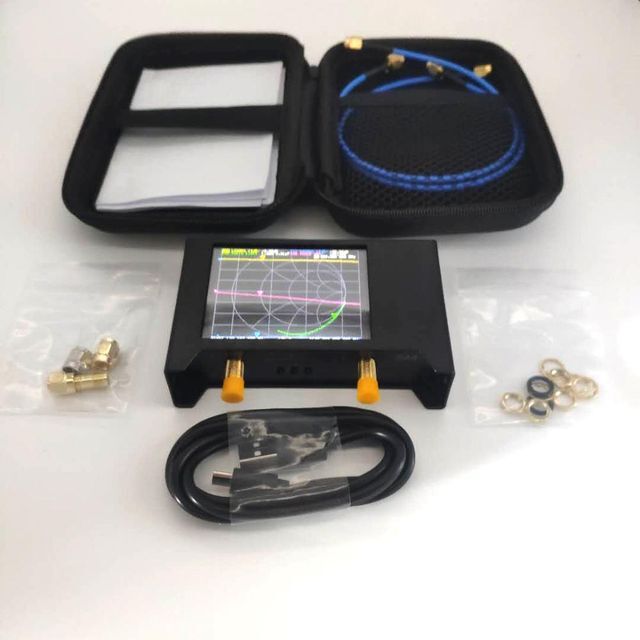

SAA-2 host (built-in 2000mAh battery) x 1 USB cable x1 30cm SMA male to male SS405 RF cable x2 SMA simple calibration kit OPEN *1 SMA simple calibration kit SHORT *1 SMA simple calibration kit LOAD *1 SMA female to female connection Device*1 EVA Suitcase*1 Lanyard Touchpad*1

4-inch SAA2N_N connector standard matching list:

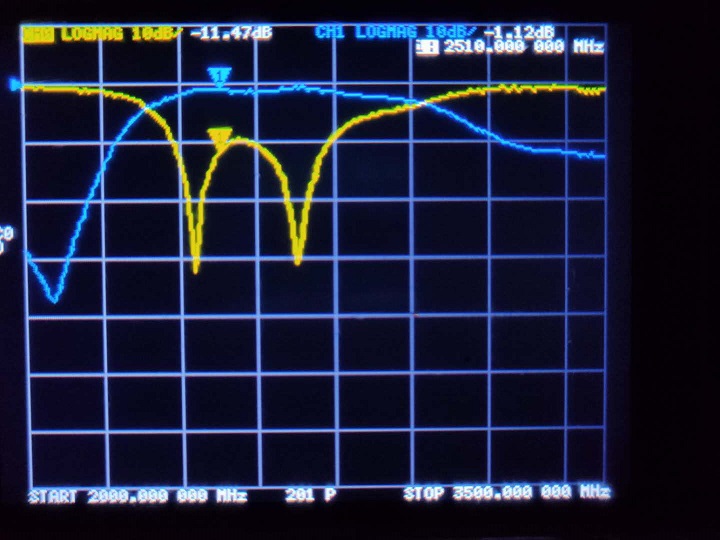

SAA-2N host (built-in 3000mAh battery) x 1 USB cable x1 50cm N male to male RG142-PUR RF cable x2 NSimple calibration kit OPEN *1 N simple calibration kit SHORT *1 N simple calibration kit LOAD *1 N female to female Connector*1 EVA Carrying Case*1 Lanyard Touchpad*1 SAA-2/NanoVNA V2 uses a similar user interface to NanoVNA, but uses a different technical architecture. SAA-2/NanoVNA V2 does not load initial calibration data at startup, nor does it automatically insert calibration data after the user changes the frequency. After the second start and frequency change, the calibration data must be re-calibrated or recalled. Please read the instruction manual carefully before use to avoid damage to the device. nanovna-saver: https://github.com/NanoVNA-Saver/nanovna-saver/releases VNA-QT software download: https://github.com/mdkendall/NanoVNA-QT/releases/ User guide: https:// github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf Since we are using a higher spec LCD, if the touchscreen is not accurate after upgrading the firmware, please calibrate the touchscreen via the menu! Example of measuring a 2.4GHz filter

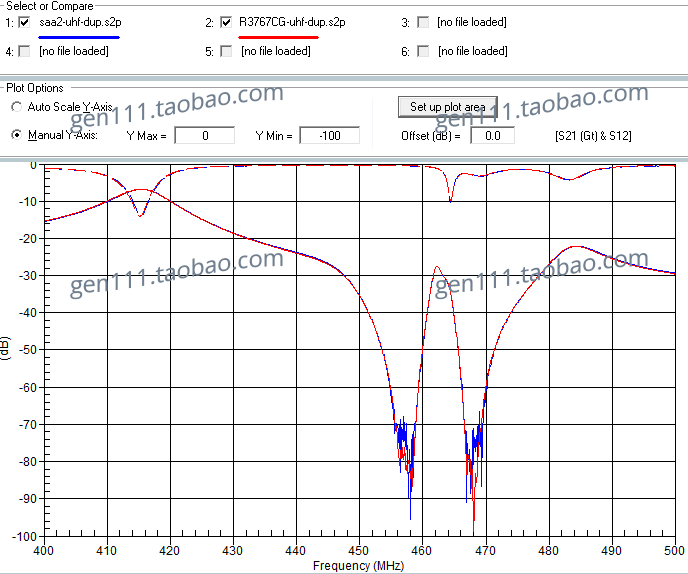

Since the SAA2 is an open source design, there are many different manufacturers, and some customers may have questions about the performance of our products. Below are touchstone files from scanning different attenuators with NanoVNA-Saver. You can judge the effective dynamics and accuracy of the approximation from the curve. , and the accuracy of the calibration parts we use, the following test results only represent the sample test data of our metal casing SAA2, and do not assume any responsibility for similar products sold through other channels. Compared to the Advantest R3767CG, the U-segment overlap is almost perfect and can be better used for UHF duplexer tuning:

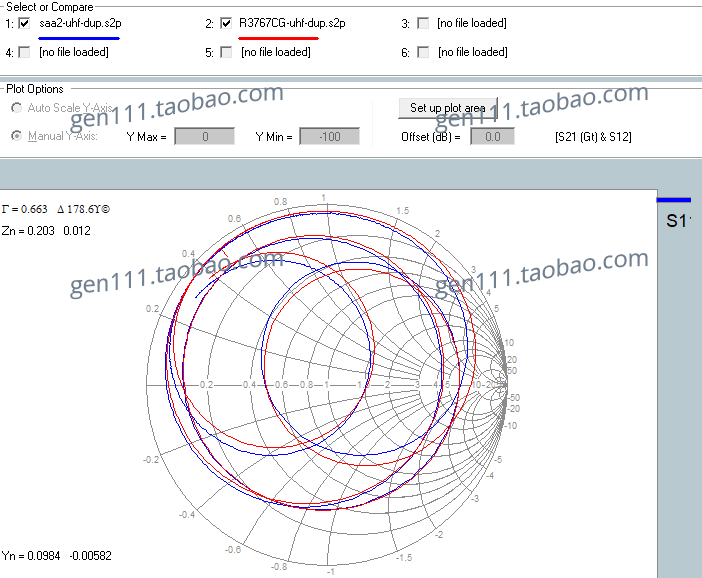

These stages can also substantially overlap:

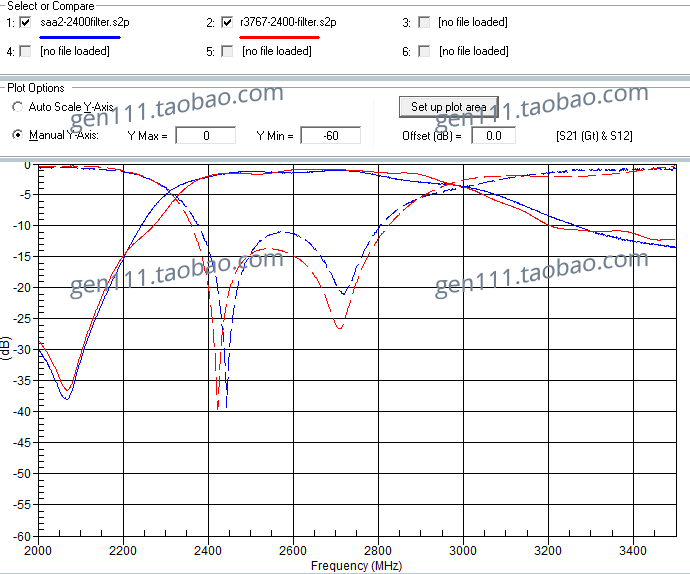

Measured 2.4GHz filter accuracy can also be within acceptable range

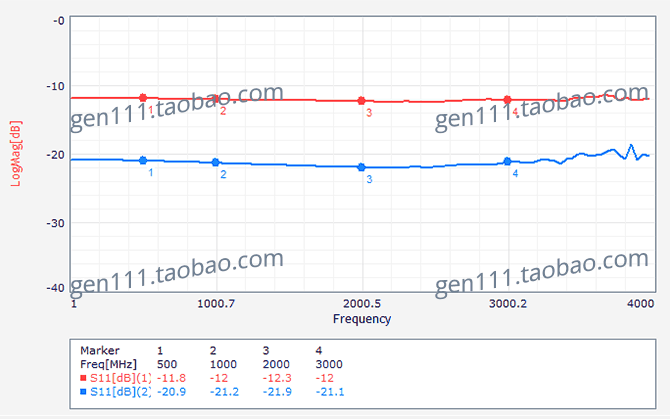

Scan the 6dB and 10dB attenuators on CH0 respectively, we can see that the return loss of the 10dB attenuator is between -20dB and -22dB, and the accuracy of the calibration part and the directivity of SAA2 are very good:

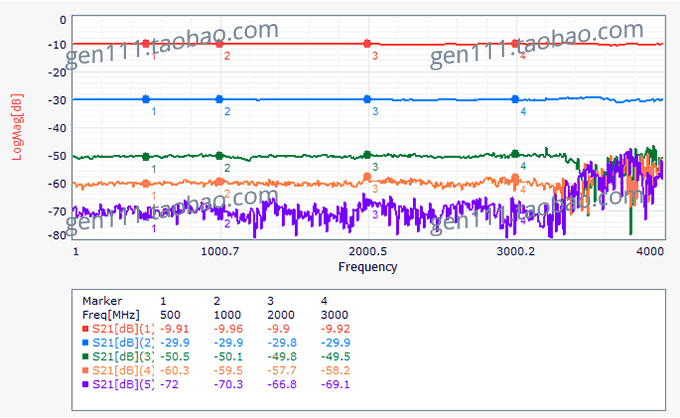

Sweep 10dB, 30dB, 50dB, 60dB, 70dB attenuators between CH0 and CH1 respectively, S21 can get satisfactory results up to 3.3GHz:

NanoVNA-Saver software now supports SAA2
