BIOBASE factory gas chromatograph LCD display self-test function laboratory gas chromatograph

Supplier: Biobase Biodustry (shandong) Co., Ltd.
Region: Shandong, China
Contact: Ms Anna Zhao
Price: $2300.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply capacity:	3000 pieces per month	payment terms:	L/C, T/T
Packaging Details:	standard wood packaging	Customization support:	OEM production
Origin:	Shandong China	model:	BK-GC112A
product name:	Gas Chromatograph	power supply:	AC220V±10%, 50/60Hz
Oven Maximum Temperature Heating Rate:	60℃/min	Detector temperature range:	Room temperature +7°C~420°C
port:	Qingdao or according to your needs	Package size (widthdepthheight):	1020660740mm
Optional accessories:	TCD detector, chromatographic column, gas purifier.	Oven Temperature Accuracy:	±0.02℃
Package preview:		Warranty:	1 year
brand:	biological base	Standard accessories:	FID detector, capillary sampling system
Oven temperature program:	9 phases/10 platforms	Oven temperature range:	Room temperature +5°C~400°C

product information

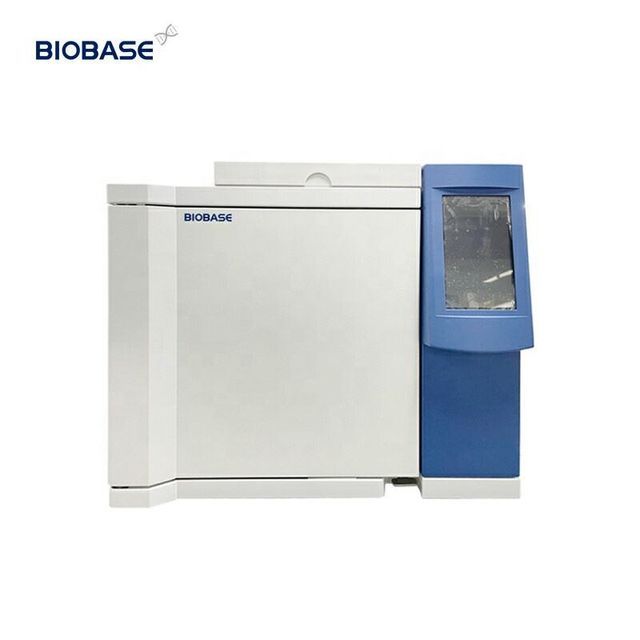

Gas Chromatograph

BK-GC112A

feature:

1. 7-inch LCD display shows temperature, gas flow and heating curve.
2. Self-inspection function and automatic fault identification function.
3. 8 external expansion interfaces, which can be connected to control valves.
4. Equipped with flame ionization detector controlled by APC.
5. Multi-core, 32-bit embedded hardware system ensures reliable operation.
6. Synchronous external trigger function, external signal (autosampler, thermal analyzer, etc.) can be started
Equipment and workstation software simultaneously.
7. Cooperate with chromatography workstation software to process data.

Technical Parameters:

Model	BK-GC112A
oven	temperature. scope			Room temperature +5°C~400°C
		temperature. accuracy			±0.02℃
		temperature. program			9 phases/10 platforms
		Maximum temperature heating rate			60℃/min
Sampler	temperature. scope			Room temperature +7°C~420°C
		A column or split injector can be installed.
		The split mode can directly set the split ratio.
		constant pressure mode.
		A separate injection system is connected.
detector	temperature. scope	Room temperature +7°C~420°C
		Hydrogen Flame Ionization Detector (FID)	log amp
				High voltage switch control
				Baseline signal display
				ignition coil control
				Detection limit: ≤3*10-12g/s (Sample: n-hexadecane)
				Dynamic Range: 107
		Thermal Conductivity Detector (TCD) (optional)	Bridge pressure switch control
				Bridge current setting: 0-220mA
				Sensitivity: 6000mv.ml/mg
				Dynamic range: 105
power supply	AC220V±10%, 50/60Hz
Standard accessories	FID detector, capillary sampling system, chromatography workstation software.
optional accessories	TCD detector, chromatographic column, gas purifier.
Package size (widthdepthheight)	1020660740mm
gross weight	82 kg
