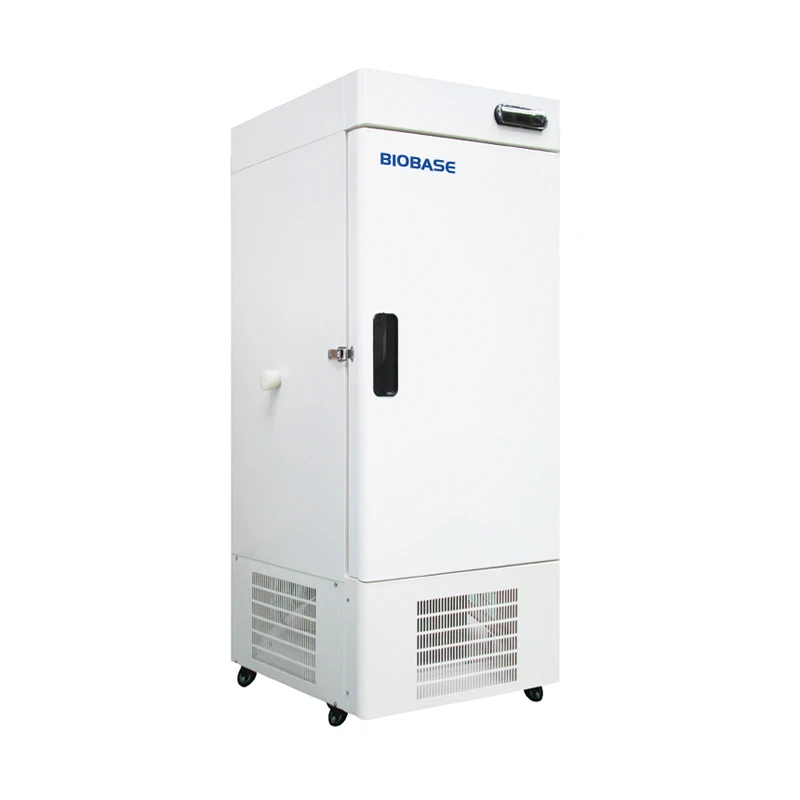

Temp. Range: | -40~-86℃; | Product Name: | -86℃ Freezer; |
Compressor: | 1set; | Brand Name: | BIOBASE; |
Payment Terms: | L/C,T/T; | Place of Origin: | Shandong China; |
Power Supply: | AC110V/220V±10%, 50/60Hz; | Port: | Qingdao; |
Door: | lockable door; | Control System: | Microprocessor control, LED Display; |
Internal Material: | Stainless steel; | Model Number: | BDF-86V158; |
Supply Ability: | 500 Piece/Pieces per Month; | Model: | BDF-86V158; |
Type: | Vertical; | Packaging Detail: | Wooden box or carton; |
Classification: | Laboratory Refrigeration Equipments; | Capacity: | 158L; |
It is suitable for electronic industries, university laboratories, military industries, and pelagic fishery companies.
Model | BDF-86V158 | BDF-86V338 | BDF-86V408 | ||
External Size (W*D*H)mm | 700*700*1580 | 854*1072*1907 | 872*1028*1945.5 | ||
Internal Size (W*D*H)mm | 458*430*788 | 488*607*1140 | 606*575*1180 | ||
Capacity | 158L | 338L | 408L | ||
Type | Vertical | ||||
Temp.Range | -40~-86℃ | -40~ -86℃ | -40~ -86℃ | ||
Temp. Accuracy | 0.1 ℃ | ||||
Control System | Microprocessor control, LED Display | ||||
Audible and Visual Alarm | High temperature, Sensor failure | High and low temperature, Sensor failure, Door ajar, Power failure, Voltage abnormal, Ambient temperature abnormal, Low voltage, Filter blocking | |||
Refrigeration type | Direct refrigeration | ||||
Refrigerant | Mixture refrigerant | Mixture refrigerant | Mixture refrigeration | ||
Compressor | 1set | 2 sets | 1 sets | ||
Condenser&Evaporator | Made of copper | ||||
Construction | Structure | Unibody Design & Mono-assembly foaming (Rigid polyurethane insulation material) | |||
Internal Material | SS304 | ||||
External Material | Cold-rolled steel with anti-bacteria powder coating | ||||
Door | lockable door | ||||
Caster | 4 casters | ||||
Chamber withInnerDoor | 3 | 4 | 4 | ||
Shelf | 2 pcs | 3 pcs | 3 pcs | ||
Temp. Test Port | 1, φ30mm | 1, φ25mm | 1, φ25mm | ||
Consumption | 480w | 870w | 735w | ||
Power Supply | AC110V/220V±10%, 50/60Hz | AC220V±10%, 50/60Hz | |||
Standard Accessory |
| 72 hours battery backup for power failure alarm | |||
Optional storage Racks and Boxes |
| 12 racks 4*4 192 Boxes | 8racks 5*4; 8racks4*4 288 boxes | ||
Package size (W*D*H)mm | 800*780*1720 | 935*1070*2128 | 954*955*2094 | ||
Gross Weight | 155kg | 306kg | 293kg |
Why choose BIOBASE?
We are the leading manufacturer of laboratory equipment in China, with multiple certifications and reputable products. We offer OEM and ODM service to our clients.
Would BIOBASE send product samples to customer?
We could send product samples to clients, but the sample product and the freight are charged.
What payment term does BIOBASE accept?
We accept T/T, L/C, Western Union and some of other payment methods. Usually, 40% of the total amount would be paid when place order, and the rest would be paid before shipment.
How long is the lead time?
7-14 preparation days are needed after receiving prepayment. Shipment period varies according the different destination, usually is 20-50 days. If it is urgent, air shipment or express delivery like TNT and DHL will be recommended.
How long is the validity of BIOBASE’s quotation?
Usually, the validity period of quotation is 30 days, but still depends on the changes of exchange rate and shipping cost. Which port in China is the port of shipment?
Qingdao (Shandong) port (special requirement could be discussed)
How is the package of the product?
The equipment would be wrapped by soft materials to avoid vibration, and would be packaged by wooden or cartoon boxes with water-proof plastic wrapper.
How is the inspection process before delivery?
Finished products will be inspected by our QC staff firstly, then will be checked by project manager. We also accepted third party inspection that arranged by clients.
