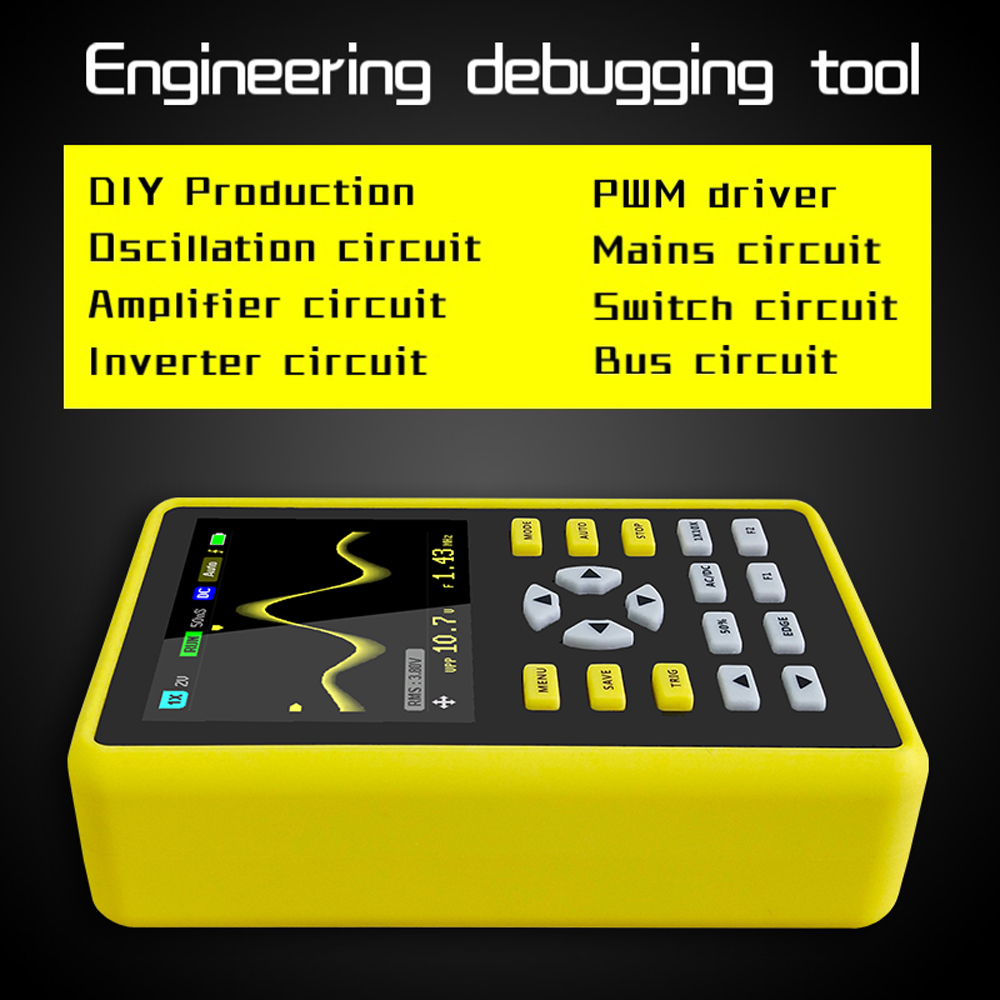

XDDZ 5012H 2.4" LCD Display Handheld Portable Digital Mini Oscilloscope with 100MHz Bandwidth and 500MS/s Sampling Rate

Supplier: Shenzhen XDDZ Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jeff Lai
Price: $62.99 / 1 - 19 pieces
$61.99 / 20 - 99 pieces
$59.99 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Single package size:	2X2X2 cm;	Horizontal time base range:	50S/grid～6nS/grid;
Model Name:	5012H;	Packaging Details:	retail box;
brand:	custom made;	Gross weight per piece:	0.350 kg;
Analog Bandwidth:	100MHz;	Maximum real-time sample rate:	500ms/sec;
ADC Accuracy:	8 bits;	place of origin; place of origin:	Guangdong, China;
Maximum test voltage:	80V (1X probe), 800V (10X probe);	Input resistance:	1MΩ;
Vertical Sensitivity:	50mV/div～100V/div;	Storage depth:	128KB;
exhibit:	2.4 inches, 320*240 IPS process;	model:	5012H;
Sales unit:	single item;

XDDZ 5012H 2.4" LCD Display Handheld Portable Digital Mini Oscilloscope with 100MHz Bandwidth and 500MS/s Sampling Rate

Product display

Professional photos will be provided after the order is placed.

feature:

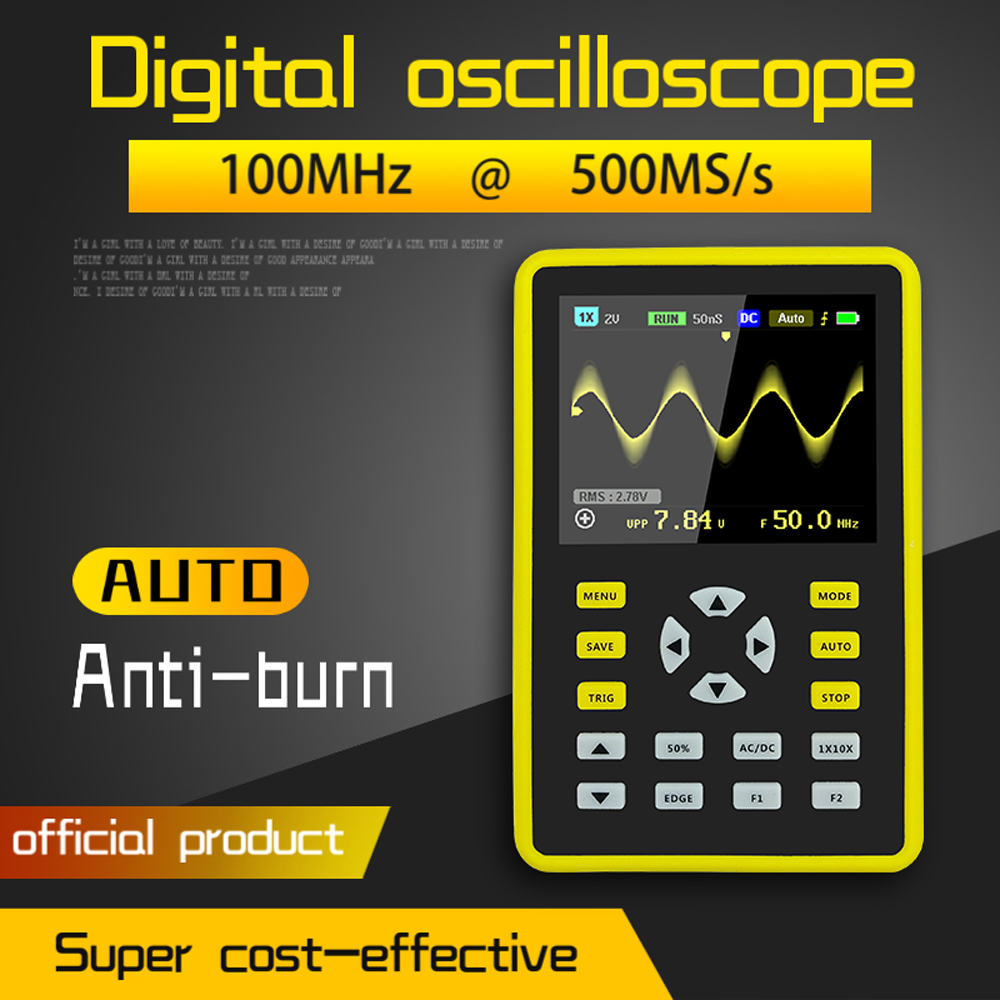

Intelligent anti-burn, 1X can withstand voltage up to 600V.
Afterglow display technology.
2.4-inch color display with IPS technology.

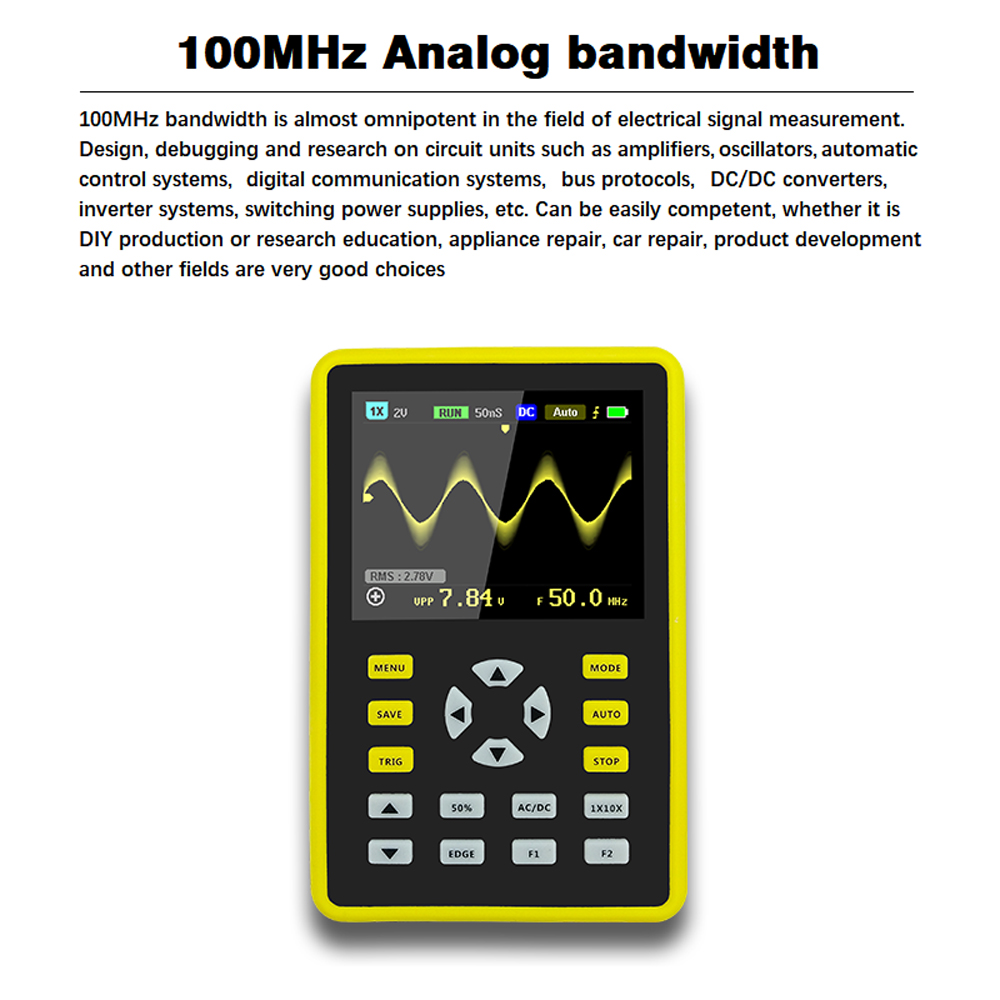

With 100MHz analog bandwidth and 500MS/s sampling rate. (1X=5MHz, 10X=100MHz)
One-click waveform storage.
Built-in 64M storage space, can store up to 2000 waveforms.

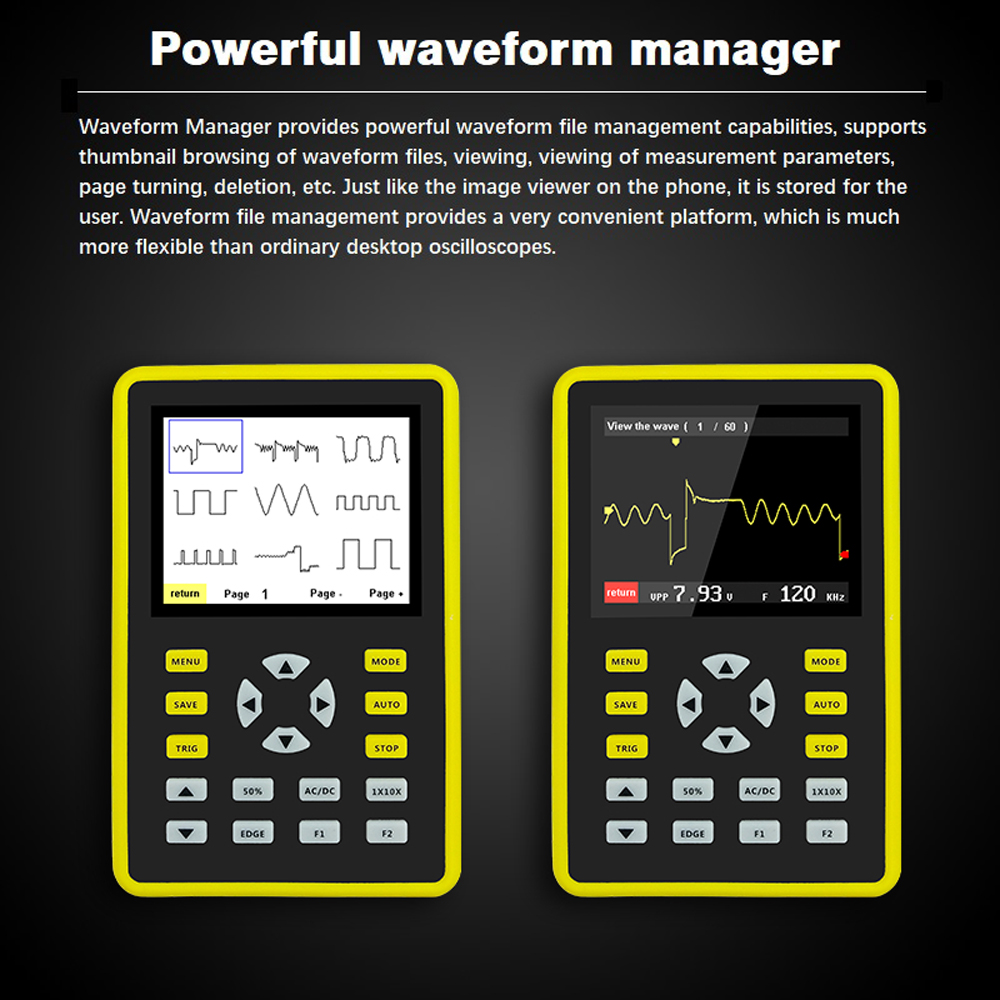

Powerful waveform file manager, supports thumbnail browsing, viewing, detail viewing, flipping, deleting and other functions.
The measurement voltage range is high, 1X can measure 0~80V, 10X can measure 0~800V.
Up to 12 parameter measurements: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty Cycle, Duty Cycle-, Time+, Time-, Time.
At any time, the waveform display (pause function) is frozen.
Equipped with efficient one-button automatic.

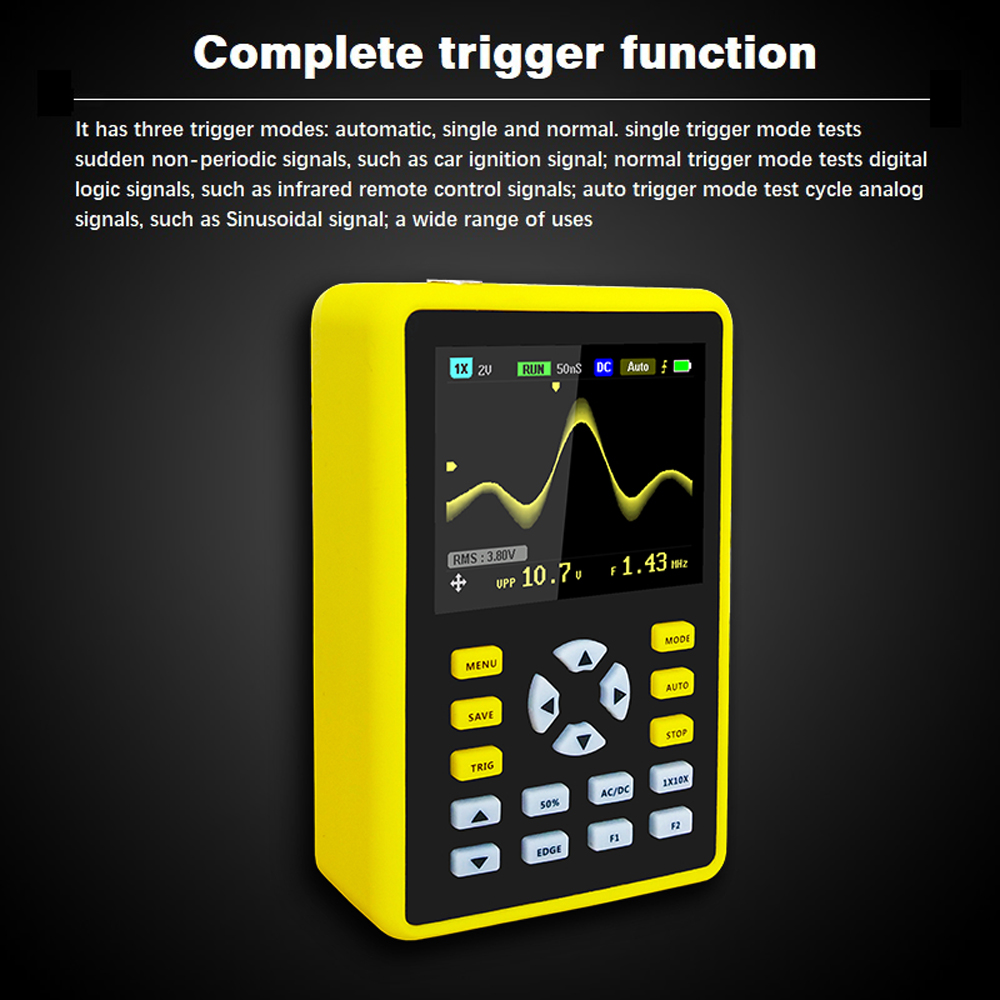

Full trigger functionality (single, normal, auto).
Built-in 5000mAh rechargeable lithium battery, can be used continuously for 12 hours when fully charged.
Screen brightness can be adjusted.
Memory compression technology, the waveform refreshes the screen without flickering.

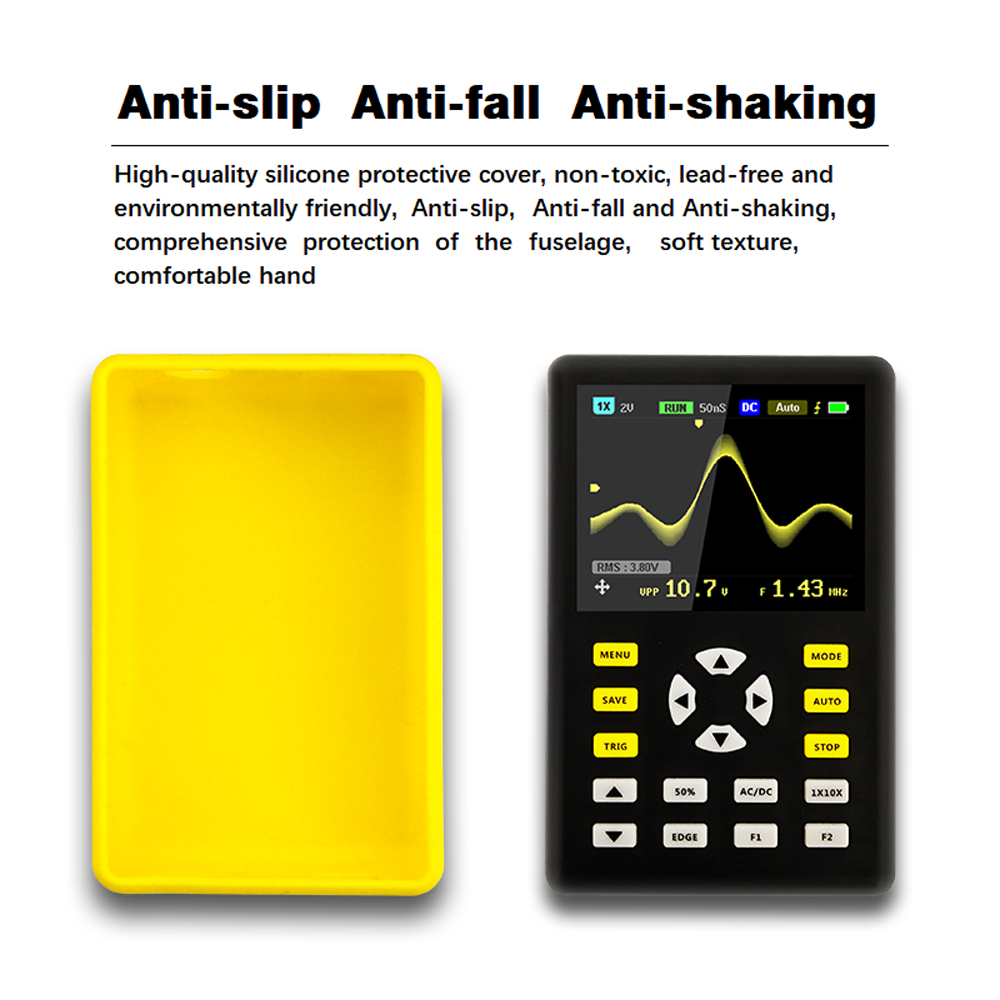

Ultra-small size, easy to carry, with non-slip and anti-fall silicone cover.

Specification:
Main material: ABS
Main color: black + yellow
Digital Channels: 1
Analog Bandwidth: 100MHz
Maximum real-time sampling rate: 500MS/s
Vertical sensitivity: 50mV/div ~ 100V/div
Horizontal time base range: 50S/div ~ 6nS/div
Maximum test voltage: 80V (1X probe), 800V (10X probe)
Storage depth: 128KB
Input resistance: 1MΩ
ADC accuracy: 8 bits
Coupling method: AC/DC
Trigger mode: single, normal, automatic
Trigger edge: rising/falling edge
External trigger voltage: 0~80V
Display: 2.4 inches, 320*240 IPS process
Power supply: 1* lithium battery, 5000mAh (included)
Product size: 114*74*33mm / 4.5*2.9*1.3in
Item Weight: 300 g / 10.6 oz
Package size: 134*94*56mm/5.3*3.7*2.2in
Package Weight: 350g/12.3oz

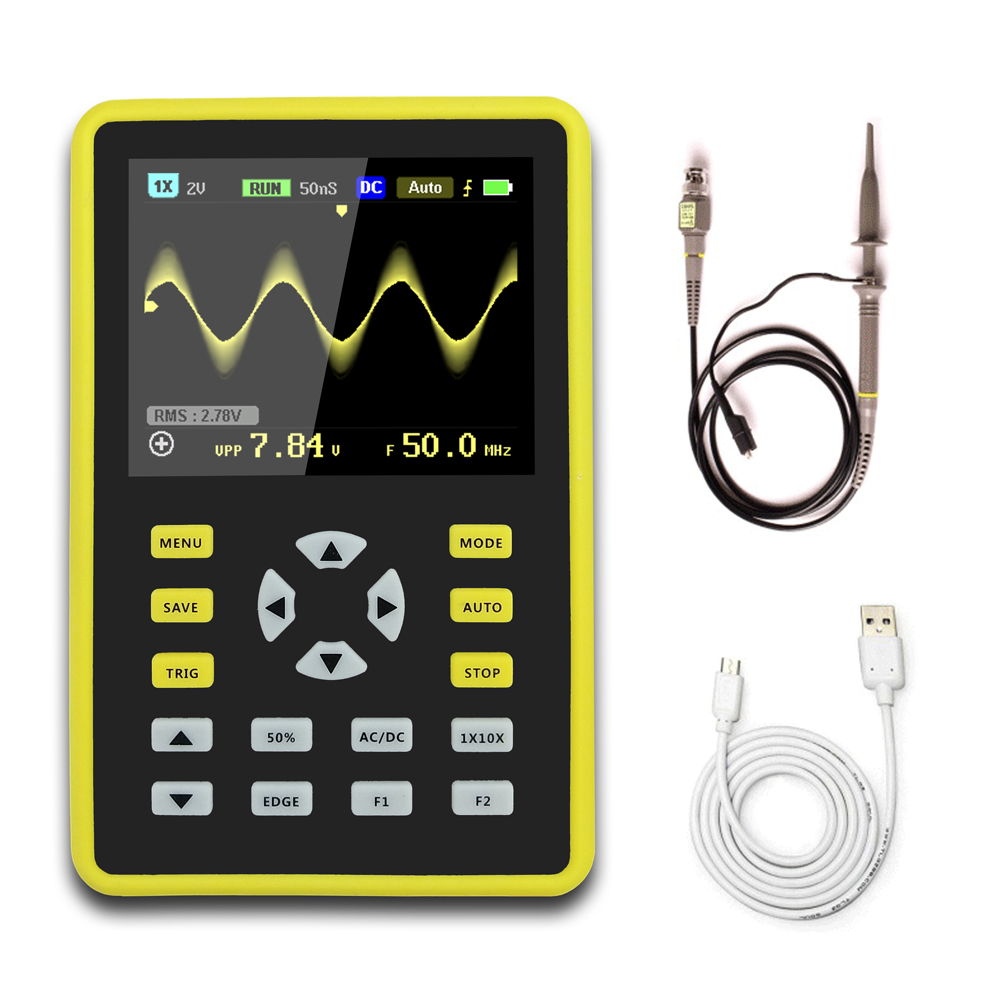

packing list:
1 * Oscilloscope host
1 * Match 100MHz probes (1X and 10X)
1 * Micro USB Cable
1 * User Manual
