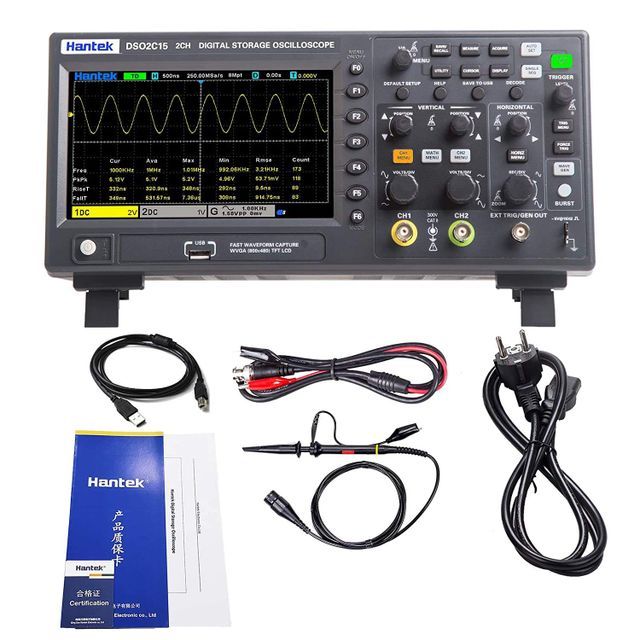

Hantek Dso2c15 oscilloscope 2ch channel 150mhz 1gsa/s sampling rate dual channel digital economical storage oscilloscope

feature:
1) 2 channels, each controlled by independent knobs;

2) 150MHZ, analog channel bandwidth;

3) 1 GSa/s real-time sampling rate;

4) 8M storage depth;

5) Vertical range 2mV/div～10V/div;

6) Vertical resolution: 8bit;

7) Trigger: edge, pulse width, video, slope, timeout, window, pattern, interval, delay, UART, LIN, CAN, SPI, IIC;

8) CAN decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN

9) Can be saved as settings, waveforms, reference waveforms, CSV, pictures and other data formats;

10) 5-digit digital voltmeter and 6-digit hardware frequency indication function;

11) 32 types of automatic measurement and statistics, real-time statistics of maximum value, minimum value, standard deviation, etc.;

12) 2 sets of digital voltmeters;

13) Support threshold testing and free measurement within the screen;

14) Rich SCPI remote command control;

15) Various external interfaces: USB Host/Device.

Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
bandwidth	150 MHz	100 MHz	150 MHz	100 MHz
Oscilloscope channel	2 channels	2 channels	2 channels	2 channels
waveform generator	1 way	1 way	-	-
Oscilloscope
Sampling Rate	1GSa/s (single channel) 500MSa/s (two channels)
get
normal	sample
peak to peak	Shows high frequency and random glitches
Average	Average waveform, times: 4, 8, 16, 32, 64, 128
high resolution	up to 12 bits
enter
Input coupling	DC, AC, ground
input resistance	1MΩ±2% ‖20pF±3pF
Probe attenuation coefficient	1X, 10X, 100X, 1000X
Rated voltage	300VCATII
Maximum input voltage	300VRMS (10X)
horizontal
Waveform interpolation	(sin x)/x
Maximum record length	Maximum single channel 8M
Maximum record length		Maximum 4M for two channels
Horizontal scale range	2ns/div~100s/div 1, 2, 5 steps
time base mode	YT, XY, scroll
zero offset	±0.5 div×minimum hour base gear
Sample rate and delay time accuracy	±25ppm
Delta time measurement accuracy (full bandwidth) sample rate and delay time accuracy	Single, normal mode ± (1 sampling interval + 100ppm × reading + 0.6ns)

		＞16 times average value±(1 sampling interval+100ppm×reading+0.4ns)

		Sampling interval=second/division÷200
Sample rate and delay time accuracy	±50ppm (any interval greater than 1ms)
vertical
Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
bandwidth	150 MHz	100 MHz	150 MHz	100 MHz
BNC position rise time (typ)	2.4 nanoseconds	3.5 nanoseconds	2.4 nanoseconds	3.5 nanoseconds
vertical resolution	8-bit resolution, each channel sampled simultaneously
vertical sensitivity	2mV/div to 10V/div
Offset range	≥200mV/div, ±1V;
Offset range		＜200mV/div±50V
computation	+, -, ×, ÷, FFT
Fast Fourier Transform	Windows: Rectangular, Hanning, Hamming, Blackman, Bartlett, Flat Top
bandwidth limit	20MHz
Bass response (-3db)	At BNC position ≤ 10Hz
Vertical gain accuracy	In "normal" or "average" acquisition mode, the accuracy is ±3% from 10V/div to 10mV/div;
Vertical gain accuracy		±4% accuracy from 5mV/div to 2mV/div in Normal or Average acquisition mode
NOTE: Bandwidth is reduced to 6MHz when using 1X probe
trigger
Trigger type	Edge, pulse width, video, slope, timeout, window, mode, interval, underamp, UART, LIN, CAN, SPI, IIC
Trigger level range	±5 blocks from the center of the screen
Trigger mode	Automatic, normal, single
grade	CH1~CH2	±4 divisions from the center of the screen
grade		external	0~3.3V
Release range	8 nanoseconds~10 seconds
Trigger level accuracy	CH1~CH2	Within ±4 divisions from the center of the screen is 0.2 divisions × volts/div.
Trigger level accuracy		external	±(set value×6%+40mV)
edge triggered	slope	rising edge, falling edge, rising edge or falling edge
edge triggered		signal source	CH1, CH2, external
Pulse width trigger	polarity	Positive polarity, negative polarity
		Condition (when)	<,>,!=,=
		signal source	CH1~CH2,
		Pulse width range	8 nanoseconds~10 seconds
		accuracy	8 nanoseconds
video trigger	Signal standard	NTSC, PAL
		signal source	CH1~CH2
		Synchronize	Scan line number, line number, odd field, even field, full field
Ramp trigger	slope	Rise and fall
		Condition (when)	<,>,!=,=
		signal source	Channel 1 ~ Channel 2
		time limit	8 nanoseconds~10 seconds
		accuracy	8 nanoseconds
Overtime trigger	signal source	CH1~CH2,
		polarity	Positive polarity, negative polarity
		time limit	8 nanoseconds~10 seconds
		accuracy	8 nanoseconds
window trigger	signal source	CH1~CH2
pattern trigger	pattern	0: low level; 1: high level; X: ignore
pattern trigger		Level (signal source)	CH1~CH2
interval trigger	slope	Rise and fall
		Condition (when)	<,>,!=,=
		signal source	CH1~CH2
		time limit	8 nanoseconds~10 seconds
		accuracy	8 nanoseconds
Under amplifier trigger	polarity	Positive polarity, negative polarity
		Condition (when)	<,>,!=,=
		signal source	CH1~CH2
		time limit	8 nanoseconds~10 seconds
		accuracy	8 nanoseconds
Serial trigger	Condition (when)	Start, Stop, Data, Parity ERR, COM ERR
		Signal source (RX/TX)	CH1~CH2
		Data Format	Hex (hexadecimal)
		Data length	1 byte
		Data bit width	5 digits, 6 digits, 7 digits, 8 digits
		parity check	None, odd number, even number
		idle level	High in front and low in back
		Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bits/second
		Baud rate (user-defined)	300bit/s~334000bit/s
LIN flip-flop	Condition (when)	Interval field, synchronization field, ID field, synchronization error, identifier, ID and data
		signal source	CH1~CH2
		Data Format	Hex (hexadecimal)
		Baud rate (optional)	110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bits/second
		Baud rate (user-defined)	300bit/s~334000bit/s
CAN trigger	Condition (when)	Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK error, overload frame
		signal source	CH1~CH2
		Data Format	Hex (hexadecimal)
		Baud rate (optional)	10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000
		Baud rate (user-defined)	5kbit/s~1Mbit/s
SPI trigger	signal source	CH1~CH2
		Data Format	Hex (hexadecimal)
		Data bit width	4, 8, 16, 24, 32
IIC trigger	Signal source (SDA/SCL)	CH1~CH2
		Data Format	Hex (hexadecimal)
		Data index	0~7
		When (condition)	Start Bit, Stop Bit, No Ack, Address, Restart, Address and Data
Measurement
cursor	Voltage difference between cursors △V
		Time difference between cursors △T
		The reciprocal of △T in Hertz (1/△T)
Automatic measurement	frequency, period, average, peak-to-peak, RMS, min, mixmum, rise time, fall time, +width, -width, base, top, middle, Amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, +duty cycle, -duty cycle, period average, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
Automatic measurement
digital virtual machine	data source	Channel 1, Channel 2
		Measurement type	DC effective value
				Exchange effective value
				DC
		frequency meter	Hardware 6-digit frequency meter
arbitrary waveform generator
channel	1
Sampling Rate	200MSa/second
vertical resolution	12 bits
maximum frequency	25 MHz
Standard waveform	Sine wave, square wave, ramp wave, Exp, noise, DC
Standard waveform	Sine wave, square wave, ramp wave, Exp, noise, DC
arbitrary waveform	Arb1, Arb2, Arb3, Arb4
crime	Frequency Range	0.1Hz~25MHz
Square wave/pulse	Frequency Range	0.1Hz~10MHz
triangle wave	Frequency Range	0.1Hz~1MHz
sample wave	Frequency Range	0.1Hz~1MHz
index	Frequency Range	0.1Hz~5MHz
noise
Arbitrary waveform 1	Frequency Range	0.1 Hz to 10 MHz
Arbitrary waveform 2	Frequency Range	0.1 Hz to 10 MHz
Arbitrary waveform 3	Frequency Range	0.1 Hz to 10 MHz
Arbitrary waveform 4	Frequency Range	0.1 Hz to 10 MHz
Waveform length	8KSa
frequency	accuracy	100 ppm (<10 kHz) 50 ppm (>10 kHz)
frequency		solve	0.1 Hz or 4 bits, whichever is greater
amplitude	Output range	10mV~7Vp-p (high impedance)
amplitude	Output range			5mV~3.5Vp-p (50Ω)
DC bias	scope	±3.5V, high impedance
	scope			±1.75V, 50Ω
		solve	100 μV or 3 digits, whichever is greater
		accuracy	2% (1kHz)
Output impedance	50 ohms
General specifications
exhibit	display type	7-inch diagonal TFT LCD
		display resolution	800 (horizontal) * 480 (vertical) pixels
		Display color	16 million colors (24-bit true color)
		duration	Minimum, 1 second, 5 seconds, 10 seconds, 30 seconds, unlimited
		display type	point, vector
		Display brightness	adjustable
		grid type	adjustable
		grid brightness	adjustable
interface	Standard interface	USB host, USB device
General specifications	Probe compensator output
		Output voltage, typical	About 2Vpp input ≥1MΩ load
		Frequency, typical	1kHz
		power supply	100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ
		power supply		120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
		energy consumption	<30W
		fuse	T type, 3.15A, 250V, 5x20mm
		Operating temperature	0~50°C (32~122°F)
		Storage temperature	-40~+71°C (-40~159.8°F)
		humidity	≤+104°F(≤+40°C): ≤90% relative humidity
		humidity		106°C~122°C (+41°C~50°C): ≤60% relative humidity
		high	Business and non-business	3,000 meters (10,000 feet)
		mechanical shock	random vibration	50Hz to 500Hz 0.31 g RMS,
			random vibration			10 minutes per axis
				non-operational	5Hz to 500Hz 2.46g RMS,
				non-operational		10 minutes per axis
				operate	50g, 11ms, half sine wave
		Mechanical	size	318×110×150mm (length×width×height)
		Mechanical		weight	2900g
