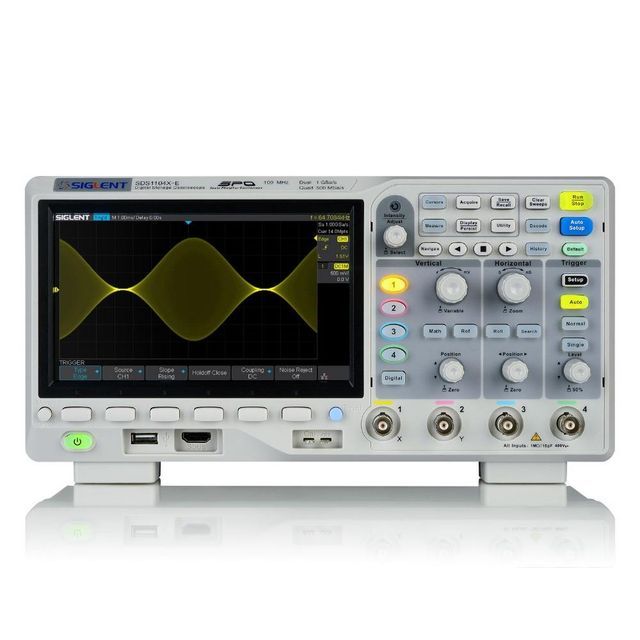

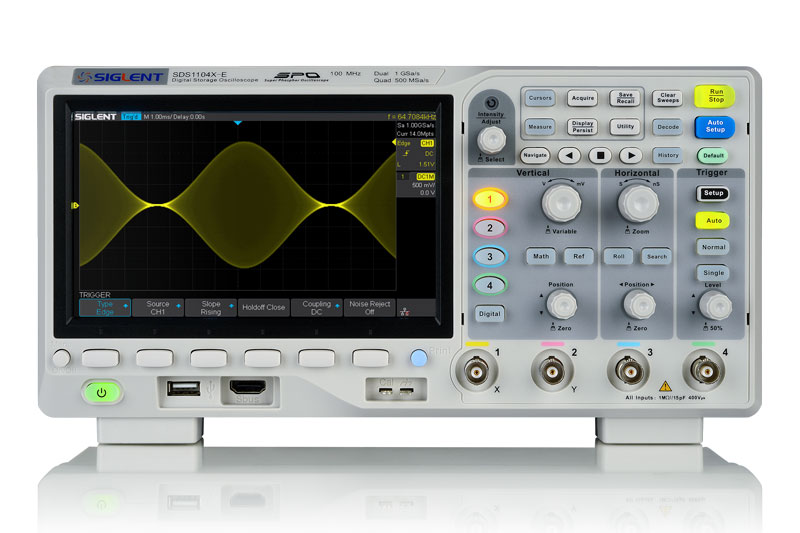

Siglent's New SDS1104X-E, 100 MHz 4-Channel Digital Oscilloscope at a Low Price!

Product details
bandwidth:100MHzScreen:7 inch TFT-LCD (800x480)
Supply capacity:5000 pieces per monthbrand:silent
Decoding function:IIC, SPI, UART/RS232, CAN, LINweight:2.6 Kg without packaging; 3.8 Kg with packaging
port:ShenzhenPackaging Details:standard packaging
channel:4 channelsmodel:SDS1104X-E
Standard probe:4 passive probes PP510Origin:Guangdong, China
Real-time sampling rate:1GSa/secMemory depth:7 Mpts/CH (non-interleaved mode); 14 Mpts/CH (interleaved mode)
payment terms:wire transfer



SDS1000X-E Series Super Phosphor Oscilloscope











Product overview

SIGLENT's new SDS1000X-E Super Phosphor Oscilloscope is available in two- and four-channel models. Dual-channel models offer 200 MHz analog bandwidth, a single ADC with a maximum sampling rate of 1 GSa/s, and a single memory block with 14 Mpts of sample memory. The four-channel oscilloscope is available in 100 and 200 MHz models and includes two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, the sampling rate is 500 MSa/s per channel and the standard record length is 7 Mpts. When only one channel per ADC is active, the maximum sampling rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease of use, the most frequently used functions can be accessed through its user-friendly front panel design.


The SDS1000X-E Series utilizes next-generation SPO (Super Phosphor Oscilloscope) technology to deliver outstanding signal fidelity and performance. The system noise is also lower than similar products in the industry. It features a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/second (sequence mode). SDS1000X-E also adopts the 256-level brightness grading display function and color temperature display mode that other models of the same level do not have. SIGLENT's latest oscilloscope products support a variety of powerful trigger modes, including serial bus triggering. Includes serial bus decoding for IIC, SPI, UART, CAN, LIN bus types. XE models also include historical waveform recording and sequential triggering for extended waveform recording and analysis. Another powerful addition is the new 1 million-point FFT math function, which gives the SDS1000X-E very high frequency resolution when looking at signal spectra. The new digital design also includes a hardware co-processor that enables fast and accurate measurements without slowing down acquisition and front panel responsiveness. The functionality and performance of the new SDS1000X-E from SIGLENT is unmatched by any other product in the same price range.


The four-channel series includes more features including: search and navigation, on-screen bode plot, 16 digital channels (optional), one external USB powered 25 MHz AWG module (optional), one USB WIFI adapter (optional) and an embedded application that allows remote control via a web browser.











main features

  • 100 MHz, 200 MHz bandwidth models
  • The two channel series has one 1 GSa/s ADC and the four channel series has two 1 GSa/s ADCs. When all channels are enabled, the maximum sampling rate per channel is 500 MSa/s. Each ADC samples at 1 GSa/s when a single channel is active
  • The latest generation of SPO technology
  • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
  • Support 256-level brightness grading and color display mode
  • Record length up to 14 Mpts
  • digital trigger system
  • Smart Trigger: Edge, Slope, Pulse Width, Window, Runt Pulse, Interval, Timeout (Dropout), Pattern
  • Serial bus triggering and decoding (standard), support protocols IIC, SPI, UART, RS232, CAN, LIN
  • Video trigger, support HDTV
  • Low background noise over a voltage range of 500 μV/div to 10 V/div
  • 10 one-click shortcuts supporting Autoset, Default, Cursor, Measure, Scroll, History, Display/Hold, Clear Scan, Zoom and Print
  • Segmented acquisition (Sequence) mode, the maximum record length is divided into multiple segments (up to 80,000), and according to the trigger conditions set by the user, events that meet the conditions are collected with a very small dead time period.
  • History waveform recording (History) function, the maximum recorded waveform length is 80,000 frames.
  • Automated measurement functions for 38 parameters plus measurement statistics, zoom, gating, math, history and reference functions
  • 1 Mpts FFT
  • Math and measurement functions use all sampled data points (up to 14 Mpts)
  • Mathematical functions (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • Secure Erase Mode to customize preset keys for user settings or factory "defaults"
  • Secure Erase Mode
  • High-speed hardware-based pass/fail function
  • MSO, 16 digital channels (four-channel series only, optional)
  • Bode plot (four-channel series only)
  • Search and Navigation (Four Channel Series Only)
  • USB AWG module (four channel series only, optional)
  • USB WIFI ADAPTER (FOUR CHANNEL SERIES ONLY, OPTIONAL)
  • Web browser-based control (four-channel series only)
  • 7-inch large TFT-LCD display with 800*480 resolution
  • Multiple interface types: USB Host, USB Device (USB -TMC), LAN Pass/Fail, Trigger Out
  • Support SCPI remote control commands
  • Supports multilingual display and embedded online help









Ordering Information



product name SDS1000X-E Series Digital Oscilloscope
SDS1104X-E 100 MHz Quad Channel
SDS1204X-E 200 MHz Quad Channel
SDS1202X-E 200 MHz two-channel
Standard accessories USB data cable-1
Quick Start-1
Passive Probe - 4/2
Certification-1
Power cord-1
Optional accessories 16-channel MSO software (four-channel series only) SDS1000X-E-16LA
16-channel logic analyzer (four-channel series only) SLA1016
AWG software (four channel series only) SDS1000X-E-FG
USB AWG Module Hardware (Quad Channel Series Only) SAG1021
WIFI software (four-channel series only) SDS1000X-E-WIFI
USB WIFI adapter (four-channel series only) TL_WN725N
isolated front end ISFE
STB Demo Source STB 3
High voltage probe HPB4010
current probe CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
differential probe DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A





For detailed specifications, please refer toSDS1000X-E Series Super Phosphor Oscilloscope Data Sheet
