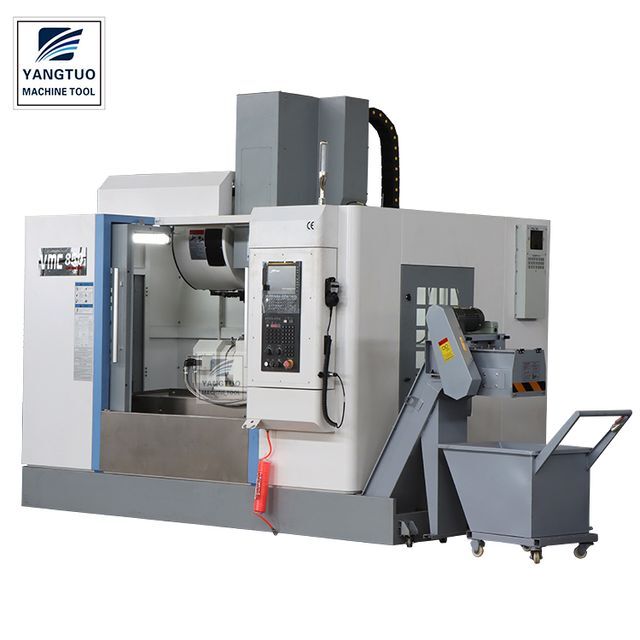

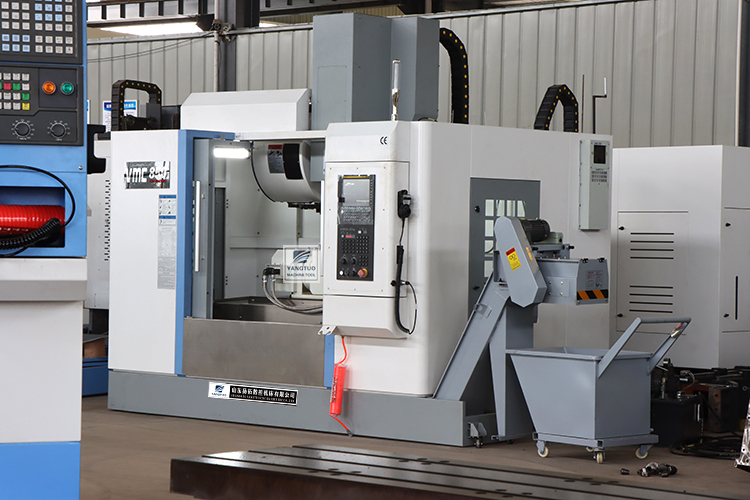

Hot sale China small entertainment funadora cnc VMC850 3-axis flat CNC type CNC milling machine

Click here to contact
Product details
Core components:Bearings, motors, pumps, gears, PLCs, pressure vessels, engines, others, gearboxes;Video external inspection:if;
Dimensions (L*W*H):2700X2250X2500;payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Health status:new;Number of spindles:single;
Main selling point:competitive price;Spindle motor power (kW):7.5;
Core Components Warranty:1 year;Warranty:1;
brand:Alpaca;Repeatability (X/Y/Z) (mm):0.005;
maximum. Table load (kg):550 kg;type:vertical;
Mechanical test report:if;place of origin; place of origin:China;
model:VMC850;product name:VMC850 CNC milling machine;
Supply capacity:500 sets per year;port:any port in China;
Spindle taper:BT40;CNC control system:KND;
Type of machine:CNC milling machine with 3 axes;Number of axes:3;
Table travel (Z) (mm):500;Applicable industries:Clothing stores, building materials stores, manufacturing plants, machinery repair shops, household, retail, printing shops, construction engineering, energy and mining, advertising companies;
Processing capacity:medium;Table stroke (X) (mm):800;
color:custom options;Positioning accuracy (mm):0.01;
Voltage:220/380/420;Showroom location:not any;
Packaging Details:1 Whole film packaging machine; 2 Anti-collision edging; 3 Fumigation-free plywood box, iron straps;year:2022;
Table travel (Y) (mm):500;Spindle speed range (rpm):1 - 8000;
Marketing Type:New Products 2021;Weight (kg):5500;
Product Description

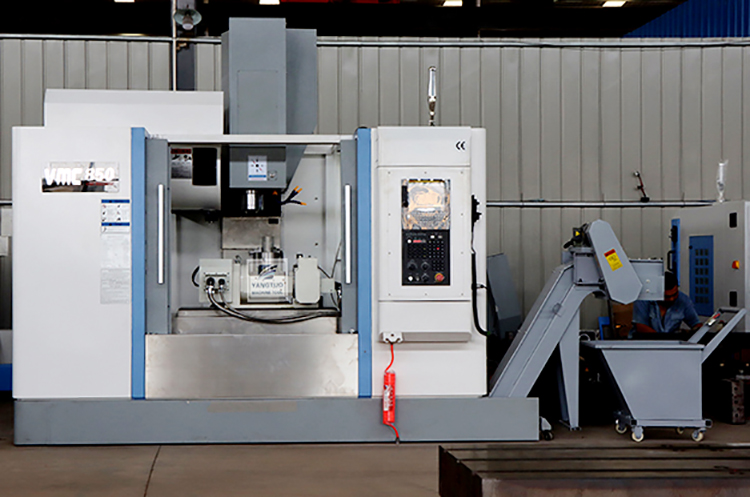

China Hot Selling Hobby Small CNC Milling Machine XK7124 3 Axis CNC Bed Type CNC Milling Machine
Machine Features and Specifications.

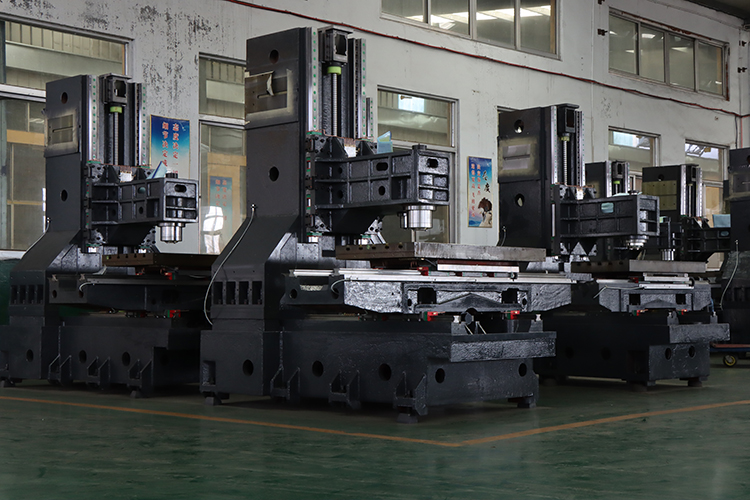

1. Using high-quality resin sand wear-resistant castings, strong bones, super large column, wide and low seat, honeycomb
structure. After secondary annealing treatment and vibration aging, stress is eliminated and long-term deformation is guaranteed.
2. Adopt the domestic first 3D variable diameter design treatment to ensure the stability and reliability of the body.
3. The X, Y and Z axes are quenched by hard rail, which increases the reliability of the machine tool.

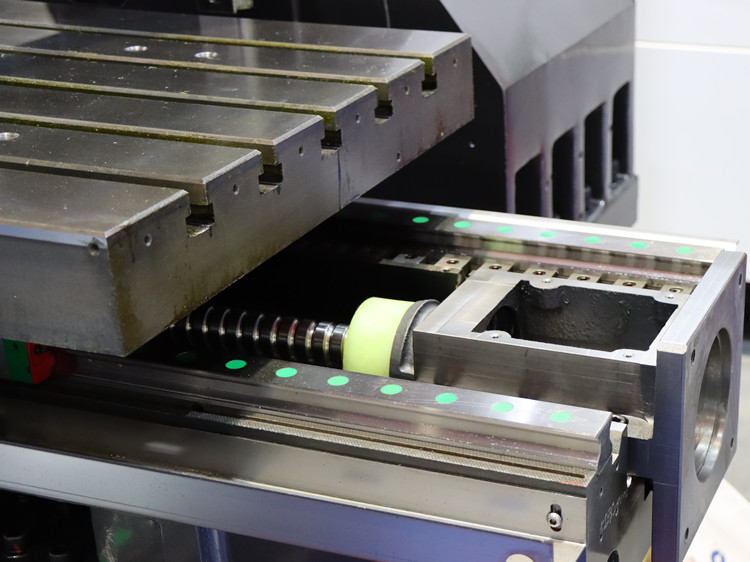

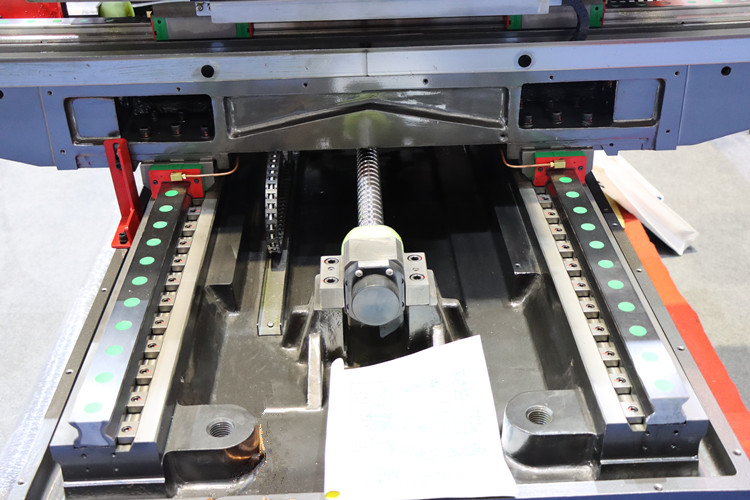

4. The three-axis drive adopts high-precision, high-rigidity ball wire pair, and high-precision special bearings to ensure
Positioning accuracy and repeatability of positioning.
5. Adopt sealed machine guide rail protection cover to effectively protect the guide rail and machine tool
lead screw to prolong its service life.
Specification
unit
VMC850
table size
mm
1000x500
X-axis travel
mm
800
Y-axis travel
mm
500
Z-axis travel
mm
500
maximum. Workbench load
Kilogram
550
T-slot (number-width-pitch)
5-18x90
maximum. Spindle speed
number of revolutions
8000 (optional: 10000)
Spindle taper
mm
BT40
main motor power
kilowatt
7.5/11
X/Y/Z fast movement speed
m/min
48/48/32
Cutting feed rate
mm/min
1-8000
rail type
Linear Guides
The distance from the spindle axis to the cylinder surface
mm
550
Distance from spindle nose to work table
mm
150-650
positioning accuracy
mm
±0.01
Repeatability
mm
±0.005
Tool magazine
Arm 24
maximum. Tool diameter
mm
φ78 (adjacent) / φ120 (separate)
Maximum tool weight
Kilogram
8
machine weight
Kilogram
5500

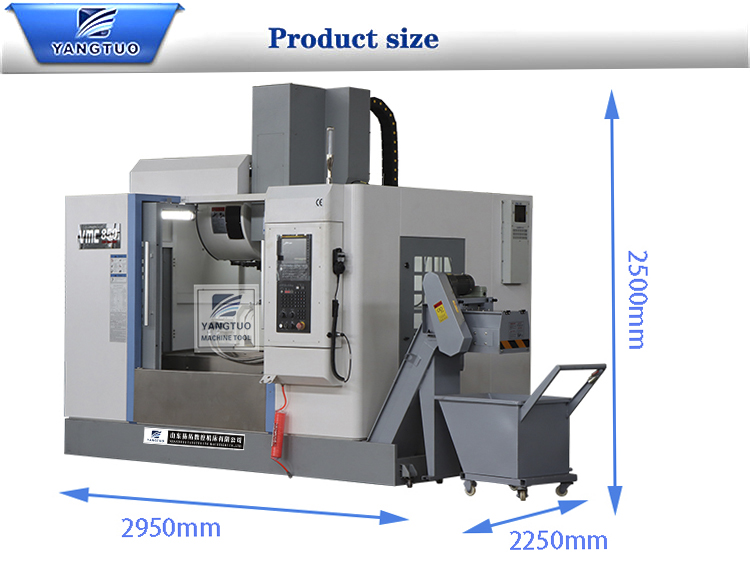

Dimensions
mm
2700X2250X2500

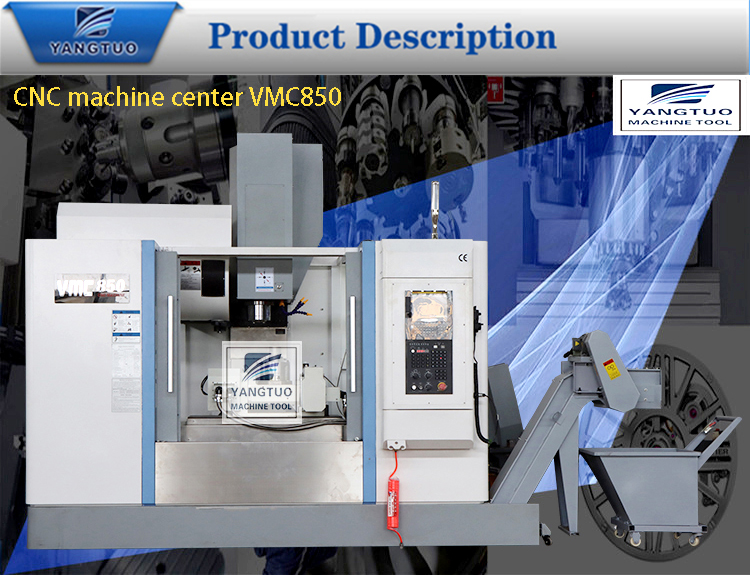

Product Description:

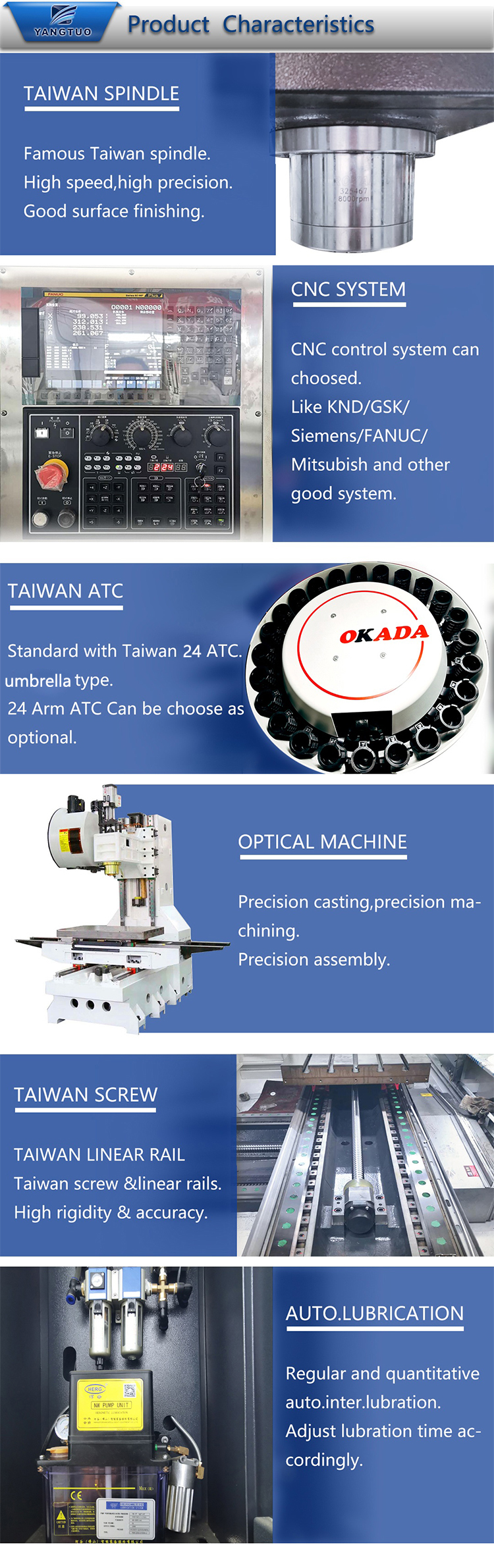

1. Taiwan Shangyin high-precision guide rail

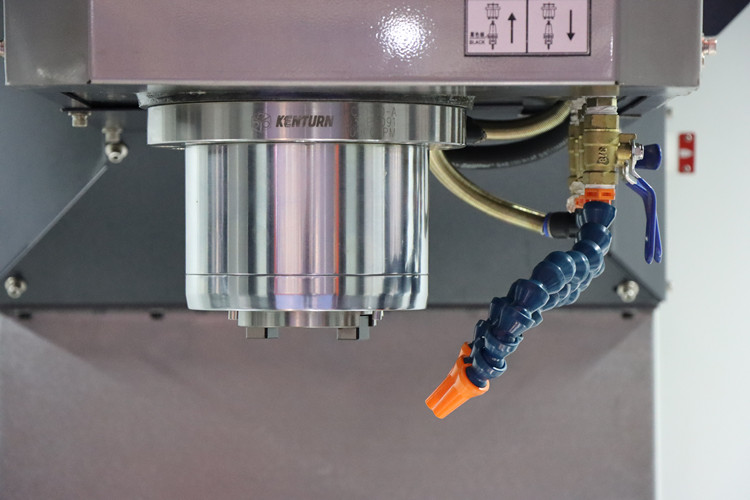

2. Spindle unit made in Taiwan, 8000-12000rpm optional
3 Taiwan OKADA 24 ATC
4. Reliable control system: Fanuc, Siemens, Mitsubishi, GSKVmc850 vertical machining center is suitable for producing metal products
and parts of various shapes. Widely used in the production of auto parts, medical equipment and various injections
Molds, blow molds, die-casting molds, automotive LED molds, toy molds, precision molds, etc.
Related Products
After-sales service
During the one-year warranty period, if you have any parts damaged due to quality problems, we will provide it to you for free by express. Beyond the warranty period, if you have any questions, you can contact us, we will provide you with the best service as always.
FAQ
1. How to send my inquiry?
You can contact us by email, phone, Instant Messenger (WhatsApp, WeChat, Skype).
2. How to choose the most suitable machine?
Please tell us your requirements for the machine, or you can also send us the product drawings, our engineers can help to choose
The best model for you.
3: What is your company's main product?
A: We specialize in producing various machines, such as CNC lathes, CNC milling machines, vertical machining centers, lathes
Machines, drilling machines, radial drilling machines, sawing machines, planers, etc.
4: What are the payment terms?
A : T/T , 30% down payment upon order, 70% balance payment before shipment;
Irrevocable LC at sight.
5. Inspection and acceptance
When receiving the goods, please check the product carefully: whether there is damage to the packaging, leakage, whether the goods are in good condition
Damaged; whether the product quantity and accessories meet the requirements; whether all machine details are in good condition
For questions about the machine, please take a photo and contact us immediately.
6.OEM service
We accept purchase orders with customer brands or trademarks.
