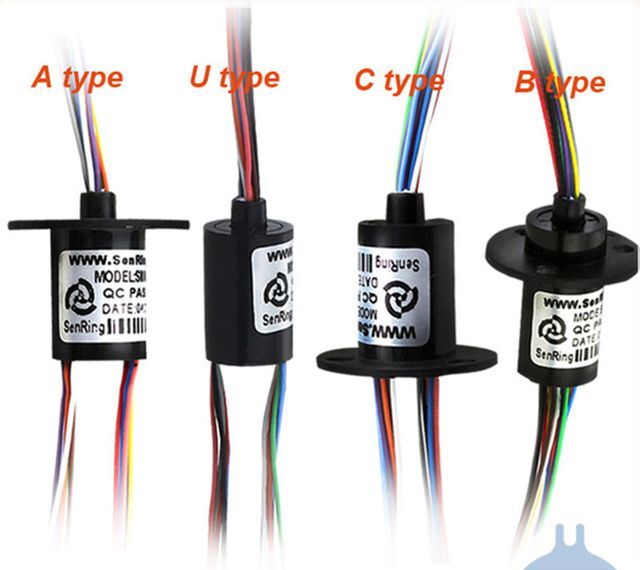

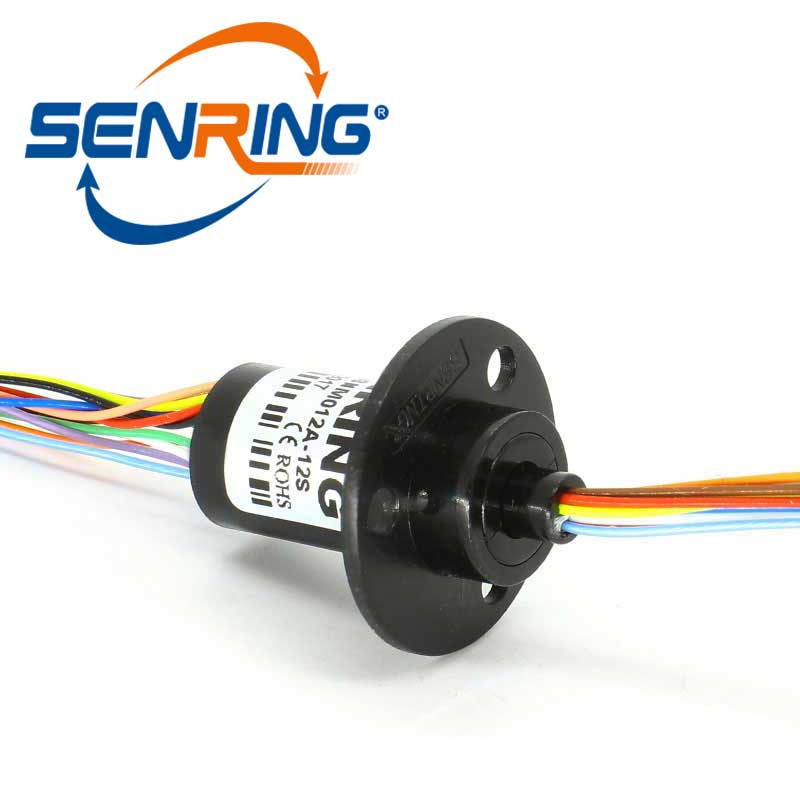

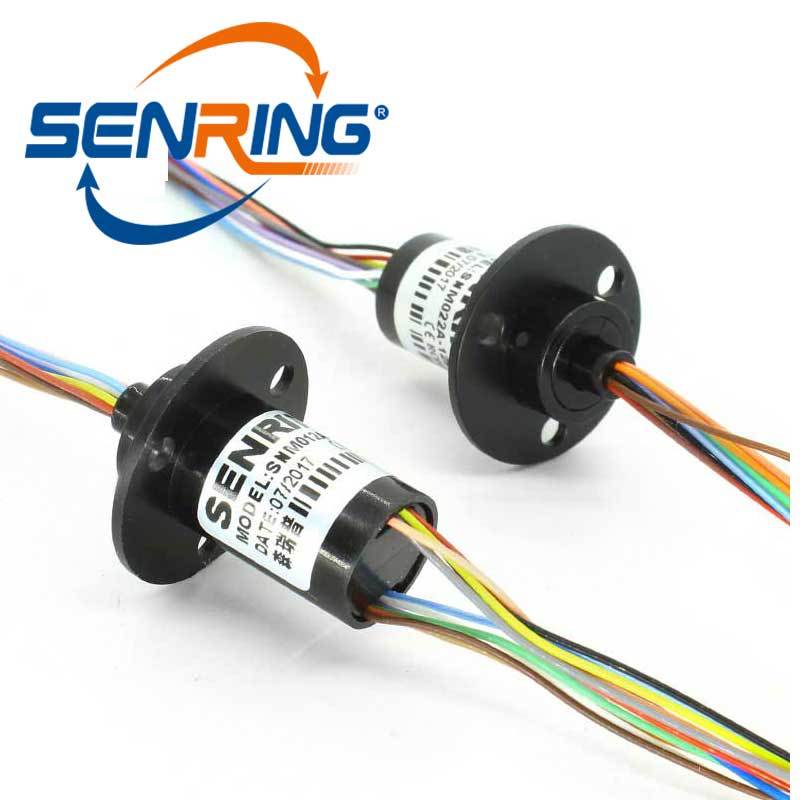

Sliding Loop Mini Synmer Capsule SNM012 6-wire / 12-wire / 18-wire 2A signal slip loop
-
Supplier: Shenzhen Senring Electronics Co., Limited -
Region: Guangdong, China -
Contact: Ms Berry zhang -
Price: $2.00 /piece -
Min. Order: 1 piece

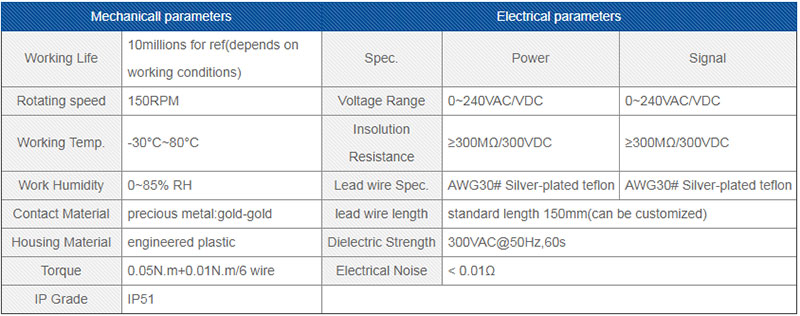

| Intellectual property level: | IP51; | Building Materials: | engineering plastics; |
| Maximum speed: | 150 rpm; | Voltage: | 240V DC/AC; |
| payment terms: | T/T, Western Union, PayPal; | model: | M125 series; |
| product name: | Conductive slip ring; | custom made: | support; |
| place of origin; place of origin: | Guangdong, China; | brand: | send; |
| Supply capacity: | 1000 standard off-the-shelf products per week; | Manufacturing state: | Off the shelf; |
| Circuit: | 6/8/12 circuits; | port: | Shenzhen; |
| current: | 2A/5A; | Diameter size: | 12.5 mm; |
| Packaging Details: | Carton; |

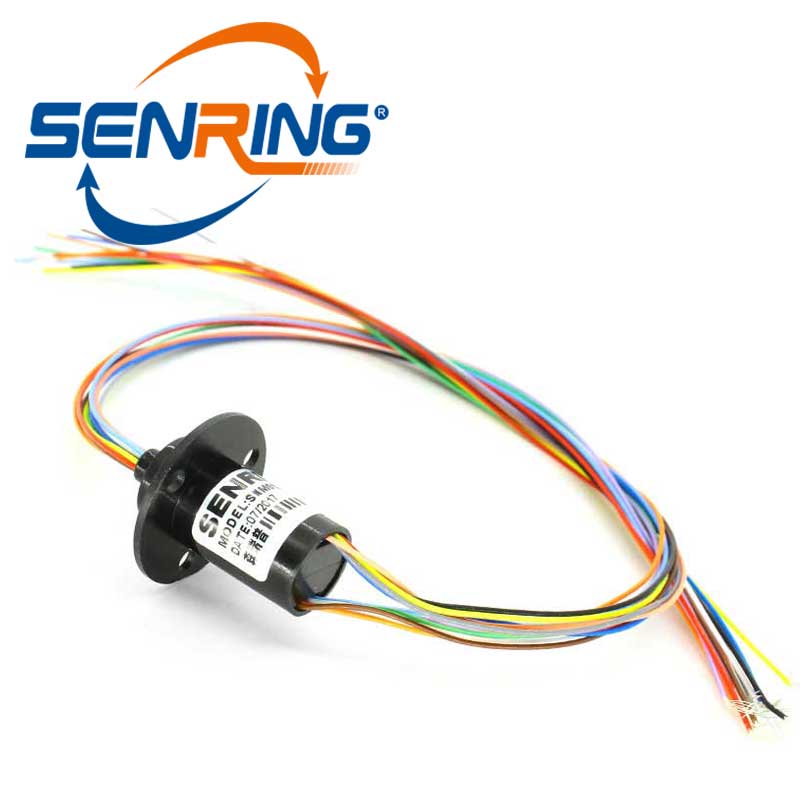

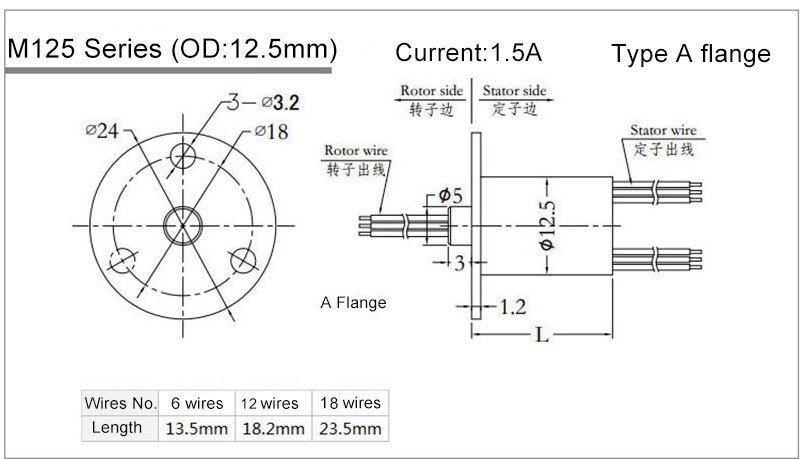

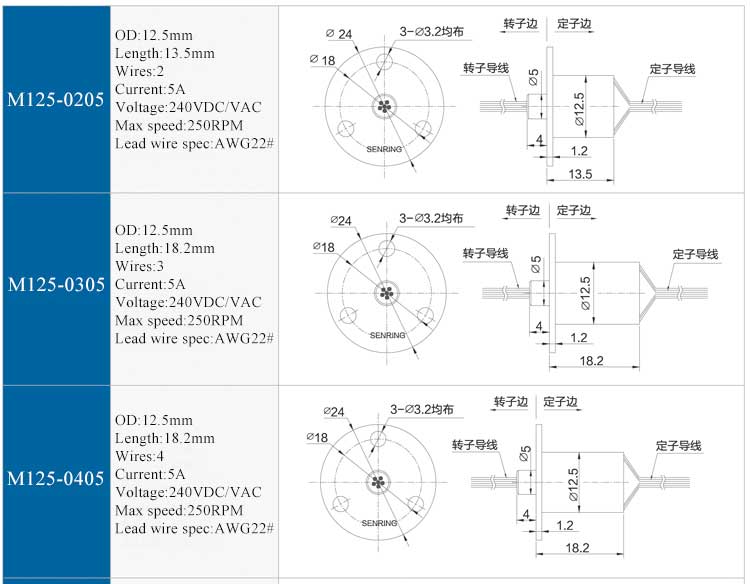

M125 Series Miniature Slip RingsIt can be used in any electromechanical system that requires unrestricted, continuous rotation while transferring power or data from a stationary part to a rotating part.
ThisM0125 seriesUnits are standard off-the-shelf units using gold contacts at the rotary interface. Both the stator and rotor use color-coded wires to simplify electrical connections.

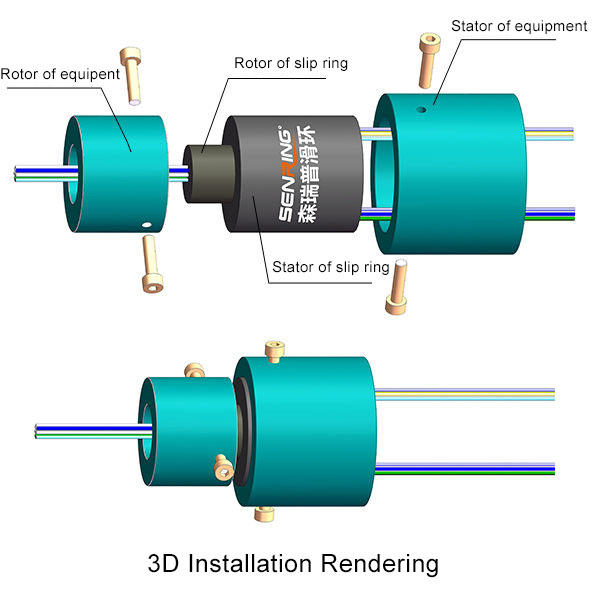

Its flange is designed with through holes for customers to mount it on their equipment.
Our range of economical, compact slip ring capsules offers great flexibility in handling system size requirements when larger versions are not an option. Capsules available with up to 56 contacts.

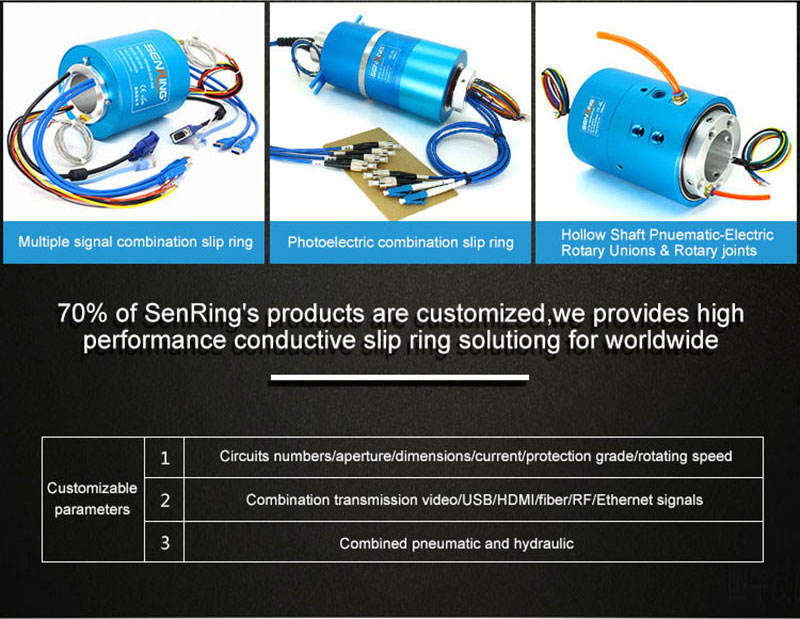

70% of SenRing's products are customized, we provide high performance conductive slip ring solutions to the world
SenRing general purpose slip ring models are used in many applications and equipment,Provide system solutions for the world.
Involving wind power, controllers and industrial turntables, robots, construction machinery,CCTV video surveillance, medical equipment, military radar, etc...
-
