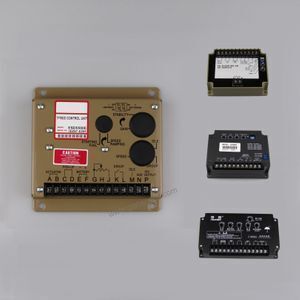

Genset Generator Engine Speed Governor Control Unit Controller ESD5500 ESD5500E
-
Supplier: Chongqing Ht Electronic Tech. Limited -
Region: Chongqing, China -
Contact: Mr Andy Liu -
Price: $24.00 /piece -
Min. Order: 1 piece
| Warranty: | 1 Year; | Replaced Brand: | GAC; |
| Delivery Detail: | 0 days after payment; | Purpose: | Speed Controller ESD5500E; |
| Name: | ESD5500E Generator Speed Governor; | Selling Units: | Single item; |
| Single package size: | 13X13X4 cm; | Stock Status: | In stock; |
| Brand Name: | HT; | Place of Origin: | Chongqing China (Mainland); |
| Single gross weight: | 0.7 KG; | Function: | Engine speed controller; |
| Usage: | Engine Speed Control Unit; | Product Name: | Generator Speed Control Unit; |
| Voltage: | 12V , 24V; | Package Type: | Neutral without logo , or customized, we can pepare packing depend on customers' need.; |
| Type: | Engine Speed Governor; | Package Preview: | https://sc01.alicdn.com/kf/HTB1ZvXyKhnaK1RjSZFtq6zC2VXaP.jpg_640x640.jpg; |
Genset Generator Engine Speed Governor Control Unit Controller ESD5500 ESD5500E
We have Engine Speed Control Unit ESD5500E and ESD5500 in our Regular Stock!
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
Generator Speed Control Unit :
Kutai: EG2000, EG3000
Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002
YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Compatible Engine Brands for ESD5500E Engine Speed Governor
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands
The Genset Speed Controller ESD5500 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, Generator Speed Governor ESD5500 should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
TECHNICAL SPECIFICATIONS of ESD5500 Generator Speed Controller | ||
Isochronous Operation/Steady State Stability | ± 0.25% or better |
|
Speed Range/Governor | 1K-7.5K Hz continuous |
|
Speed Drift with Temperature | ± 1% Maximun |
|
IDLE Adjustment | 160 ± 20Hz ~ 60% of set speed |
|
Droop adjustment Min.(K-L Jumpered) | 15Hz. ± 6Hz. per 1.0 A change |
|
Droop adjustment Max.(K-L Jumpered) | 400Hz. ± 75Hz. per 1.0 A change |
|
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change |
|
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change |
|
Speed Trim Range | ± 200Hz. |
|
Remote Variable Speed Range | 500 -7.5Hz. or all part thereof |
|
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
|
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance |
| |
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance |
| |
P: 10V DC Provide @ 20ma Max. |
| |
Speed Switch Adjustment Range | 1000-10000Hz. |
|
ENVIRONMENTAL: | ||
Ambient Operating Temperature Range | -40°c to +85°c |
|
Relative Humidity | up to 95% |
|
Storage Temperature | -55°c ~ 90°c |
|
Shock | 20-100HZ 500mm/Sec. |
|
INPUT POWER: | ||
Provide | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
|
Polarity | Negative Ground(Case Isolated) |
|
Power Consumption | 50mA continuous plus actuator current |
|
Actuator Current Range @ 25°c-(Inductive Load) | Min. 2.5 Amps, Max. 10 Amps continuous |
|
Speed Sensor Signal | 0.5-120 V RMS |
|
Speed Switch Relay Contacts(N.O.and N.C.) | 10Amp |
|
PHYSICAL | ||
Weight | 650g |
|
Note: The performance parameters in the frequency when measuring 4000Hz
-
