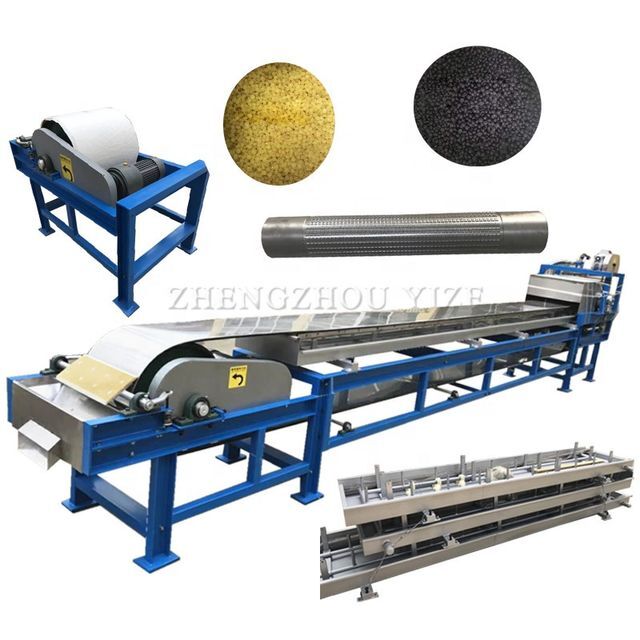

Paraffin Granulator Sulfur Depilation Wax Granulator Depilation Wax Granulator

Product details
Core parts warranty:1 yearType of machine:Granulator
port:Qingdao/Shanghai/GuangzhouPower (kW):2.75
Key words:Resin Granulator | Paraffin GranulatorMechanical test report:if
Used for:Rubber Granulator | Paraffin GranulatorVoltage:220V/380V
Main selling point:easy to operateRelated Machine 1:Wax melting machine
Health status:newProduct Category:Paraffin Granulator
Warranty:1 year, 1 yearShowroom location:not any
Name:Paraffin Resin Granulator | Paraffin Granulatorusage:Paraffin Granulator | Paraffin Granulator
application:Paraffin Granulator | Wet Granulatorproduct name:Paraffin Granulator | Paraffin Granulator
Marketing Type:New productplace of origin; place of origin:Henan, China
capacity:600-800 kg/hWeight (kg):1800
Output (kg/hour):100Dimensions (L*W*H):12m*1m*1.7m
weight:1500kgbrand:Yize
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,cash and trade insuranceSupply capacity:500 sets of paraffin resin granulator granulator paraffin wax per month
Applicable industries:Energy and MiningPackaging Details:Paraffin resin granulator paraffin granulator will be packed in standard wooden case
Core components:motorVideo external inspection:if
Product Description

Working principle of paraffin granulator

Rotary belt condensation granulator is the use of low melting point characteristics of materials (50 ℃ to 300 ℃)
The molten material passes through a special distribution device. It is then distributed on the moving steel belt. Use the cooling unit at the bottom of the steel strip. The material is then allowed to coagulate, solidify. Granulation


feature
1. The size of the granulator can be selected between 4mm -12mm. Shapes can be made into granules, bars and flakes
2. The equipment adopts frequency conversion speed regulation, and the appropriate speed can be selected according to the nature of the material
3. The product particles are uniform and beautiful, and the molding rate is more than 95%
4. Vans are widely used. The melting point of the material is between 50℃ and 300℃. It can be granulated and can seal toxic materials.

Model
YZZL-40
YZZL-60
YZZL-120
steel belt
Width: 0.4m, length 14m
Width: 0.4m, length 24mm
Width: 0.6m, length 28m
machine width
600mm
600mm
800mm
machine length
7m
12m
14m
Die size
1.8-2.5mm
1.8-2.5mm
1.8-2.5mm
Product Size
4-12mm (adjustment)
4-12mm (adjustment)
4-8mm (adjustment)
product shape

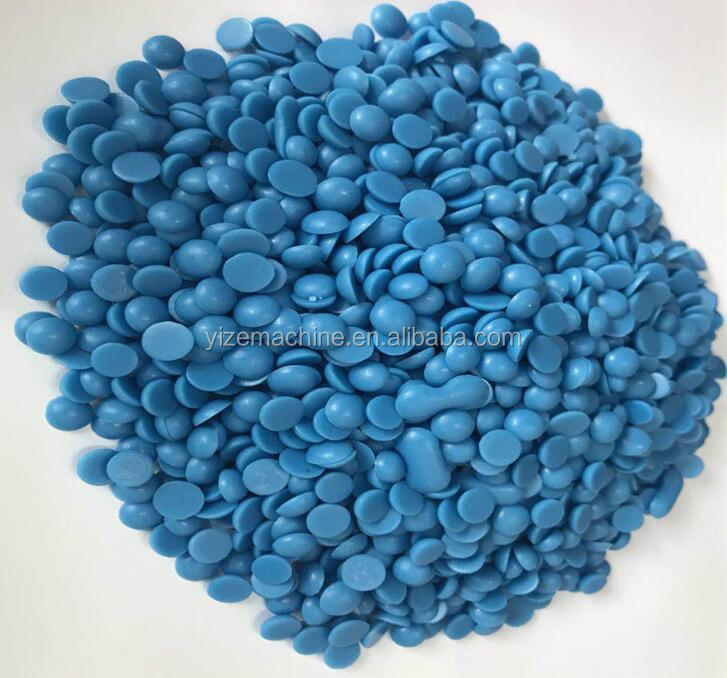

hemispherical
hemispherical
hemispherical
capacity
50-100kg/hour
100-300 kg/h
400-600 kg/h
motor
5kw+1.5kw
5kw+1.5kw
4kw+1.5kw
Voltage
110v/220v/380v
110v/220v/380v
110v/220v/380v
water pump
Pressure: 0.3mpa Water flow: 15-20 m3/h (user-supplied)
Flow: 20cbm/h
Flow: 35cbm/h
machine composition

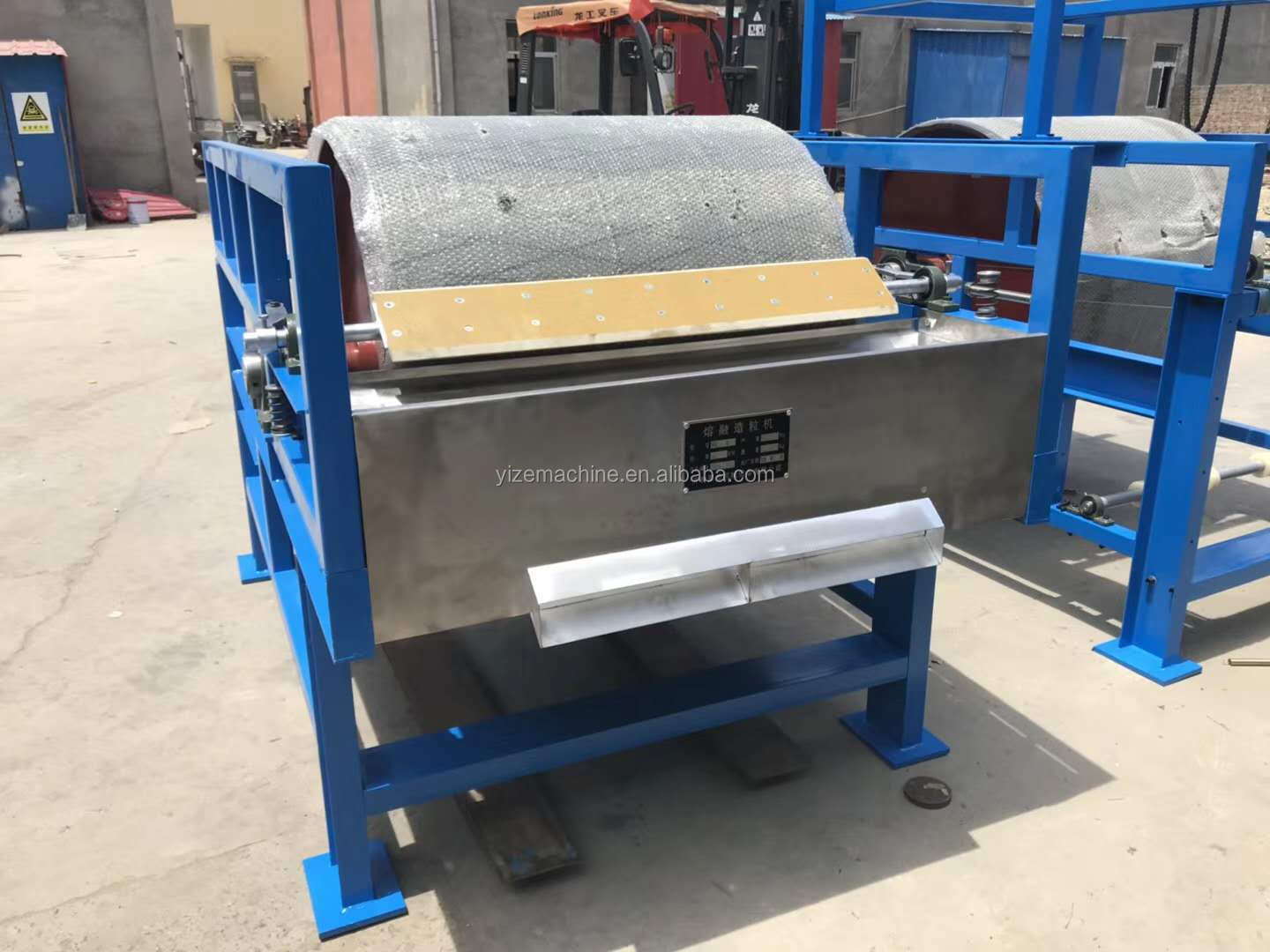

1. Paraffin Particle Dispensing Device
2. Stainless steel cooling tank system
3. Frequency conversion electric control cabinet
4. Reducer transmission system
5. Stainless steel ALU-IND
6. Stainless steel valve
7. Nebulizer, temperature probe
8. Stainless steel rotating steel belt
9. Rubber carbon steel conveyor roller table
10. Complete frame and accessories

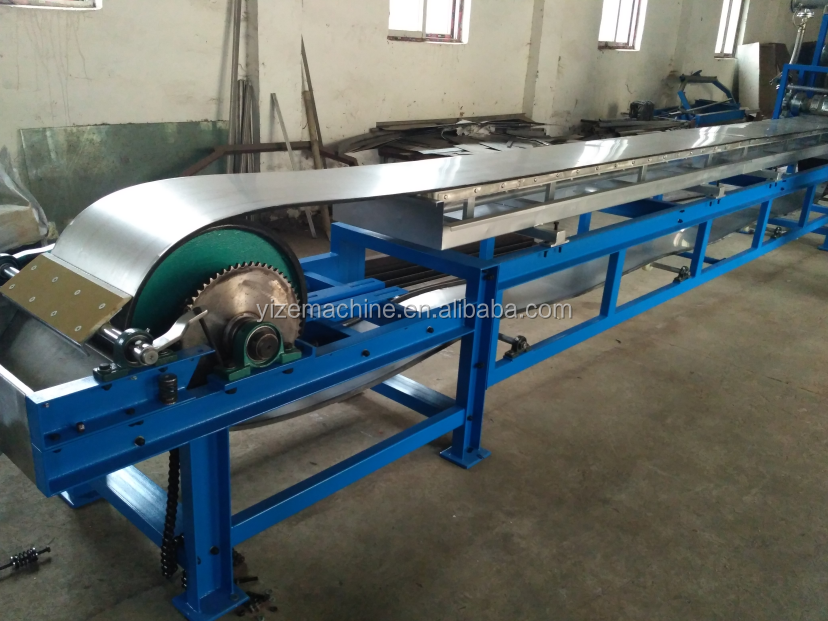

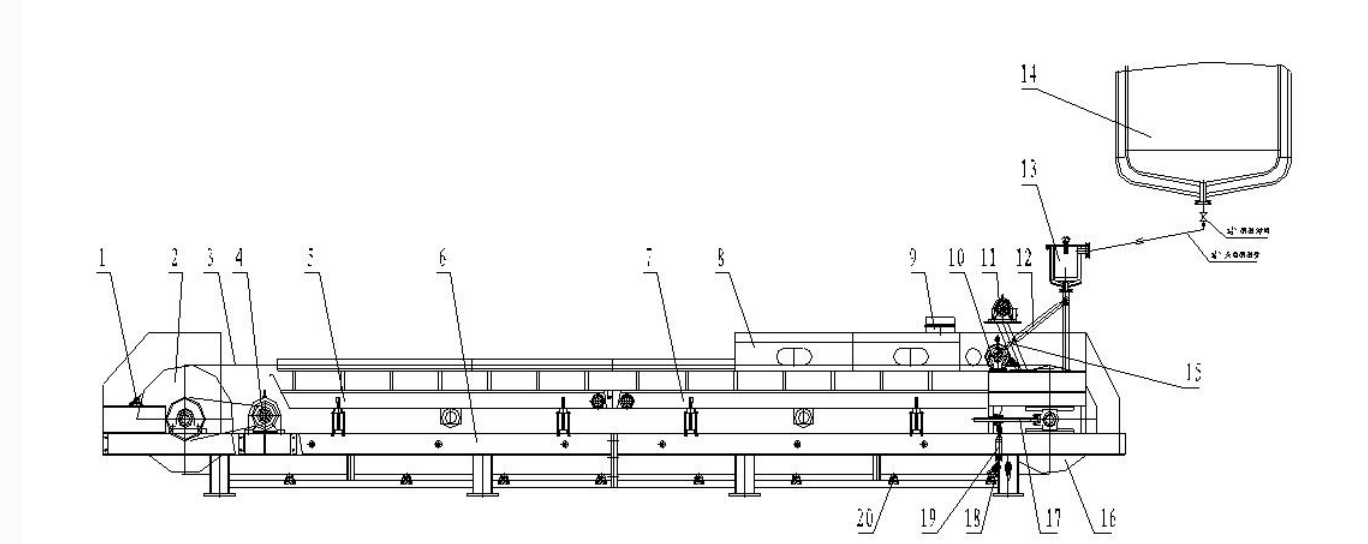

Machine main structure
1. Unloading knife 2. Driving roller 3. Stainless steel cooling conveyor belt 4. Stainless steel belt motor 5. Spray cooling system -- front 6. Rack 7. Spray cooling system -- rear 8. Sealed shell 9. Smoke exhaust port 10. Granulator head 11. Granulator head gear motor 12. Insulation hose 13. Filter 14. Storage tank 15. Insulation ball valve 16. Tensioning wheel 17. Stainless steel belt tensioning device 18. Cleaning knife 19. Steel belt deviation correction device 20. Palm roller

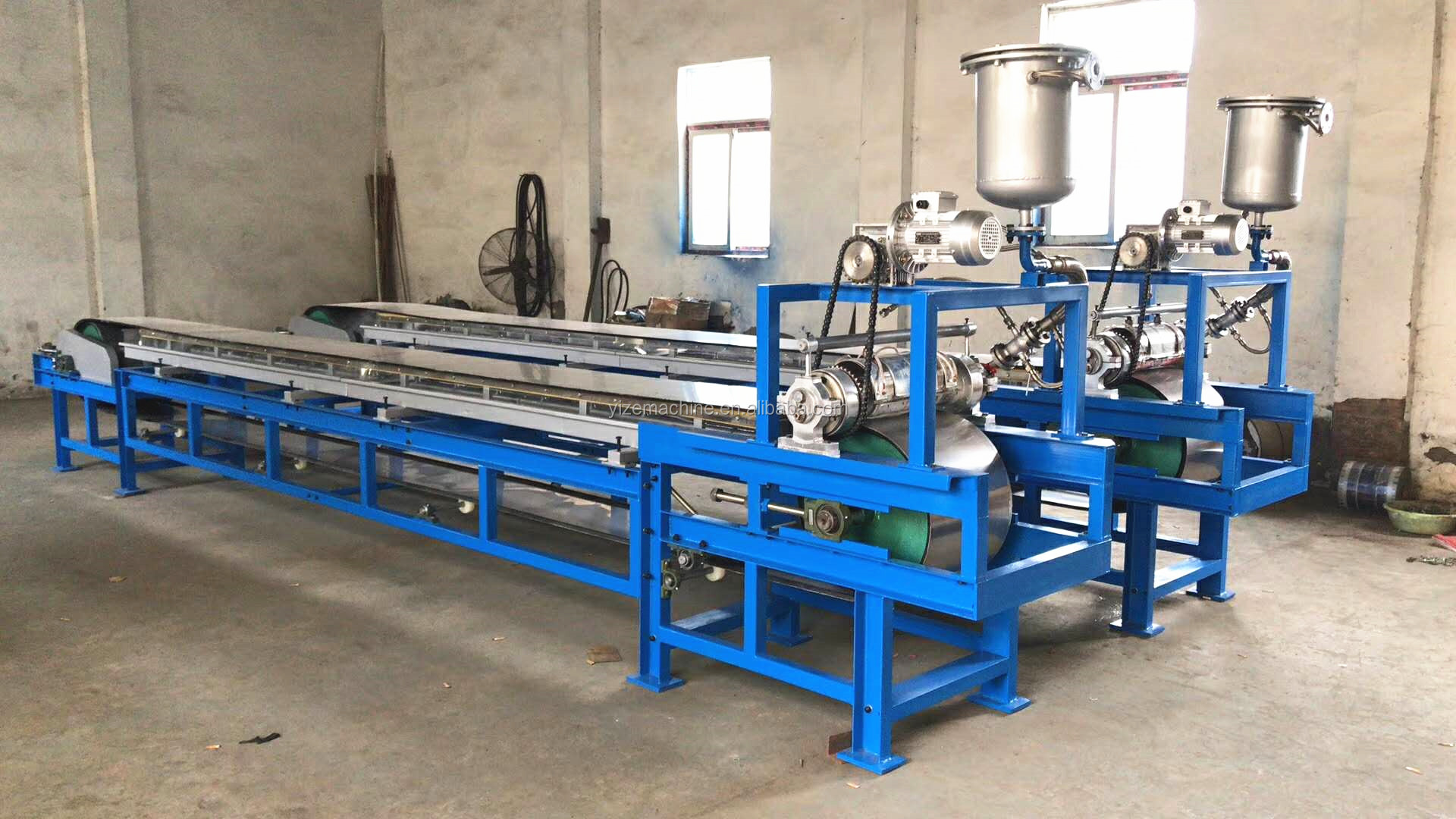

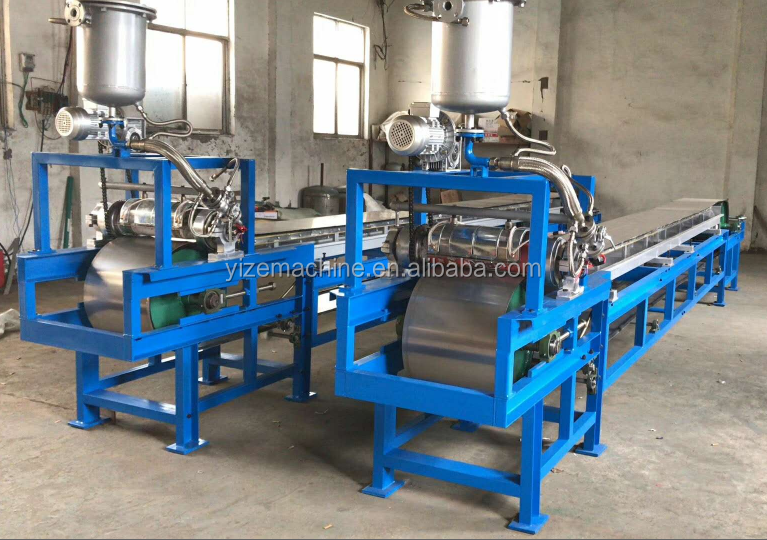

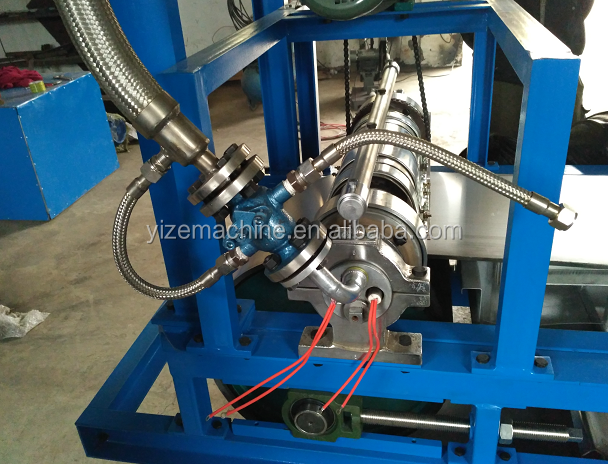

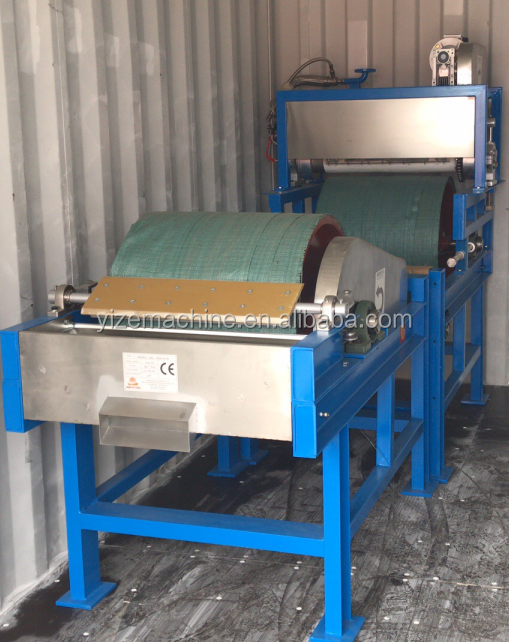

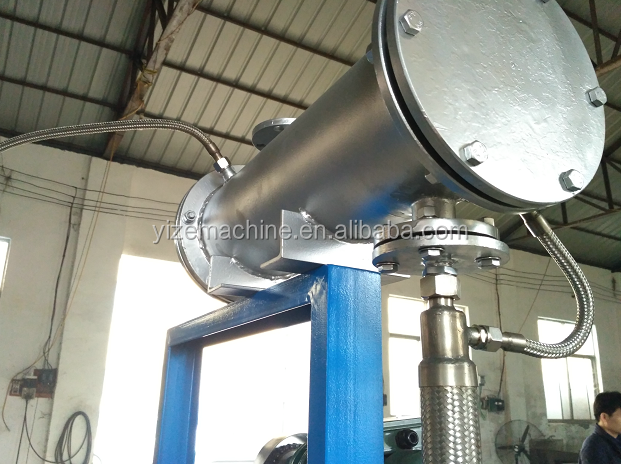

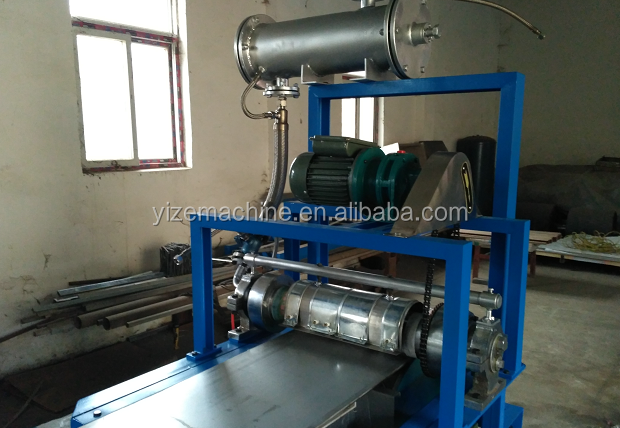

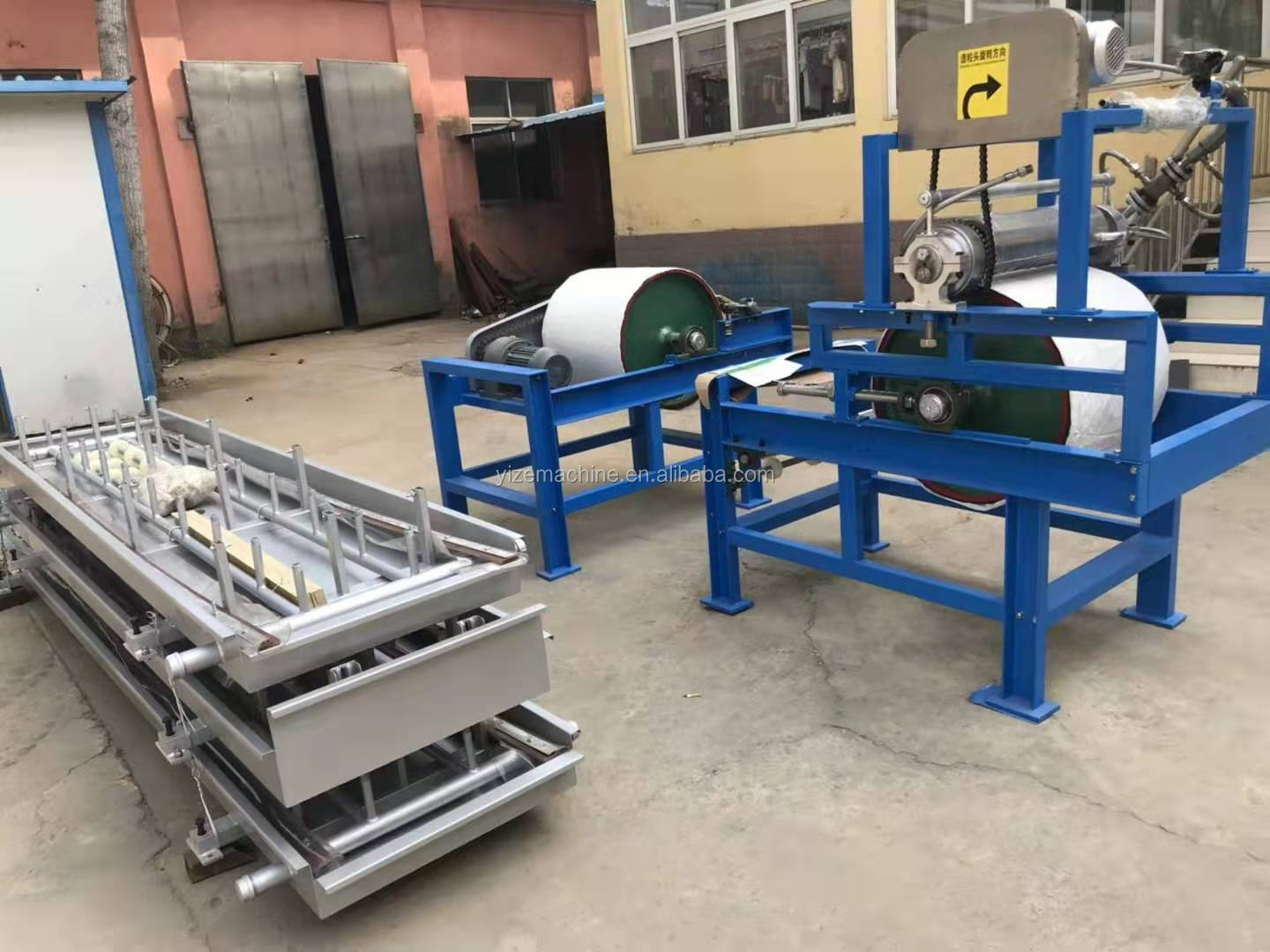

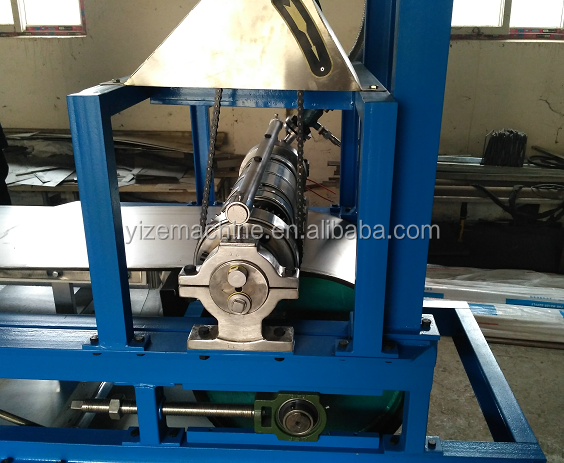

detailed image

Scope of use
Sulfur, paraffin, petroleum resin, alkali sulfide, C5, C9 resin, C5C9 resin resin; Asphalt, maleic anhydride, stearic acid, hot melt adhesive, rubber and plastic additives, antioxidants, antioxidants, various additives, etc.

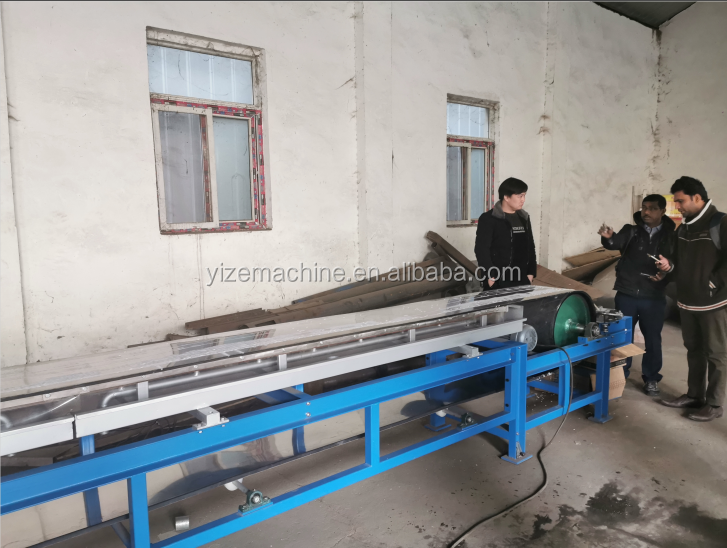

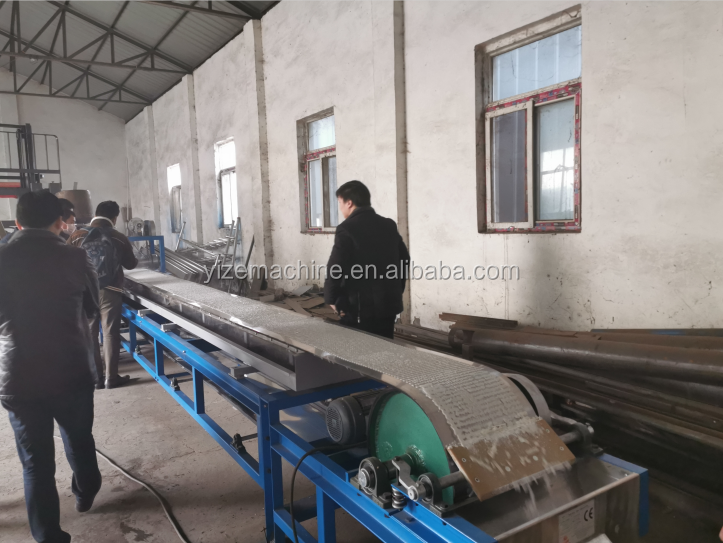

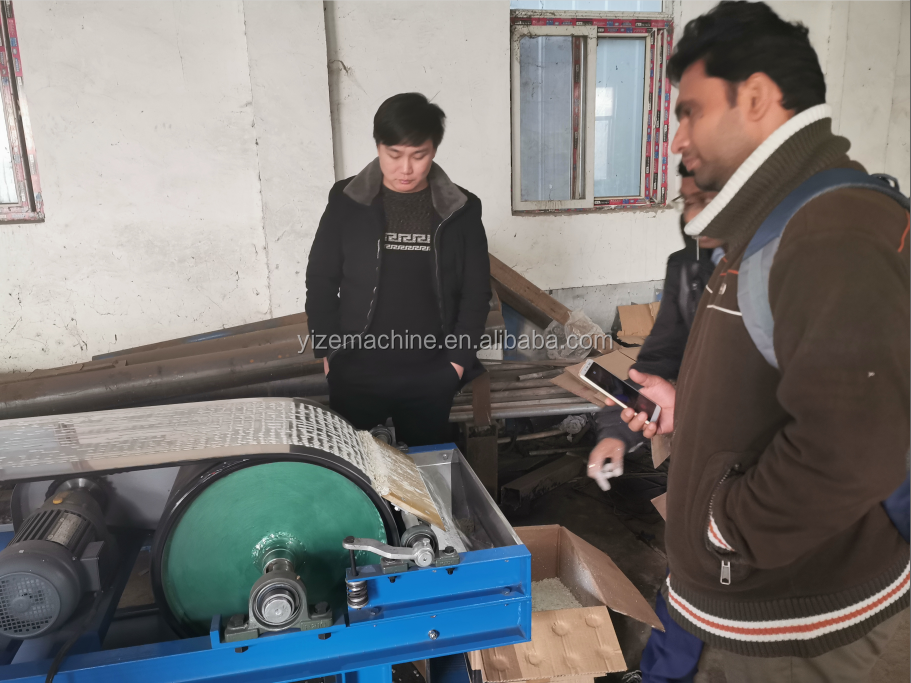

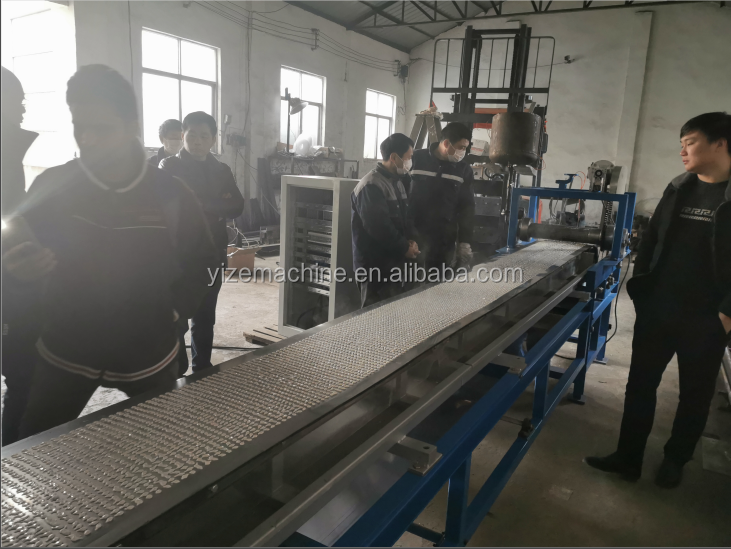

Our customers visit our factory and test the machines:
You are welcome to visit our workshop or send samples to test the machine

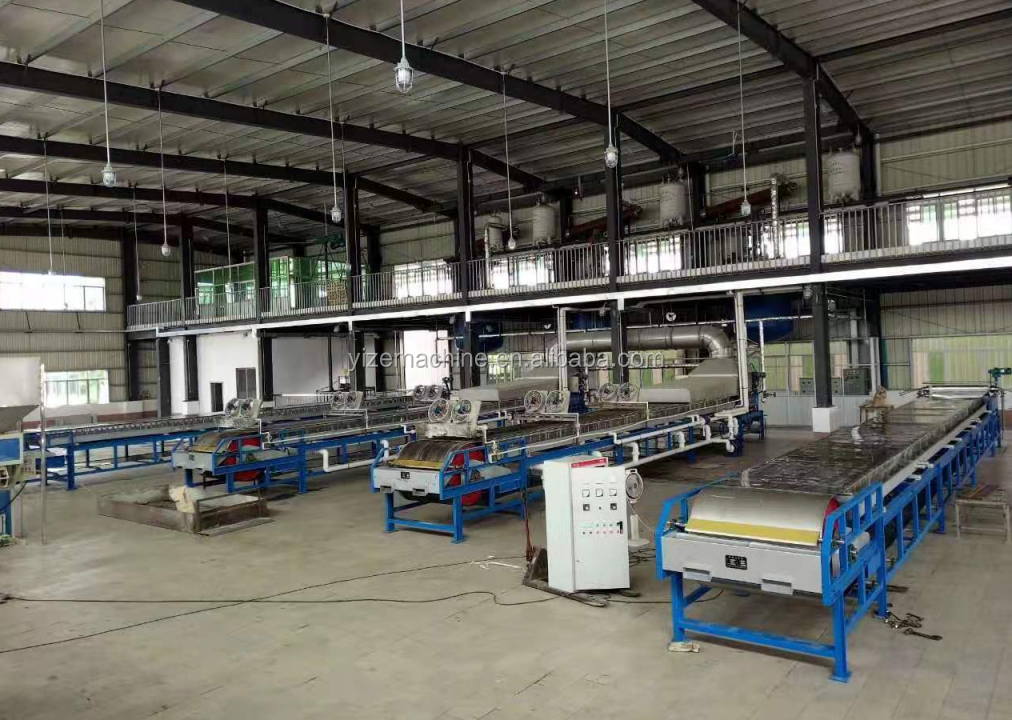

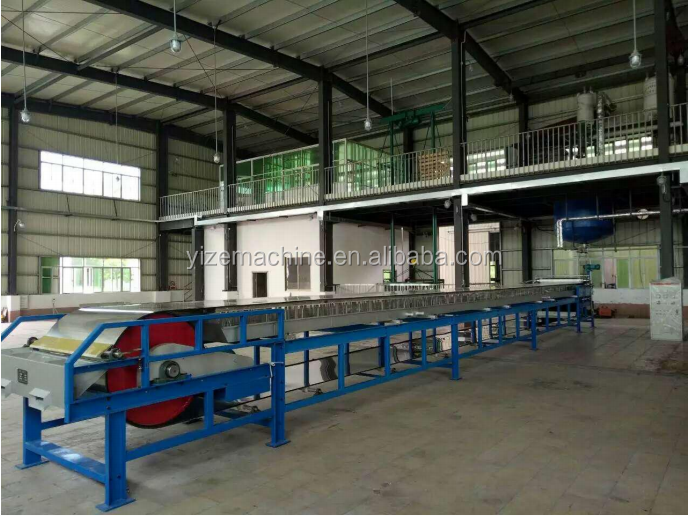

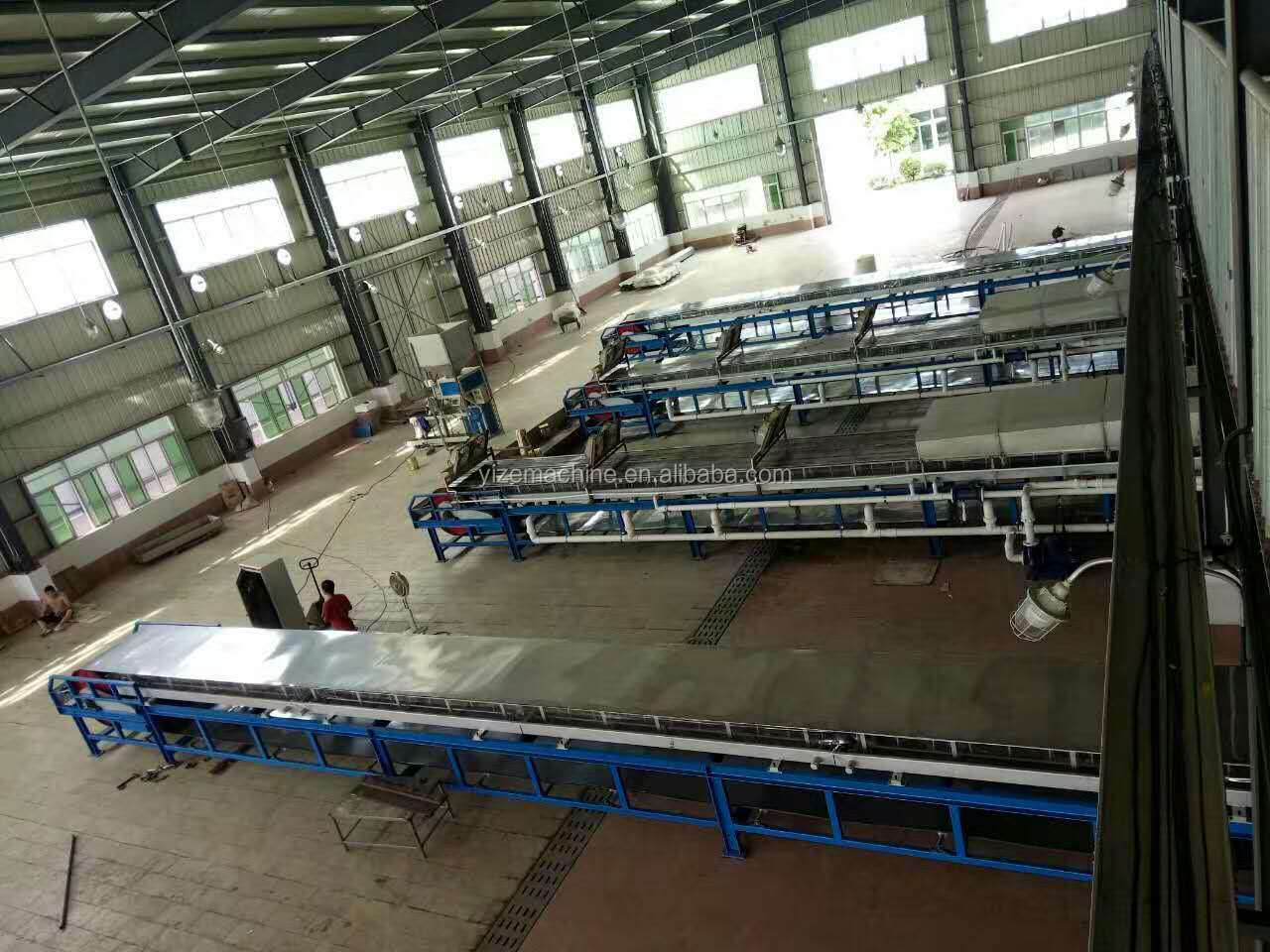

Our factory:

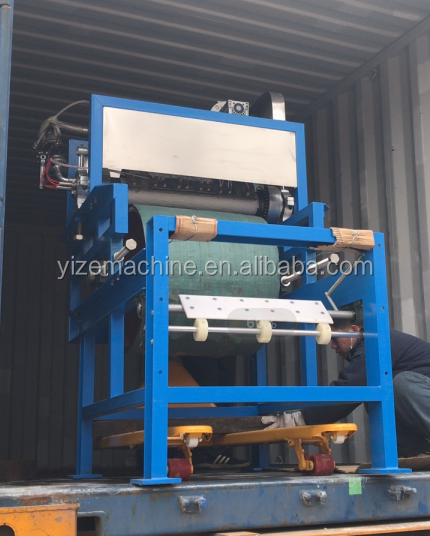

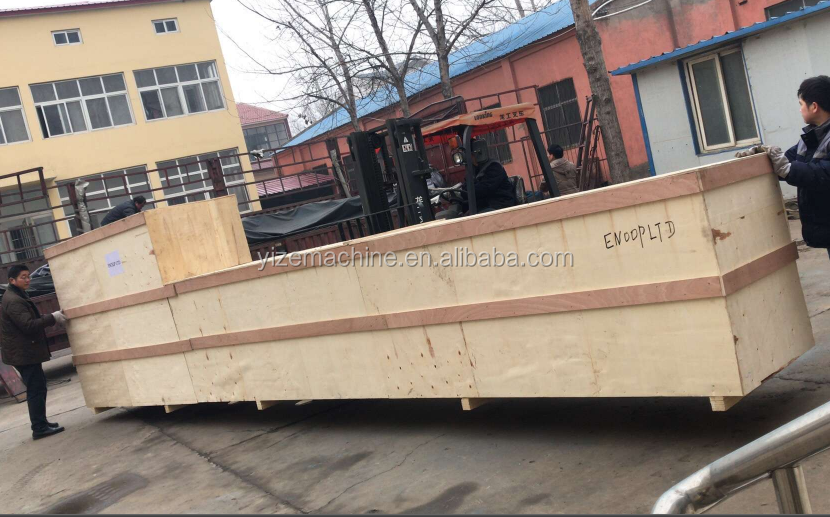

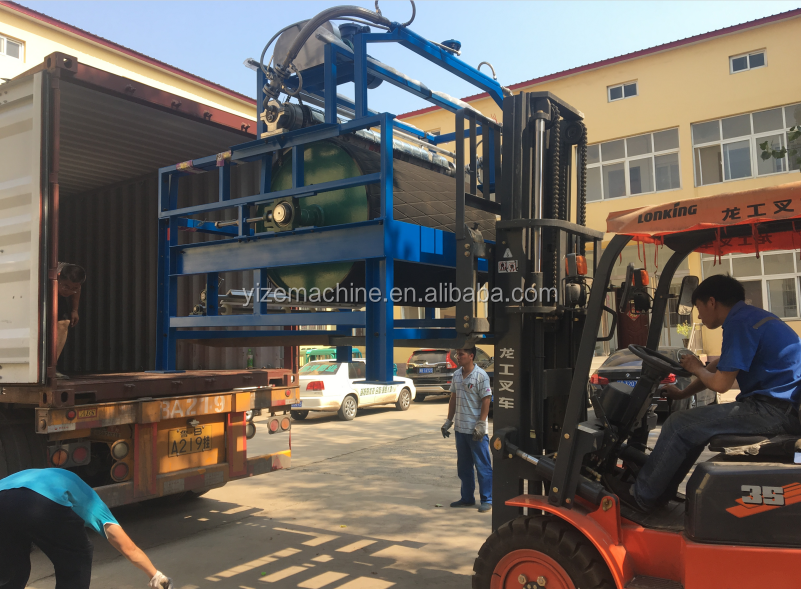

Packaging and loading:
We can pack in wooden crates or bulk in containers
