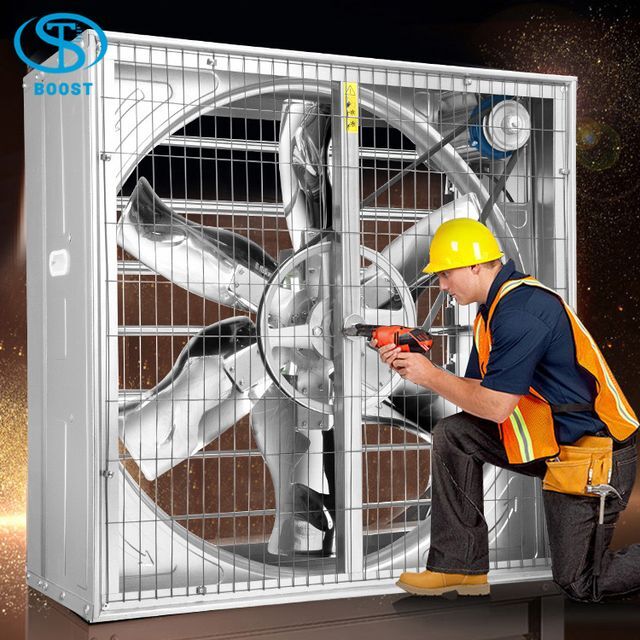

Industrial Plant Mining Greenhouse Chicken Poultry Farm House Ventilation Exhaust Fan Price

Supplier: Qingzhou Boost Temperature Control Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Feng Zhang
Price: $105.00 / 10 - 199 sets
$95.00 / >=200 sets
Min. Order: 10 sets

Click here to contact

Product details

After-sales service provided:	Online support	brand:	Promote
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Packaging Preview:
place of origin; place of origin:	Shandong China	Motor brand:	China Motor/Siemens Motor/WEG Motor/ABB Motor
Install:	wall fan	Supply capacity:	5000 sets per month
Blade material:	Stainless steel	Turn on the device:	Centrifugal push-pull
strength:	1100w	Current type:	alternating current
size:	13801380450mm	Custom Support:	OEM, ODM, OBM
application:	Poultry farms, animal husbandry, greenhouses, factory floors	Voltage:	380V, 220V, 415V, 230V
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, greenhouse, poultry farm, chicken coop	model:	BST1380
product name:	Industrial plant greenhouse ventilation and exhaust fan price	belt:	mitsubishi
Balder RPM:	439 rpm	Frame Material:	Galvanized Sheet/Stainless Steel
port:	Qingdao	type:	Axial Fan
Packaging Details:	Regular packing is carton pack for bulk shipping, 20FT or 40FT container	Warranty:	1 year
Blade diameter:	1270mm

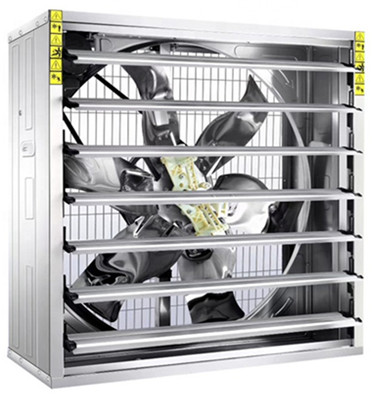

Product Description

Industrial plant greenhouse ventilation and exhaust fan price

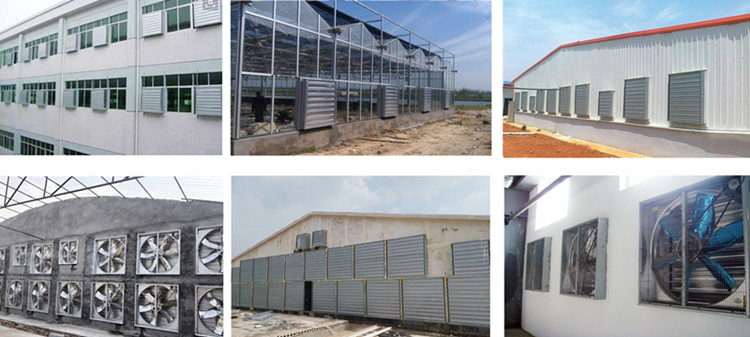

BOOST exhaust fans are widely used in agricultural and industrial ventilation and cooling. Mainly used in animal husbandry, poultry house, animal husbandry, greenhouse, factory workshop, textile, etc.

Model	drive	Blade diameter (mm)	aspect (mm)	Blade speed (rpm)	Motor speed (change)	air flow (m3/hour)	input power (kilowatt)	noise (Db)
BST480	direct	380	480*480	1400	1400	3000	0.18	<70
BST600	direct	500 (20 inches)	600*600	1400	1400	5700	0.37	<70
BST800	belt	710 (28 inches)	800*800	660	1400	18000	0.37	<65
BST900	belt	750 (30 inches)	900*900	630	1400	22000	0.55	<65
BST1000	belt	900 (36 inches)	1000*1000	610	1400	25000	0.75	<65
BST1100	belt	1000 (40 inches)	1100*1100	600	1400	32500	0.75	<65
BST1220	belt	1100 (44 inches)	1220*1220	460	1400	38000	0.75	<64
BST1380	belt	1270 (50 inches)	1380*1380	458	1400	44000	1.1	<64
BST1530	belt	1400 (56 inches)	1530*1530	325	1400	55800	1.5	<64

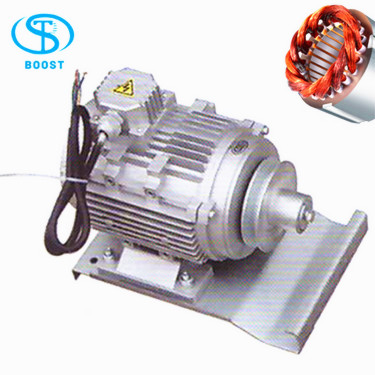

motor

Industrial plant greenhouse ventilation and exhaust fan price

Brand: China Motor and Siemens Motor Certificate: CCC

Protection grade: IP55 grade

Insulation class: F class

Voltage and frequency: customized production: with phase loss protection device to ensure the normal operation of the motor

Advantage:

Pure copper wire, high efficiency and energy saving.

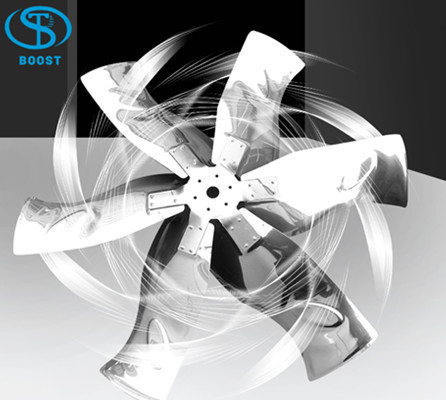

Stamped fan blades

Industrial plant greenhouse ventilation and exhaust fan price

1. Material: Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm

Advantage:
Large air volume, no deformation, no breakage, no dust, beautiful and durable.

notes:
Blade material also has galvanized sheet, aluminum alloy optional

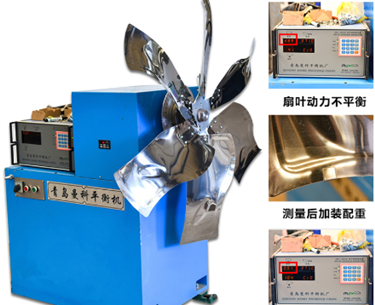

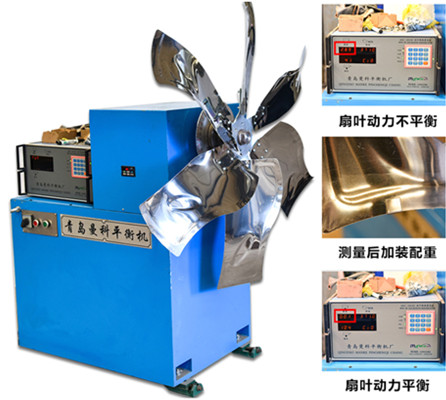

Italligent Dynamic Fan Balance Tester
Industrial plant greenhouse ventilation and exhaust fan price

The fan blades are adjusted by an intelligent dynamic balance tester, and the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure that the fan runs smoothly, with little vibration, low noise, and increased stability.

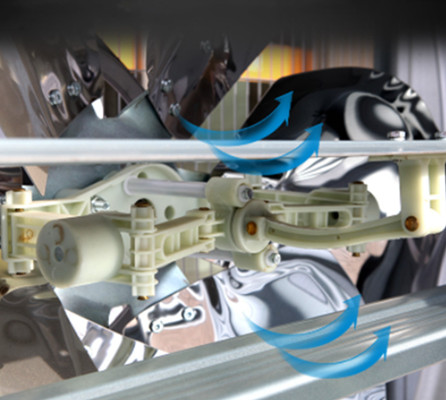

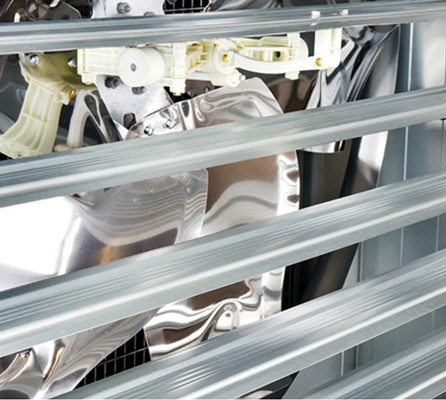

Open Systems - Centrifugal Systems
Industrial plant greenhouse ventilation and exhaust fan price

1. Material: high quality nylon PA66
2. Guide rod: 304 stainless steel plus special material, high strength, no rust, reduce friction.
3. Rivets: 304 stainless steel, wear-resistant, no rust.
Advantage:
It keeps the shutters fully open 90 degrees to ensure minimum air resistance and maximum air volume.

It is tightly sealed when closed, effectively blocking light and wind from entering the house. The centrifugal system fasteners are copper rivets, which are wear-resistant, rust-free and flexible. Nylon directional rods are made of stainless steel to ensure high strength and reduced friction, rust-proof.

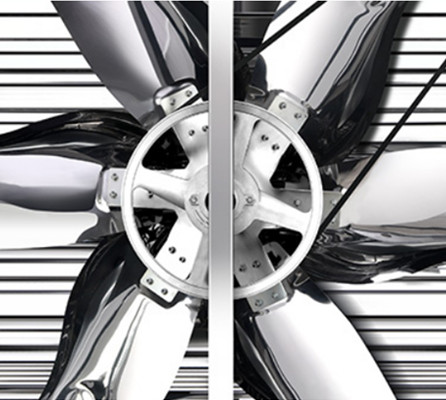

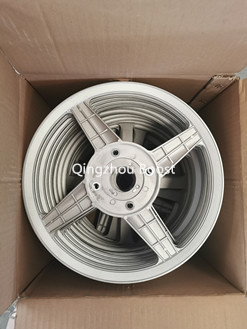

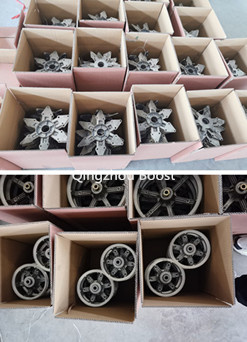

fan pulley

Industrial plant greenhouse ventilation and exhaust fan price

The fan pulley and flange are made of aluminum-magnesium alloy die-casting, with beautiful appearance and light weight. Especially stiffeners to increase strength. Not broken. long lasting.

The blade hub angle is double tested and designed to be precisely fixed with the blade.

Advantage:
small wind resistance,Large air volume, beautiful and durable.

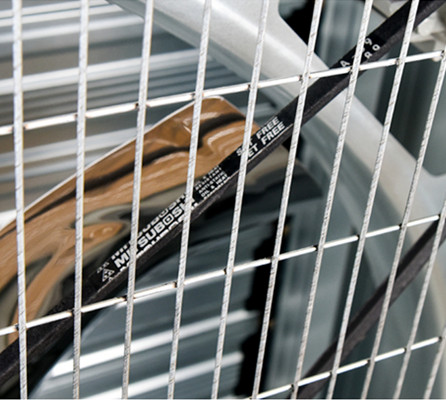

belt

Industrial plant greenhouse ventilation and exhaust fan price

We have Chinese belts and Japanese three-star brand belts for customers to choose. Long service life without maintenance

Improve the B-type belt, so that the service life is 3 times longer than that of the A-type belt

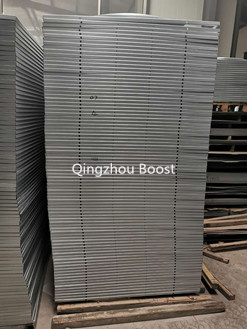

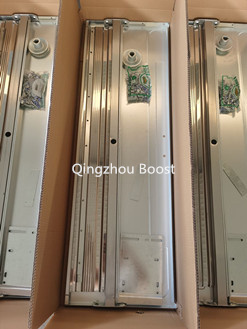

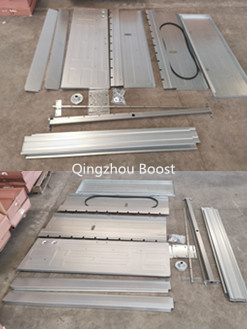

Frame: thickened galvanized sheet

Industrial plant greenhouse ventilation and exhaust fan price

We have advanced production technology and automation equipment. Professional production line, CNC-based professional equipment. car
Stamping and bending. High precision. Material is made of 275g coat weight galvanized sheet.

Advantage:

High strength and strong corrosion resistance.

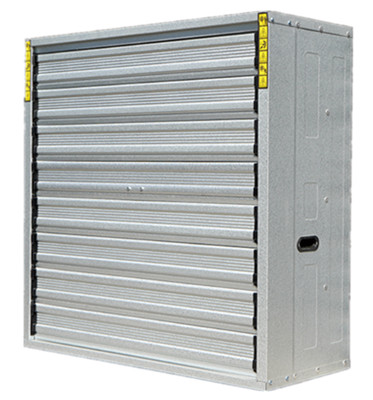

Blinds open/close automatically

Industrial plant greenhouse ventilation and exhaust fan price

1. Material: hot-dip galvanized sheet, zinc thickness 275g/㎡
2. Shutter fixing: high quality nylon.
Advantage:
High corrosion resistance, flexible opening, long service life, no deformation, no rust, stable operation.

Fan guard

Industrial plant greenhouse ventilation and exhaust fan price

The fan protection net is made of hot-dip galvanized wire electrostatic spraying.

Not easy to rust, beautiful and durable.

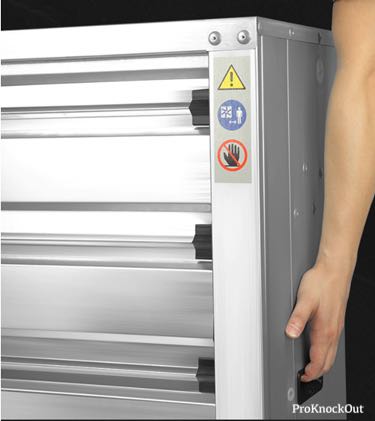

handle design

More user-friendly design

easy to move
not to be broken

detailed image

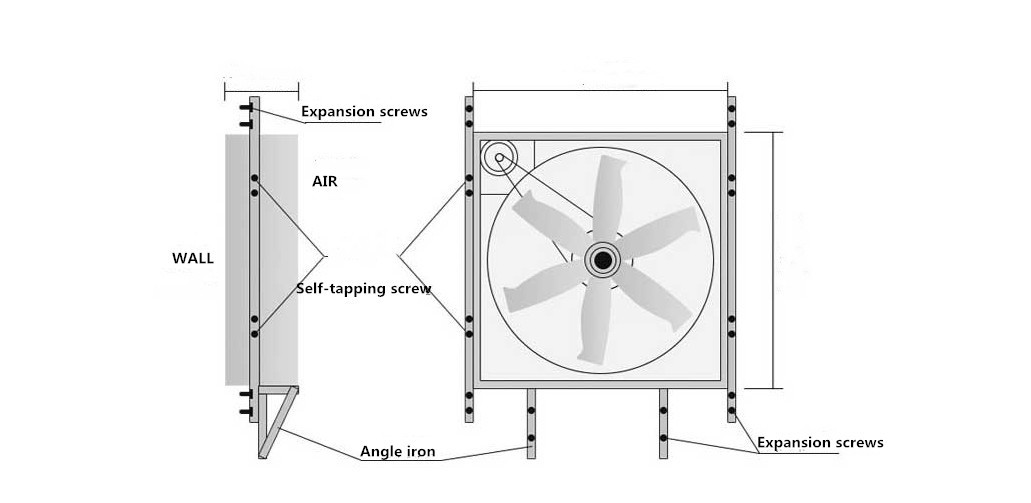

How to Install an Exhaust Fan

Comment

1. Adjust horizontal and vertical to keep the fan blades running smoothly

]2. After fixing the fan, the remaining gap needs to be sealed
3. Expansion screws and self-tapping screws can be used for fixing.

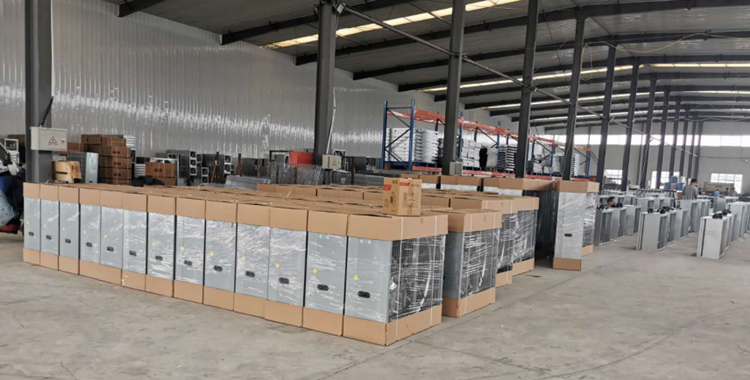

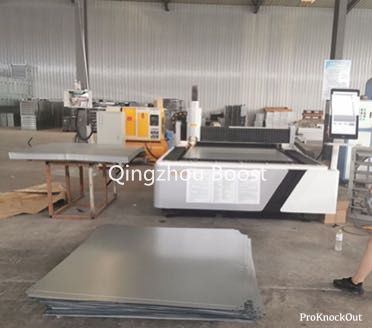

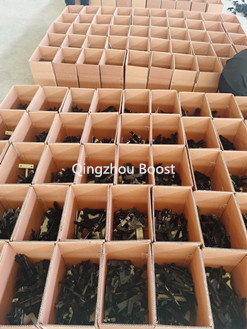

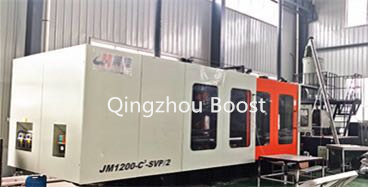

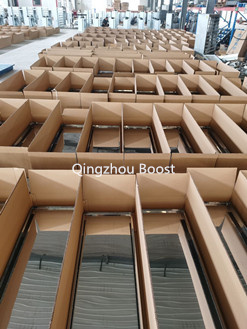

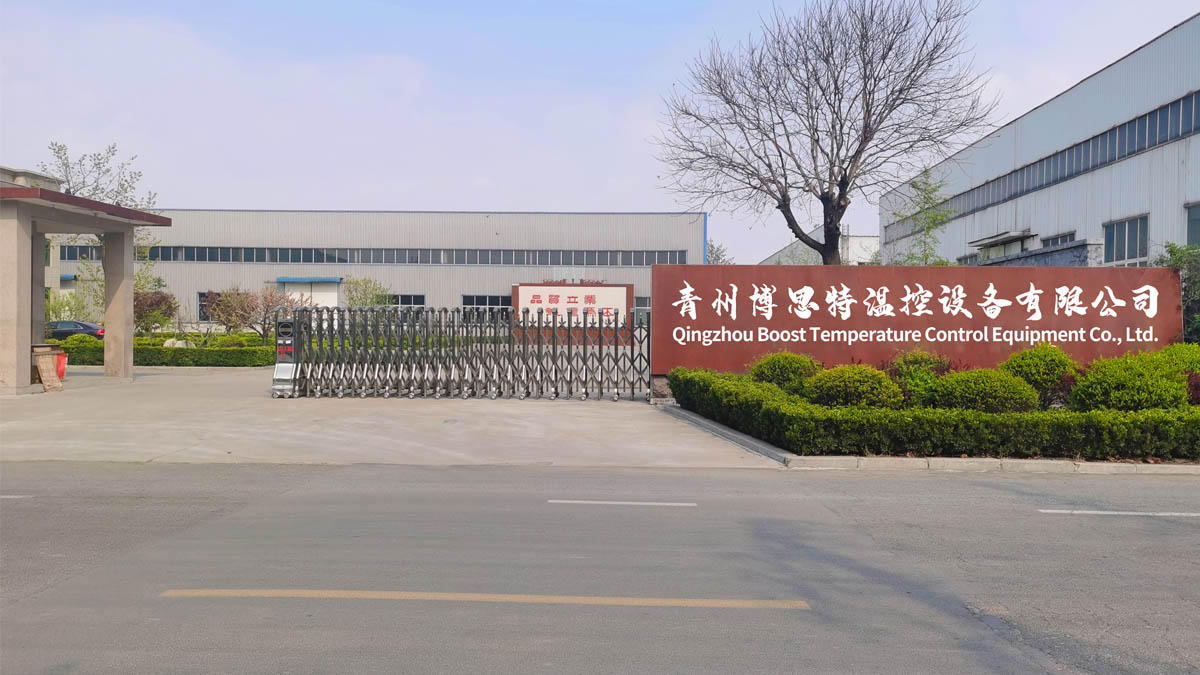

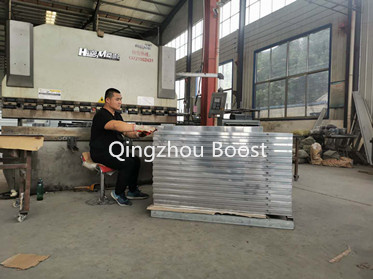

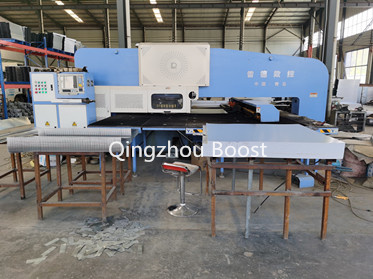

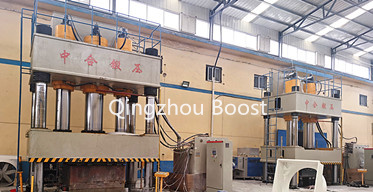

Factory & Workshop

Why choose BOOST?

The BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, with the industry-leading quality level, in order to reduce processing costs, share profits with customers, ensure quality, and the world's most cost-effective.
We have strong design and development capabilities and experienced production workers. Our products are exported to many countries in the world.
