Packaging Details: | Standard export package | Warranty: | 1 year |
application: | Poultry farm used feed storage | Packaging Preview: | |
Health status: | new, new | pack: | assembled or unassembled |
Core components: | all | Dimensions (L*W*H): | custom made |
Supply capacity: | 200 sets per month | deliver goods: | 7-10 days |
Video external inspection: | if | Mechanical test report: | if |
size: | 3T-30T | brand: | BST |
Marketing Type: | Hot Products of 2019 | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies |
After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online support | thickness: | 1.2mm |
port: | Qingdao | Local service location: | not any |
place of origin; place of origin: | China | usage: | poultry feeder |
Showroom location: | not any | weight: | custom made |
Material: | steel | product name: | 30 tons pig chicken farm animal grain feed silo |
payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Core Components Warranty: | 1 year |
Product Description

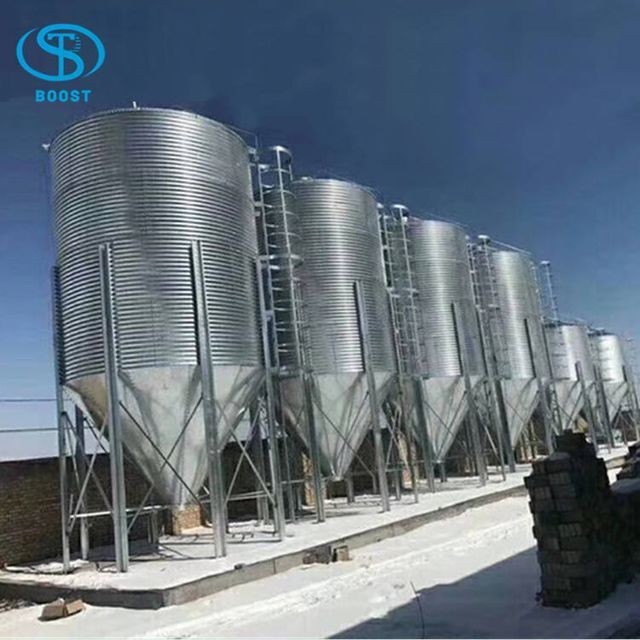

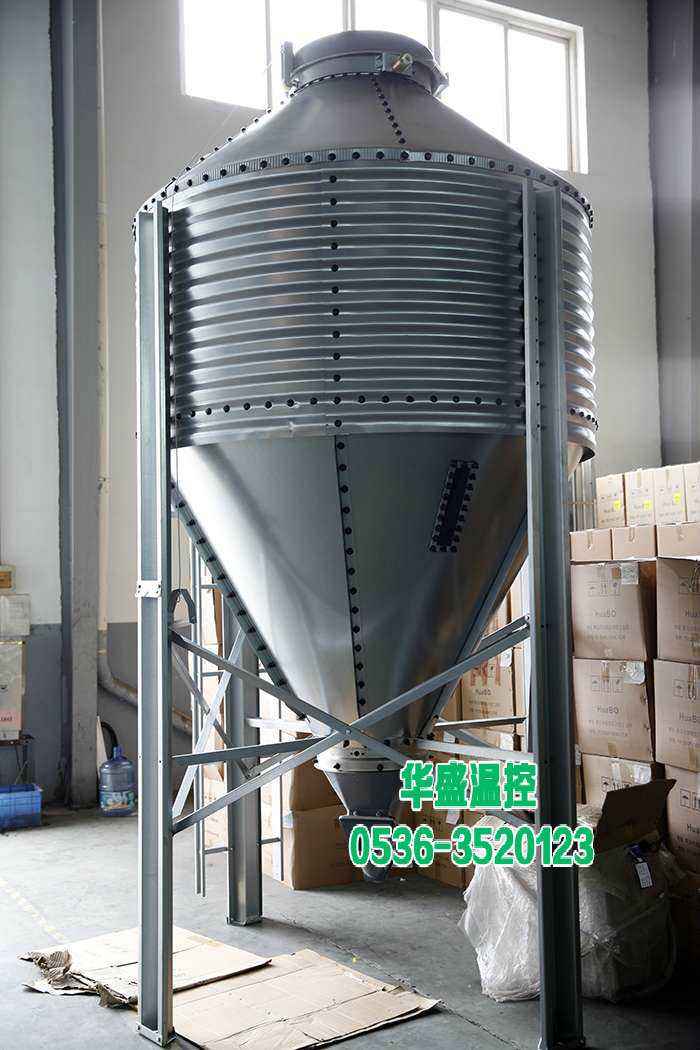

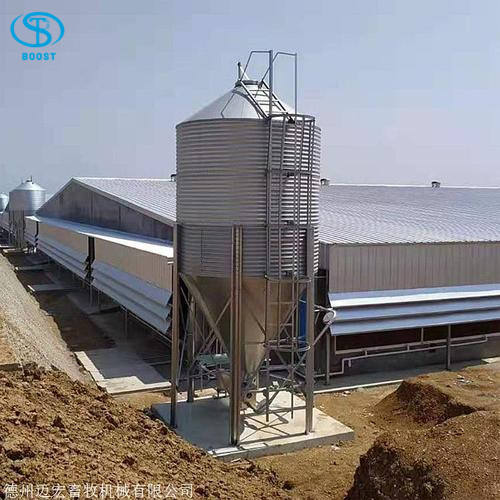

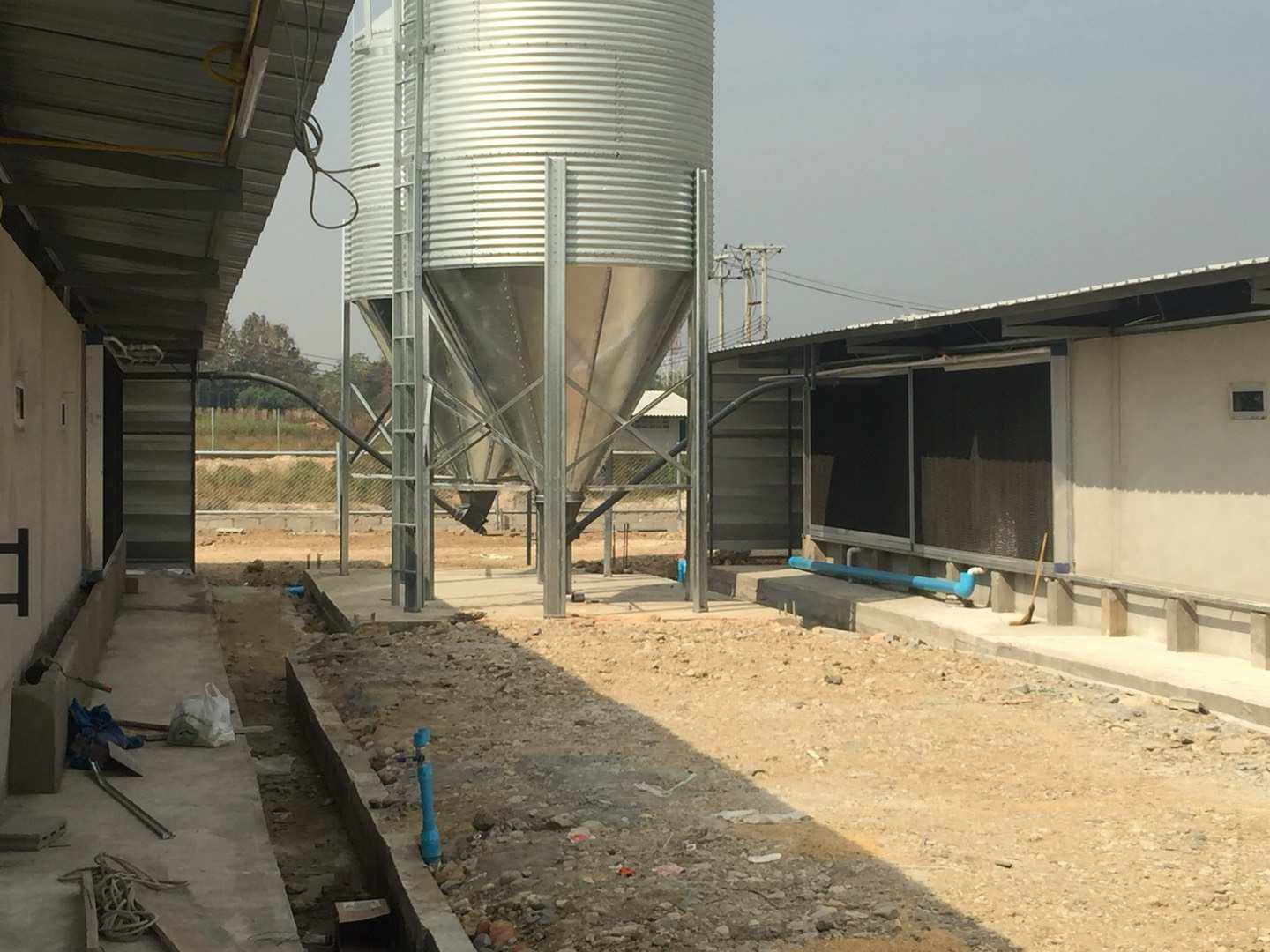

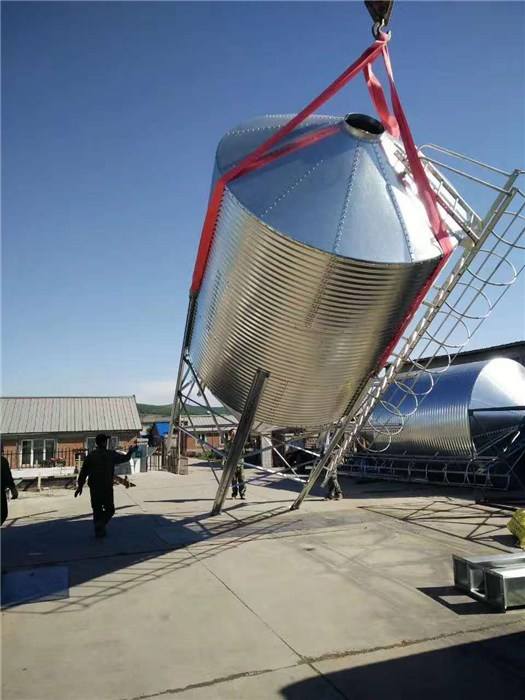

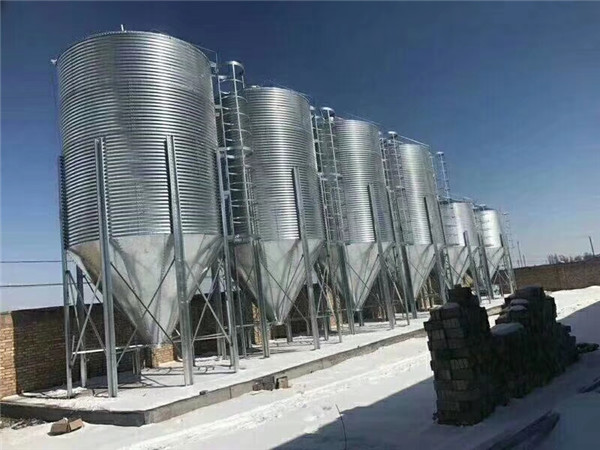

30 tons pig chicken farm animal grain feed silo
How to choose a poultry silo? 30 tons pig chicken farm animal grain feed silo
The poultry feeder silo should be used for a long time and placed outdoors, and it should bear the feeding weight of 20-30 tons, so the material must be resistant to high temperature, and it is easier to ensure the quality of the feed at low temperature.
It has to withstand high temperature and high temperature weather, wind and rain for a long time. Therefore, poultry silos must have a high resistance to corrosion and oxidation
Since it needs to withstand a weight of 20-30 tons, the material of the tower must be rigid and elastic.
Specification
Model | diameter | Ton | wall thickness | high | leg | Material |
4.1m³ | Φ1830 | 2.7T | 1.0mm | 3.8m | 4 | 275g hot dip galvanized |
6.5m³ | Φ1830 | 4.2T | 1.0mm | 4.7m | 4 | 275g hot dip galvanized |
8.9m³ | Φ1830 | 5.8T | 1.0mm | 5.6m | 4 | 275g hot dip galvanized |
11.3m³ | Φ1830 | 7.3T | 1.0mm | 6.5m | 4 | 275g hot dip galvanized |
11.6m³ | Φ2750 | 7.5T | 1.0mm | 4.9m | 6 | 275g hot dip galvanized |
17m³ | Φ2750 | 11T | 1.0mm | 5.8m | 6 | 275g hot dip galvanized |
22.4m³ | Φ2750 | 14T | 1.0mm | 6.7m | 6 | 275g hot dip galvanized |
27.8m³ | Φ2750 | 18T | 1.0mm | 7.6m | 6 | 275g hot dip galvanized |
23.5m³ | Φ3670 | 15T | 1.2mm | 5.8m | 8 | 275g hot dip galvanized |
33m³ | Φ3670 | 21.5T | 1.2mm | 6.7m | 8 | 275g hot dip galvanized |
42.5m³ | Φ3670 | 27.5T | 1.2mm | 7.6m | 8 | 275g hot dip galvanized |
52m³ | Φ3670 | 33.5T | 1.2mm | 8.5m | 8 | 275g hot dip galvanized |
Performance characteristics
Poultry Feeding Silo Wall Panels
1. Made of steel with a tensile force of 55000, electroplated coating treatment, 275g galvanized layer, to increase strength and service life.
2. Corrugated steel can ensure accurate and consistent matching during installation.
3. The weight and thickness of the galvanized layer have strict requirements, which meet the requirements of on-site use, have good corrosion resistance, and are connected to the main material wire.
Top Mobile Poultry Silo Cover System: 1. With the top mobile silo cover system, when the worker is standing on the ground, the silo can be opened, closed and blocked.
2. The use of limit bolts ensures that the movable warehouse cover can be opened freely within 180 degrees.
top edge of poultry silos
1. According to the actual situation, the edge design of the warehouse top is different.
2. The bottom edge of the silo is formed by crimping, which keeps rainwater away from the funnel and lower discharge pipe area, which can provide all-weather protection without being affected.
40 Degree Poultry Silo Roof
The 40-degree top provides greater strength and capacity.

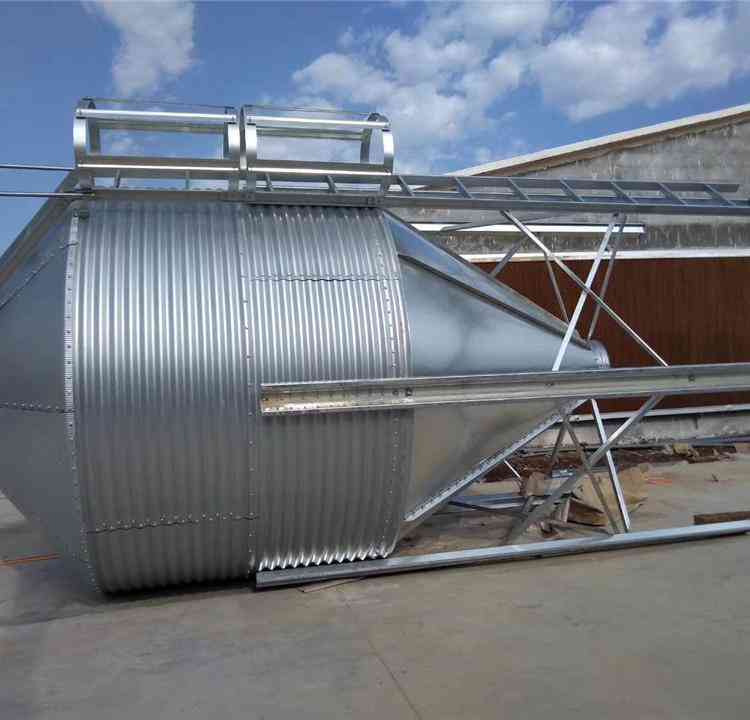

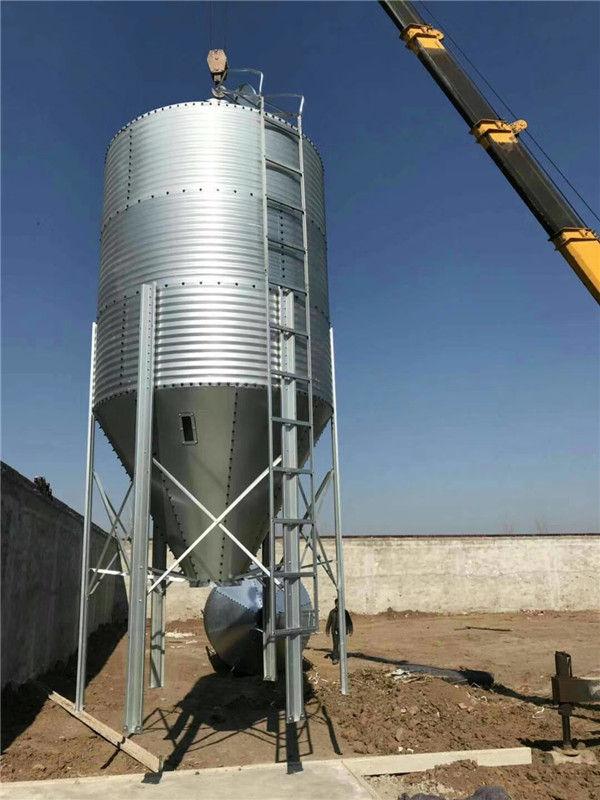

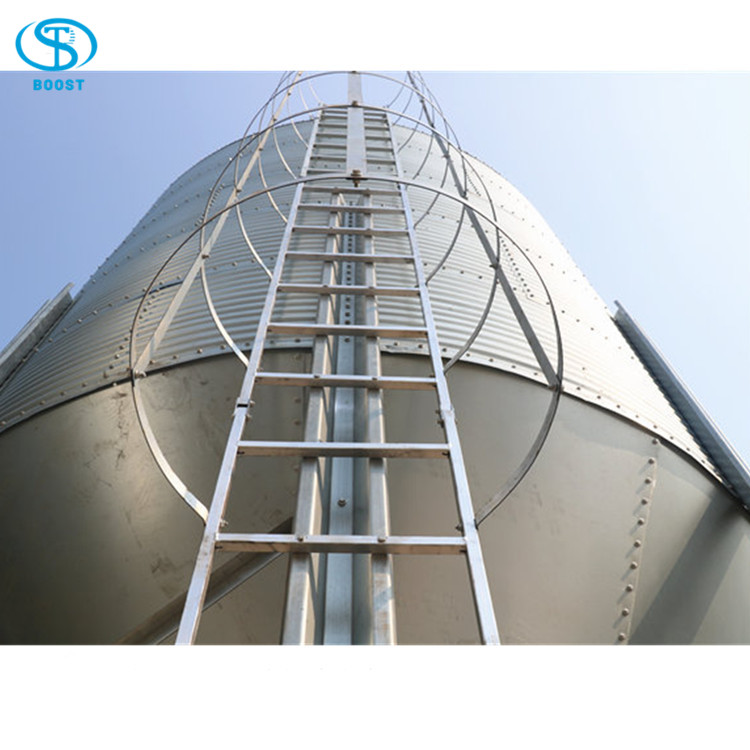

Poultry Silo Side Ladder:
1. Each poultry bin is equipped with a sturdy ladder.
2. Each ladder body is molded from a whole piece of galvanized steel plate, which has the advantages of high strength, good stability, convenient and quick installation, etc. 3. There are small concave holes on the rungs of the ladder to prevent slipping.

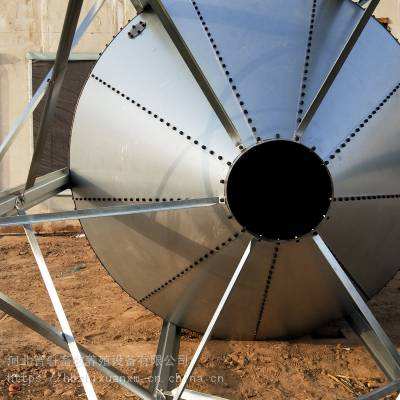

Hopper at the bottom of the silo
The hopper at the bottom of the silo can be divided into 3 types according to the inclination angle: 45 degrees for dry material conveying, 60 degrees for smooth conveying of grain, 4
