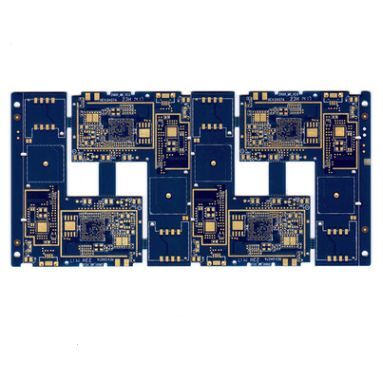

Diy Circuit Board Phone Charger Double Sided Manufacturer Led Pcba Single Panel Manufacturer Pcb Design

Product details
Packaging Details:Standard vacuum packagingminute. Hole size:1.6mm,0.25mm
place of origin; place of origin:Guangdong, Chinacolor:white black green red blue yellow
brand:trading platform, trading platformmodel:TES-YE031
inner packaging:Vacuum packing, plastic bagpayment terms:T/T, Western Union
Copper Thickness:0.5 oz; 1.0 oz; 1.5 oz; 2 oz, 1.5 ozSubstrate:FR4,FR4
port:Shenzhenminute. Line spacing:0.2mm,0.2mm
Surface treatment:OSP/ENIG, OSP ENIGPlate thickness:0.6MM;0.8MM;1.0MM;1.6MM,1.6mm
Supply capacity:1,200,000 pieces/monthPackaging Preview:
minute. Line width:0.2mm,0.2mm
Product Description
Minimum trace width (a)
0.075mm (3mil)
Minimum space width (b)
0.1 mm (4 million)
smallest ring
0.1 mm (4 million)
Patch pitch (a)
0.2 mm (8 million)
BGA spacing (b)
0.2 mm (8 million)
Solder mask
Minimum solder mask (1)
0.0635 mm (250,000)
Solder mask clearance (b)
0.1 mm (4 million)
Minimum SMT pad pitch (c)
0.1 mm (4 million)
Solder mask thickness
0.0007 in (0.018 mm)
hole
Minimum Bore (CNC)
0.2 mm (8 million)
Minimum punch size
0.9 mm (35 million)
Bore Tolerance (+/-)
PTH: ±0.075mm; NPTH: ±0.05mm
Hole Position Tolerance
±0.075mm
plating
tin spray
2.5 microns
Lead-free tin spray
2.5 microns
Shen Jin
Nickel 3-7um Au:1-5u''
operating system
0.2-0.5um
outline
Panel Contour Tolerance (+/-)
CNC: ±0.125mm, Punching: ±0.15mm
chamfer
30°45°
golden finger
15° 30° 45° 60°
Certificate
ROHS, ISO9001:2008, SGS, certificate
