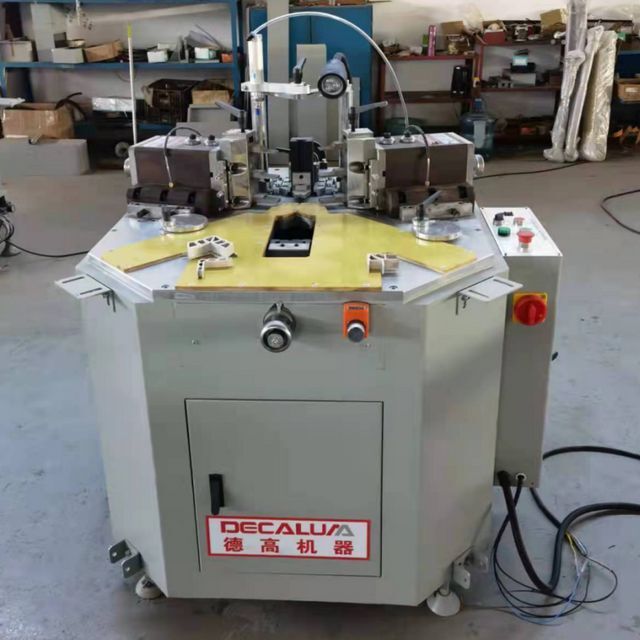

Aluminium window manufacturing and assembly corner blanking machine

Supplier: Jinan Dega Machine Co., Ltd.
Region: Shandong, China
Contact: Ms Jasmine Zhang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	United States, Philippines, Indonesia, Thailand	Mechanical test report:	if
Combined pressure:	12Mpa	weight:	400kg, 600kg
port:	Qingdao	Packaging Details:	Plastic Cover with Chassis and All Wood Packaging for Aluminum Window Crimping Machine
Core Components Warranty:	1 year	Applicable industries:	Building materials store, manufacturing plant
Air consumption:	20L/min	power supply:	customized
Applicable materials:	PVC, Aluminum	Supply capacity:	1 aluminum window crimping machine per week
Main selling point:	High security level	product name:	Aluminium window manufacturing and assembly corner blanking machine
aspect:	100011001210mm	brand:	Dikaluma
payment terms:	L/C,Western Union,T/T	Core components:	Engine, motor, PLC
Video external inspection:	if	Production capacity:	100
Direction adjustment range:	54mm	Marketing Type:	normal product
Operating air pressure:	0.5~0.8Mpa	Warranty:	1 year
Combined height:	up to 160mm	strength:	3
Voltage:	380V	Rated pump pressure:	20Mpa
Health status:	new

Aluminium window manufacturing and assembly corner blanking machine

Product Description

1. Suitable for curling of aluminum frame and corners of sliding windows

2. Driven by hydraulic system to ensure stable work.

3. The horizontal (left and right) push-knife linkage feed is driven by a hydraulic cylinder, which avoids deformation during the blanking process.

4. This machine has the following characteristics: easy operation and small processing error.

5. The tool distance is adjustable, and the threaded connection is convenient for tool work.

6. The hydraulic station of this machine is 3KW, and the LZJ-120H is 3.0KW.

7. This machine is an advanced model of LZJ-120C, which adds the automatic up and down function of the front positioning plate, so that the rolled profiles can be easily taken out.

power supply	customized
Operating air pressure	0.5~0.8Mpa
Motor Power	3KW
Air consumption	20L/min
Rated pump pressure	20Mpa
Combined height	maximum. 160mm
Cylinder stroke	85mm
Orientation adjustment range	54mm
combined pressure	12Mpa
aspect	100011001210mm
weight	400kg

Packaging and Shipping

our service

1. Customized service:

Free industry information, free door, window and curtain wall project investment analysis, free door, window and curtain wall product line layout design.

2. After-sales service:

One year warranty

Free adjustment

Free training for operation and maintenance personnel

Provide fast spare parts supply for door, window and curtain wall enterprises.

exhibition
