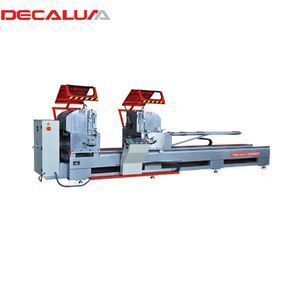

Aluminum Window Door Making Machine Automatic Cutting Profiles

Product details
Single package size:556X175X195 cm;Feeding speed:Stepless timing 0~3m/min;
Package Preview:https://sc01.alicdn.com/kf/HTB1MJFym8jTBKNjSZFw763G4XXaX.png_640x640.png;Max. Cutting height:300mm*90°;200mm*45°;
After-sales Service Provided:Engineers available to service machinery overseas;Weight:1850kg;
Power(W):7.2;Production Capacity:1000;
Warranty:1 Year;Air consumption:200L/min;
Cutting width:max 125mm;Operation air pressure:0.5~0.8Mpa;
Service:1 year for free;Contour Dimension:5530*1750*1950mm;
Selling Units:Single item;Certification:CE;
Voltage:380;Function:cutting;
Brand Name:DECALUMA;Weight:2000;
Single gross weight:2,000 KG;Dimension(L*W*H):5560*1750*1950;
Product name:Aluminum Window Door Making Machine Automatic Cutting Profiles;Package Type:steel chassis with plastic cover or wooden package;
Applicable Material:Aluminum;Delivery Detail:0 days after payment;

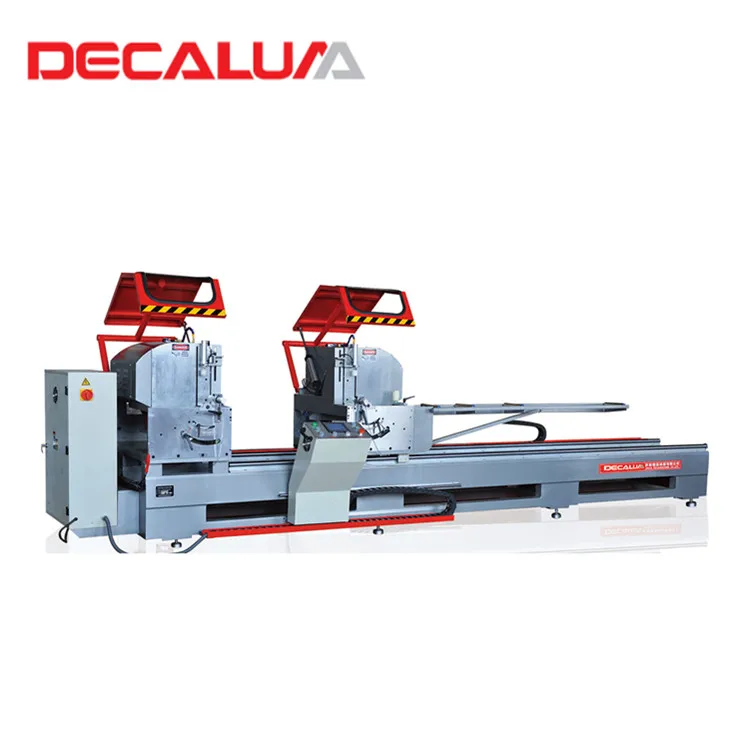

        Aluminum Window Door Making Machine Automatic Cutting Profiles

Product Description



l It boasts of exceptional performance characteristics, including ruggedness and reliability. This machine is the ideal tool for cutting Aluminum, PVC and Curtain-wall profile.

l Accurate cutting ensures a high accurate re-load position and convenient man operation work.

l Linear bearing system in moving and feeding device ensures accurate machine running and cutting.

l Right head feeding adopts high helical ball screw-lead motion, with high accuracy and stability.

l Hydraulic cylinder ensured the stable speed adjusting and saw blade working.

l Cutting length is controlled by computer control system to locate fast and precisely.

l CNC Control System for cutting Optimizing with screen output.

l Automatic angle cutting can changed in 45°, 90°. Automatic traversing of moving cutting head and tilting inwards up to 45°.

l Imported carbide saw blade for a high quality cutting and life.

l Safety system of shield can ensure the safe operation of man working.






Motor power

2*2.2KW+3KW

Motor rotary speed

3400r/min

Operation air pressure

0.5~0.8Mpa

Cutting length

220~4200mm

Air consumption

200L/min

Max. Cutting height

300mm*90°;200mm*45°

Cutting width

max 125mm

Cutting angle

90°,45°, arbitrary adjusting available

Feeding speed

Stepless timing 0~3m/min

Cutting profile surface plane

≤0.10mm

Cutting angle tolerance

Ra12.5 μm

Saw blade specification

φ500mm×4.4mm×φ30mm  Z=120

Contour Dimension

5530*1750*1950mm

Weight

1850kg

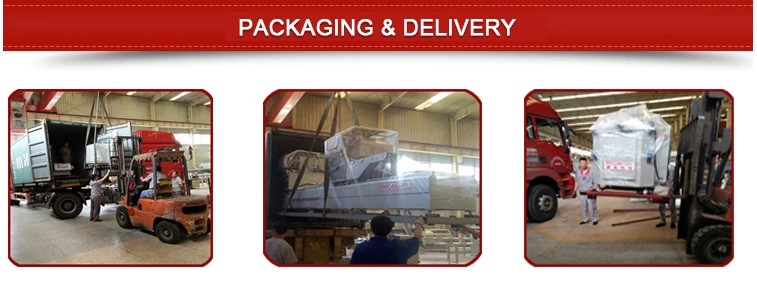

Packaging & Shipping



Our Services

1.Why choose you

     We have excellent sales and after-sales team

2.Sample service:

     Our engineer is available to travel abroad, help the installation, maintenance and training staff.

3. Customized service:

      Free industrial information, free investment analysis for windows, doors, and curtain wall project, free  layout design for window, and door and curtain wall product line.

4.After sales service:

    One year guarantee

     Free adjustment

     Free training to operation and maintenance workers

     Free industrial information

     Free investment analysis for windows,doors and curtain wall project

     Free layout design for windows,doors and curtain wall production lines

     Provide follow-up service,regular maintenance and lifetime service for our machines sold

     Provide quick supply of spare parts for window and curtain wall companies.

     Provide technical support including pressure design and caculation for window and curtain wall companies

    We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.



Company Information











FAQ

2. What you can do if my machine  have some problems?

1) We can send you free components to you if your machines are in guarantee time.

 2) We can send our engineers to repair your machines

3. what services  can provide in your company  ?

1) one year guarantee

2) free adjustment

3) free training to operation and maintenance workers.

4) free industrial information

5) free investment analysis for windows, doors and curtain wall project.

6) free layout design for windows,doors and curtain wall production lines.

7) provide follow-up service, regular maintenance and lifetime service for our machines sold.

8) provide technical support including pressure design and caculation for window and curtain wall companies.

9) provide quick supply of spare parts for window and curtain wall companies.

4. Quick detail of our company.

Company Name

JINAN DEGA MACHINE CO.,LTD.

Year established

2006

Address

No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA

Business type

Manufacturer



Product range

CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine

Product advantage

Using advanced solidworks design platform

Management certificate

ISO9001,national patent

Fair we attend

Shanghai and Beijing international windows show

E-catalog

available

MOQ

1 set

Payment terms

TT or L/C

Shipping port

Qingdao port
