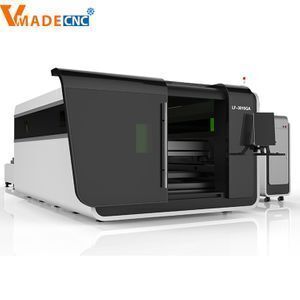

IPG/Raycus Source 500w 800w 1000w Metal Protect Covering Fiber Laser Cutting Machine
-
Supplier: Jinan Vmade CNC Machine Co., Ltd. -
Region: Shandong, China -
Contact: Ms Alice Sun -
Price: $35000.00 /set -
Min. Order: 1 set
| Laser Type: | Fiber Laser; | Delivery Detail: | 0 days after payment; |
| CNC or Not: | Yes; | Key Selling Points: | Automatic; |
| Single gross weight: | 7,000 KG; | Applicable Material: | Metal; |
| Control System Brand: | Cypcut; | Laser Source Brand: | IPG; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Working area: | 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm; |
| Control system: | Cypcut Control System; | Power supply: | 380V/50HZ; |
| Function: | Cutting Metal Materials; | Condition: | New; |
| Warranty: | 3 Years; | Cutting materials: | Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine ); |
| Guiderail Brand: | HIWIN; | Single package size: | 5190X3000X2400 cm; |
| Warranty: | 3 years; | Cutting Thickness: | 0-30mm; |
| Selling Units: | Single item; | Certification: | CE,ISO,SGS,CCC; |
| Package Type: | standard wooden box,20'FR+20'GP.; | Place of Origin: | Shandong China (Mainland); |
| Application: | Laser Cutting; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Keyword: | Laser Metal Cutting Cnc Machine; | Brand Name: | VMADE; |
| Driving system: | Yaskawa Servo; | Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT; |
| Servo Motor Brand: | Yaskawa; | Control Software: | Cypcut; |
| Working table: | Blade Table; | Laser Head Brand: | Raytools; |
| Cooling Mode: | Air Cooling; | Cutting Speed: | 0-40000mm/min; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Restaurant,Advertising Company; | Cutting Area: | 3000mm*1500mm; |
IPG/Raycus Source 500w 800w 1000w Metal Protect Covering Fiber Laser Cutting Machine
Features
1) Stability and reliability of light path system and control system.
2) Imported original fiber lasers, high and stable, lifespan is over 100000 hours.
3) Higher cutting quality and efficiency, cutting speed is up to 60 m/min.
4) High performance german reducer, gear and rack; Japanese guide and ball screw.
Application :
0.5-20mm carbon steel and 0.1-12mm stainless steel perfect cutting brings customer good feedback from Industry parts making.
Material:Carbon steel,stainless steel,alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.
Industry:machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields
Exact: size fixing, result fixing
Smooth:like baby skin and less burning edge
Material:Carbon steel/ stainless steel/ galvanized steel/electrolytic galvanized steel/sillicon steel/alloy/brass/red copper/titanium sheet/spring steel/nicket titanium alloy/chromium nicket iron alloy/titanium alloy
Fiber Laser Cutting Machine Technical Parameters:
Model | 1530 Fiber laser cutting machine |
Working Area | 1500*3000mm |
Laser Power | 500W/1000w/1500w/2000w/3000w |
Laser Wave Length | 1064nm |
Working Table | Saw tooth |
Maximum Idle Running Speed | 1200mm/s |
Position Accuracy | ±0.05mm/m |
Position Speed | 20m/min |
Minimum Line Width | ± 0.02mm |
Cutting Thickness | ≤6mm |
Control System | Cypcut |
Position Type | red dot |
Power Consumption | ≤12KW |
Working Voltage | 380V/50Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Working life of fiber module | More than 100000 hours |
Fiber laser cutting head | Raytools Laser Cutting Head |
Focus lens | Imported |
Driver system | 1500W Yaskawa servo motor made in Japan |
Liner guider system | PMI made in Taiwan , (Option THK made in Japan) |
Transmit system | Dual Rack & Pinion type |
Rack system | made in Germany |
Chain system | Igus made in Germany |
Warranty time | 3 years |
1 High speed, high precision, high efficiency and low cost
2 Easy on operation, fiber optical path, without tediously adjustment on optical path
3 Compact structure, good sealing, strongly adaptable to changes in the environment.
4 With the perfect automatic nesting system which can save time, save the materials,the sheet utilization ration up to 95%.

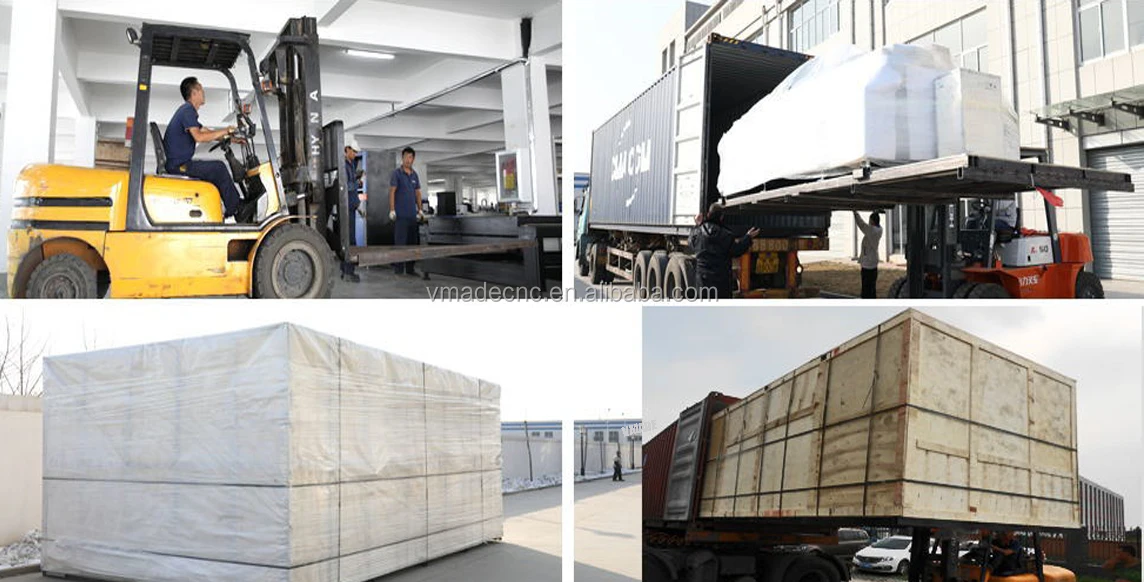

VLF-1530GN packing need 20'FR+20'GP.
20'FR:5200*3000*2200mm Weight:4000Kg
20'GP:2 packages Size:1835*920*2000mm Weight:600Kg
3800*2300*1900mm Weight:2000Kg
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professionalservices will satisfy you!
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?
Q2.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,Whatsapp or Wechat.

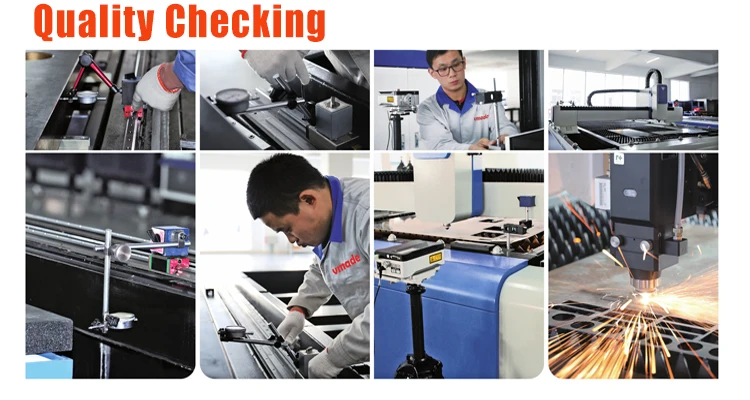

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
Q5:What is your training and repairing process?
Austria engineer Mr. Gary responsible for Europe+ Africa area (8 years)
India engineer Mr.Anil responsible for Asia (5 years)
Argentina engineer Mr.Mario responsible for South America (5 years)
Q6.How about the payment terms?
General we use 100% T/T,30 % T/T in advance+70%T/T after check video and pictures before shipment.
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
Busniess Card:
Tel:+86 0531 88971992
-
