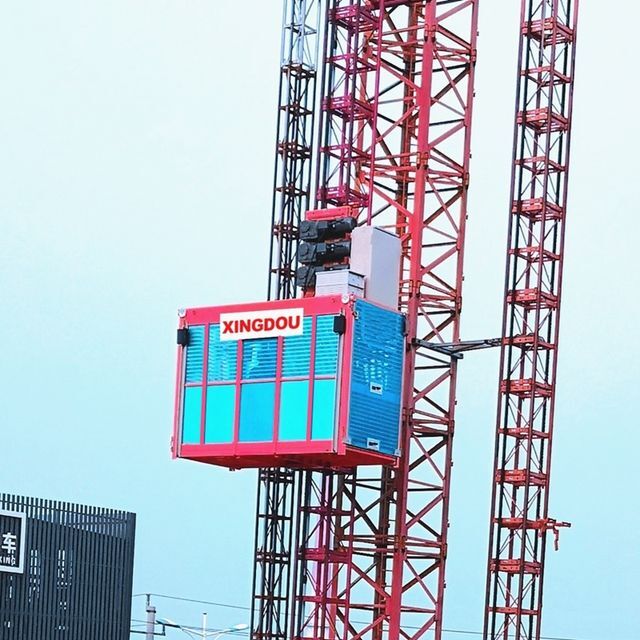

Alimak construction lift builder lift personnel material lift under construction

Supplier: Shandong Xingdou Intelligent Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Nick Ma
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cage Size:	3x1.5x2.2m, 3.2x1.5x2.2m, OEM cage	brand:	star
Mechanical test report:	if	Rated load capacity (kg):	500KG~3200KG
Certificate:	CE, ISO, COC	Showroom location:	Egypt, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan , Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia
Lifting speed:	0-36M/MIN, 0-45M/MIN, 0-63M/MIN, 0-96M/MIN	Motor Power:	311kw, 213kw, 211kw, 215kw
Marketing Type:	New Products 2020	Mast part:	6506501508mm, climbing tower guardrail
Core Components Warranty:	2 years	Supply capacity:	1500 sets per year
Loader Weight:	500KG~3200KG	Weight (kg):	10000 kg
Dimensions (LWH):	4*5M	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Restaurants, Home Furnishings, Construction Engineering, Energy and Mining, Advertising Agencies
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Video external inspection:	if
place of origin; place of origin:	Shandong China	Packaging Preview:
Drive Type:	Gears and Racks	product name:	Alimak Construction Lifts Builders Lifts Personnel Material Lifts
Warranty:	1 year	More features:	Wireless calling systems, telecommunications
Voltage frequency:	380~415v/50Hz, 440~480V/60Hz	Maximum lift height:	250M, 400M
Packaging Details:	Packs and secures well in 20' and 40' containers in cases or pallets	Main electrical system:	Schneider, Siemens inverter
Operation method:	Joystick, Autoland Button, Remote Control	Core components:	gearbox, motor, gear
Unique Selling Points:	Long service life and low maintenance rate	port:	Qingdao Port (other ports in China)
Health status:	new

Alimak construction lift builder lift personnel material lift under construction

Product Description

500kg-3000kg carrying capacity CE certified Alimak Construction Lift Manufacturer Elevator Personnel Material Lift Under Construction
Its main products include:

 PLC construction hoist.

 Low, medium and high speed variable frequency construction hoists.

 Special purpose construction hoists, such as power plant cold water tower construction hoists, micro-frame construction hoists for tower cranes and mine construction hoists.

 Inclined construction hoists.

 Small frame observation lift.

 Advanced test stand maintenance lift.

 Other OEM types of rack and pinion vertical lifts.

A.DOL type PLC control general Alimak construction elevator construction personnel elevator personnel construction material elevator

Specification	type	lifting capacity	Lifting speed	Motor Power	Inverter	safety equipment
single cage	SC100L	1000Kg	0~33m/min 0~40m/min	2×11Kw	30Kw	SAJ 30-1.2
		SC150L	1500Kg	0~36m/min 0~45m/min	2×13Kw 2×15Kw	30Kw 37Kw	SAJ 40-1.2
		SC200L	2000Kg	0~40m/min 0~46m/min	2×15Kw 3×11Kw	37kW	SAJ 40-1.2
double cage	SC100/100L	1000Kg×2EA	0~33m/min 0~40m/min	2×11Kw×2	30kW	SAJ 30-1.2
		SC150/150L	1500Kg×2EA	0~36m/min 0~45m/min	2×13Kw×2 2×15Kw×2	30Kw 37kW	SAJ 40-1.2
		SC200/200L	2000Kg×2EA	0~40m/min 0~46m/min	2×15Kw×2 3×11Kw×2	37kW	SAJ 40-1.2

B. VFC type inverter controlAlimak construction lift builder lift personnel material lift under construction

Specification	type	lifting capacity	boost speed	Motor Power	Inverter	safety equipment
single cage	SC 100 meters	1000Kg	0~60m/min	3×13Kw	45Kw	SAJ 30-1.4
		SC 150 meters	1500Kg	0~58m/min 0~60m/min	2x11Kw(87Hz) 3×15Kw	45Kw 55Kw	SAJ 40-1.4
		SC 200 meters	2000Kg	0~55m/min 0~60m/min 0~75m/min 0~96m/min	2×11Kw(87Hz) 3×15Kw 3×16Kw(87Hz) 3×19Kw(87Hz)	45Kw 55Kw 90Kw 105Kw	SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-1.6
double cage	SC 100/100 M	1000Kg×2EA	0~60m/min	3×13Kw×2EA	45Kw	SAJ 30-1.4
		SC 150/150 M	1500Kg×2EA	0~58m/min 0~63m/min	2x11Kwx2EA(87Hz) 3×15Kw×2EA	45Kw 55Kw	SAJ 40-1.4
		SC 200/200M	2000Kg×2EA	0~55m/min 0~60m/min 0~75m/min 0~96m/min	2×11Kw×2(87Hz)3×15Kw×2 3×26Kw×2(87Hz) 3×19Kw×2(87Hz)	45Kw 55Kw 90Kw 105Kw	SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0

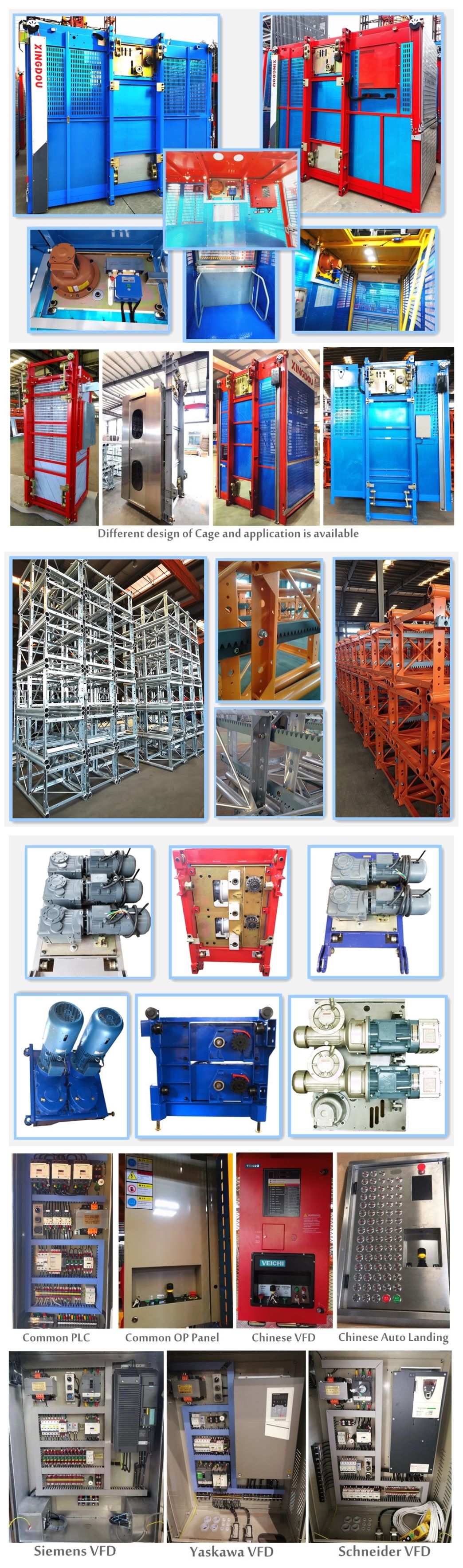

Product advantages

CE Certified Alimak Construction Lift Manufacturer Elevator Personnel Under Construction Material Lift

A. High-quality electrical system configuration

①DOL type construction elevator has PLC system without inverter. It keeps the crane running smoothly when starting and braking.

②Siemens VFC system of construction hoist, good self-protection, energy saving, durable, super working performance

B. High mast section stability

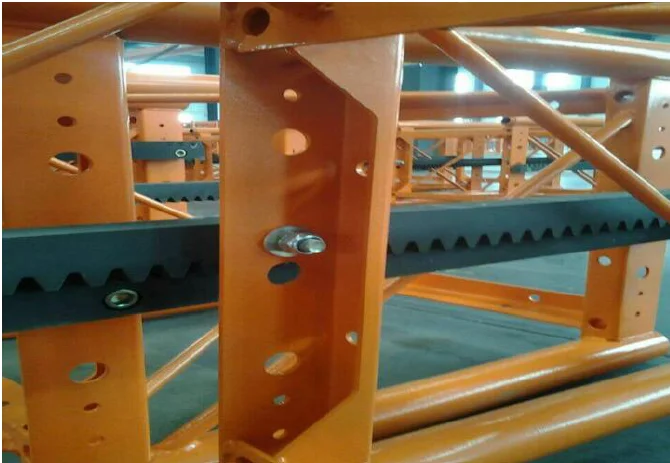

①The raw material of the rack is made of 60# steel, and the general error is more accurate within 0.2, keeping the rack and pinion well matched, the work is stable, and there is no noise.

②The mast section is welded by robot, and the mast section is rarely deformed. The mast mast adopts Alimak Hek technology to change into a U-shaped structure, which is stronger than the domestic general-purpose type.

C. High safety of carriages and carriages

①When the hoist moves too fast, or exceeds the limit speed we set, the safety device will trip. All limits s/w keep the cage in a safe state during operation.

②The guide rollers are anti-fall type, and the rollers are well designed to keep the cage climbing on the normal track.

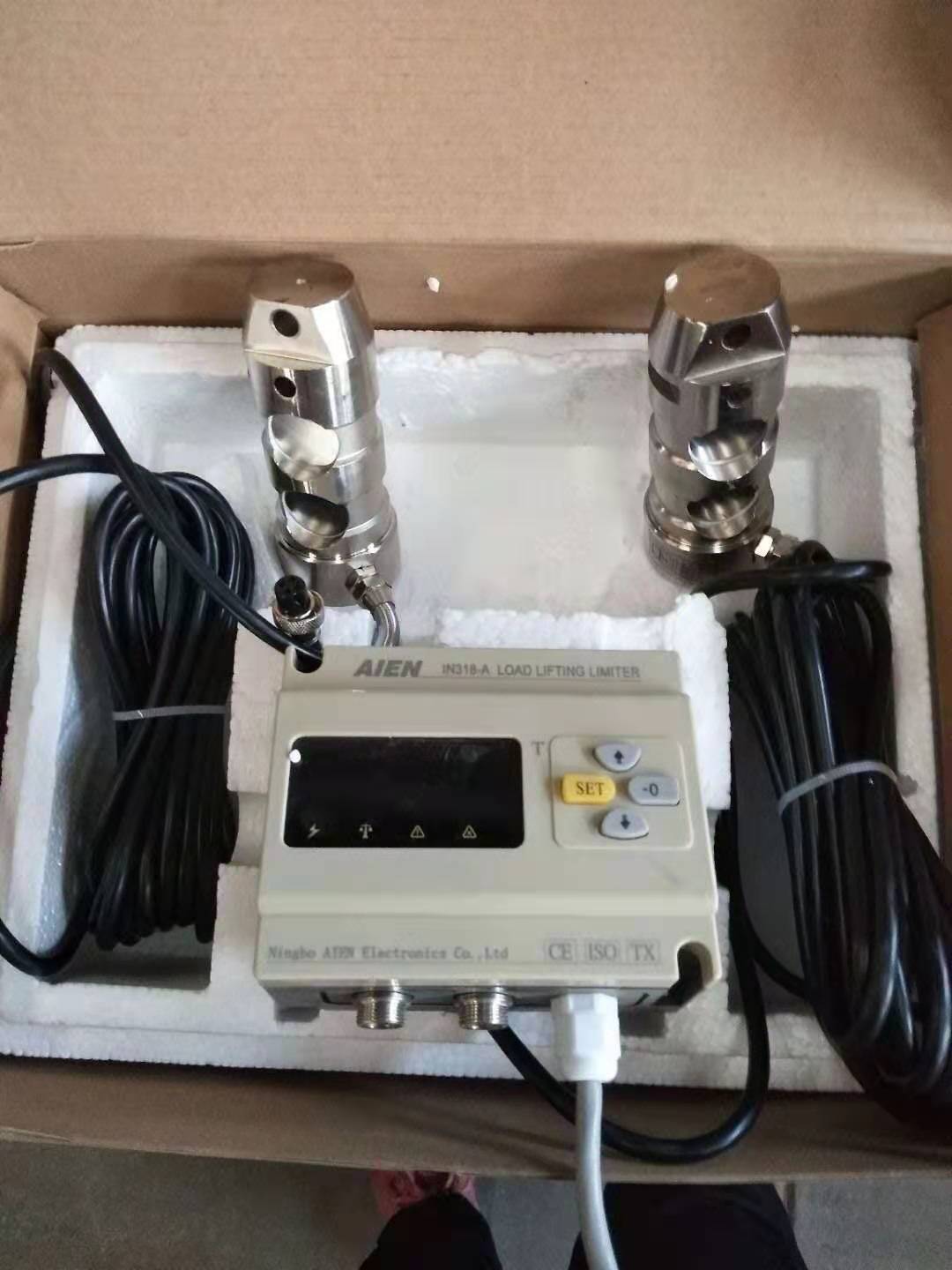

③ When the land limiter is close to the effective load, it will alarm, and the power will be cut off when it is overloaded.

④The motors and gearboxes adopt China's leading brands with excellent performance and are well received by customers

D. Completed Quality Control Process

① mast section inspection.

Each mast section should be checked for dimensions, planes and installation tests.

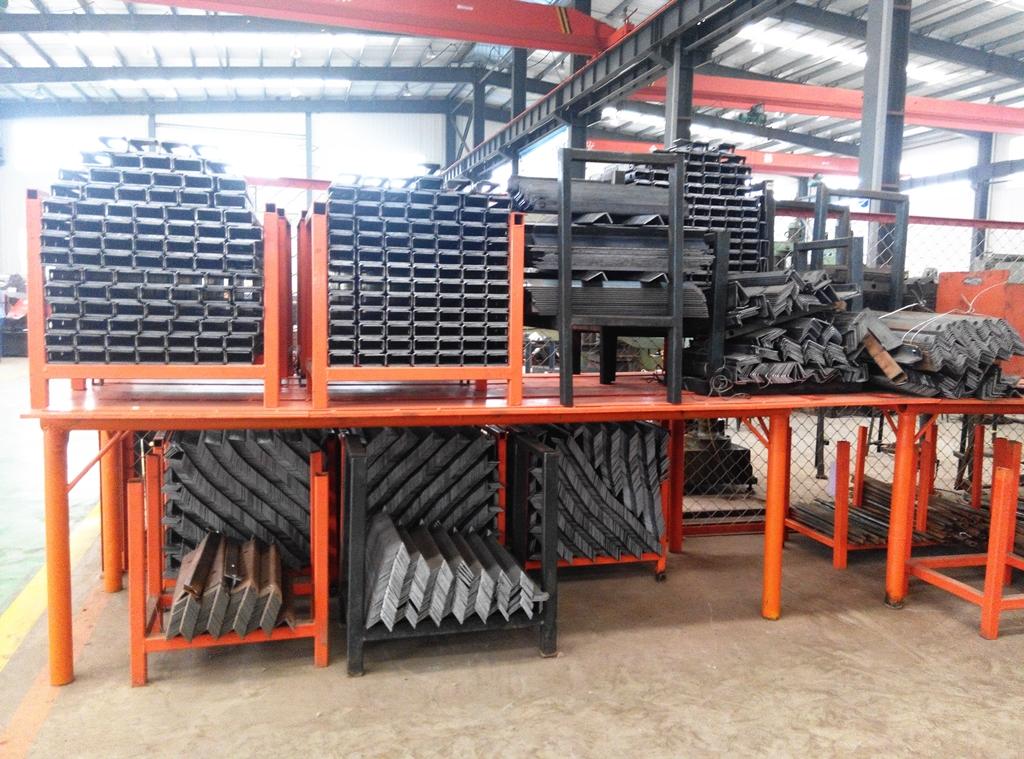

② Inspection of semi-finished products.

We have specialized management for semi-finished products warehouse. All Semi products are inspected before being shipped to the warehouse.

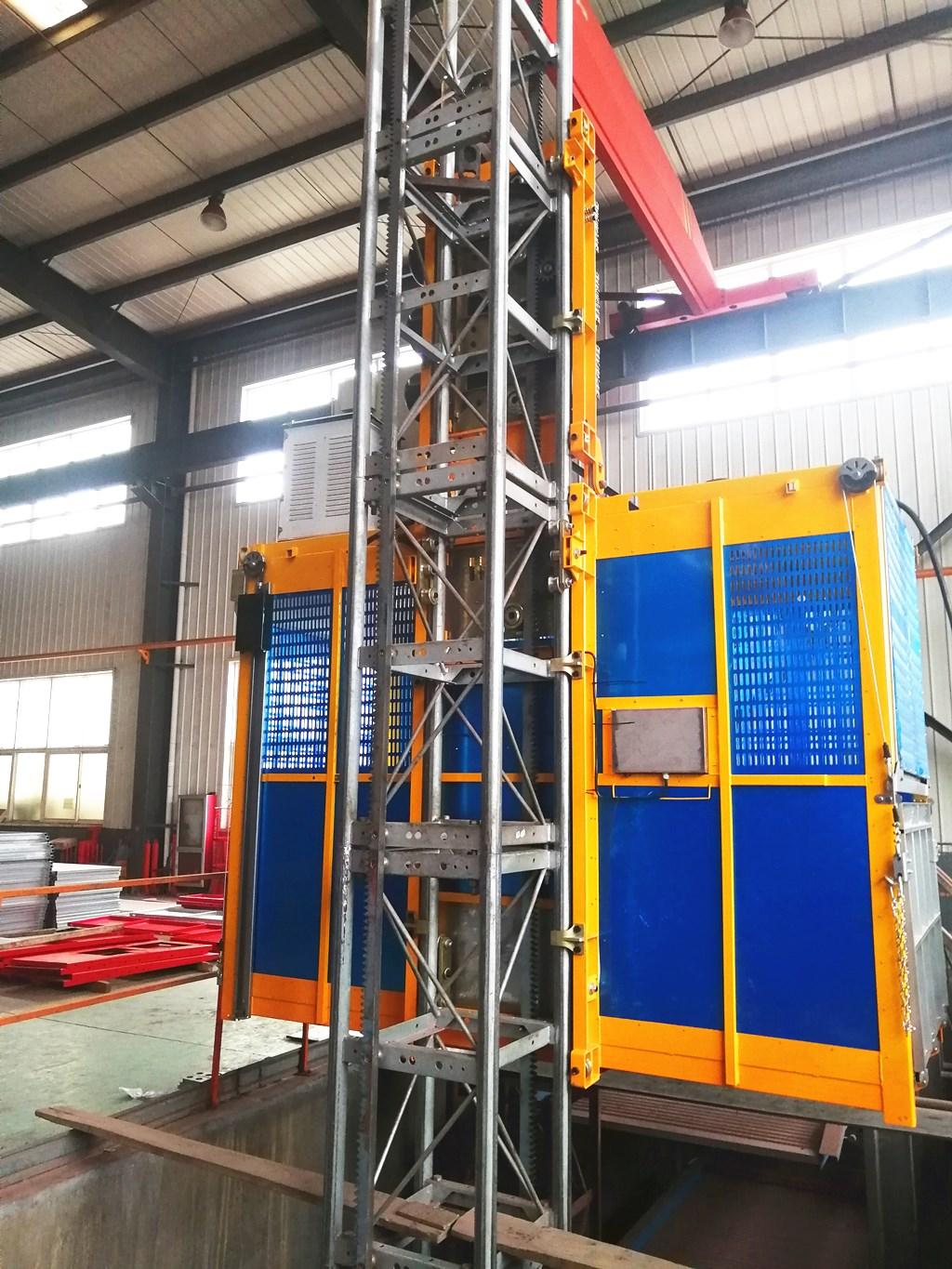

③Ex-factory operation test of the whole machine.

Before leaving the factory, each construction hoist must be tested for factory operation and a report must be issued.

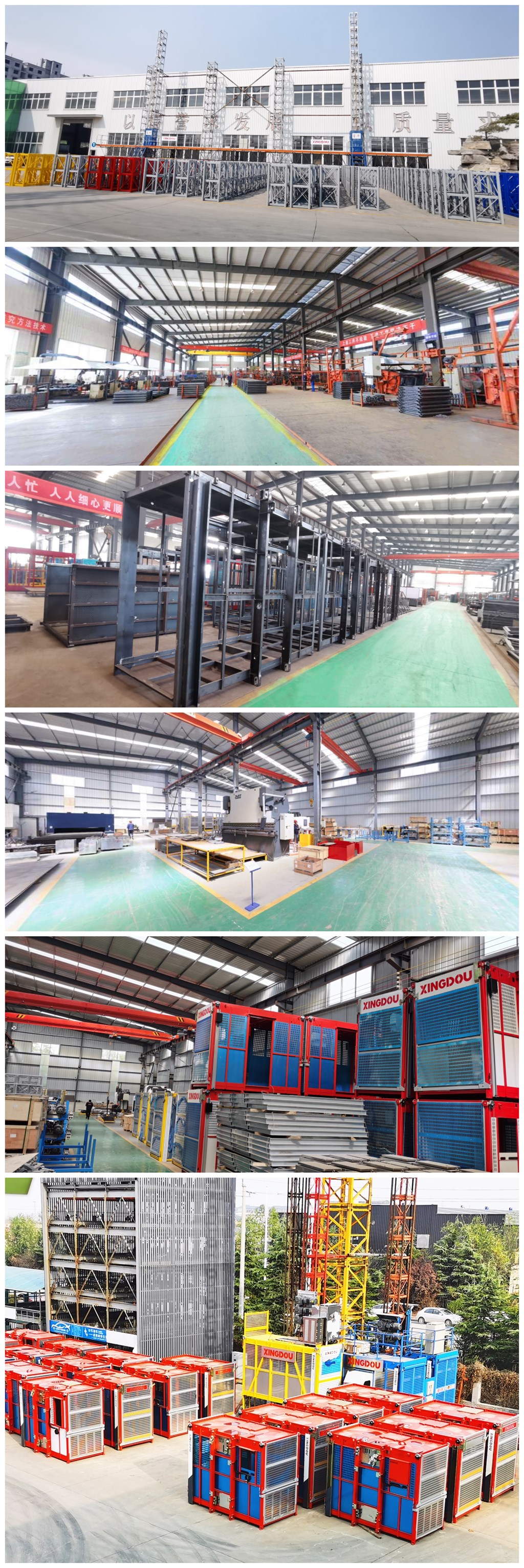

manufacturing

Alimak Construction Lift Professional Manufacturer Elevator Personnel Material Lift Under Construction

1. - All production lines use special jigs, molds, gauges made by us to ensure all detailed dimensions.
2.- Choose high-quality raw materials from China Baosteel Group, others such as motors, reducers, gearboxes, low-noise safety devices, electrical appliances are Schneider or well-known Korean brands, with reliable quality
3.- Special design, compact and reasonable structure, easy installation and adjustment.
4.- Every piece of equipment should be tested and recorded at the factory, all details will be adjusted such as motor braking, safety gear operation, all limit switch operation, drop test, load test and mast section installation test to ensure completion The device works well when used.

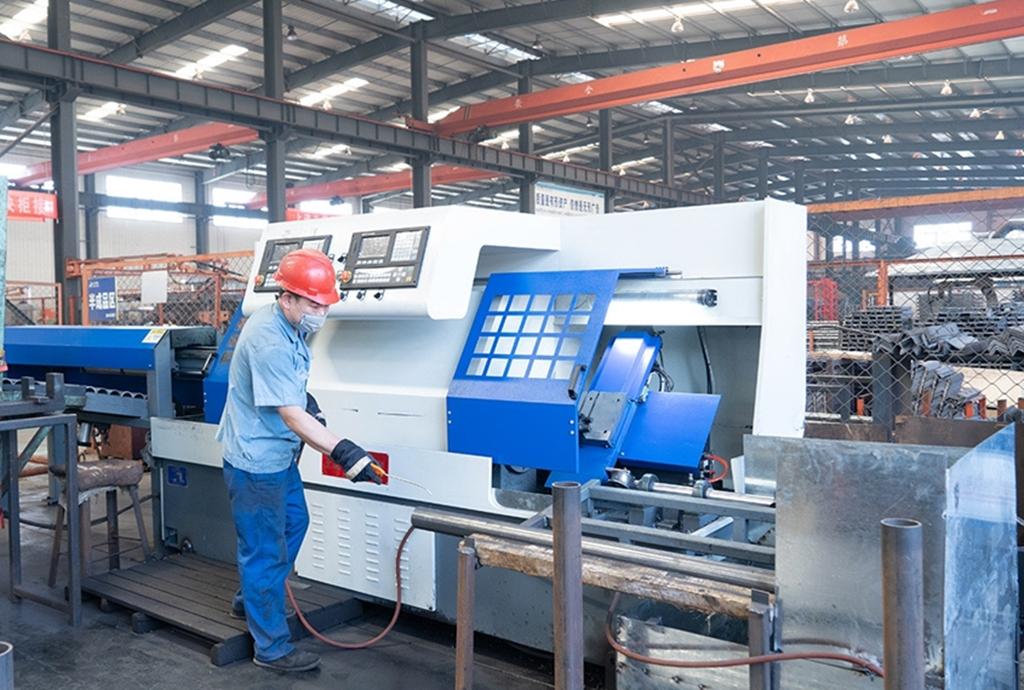

CNC milling machine

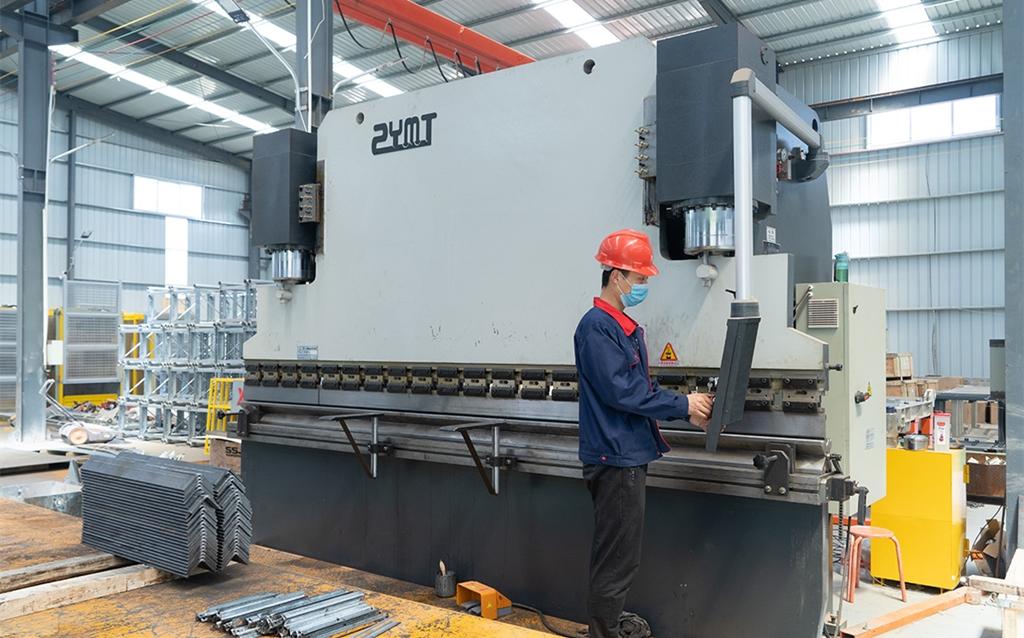

CNC bending machine

Ensuring efficient and high-quality semi-finished products

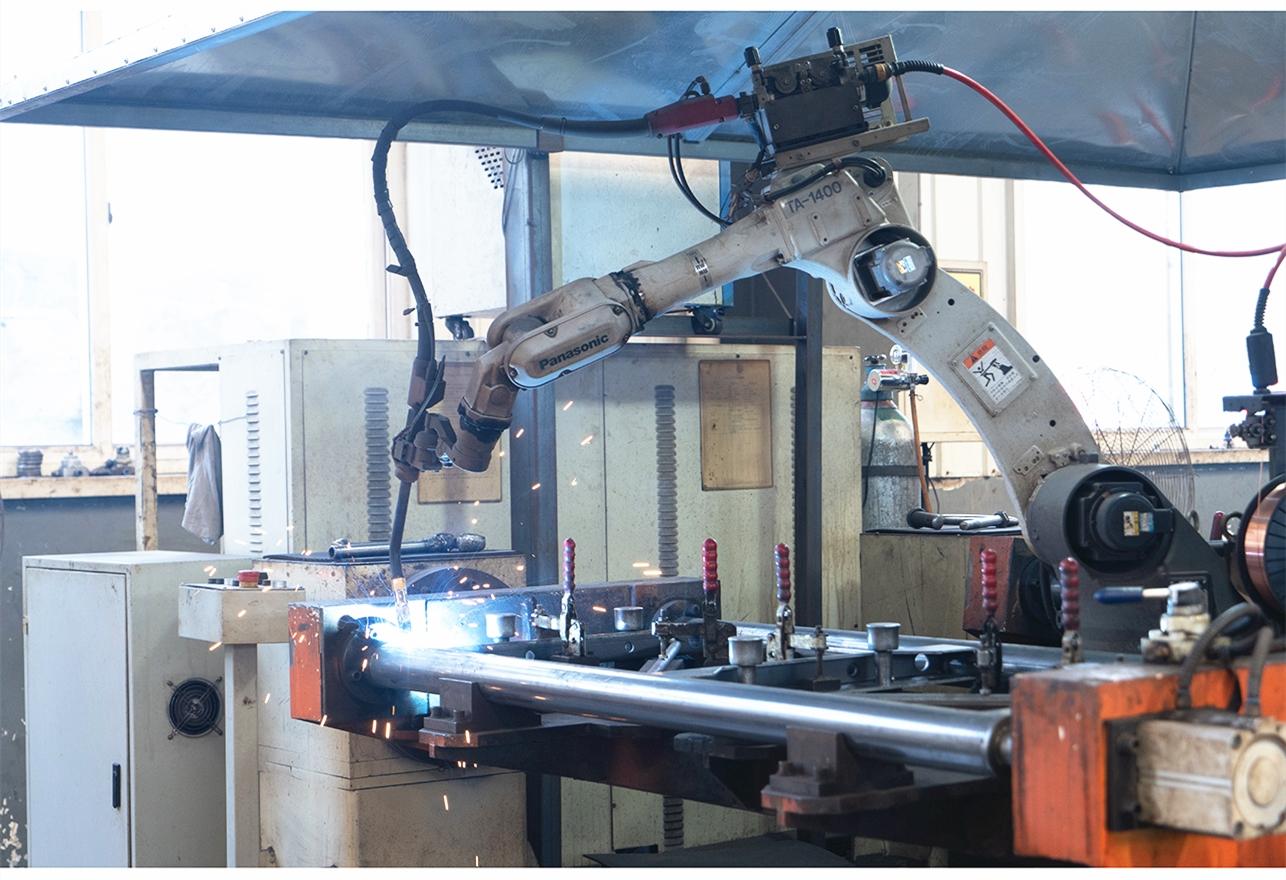

Robot welding

Maintain high quality and good appearance for all paints. The mast section and wall tie are robotically welded to ensure welding quality and appearance

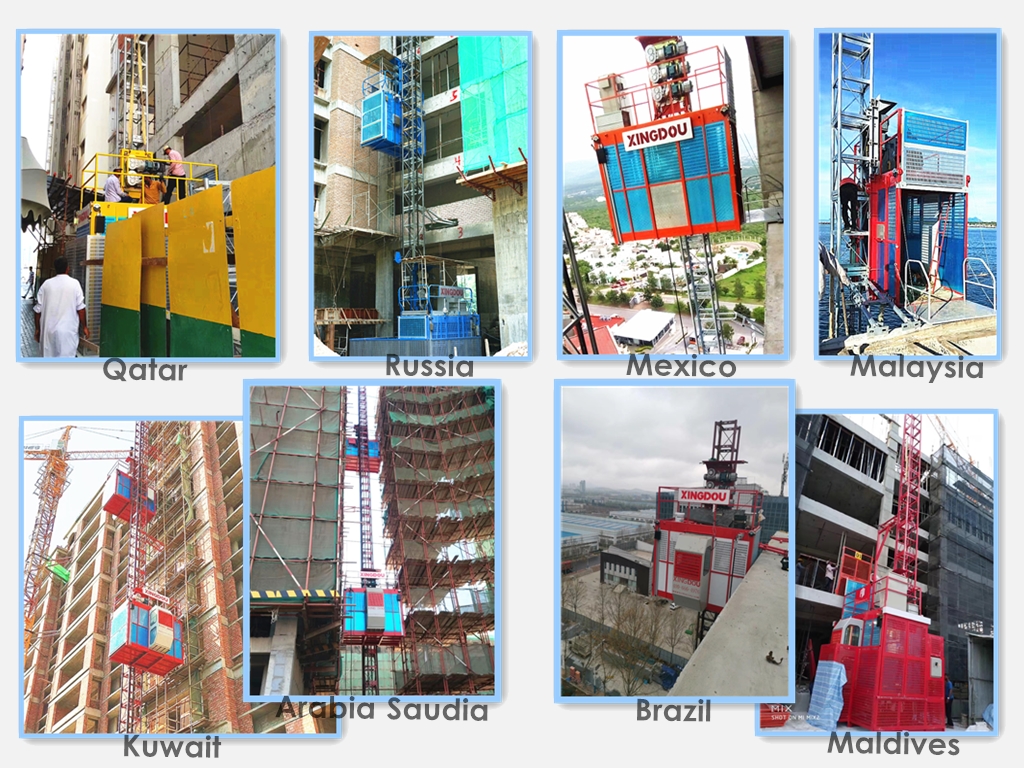

Applications and Success Stories

Why choose us:
- Our material lifters lift construction elevators:Zero accident, safety first!
- Our material lifters lift construction elevators:Mass production and OEM capability
- Our material lifters lift construction elevators:well made
- Our material lifters lift construction elevators:Fast delivery, fast response
- Our material lifters lift construction elevators:Considerable overseas service
